A ducted unit for a large zone: the upper floor of a big house or an office suite

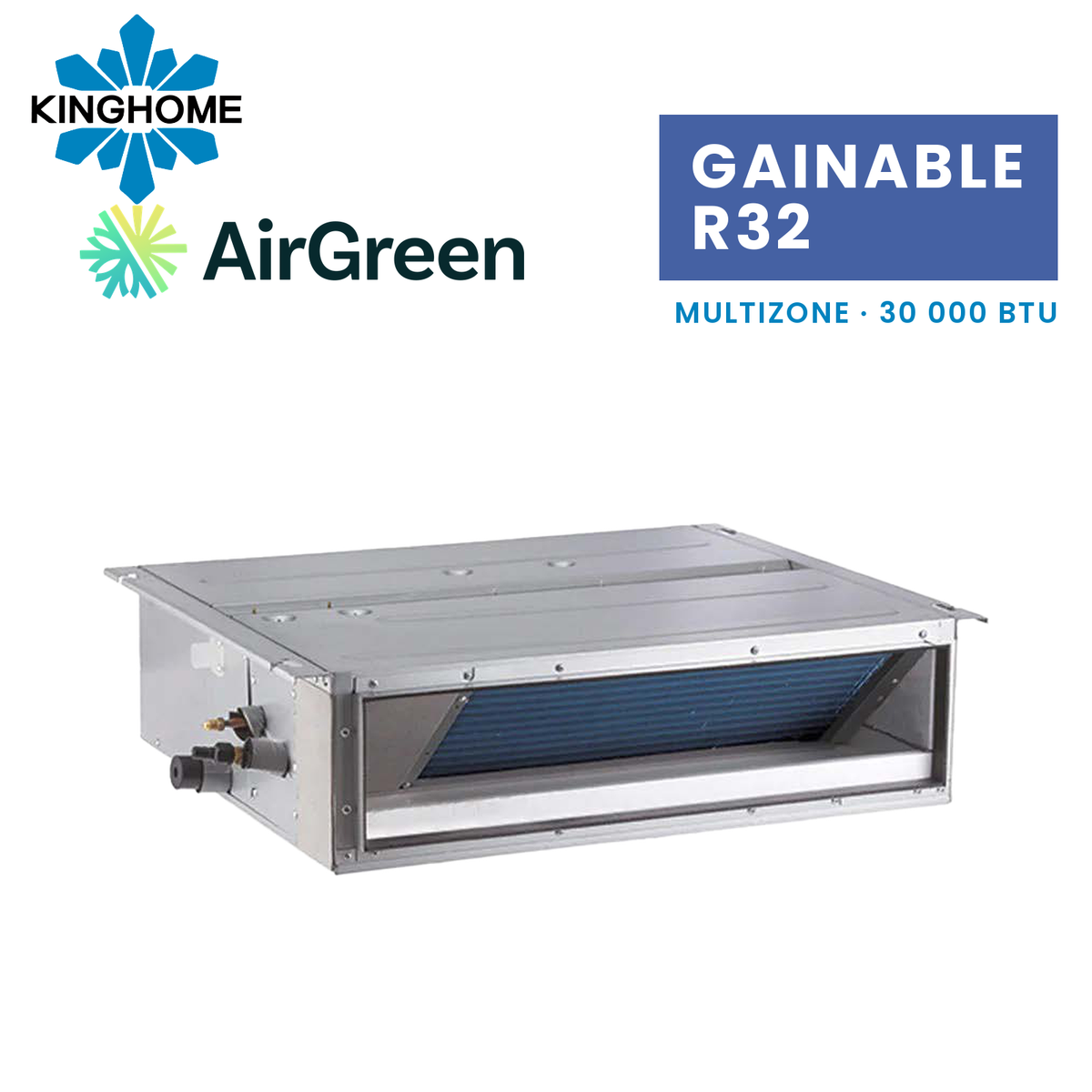

The 30,000 BTU size of the KINGHOME high-static ducted unit moves up a scale. It's no longer aimed at a bedroom or one floor of a cottage, but at a large zone served by a duct network: the entire upper floor of a big house with four bedrooms and a playroom, or a professional office suite, such as an accounting firm, a clinic or an agency, where several closed rooms share the same hallway. In these cases, one head per room would mean more units and more lines; a ducted unit of this capacity brings the zone together on a single concealed unit.
This ducted unit is an indoor head for a multi-zone heat pump. It doesn't work on its own and, in the KINGHOME lineup, it connects to only one Ultra Heat outdoor unit, as we explain below. It has no efficiency certification of its own: the certified performance belongs to the complete system.
What a 30,000 BTU capacity makes possible
With a maximum airflow of 883 CFM, this ducted unit supplies a larger duct network than the usual residential sizes. The high-static design becomes essential here: the more rooms there are, the more branches, elbows and grilles there are, and the more pressure the fan has to deliver so the last room down the hallway gets its share of air. The available static pressure is set at commissioning and the network is balanced room by room.
The dehumidification of 7.4 pt/h, or about 3.5 L/h, is the second figure to keep in mind. In an office suite that's occupied all day, or on the upper floor of a big house where several people live, the occupants produce a lot of humidity. This ducted unit removes it while it cools.
Specs for the 30,000 BTU ducted unit

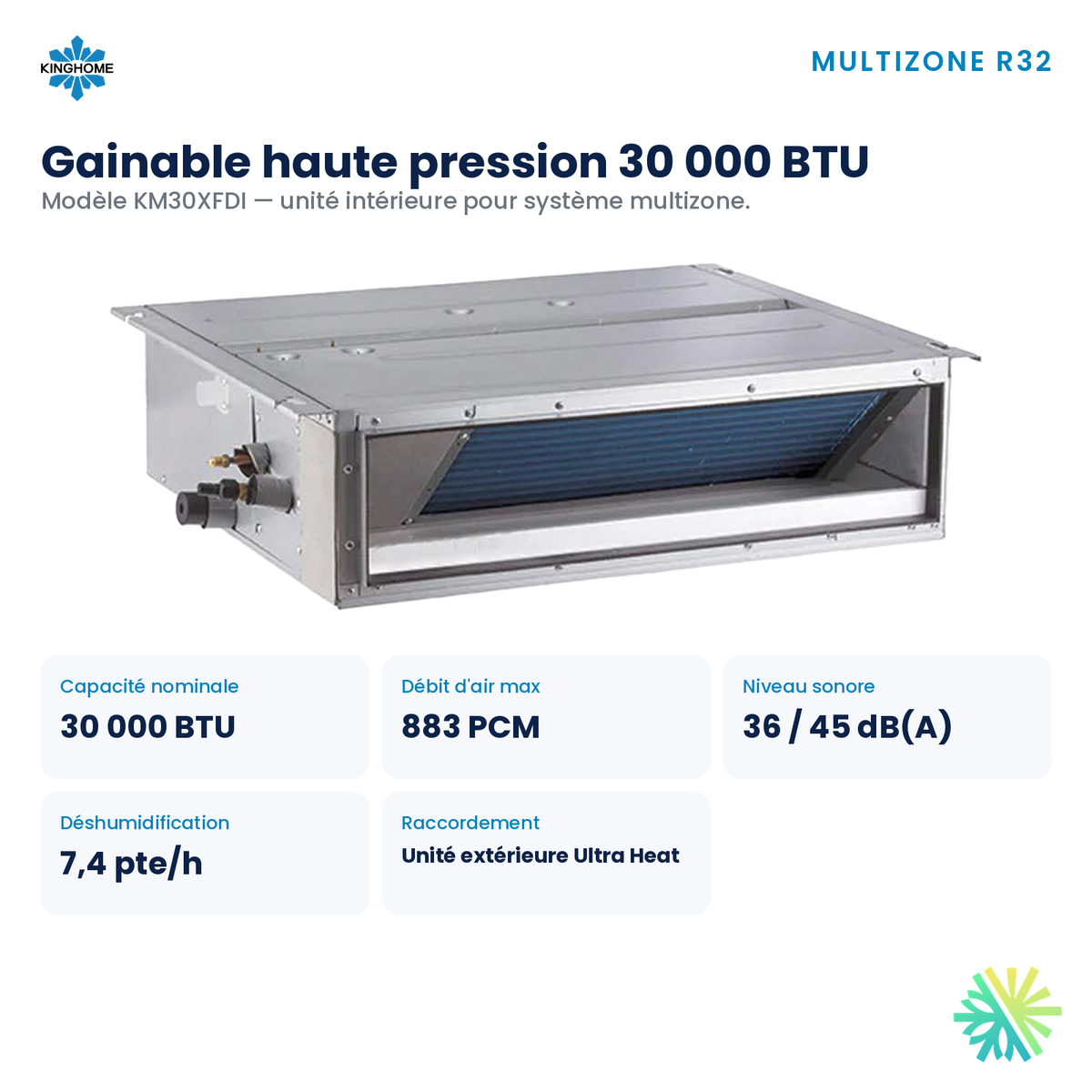

- Nominal capacity: 30,000 BTU, R-32 refrigerant
- Maximum airflow: 883 CFM
- Indoor sound level: 36 to 45 dB(A)
- Dehumidification: 7.4 pt/h, or about 3.5 L/h
- 220 V power supplied by the outdoor unit
- Wi-Fi: included, through the supplied wired wall controller
The 36 to 45 dB(A) sound level is measured at the unit, which is installed outside the occupied rooms: in a mechanical room, a closet or a hallway ceiling. In the offices and bedrooms, only the air at the grilles can be heard.
The dimensions of this size aren't in our certified data. Before reserving the space in a ceiling or a mechanical room, we confirm them on the manufacturer's current spec sheet. We'd rather say so than post an approximate measurement.
Only one compatible outdoor unit: the KM60X6O
According to the compatibility table in the KINGHOME multi-zone brochure, 30,000 BTU heads connect only to the KM60X6O outdoor unit, the largest in the Ultra Heat lineup, which accepts up to 6 zones. No other outdoor unit in the lineup accepts this ducted unit.
Two consequences are worth knowing:
- The project is built around a 60,000 BTU outdoor unit. The ducted unit covers one large zone, and the building's other zones share the same outdoor unit, for example a cassette in a meeting room and wall-mounted heads in the ground-floor offices, or heads on the main floor of a big house.
- According to its certification, the KM60X6O doesn't carry the ENERGY STAR cold climate designation, unlike the KM18X6O to KM48X6O units. We take this into account in the on-site assessment of heating needs and in the choice of backup heat.
According to the manufacturer's brochure, a system's certified performance varies depending on whether the heads are wall-mounted, ducted or mixed. The values on the KM60X6O's page correspond to the certification with wall-mounted heads; we check which one applies to your combination.
What's supplied
According to the manufacturer's spec sheet, this ducted unit includes a built-in condensate pump and the wired wall controller with Wi-Fi. Add to that the dehumidification mode, self-cleaning, forced defrost, soft start, low-voltage start-up and a frost-protection maintenance heating mode, which comes in handy for offices closed on weekends. The multi-zone brochure also mentions centralized control options for commercial buildings.
What we check before the installation
In Montréal, Laval or Longueuil, on the North Shore or on the South Shore, a project with this ducted unit calls for a full assessment.
The location and access
We confirm the unit's dimensions on the manufacturer's spec sheet, then choose the location: a mechanical room, a hallway drop ceiling or a bulkhead. Access to the filter and the pump has to stay clear. In a commercial building, we check the sprinklers, the light fixtures and the landlord's requirements.
The duct network
The ducts are sized for 883 CFM, insulated and sealed. Each room has its own supply grille, and the return air is planned so the air comes back even with the doors closed. Balancing is done room by room at commissioning.
The power supply
The ducted unit gets its 220 V from the outdoor unit. The circuit to plan is the KM60X6O's, based on the minimum circuit ampacity (MCA) and maximum overcurrent protection (MOP) listed on its spec sheet. It's a substantial circuit: we check the capacity of the electrical service before any quote.
The outdoor unit
The KM60X6O goes on a raised base on the ground, on a flat roof or on a bracket suited to its size, above the snow, with free drainage for the defrost water.
The piping and the drain
The diameters follow the manufacturer's spec sheet, and the total length of all the lines stays within the KM60X6O's limits. The built-in pump lifts the condensate to a drain; a secondary drain pan protects the finished ceiling under the unit.
LogisVert assistance
This ducted unit doesn't appear on the Hydro-Québec list by itself, since it has no certification of its own. For a home, the LogisVert assistance is tied to the complete system: its indicative amount is calculated using the LogisVert rule applied to the KM60X6O ($50 per 1,000 BTU/h of certified heating capacity at -8.3 °C, the rate for a unit without a cold climate designation); eligibility is confirmed on the installation date. A combination that includes a ducted unit falls under a different certification from one with wall-mounted heads: we check that it's listed before announcing an amount. An office suite generally falls under programs other than LogisVert. Only Hydro-Québec confirms the assistance granted.
Why go with AirGreen
- Salaried refrigeration technicians who also design and install the duct network.
- Civil liability insurance of $5,000,000.
- Kinghome warranty registration done at commissioning; for commercial applications, the Kinghome brochure provides 5 to 7 years on the compressor and parts.
- After-sales service and maintenance contracts.
Ask for your free estimate: we assess the zone, the duct network and the electrical, then propose a complete configuration built around the KM60X6O.
Documentation
Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor.
