The largest ducted unit in the lineup: retail, training rooms, large open areas

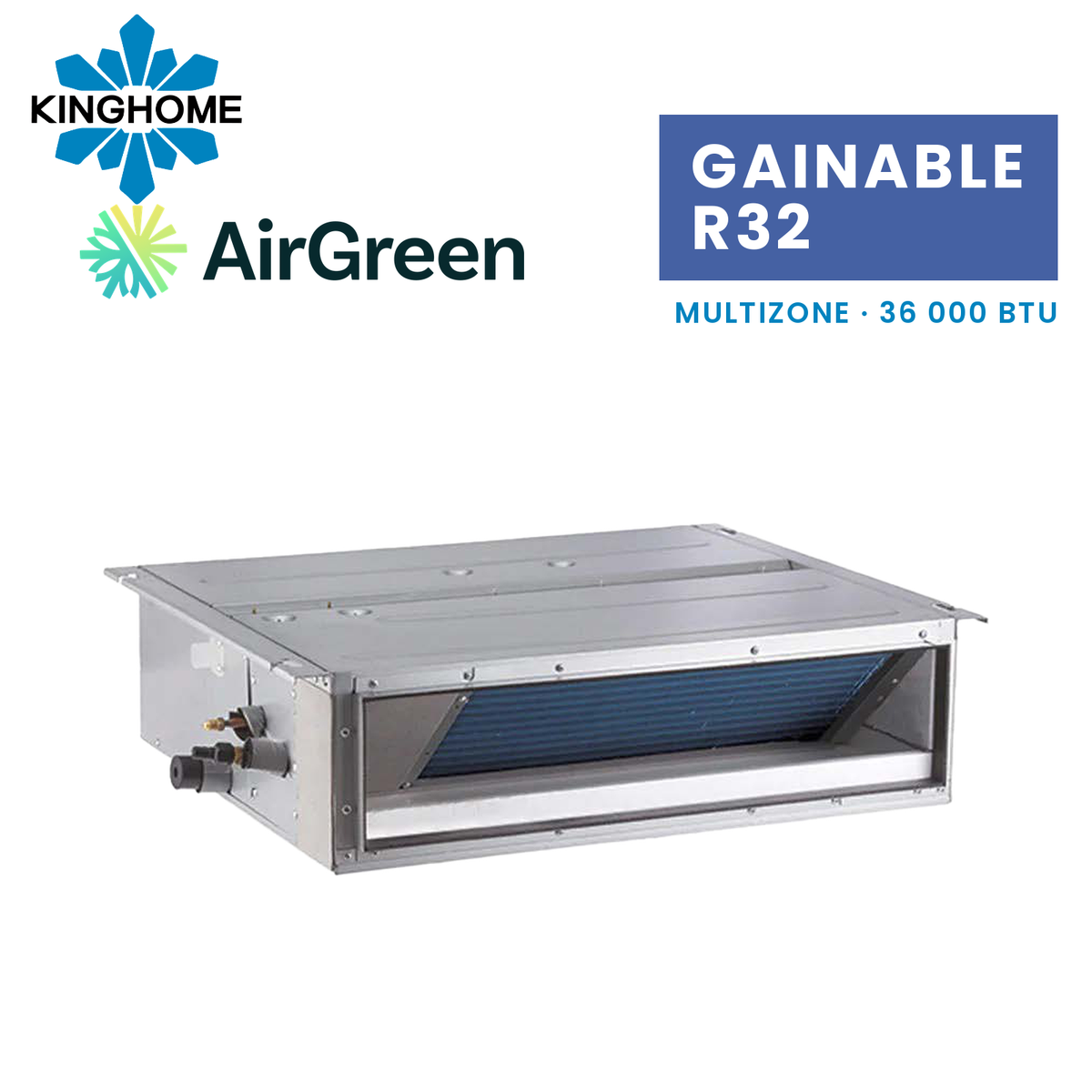

The KINGHOME 36,000 BTU high-static ducted unit shares the top of the multi-zone lineup with the wall-mounted head of the same capacity, but no other head moves as much air. We reserve it for spaces that are well beyond the scale of a single room: a retail store on the ground floor of a building in Montréal, a training or meeting room for about twenty people, a dance or fitness studio, a daycare room, or the large open area of a high-end house on the South Shore or the North Shore where the living room, kitchen and dining room form a single volume. It's also used to replace an old central air conditioner in a commercial space whose short duct network is in good condition and properly sized.
Like every KINGHOME multi-zone head, this ducted unit doesn't work on its own. It connects to an Ultra Heat outdoor unit, and only one in the lineup accepts it. It has no efficiency certification of its own; the certified performance is that of the complete system.
The highest airflow in the multi-zone lineup
With a maximum of 1,324 CFM, this ducted unit moves more air than any other KINGHOME multi-zone head. That airflow lets it circulate a large volume and reach the far ends of a room through several grilles. The high-static design is essential at this scale: the fan has to overcome the resistance of a longer network, with its branches, elbows and diffusers. The available static pressure is set at commissioning based on the actual duct network, and we measure the airflow at each grille.
The sound level deserves a comment. Despite this airflow, the manufacturer publishes 38 to 43 dB(A), a maximum lower than that of the 30,000 BTU size in the same series. Since the unit is installed outside the room, in a mechanical room or above a drop ceiling, it's mostly the design of the ducts and grilles that determines what you hear in the room.

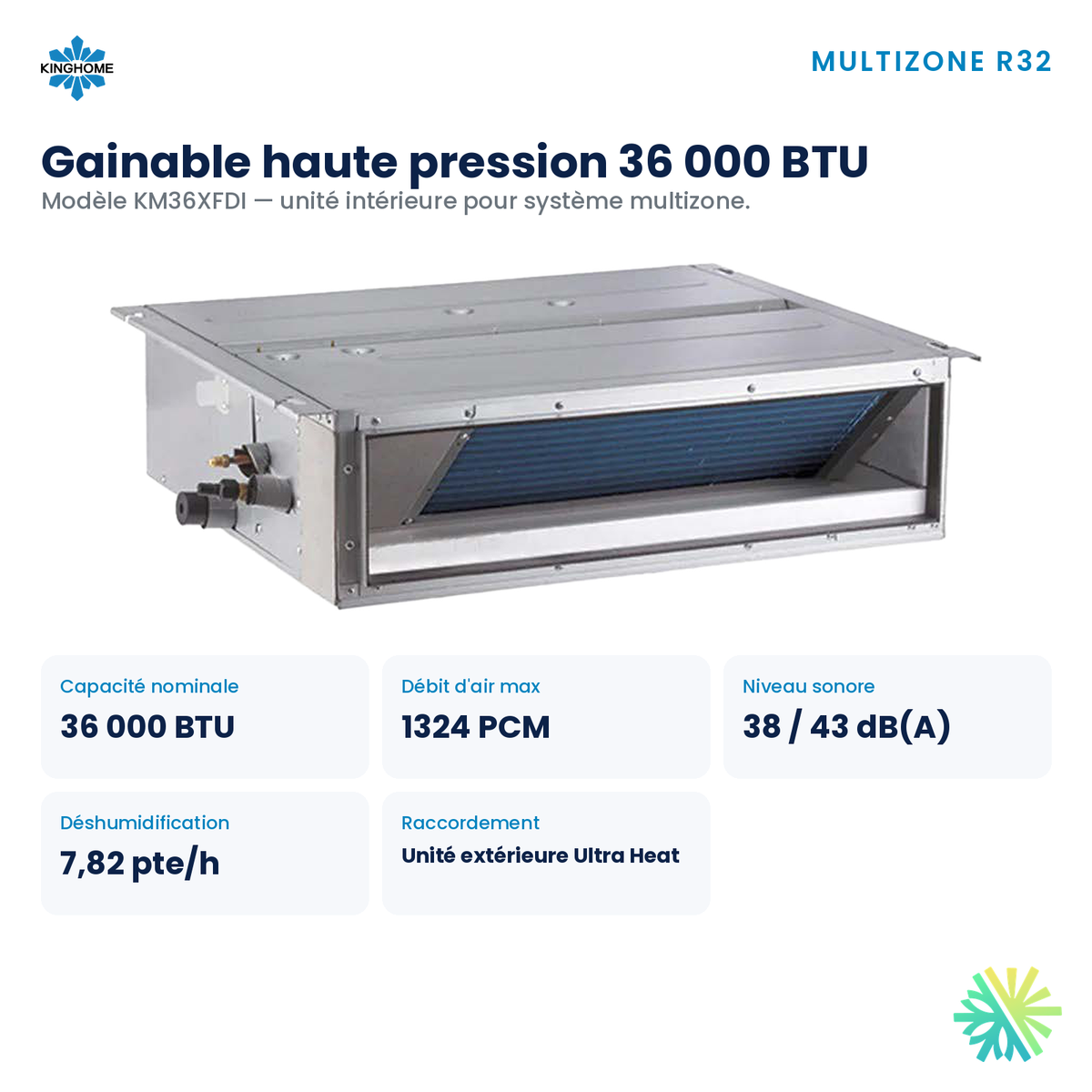

Specs for the 36,000 BTU ducted unit
- Nominal capacity: 36,000 BTU, R-32 refrigerant
- Maximum airflow: 1,324 CFM
- Indoor sound level: 38 to 43 dB(A)
- Dehumidification: 7.82 pt/h, or about 3.7 L/h
- 220 V power supplied by the outdoor unit
- Wi-Fi: included, through the supplied wired wall controller
The 7.82 pt/h dehumidification is the strongest in the lineup. A room that hosts a group, a studio where people exercise or a shop where the door keeps opening in July builds up a lot of humidity; this ducted unit removes it while it cools.
The dimensions of this size aren't in our certified data. We confirm them on the manufacturer's current spec sheet before reserving the space in a ceiling or a mechanical room.
Only one possible connection: the KM60X6O
According to the compatibility table in the KINGHOME multi-zone brochure, the 36,000 BTU heads only connect to the KM60X6O outdoor unit, which accepts up to 6 zones. That choice shapes the whole project:
- The ducted unit takes up a large share of the outdoor unit's capacity. The other zones, such as an office, a staff room or bedrooms, share the rest, according to the manufacturer's selection table and the on-site assessment of heating needs.
- The KM60X6O doesn't carry the ENERGY STAR cold climate designation according to its certification, unlike the KM18X6O to KM48X6O units in the lineup. For winter heating, we therefore plan the appropriate backup: unit heaters, existing baseboards or the system already in place.
According to the manufacturer's brochure, a system's certified performance varies depending on whether the heads are wall-mounted, ducted or mixed. The values on the KM60X6O's sheet correspond to wall-mounted heads; we check the certification that applies to your combination.
What's supplied and the controls
According to the manufacturer's spec sheet, this ducted unit includes a built-in condensate pump and the wired wall controller with Wi-Fi. Added to that are the dehumidification mode, self-cleaning, forced defrost, soft start, low-voltage start-up and a frost-protection maintenance heating mode for a closed space. For a commercial space or an office building, the multi-zone brochure also describes central control and a BACnet gateway to a building management system.
What we check before the installation
A project of this size, in Montréal, Laval, Longueuil, on the North Shore or on the South Shore, goes through the following checks.
The duct network
For a new network, we size the ducts for 1,324 CFM, with diffusers spread across the room and enough return air. For an existing network, we measure the duct sizes, airtightness and insulation before confirming that it can be reused. A network that's too small would make the ducted unit noisy and cost it capacity.
Location and access
We confirm the dimensions on the manufacturer's sheet, then we choose the mechanical room or the drop ceiling. Access to the filter and the pump has to stay clear. In commercial settings, we check the sprinklers, the lighting and the building owner's requirements.
Electrical supply
The ducted unit gets its 220 V from the outdoor unit. The circuit to plan for is the KM60X6O's, based on the minimum circuit ampacity (MCA) and maximum overcurrent protection (MOP) listed on its sheet. In a commercial space, we check the tenant's panel and the capacity of the electrical service.
The outdoor unit
The KM60X6O is set on a flat roof with a base suited to the membrane, or on the ground on a raised base, above the snow, with free drainage for defrost water and access for maintenance.
Piping and drain
The diameters follow the manufacturer's spec sheet, and the total line length stays within the KM60X6O's limits. The built-in pump lifts the condensate to a drain; above a finished room, a secondary drain pan is installed under the unit.
LogisVert assistance
This ducted unit doesn't appear on the Hydro-Québec list by itself, since it has no certification of its own. For a home, the LogisVert assistance is tied to the complete system: its indicative amount is calculated using the LogisVert rule ($50 per 1,000 BTU/h of certified heating capacity at -8.3 °C, the rate for a unit without the cold climate designation such as the KM60X6O); eligibility is confirmed on the installation date. A combination with a ducted unit falls under a different certification than one with wall-mounted heads: we check its listing before giving you an amount. A commercial space generally falls under other programs. Only Hydro-Québec confirms the assistance granted.
Why go with AirGreen
- Salaried refrigeration technicians who design, install and balance the duct network.
- Civil liability insurance of $5,000,000, often required by commercial building owners.
- Kinghome warranty registration done at commissioning; for commercial applications, the Kinghome brochure provides 5 to 7 years on the compressor and parts.
- After-sales service and maintenance contracts for businesses.
Ask for your free estimate: we assess the room, the duct network and the electrical, then give you a complete quote built around the KM60X6O.
Documentation
Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor.
