Home » LENNOX Varix VRF MultiZone | 32 Ton 575V | Parts by Samsung
Lennox

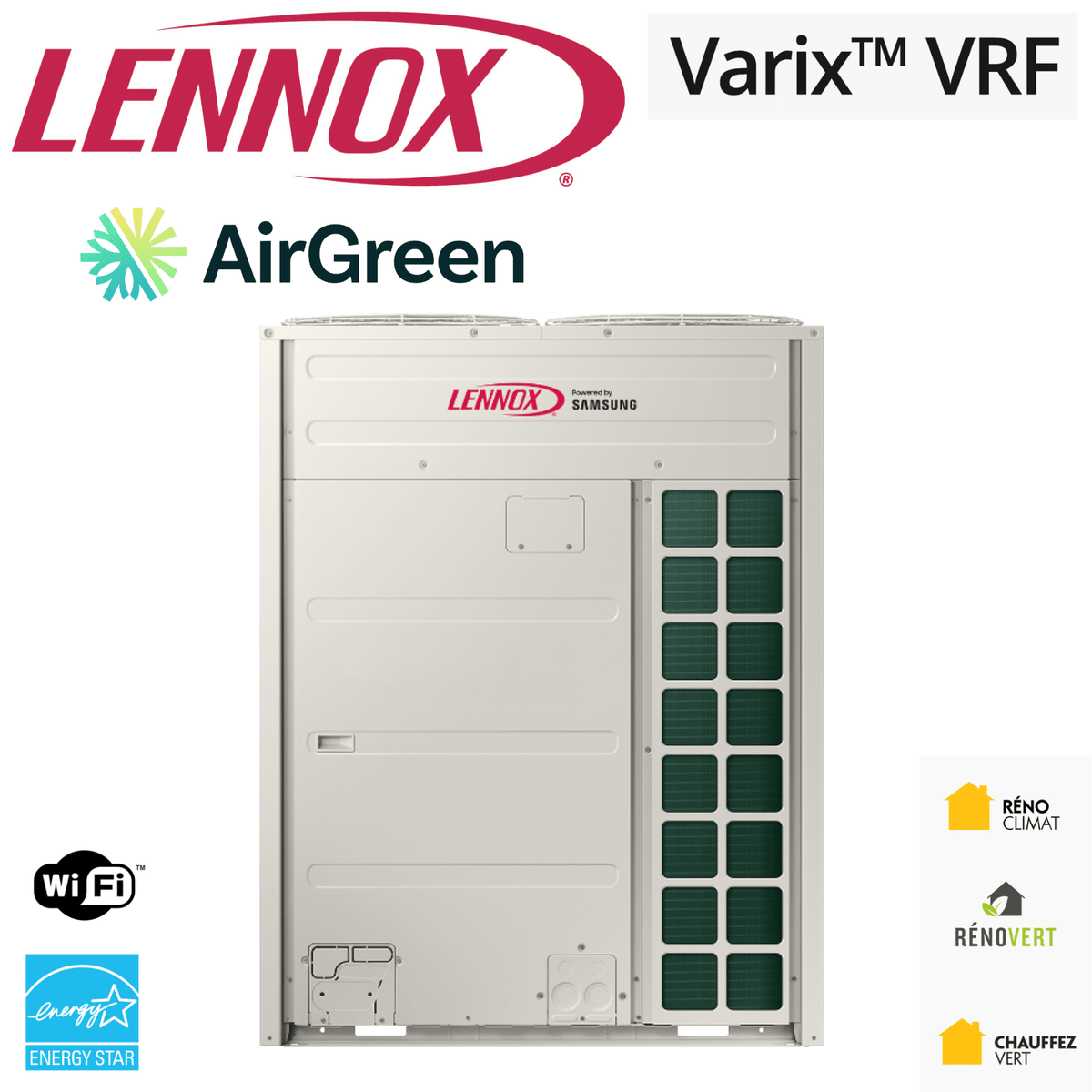

LENNOX Varix VRF MultiZone | 32 Ton 575V | Parts by Samsung

In stock
SKU: VPC384S4M-4J
(0)
Cooling Capacity: 384,000 BTU
Heating Capacity: -30 °C
Maximum Zones: 64 Separate Indoor Units
External Dimensions (W x D x H): (73.25 x 30.13 x 66.75) x 2
Model Number (External): VPC384S4M-4J
Possible Indoor Units: 4-WAY CASSETTE 2 X 2, 4-WAY CASSETTE 3 X 3, 360 CASSETTE, ONE WAY CASSETTE, CEILING/FLOOR MOUNT, CEILING/FLOOR MOUNT, FLOOR STANDING EXPOSED, WALL MOUNT, FLOOR STANDING CONCEALED, VRF DUCTED INDOOR UNITS, LOW STATIC DUCTED, MEDIUM STATIC DUCTED, HIGH STATIC DUCTED, OUTSIDE AIR DUCTED, and VERTICAL AIR HANDLER

  • Energy Star®: Yes
  • WiFi: Included
  • Efficiency: SEER
  • Warranty (Compressor - Parts - Labor): 10-10-0
  • Additional Warranty (10-10-10): Possible
  • Voltage: 575 V
  • Sound Pressure Level (Outdoor): 69.0 dB(A)
  • Gas (Freon): R-410A

Superior performance and control for modern commercial buildings

Optimizing comfort, energy consumption, and installation flexibility in demanding commercial environments is a constant challenge. At AirGreen , we meet these needs with innovative HVAC solutions . One of our most efficient options is the LENNOX Varix MultiZone 32-Ton (575V) VRF heat pump , designed in partnership with Samsung to deliver unparalleled precision, efficiency, and comfort. Suitable for large commercial spaces in Montreal , Laval , Longueuil , the North Shore , and the South Shore , this unit is a strategic choice for ambitious construction or renovation projects.

VRF technology: an adaptive system for precise zone control

VRF (Variable Refrigerant Flow) technology incorporates intelligent logic to adapt the refrigerant flow in real time according to the needs of each serviced zone. Unlike traditional systems, a single condensing unit can supply up to 64 indoor units , each controlled independently. The VPC384S4M-4J model offers an output of 384,000 BTU in cooling, with reliable performance down to -30°C in heating .

Highlights of the LENNOX Varix 32T heat pump

  • Extended multi-zone capacity : up to 64 independent zones

  • Flexible installation : compact dimensions (73.25 x 30.13 x 66.75) x 2

  • Optimal acoustic performance : only 69 dB(A)

  • Continuously modulated inverter technology

  • WiFi and Energy Star® Compatibility

  • 10-10-0 warranty , with 10-10-10 option available

Future-proof solutions tailored to your needs

The LENNOX Varix system is designed to meet modern challenges: optimizing operating costs, decarbonization , reducing emissions , and adapting to various occupancy profiles. It stands out for:

  • Adaptive AI Performance : Learning usage habits for optimal refrigerant pressure management

  • Smart defrost : optimized cycles to maintain constant comfort

  • Heat recovery technology : heat recovered from air-conditioned areas redirected to the areas to be heated

  • Extended operating range : from -30°C to 50°C , perfect for the Quebec climate

Compatible indoor units and integration flexibility

There are many choices of compatible indoor units:

  • 4-way 2x2 or 3x3 cassettes , 360° cassettes, wall-mounted, exposed or recessed floors

  • Ducted units : low, medium or high static pressure

  • Vertical units , VRF hydro units and outdoor air modules

This variety allows for a custom design for each space, whether it is an administrative building in Laval , a hotel residence in Longueuil or a shopping center on the South Shore .

An AirGreen installation: expertise, transparency, results

Our certified technicians install these complex systems with care. Here's an example of a recent installation:

In Montreal , a commercial client with three-story offices wanted to upgrade their legacy HVAC system. By replacing a combination of disparate rooftop units and mini-splits with a LENNOX Varix 32T system , we reduced energy costs by 34% in one year , while providing better temperature control for each work area.

Buildings targeted for this type of system include:

  • Hotels : precise comfort in each room for better reviews

  • Offices : Increased productivity thanks to zone control

  • Restaurants : adapted temperature in the kitchen and dining room

  • Schools : quiet operation, optimal comfort

Why choose AirGreen for your VRF project in Montreal or elsewhere in Quebec?

  • Free on-site estimate

  • No advance payment required : you pay at the end, once satisfied

  • Transparent offer : no hidden costs

  • Complete service : installation, configuration, maintenance and diagnostics

We are recognized on the North Shore , in Montreal , and as far away as Boucherville on the South Shore , for our competence, our punctuality and our excellent customer service.

Conclusion: a cutting-edge solution adapted to the Quebec climate

The LENNOX Varix VRF MultiZone 32T 575V meets the needs of demanding buildings in terms of energy efficiency, cost reduction, and customized comfort. At AirGreen , we are ready to assist you in the design and installation of this high-performance system, anywhere in the greater Montreal metropolitan area .

Contact us today for a free quote and find out how we can transform your HVAC system.
