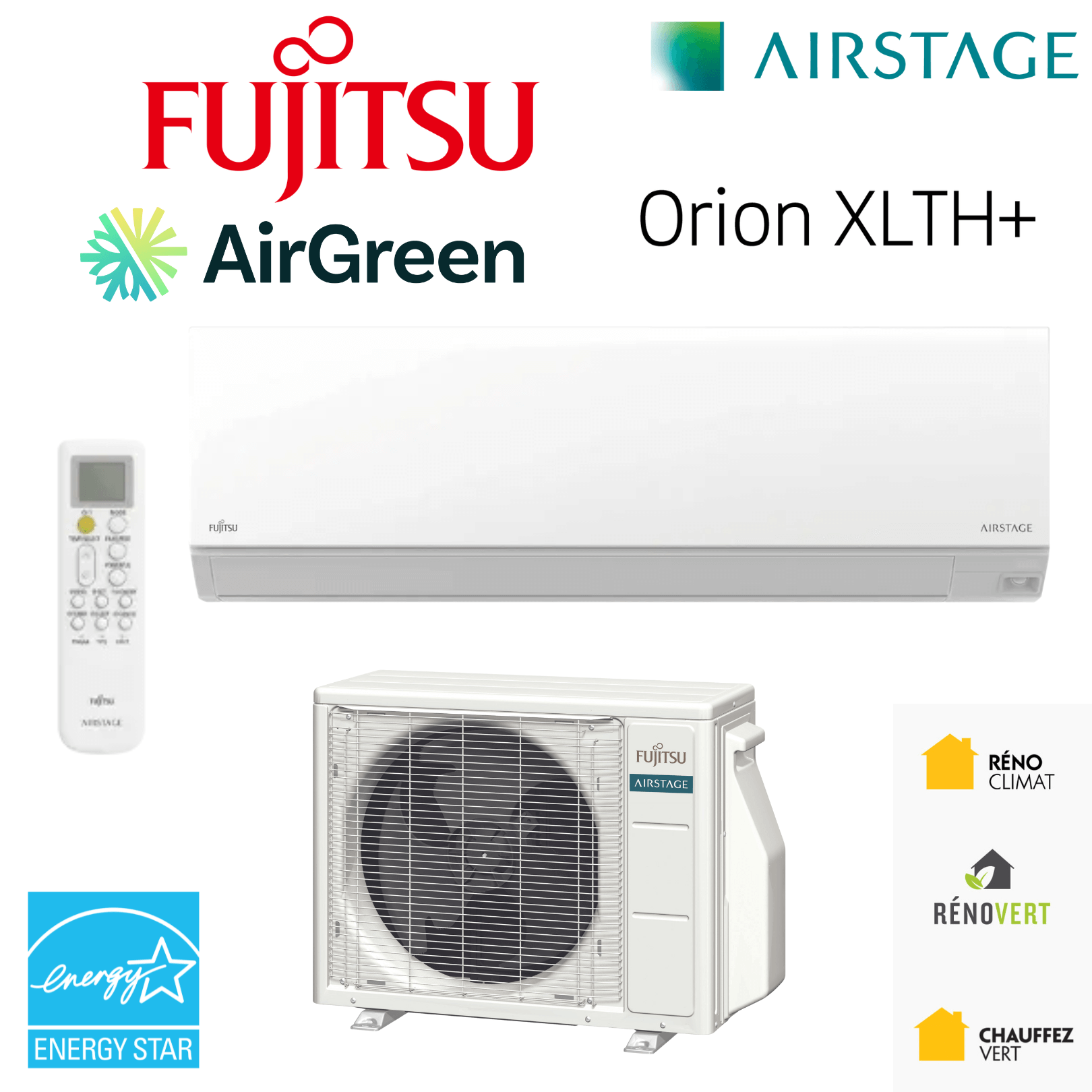

Mini Split FUJITSU ORION XLTH+ | 9,000 BTUs | Montreal, Laval, South Shore, North

A wall-mounted heat pump isn't just a comfort feature. In Quebec's climate, it's a true energy management tool. The FUJITSU ORION XLTH+ 9,000 BTU Mini Split is one of those units capable of transforming the daily lives of homeowners in Montreal , Laval , Longueuil , on the North Shore or South Shore : reliable heating in winter, efficient cooling in summer, quiet operation, and modern technology perfectly suited to our winters.

At AirGreen , we have been installing this model for several seasons in a wide variety of settings: single-family homes, condos, multigenerational housing, small offices, and commercial spaces. Each time, the same observation is made: consistent comfort, controlled energy consumption, and a unit that easily integrates into the occupants' lifestyle.

A mini split system designed for the Quebec climate and temperatures as low as -30°C

The first question our customers ask is always the same: will this mini split actually heat when it's very cold? With the ORION XLTH+ 9000 BTU , the answer is simple: yes.

• Guaranteed heating down to -30°C , which covers the majority of cold spells observed in the greater Montreal area.

• Rated heating capacity of approximately 12,000 BTU , which is sufficient to easily cover a good-sized open area or a main area of ​​the house.

• Stable performance even when the outside temperature plunges well below -15°C.

In practice, this means that a ground-floor apartment owner in Hochelaga , a condo owner in Laval-des-Rapides , or a small business owner in Boucherville can rely on this mini split system as a four-season heating solution for the area where it's installed. The unit continues to operate even when other standard units have already reached their limit.

Energy efficiency that is reflected in your bills

The FUJITSU ORION XLTH+ 9000 BTU Mini Split stands out with performance values ​​among the highest in its category:

• SEER2: 33.5 for cooling, which places the device in the high end of the residential market.

• HSPF2: 14.0 for heating, synonymous with excellent energy efficiency in winter.

• EER2: 19.1 , which translates to an ability to provide efficient cooling without instantaneous overconsumption.

It uses R-32 refrigerant, a more environmentally friendly gas than R-410A, with a lower charge quantity for the same level of performance. For a homeowner, this translates to:

• a reduction in annual electricity consumption compared to an older or low-efficiency wall-mounted air conditioner;

• better control of heating and air conditioning costs in the context of electricity pricing which tends to evolve;

• a choice aligned with a housing modernization approach.

Currently, the Provincial Subsidy (LogisVert) associated with this model is $0 (updated May 1, 2025) . Despite the lack of a direct subsidy, the savings generated over several years of use more than compensate for the initial investment, especially when the mini split replaces inefficient baseboard heaters or auxiliary units.

Discreet comfort: low noise level and controlled airflow

Thermal comfort isn't just about temperature: noise level plays a significant role in the perception of well-being. The indoor unit of the FUJITSU ORION XLTH+ starts at just 23 dB(A) , which is comparable to a very quiet environment.

• In the bedroom, the device can operate in discreet mode during the night without disturbing sleep.

• In a living room or open area, it ensures regular air circulation without aggressive drafts.

• In an office or home workspace, it does not interfere with conversations or calls.

The compact outdoor unit is also optimized to minimize noise. Mounted on a wall bracket or a ground base, it integrates easily into a city courtyard, balcony, narrow side path, or near a private parking area.

Modern technology: Inverter, R-32 and precise control

The FUJITSU ORION XLTH+ 9000 BTU Mini Split incorporates advanced Inverter technology. Unlike on/off systems, the compressor continuously adjusts its speed according to the actual heating or cooling needs.

In practical terms, this offers several advantages:

• less temperature variation in the room;

• Fewer on/off cycles, therefore less mechanical wear;

• optimized energy consumption during the shoulder seasons or on milder nights.

The R-32 refrigerant reduces the gas charge required to achieve the same performance as a conventional R-410A system, while also decreasing environmental impact. For our installation teams, this also means specific handling and rigorous commissioning procedures, which we always follow.

Wi-Fi included: remote control integrated into your daily life

Since Wi-Fi is included by default , you can control your mini split remotely as soon as the device is put into operation:

• Turn on the heating before getting home from work.

• Adjusting the temperature of a rented cottage or secondary residence.

• Modify the settings of an office or business according to opening hours.

• Switch to economy mode when you are away for longer than planned.

For a couple living in a condo in Griffintown , for example, the mini split has become a daily management tool: starting the air conditioning mode remotely before returning home in the summer, maintaining a lower temperature in the winter during prolonged absences, simple monitoring of the device from a phone.

Dimensions, piping and installation flexibility

From a technical standpoint, the FUJITSU ORION XLTH+ 9000 BTU offers great flexibility for both the installer and the homeowner:

• Indoor unit (W x D x H): 35.19" x 11" x 11.63"
  Format suitable for installation above a door, window, or in a space where ceiling height is limited.

• Outdoor unit (W x D x H): 31.44" x 11.44" x 24.88"
  Compact size allowing installation on balcony, flat roof, floor slab or wall mount.

• Piping: 1/4 – 3/8 , a common standard in most residential installations.

• Pipe lengths can extend up to several tens of feet, with management of elevation changes according to building constraints.

This flexibility is particularly advantageous in older buildings in Montreal or on the South Shore , where piping routes must contend with thick walls, coffered ceilings, galleries, or narrow stairwells. Our technicians tailor each installation: discreet routing through aluminum conduits, bypassing architectural features, and strategically positioning the outdoor unit to simplify maintenance.

Guarantees and protections: a structured investment

In this model, the Important Information is clear:

• Compressor warranty: 12 years

• Parts Warranty: 12 years

• Labor Warranty: 0 years (no labor included originally)

• Additional warranty: available depending on the option chosen with AirGreen

The long warranty period on the compressor and parts demonstrates the confidence placed in the unit's design. To complement this protection, we offer additional warranty options covering labor, providing more comprehensive coverage against unforeseen events.

When we provide the estimate, we always explain everything in detail:

• what is covered by the manufacturer;

• what can be covered by AirGreen (labor, travel, diagnostics);

• which is recommended depending on the intended use (light residential use, commercial use, intensive operation, etc.).

Concrete examples of installations carried out by AirGreen

Century-old house in Montreal

In a house built in the early 20th century, near the Plateau-Mont-Royal, the owners wanted to improve the comfort of the ground floor without altering its original character. The FUJITSU ORION XLTH+ 9000 BTU Mini Split was installed in the main living room, centrally located in relation to the hallway.

Even on nights when temperatures reached -28°C, the room remained comfortable. The pipework was finished with discreet covers in a color coordinated with the exterior brick, thus preserving the aesthetic appeal of the facade.

Modern condo in Laval

In a recently built condo on the top floor of a building, the owners experienced two opposing realities: overheating in the summer and cold spots in the winter. With the installation of this mini-split air conditioner, the temperature became much more uniform in the open-plan living room and kitchen area.

The included Wi-Fi is used daily: activating air conditioning mode a few minutes before returning home, adjusting heating mode remotely during weekends spent outside the city, simple control via phone for the whole family.

Professional office in Longueuil

A small team working in an approximately 80 m² office in Longueuil was looking to move away from the building's central heating system, which they considered too inaccurate. The FUJITSU ORION XLTH+ 9000 BTU was chosen to ensure stable thermal comfort, with settings adjusted according to the number of employees present.

Management particularly appreciates:

• temperature stability;

• noise discretion during calls;

• the possibility of reducing the deposit outside of opening hours without complicated procedures.

Why entrust your project to AirGreen?

The unit is excellent, but a high-performing HVAC installation relies first and foremost on the quality of the work done on-site. At AirGreen , we:

• Let's analyze precisely the surface area to be covered , the insulation, the orientation and the occupancy habits;

• Let's choose the ideal location for the indoor unit to optimize air distribution in the space;

• We position the outdoor unit taking into account defrosting, water drainage and neighborhood constraints;

• We respect electrical standards, safety rules and best practices for commissioning wall-mounted heat pumps;

• We provide a structured after-sales service , with clear follow-up in case of questions, adjustments or maintenance needs.

Whether your project is located in Montreal , Laval , Longueuil , on the North Shore or the South Shore , our team will assist you from the estimate to the commissioning, including complete explanations on the operation of your mini split.

Ready to improve your comfort with a high-efficiency mini split system?

The FUJITSU ORION XLTH+ 9000 BTU Mini Split is a complete heating and cooling solution for your main living space. It combines reliable operation down to -30°C, high energy efficiency, very low noise levels, built-in Wi-Fi , and a design adapted to the realities of buildings in the greater Montreal area.

To find out if this model is right for your home, condo, or commercial space, contact AirGreen . We offer a 100% free on-site estimate , transparent pricing, no upfront payment, and clear support at every stage of your HVAC project.
