LG MULTI F MAX R32 2-Zone Heat Pump | 54,000 BTU Compressor

BROCHURE

A high-end, multi-zone solution designed for demanding buildings in Quebec

At AirGreen , we install HVAC systems in real-world settings: single-family homes, duplexes, triplexes, multi-unit residential buildings, and light commercial buildings in Montreal , Laval , Longueuil , on the North Shore , the South Shore , and in the Montérégie region . The LG MULTI F MAX R32 2-Zone Heat Pump | 54,000 BTU Compressor is one of the solutions we recommend when flexibility, power, and reliability must coexist without compromise.

This LG outdoor system, designed to manage multiple indoor units from a single compressor, addresses a common problem: how to efficiently heat and cool several independent zones, with different needs, without multiplying outdoor equipment or sacrificing energy efficiency.

Why the MULTI F MAX R32 is particularly well-suited to the Quebec climate

A real capacity, measured in the field

When we talk about a "54,000 BTU" compressor, it's important to understand that a multi-zone system isn't just a power rating. What really matters is the available capacity based on the outside temperature , the quality of the modulation, and how the power is distributed between the zones.

Based on this model, performance is designed to remain stable down to -16°C , a critical point for our winters in Montreal and Laval . In projects we have completed in Longueuil and on the South Shore , this type of multi-zone platform has made it possible to replace aging electrical systems while improving overall comfort, especially during periods of dry cold when less suitable equipment becomes noisy, inconsistent, or energy-inefficient.

Unlike some undersized multi-zone heat pumps, the MULTI F MAX is designed to support actual demand across multiple zones, which reduces:

• excessively frequent on/off cycles

• temperature variations,

• dependence on supplementary heating.

R-32 refrigerant: efficiency and regulatory compliance

The choice of R-32 refrigerant is not insignificant. It offers:

• Improved energy efficiency compared to older R-410A systems

• A lower global warming potential (GWP)

• Better alignment with market developments and performance programs in Quebec

In practice, this translates into better controlled consumption and more predictable operating costs for owners.

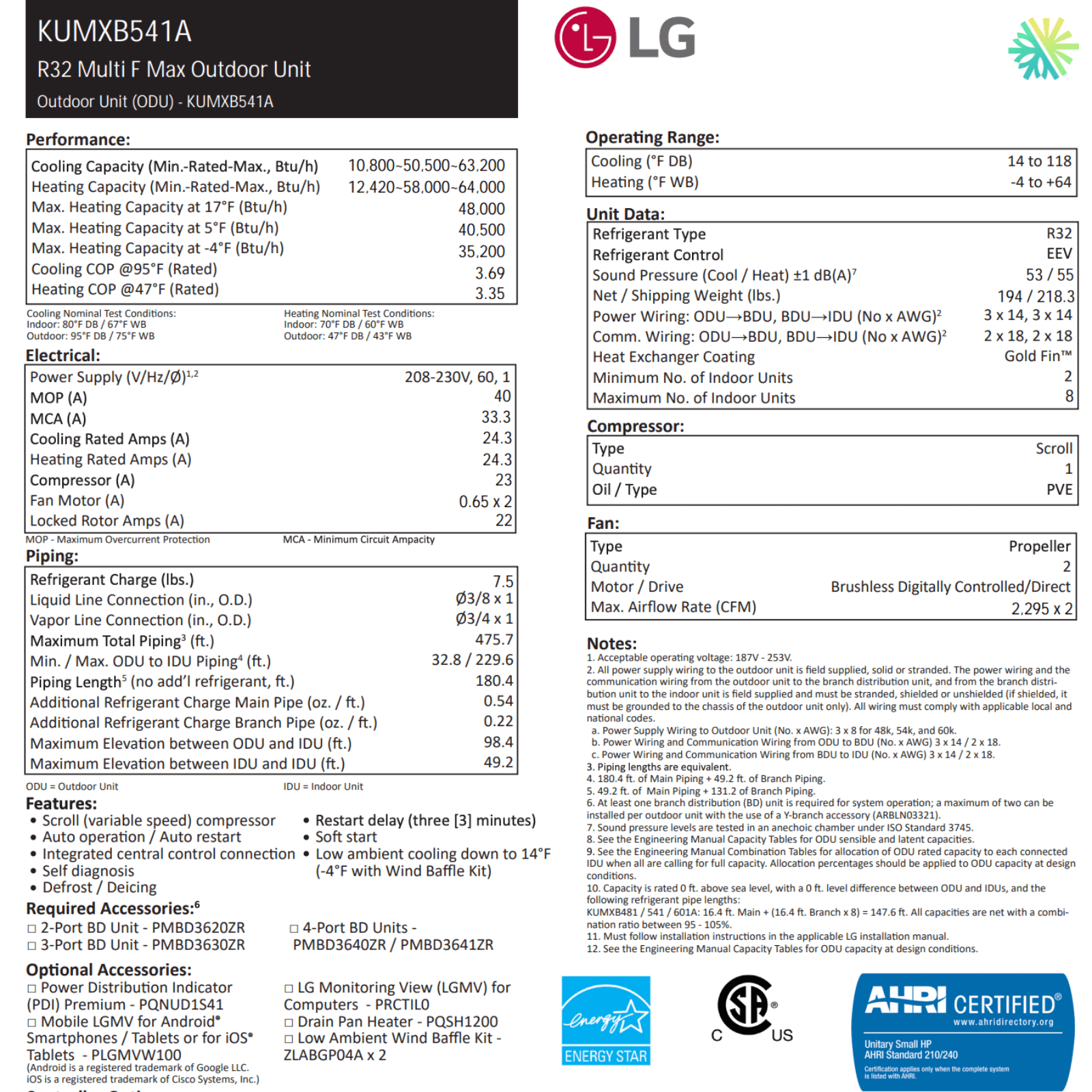

Key technical data and what it means in practical terms

Energy efficiency: focusing on the right units and indicators

Some product sheets occasionally display efficiency values ​​in a format that can be confusing (incorrect separators, concatenated numbers, or display errors). To maintain accuracy, we rely on consistent and verifiable indicators, particularly COPs (coefficients of performance) under nominal test conditions.

For this system, the advertised nominal returns are:

• COP in air conditioning (at 35°C / 95°F outside) : 3.69

• COP in heating mode (at 8°C / 47°F outside) : 3.35

In practical terms, a COP of 3.35 means that under nominal conditions, the system can provide approximately 3.35 kW of heat for every 1 kW of electricity consumed . This is exactly the type of data that helps a homeowner understand the cost-saving rationale compared to purely resistive heating.

Another important detail for building owners: this model is ENERGY STAR® certified, but also ENERGY STAR® (Cold Climate) certified. This distinction does not disqualify the product, but it helps to frame expectations and choose the ideal configuration (indoor units, sizing, distribution) based on the building's specific characteristics.

Capacity and modulation: what this changes in real-world use

The advantage of a MULTI F MAX platform is its ability to modulate power according to demand. The advertised performance ranges are revealing:

• Cooling (min–nominal–max) : 10,800 – 50,500 – 63,200 BTU/h

• Heating (min–nominal–max) : 12,420 – 58,000 – 64,000 BTU/h

And for heating in cold weather, there are some useful guidelines:

• Maximum capacity at 17°F (≈ -8°C) : 48,000 BTU/h

• Maximum capacity at 5°F (≈ -15°C) : 40,500 BTU/h

• Maximum capacity at -4°F (≈ -20°C) : 35,200 BTU/h

These figures are particularly relevant for Montreal, Laval, Longueuil, the North Shore, and the South Shore , as they directly reflect the days when the heat pump is working hardest. In real-world use, this is what determines whether comfort remains stable without excessive energy consumption.

HVAC Installation: What Really Changes with Field Experience

Managing pipe lengths and elevation changes

In existing buildings, the distance between the outdoor unit and the indoor units is often a limiting factor. The MULTI F MAX allows for:

• Up to 475.7 feet of total piping length (equivalent lengths)

• A maximum length of 180.4 feet on the main portion (outside to distribution box)

• A total branch length of up to 295.3 feet

• A maximum exterior/interior elevation difference of up to 98.4 feet

• A maximum height difference between two indoor units of up to 49.2 feet

These parameters open the door to complex installations, for example in Montreal buildings where the outdoor unit must be installed on a roof, or in a remote backyard, or when the indoor units are spread over several levels.

Clear (and realistic on-site) electrical requirements

The system operates at 208–230 V , and regarding electrical protection:

• MOP: 40 A

• MCA: 33.3 A

In practice, this guides the choice of circuit breaker (according to applicable standards) and the appropriate wiring gauge. At AirGreen, we systematically coordinate the installation with a master electrician when necessary to ensure full compliance, thus avoiding delays or unexpected costs later on.

Real-life cases: when this model makes a difference

Duplex in Laval – independent comfort on each floor

In a duplex in Laval , the occupants of the ground floor and the upper floor had very different schedules and temperature preferences. A well-planned multi-zone configuration allowed for:

• Independent heating and air conditioning management

• Reducing outside noise by avoiding the proliferation of units

• More stable comfort during heat waves, thanks to finer modulation

Multi-unit residential building on the South Shore

For a building on the South Shore , this type of system was chosen for its adaptability. Even if the project starts in two zones , the platform can support a future expansion as part of a renovation, thus avoiding having to start from scratch when the owner adds interior units or reconfigures apartments.

Common mistakes that we systematically avoid

With a multi-zone system of this type, certain mistakes can be costly in the long run:

• Undersizing to reduce the initial cost, then compensating with energy-intensive backup systems

• Ignoring the logic of power distribution between zones (it's not "54,000 BTU per zone")

• Poorly planned piping routes can lead to efficiency losses or maintenance constraints.

• Installing the exterior without considering the realities of the neighborhood (access, snow, airflow, vibrations)

Our approach at AirGreen is based on a complete analysis of the building before any final submission, with an installation logic that prioritizes real performance, not just the product sheet.

HVAC maintenance and system durability

A high-performance multi-zone system requires rigorous HVAC maintenance :

• Periodic cleaning of indoor units (filters, heat exchangers, drainage pipes)

• Checking pressures and proper functioning of heating and air conditioning systems

• Control of operating parameters and shutter settings

• Inspection of clearances and the exterior base (snow, ice, air circulation)

In our maintenance contracts in Montreal and Longueuil , well-installed multi-zone systems are distinguished by excellent stability and a low frequency of corrective interventions.

Guarantee and peace of mind

LG's 10-year warranty on the compressor and parts offers solid protection. An additional warranty can be added depending on the project, a feature particularly appreciated by property managers and condominium associations.

Why entrust this project to AirGreen?

Choosing the LG MULTI F MAX R32 2-Zone Heat Pump is one thing. Getting it installed correctly is another. At AirGreen , we offer:

• Proven local HVAC expertise

• Transparent pricing , confirmed before work begins

• Certified refrigeration technicians with real-world experience

• A $5 million liability insurance policy , essential for large-scale projects

Conclusion

The LG MULTI F MAX R32 2-Zone Heat Pump | 54,000 BTU Compressor is designed for homeowners seeking a robust, scalable, and climate-friendly multi-zone solution for Quebec. Whether your project is in Montreal , Laval , Longueuil , on the North Shore , or the South Shore , we can assist you from the initial assessment to final installation.

Contact AirGreen today for a detailed quote, to discuss configuration options (indoor unit types, locations, piping lengths) and to validate if this system is the right choice for your building.
