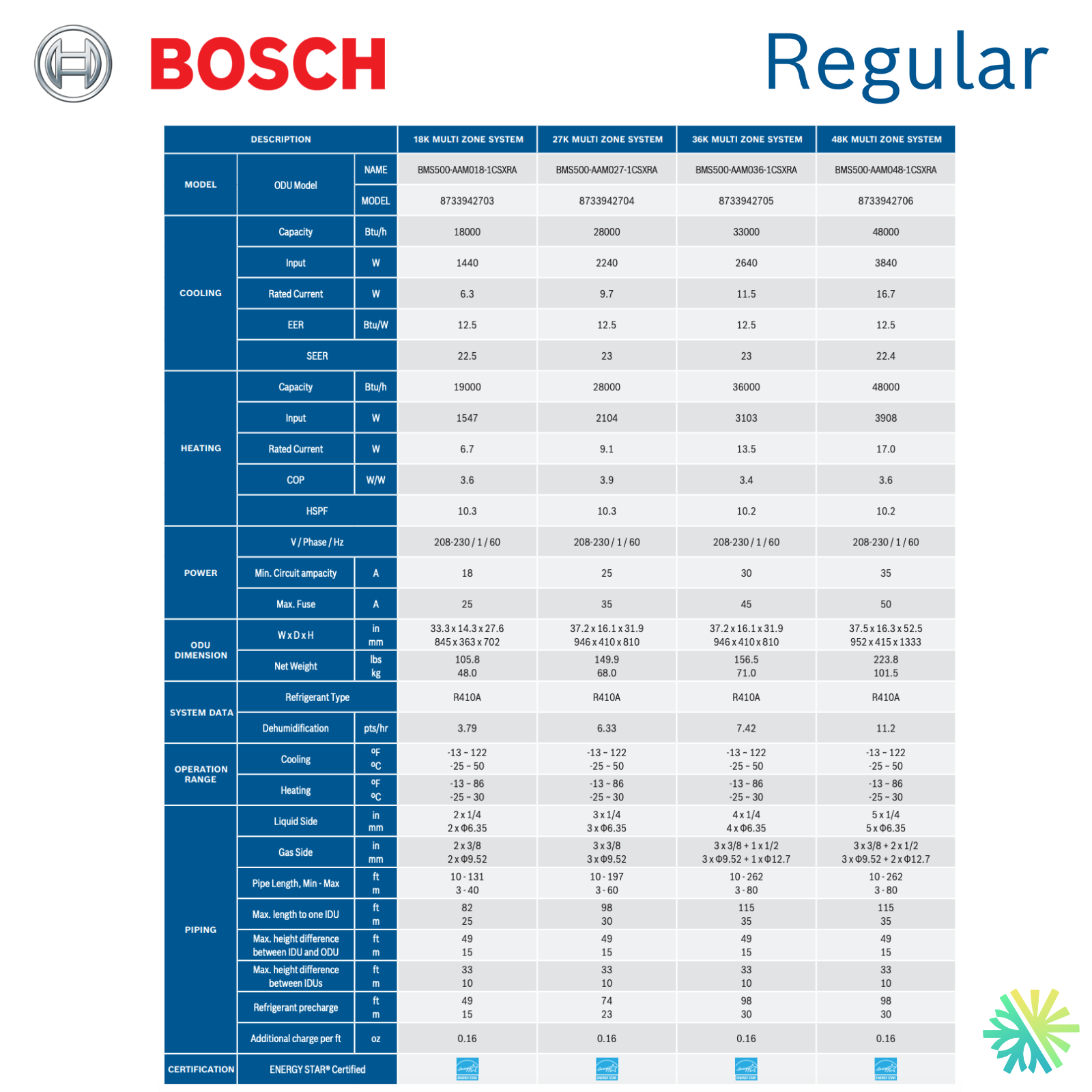

Thermopompe 4-Zones BOSCH Régulier | Compresseur 48 000 BTU | Montréal, Laval, Longueuil, Rive Sud et Rive Nord specifications chart
Thermopompe 4-Zones BOSCH Régulier | Compresseur 48 000 BTU | Montréal, Laval, Longueuil, Rive Sud et Rive Nord
Thermopompe 4-Zones BOSCH Régulier | Compresseur 48 000 BTU | Montréal, Laval, Longueuil, Rive Sud et Rive Nord specifications chart
Bosch

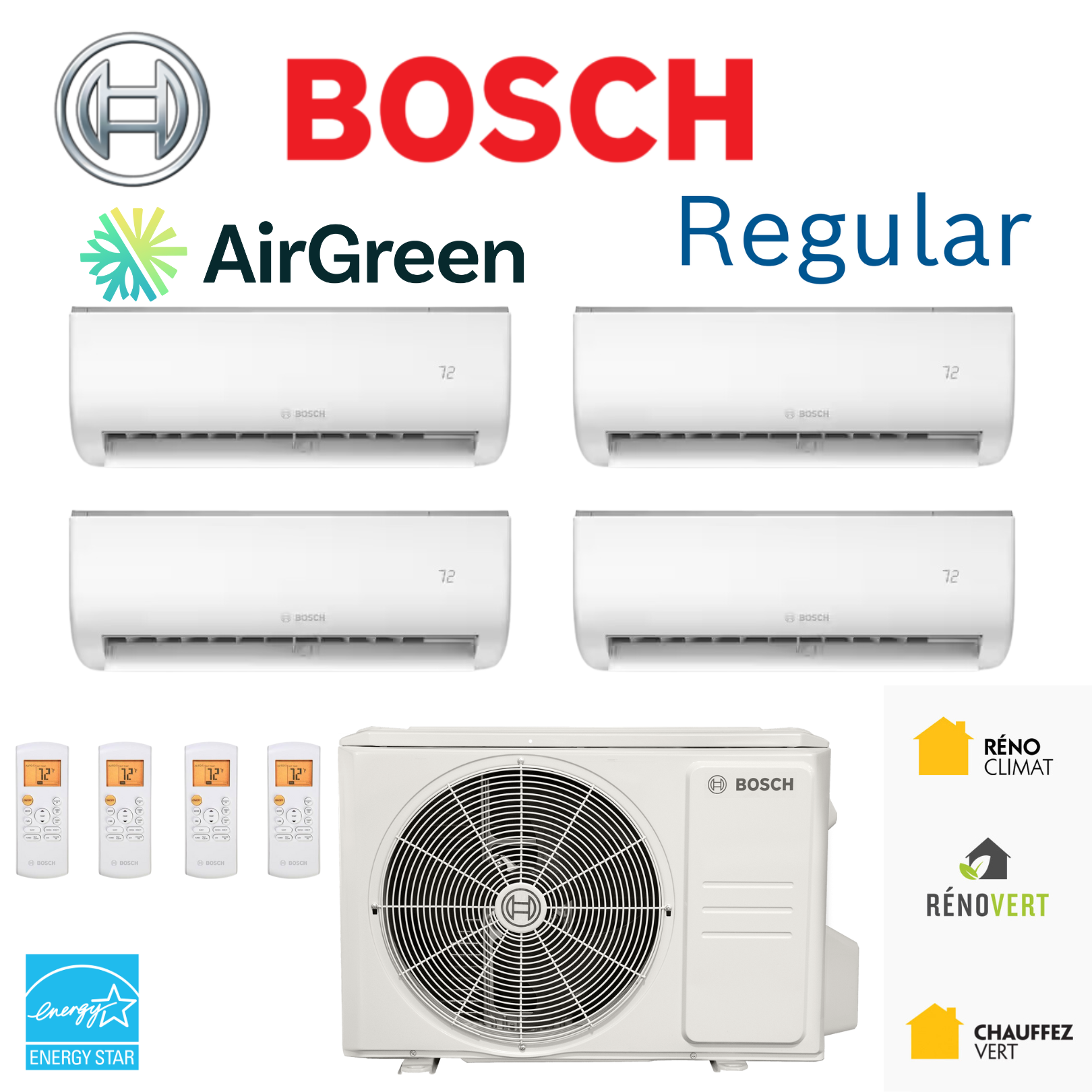

BOSCH Regular 4-Zone Heat Pump | 48,000 BTU Compressor | Montreal, Laval, Longueuil, South Shore and North Shore

In stock
SKU: BMS500-AAM048-1CSXRC-9999
(0)
Areas
Provincial Subsidy (LogisVert): 1700 $ (Updated: November 26, 2025)
Model Number (External): BMS500-AAM048-1CSXRC
AHRI: 207760030
ENERGY STAR®: Yes
ENERGY STAR® (Cold Climate): Non / No
# ENERGY STAR ID: 2450724
Heating Capacity: -25 °C
Cooling Capacity: 48,000 BTU
Gas (Freon): R-410A
WiFi: Optional

SEER2 (Seasonal Air Conditioning Efficiency)

1 23.4 30

HSPF2 (Seasonal heating efficiency)

1 8.7 15

EER2 (Instantaneous efficiency in air conditioning)

1 12.5 20

COP at -8 °C (Heating energy efficiency)

1 1.8 3
Nominal Power: 48,000 BTU
Power at -8°C: 34000 BTU
Power at -15°C: 33000 BTU
Interior Dimensions (L x D x H): 33.39 × 9.06 × 11.69 in ***
Vertical flap control (Air direction): Manuel / Manual ***
Horizontal flap control (Air direction): Auto ***
Sound Pressure Level (Indoor): 39.5 / 28 dB(A) ***(depending on the model chosen)***
Possible Model Number (Interior): BMS500-AAU006-1AHWXC, BMS500-AAU009-1AHWXC, BMS500-AAU012-1AHWXC, BMS500-AAU018-1AHWXC, BMS500-AAU024-1AHWXC, BMS500-AAU030-1AHWXC, and BMS500-AAU036-1AHWXC

CFM (Airflow) (12,000 BTU***)

1 336 700
External Dimensions (L x W x H): 37.5 x 16.3 x 52.5 in
Zones: 4 Zones (Quad Zone)
Maximum Zones: 5 Areas
Sound Pressure Level (Exterior): 64.0 dB(A)
Voltage: 220 V
MCA (Minimum Circuit Ampacity): 40 A
MOP (Maximum Overcurrent Protection): 60 A
Warranty (Compressor - Parts - Labor): 10-10-0 years
Additional Warranty: Possible

Brochure

BOSCH Regular Wall-Mounted 4-Zone Heat Pump

An Innovative Comfort Solution for Montreal and Surrounding Areas

In the competitive world of Heating, Ventilation, and Air Conditioning (HVAC), standing out through excellence and innovation is crucial. AirGreen, your HVAC solutions expert in Montreal, Laval, Longueuil, as well as the North Shore and South Shore, is proud to introduce the BOSCH Regular Wall-Mounted 4-Zone Heat Pump, a cutting-edge solution for optimal home comfort.

Exceptional Features

This heat pump stands out with its premium features, designed to offer unmatched performance and an unprecedented user experience:

  • Impressive cooling and heating capacity: With a cooling capacity of 48,000 BTU and efficient heating performance down to -25°C, this heat pump is equipped to handle the most severe climates.
  • Maximum flexibility with 4 to 5 zones: Adaptable to different spaces, it allows personalized temperature management in multiple areas of your home.
  • Optimized dimensions and technical specifications: Designed to seamlessly integrate into your space, its exterior dimensions and serial numbers reflect BOSCH's commitment to quality and reliability.
  • Advantageous subsidies: Benefit from federal and provincial subsidies for an economically advantageous installation.
  • Superior energy efficiency: Energy Star® certified and boasting a 22.4 SEER performance rating, it promises significant savings on your electricity bills.

Advanced Technology and Customized Comfort

The BOSCH Climate 5000 series stands for simple installation, reduced maintenance, and superior indoor air quality. These heat pumps use efficient technologies to minimize electricity consumption while maximizing comfort:

  • Simplified installation and maintenance: Thanks to innovations such as the factory-installed base pan heater and built-in condensate pump for certain models, installation and maintenance are simplified, thus reducing costs and service times.
  • Exceptional indoor air quality: A multi-part filter system refreshes and purifies the air by reducing odors, allergens, viruses, and bacteria, ensuring a healthy environment for your family.
  • Intuitive control of your comfort: The system allows for precise temperature and humidity adjustments, with automated features like the "Follow Me" mode for increased comfort customization.

Commitment to Customer Satisfaction

At AirGreen, our priority is the total satisfaction of our clients. We are committed to providing HVAC solutions that not only meet but exceed expectations in terms of performance, energy efficiency, and reliability. The BOSCH Regular Wall-Mounted 4-Zone Heat Pump is a testament to this commitment, offering a heating and cooling solution tailored to the specific needs of our clients in Montreal, Laval, Longueuil, and the surrounding areas.

By choosing AirGreen for your heat pump installation, you opt for unmatched expertise, dedicated customer service, and superior quality products. We are here to support you every step of the way, from selecting your system to its installation and maintenance, ensuring your comfort throughout the year.
