Central Heat Pump BOSCH IDS Inverter | 5 Tons - 60,000 BTU (Air Handler BVA-060WN1-M15) - R410A

A variable-speed heat pump that keeps up with a very large home, season after season

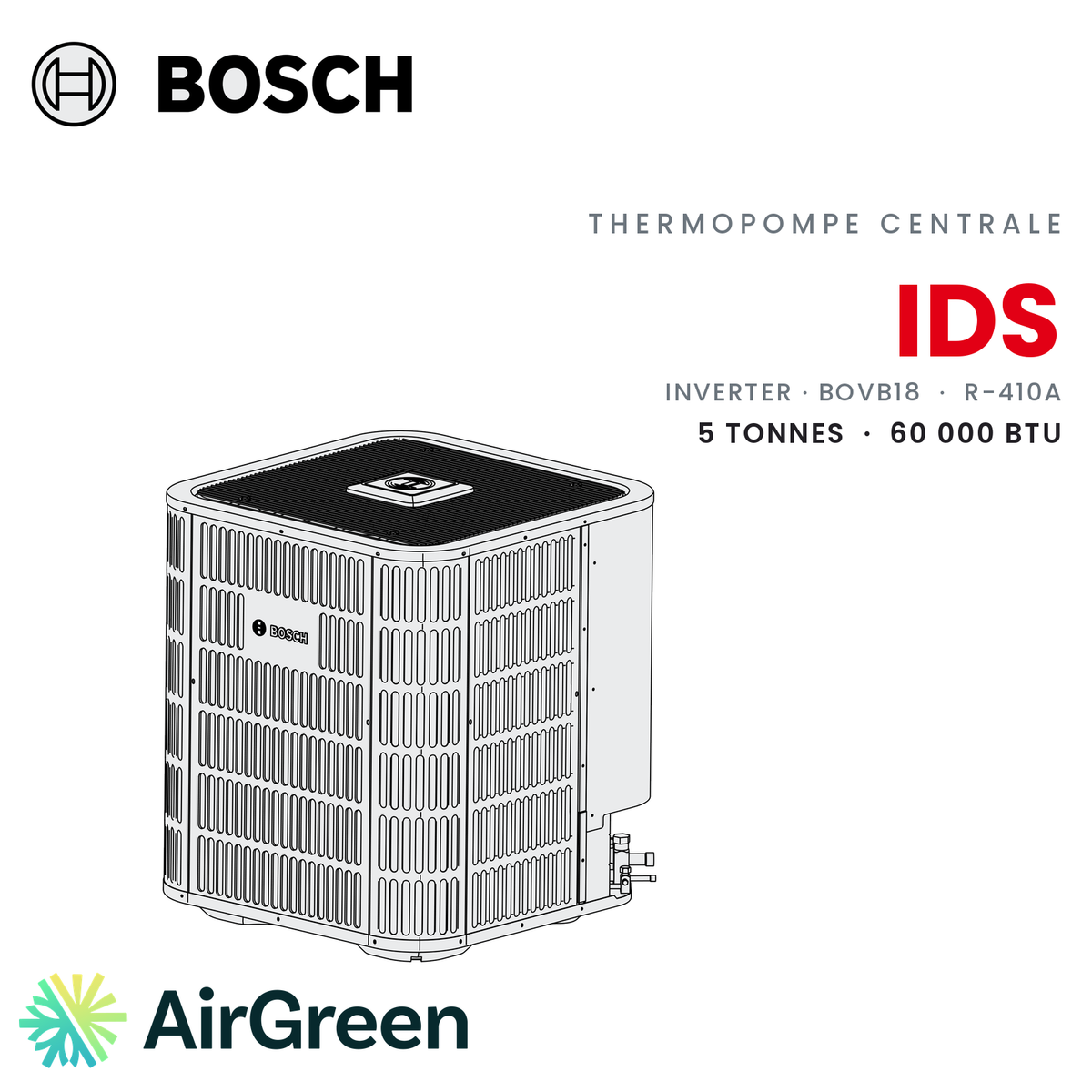

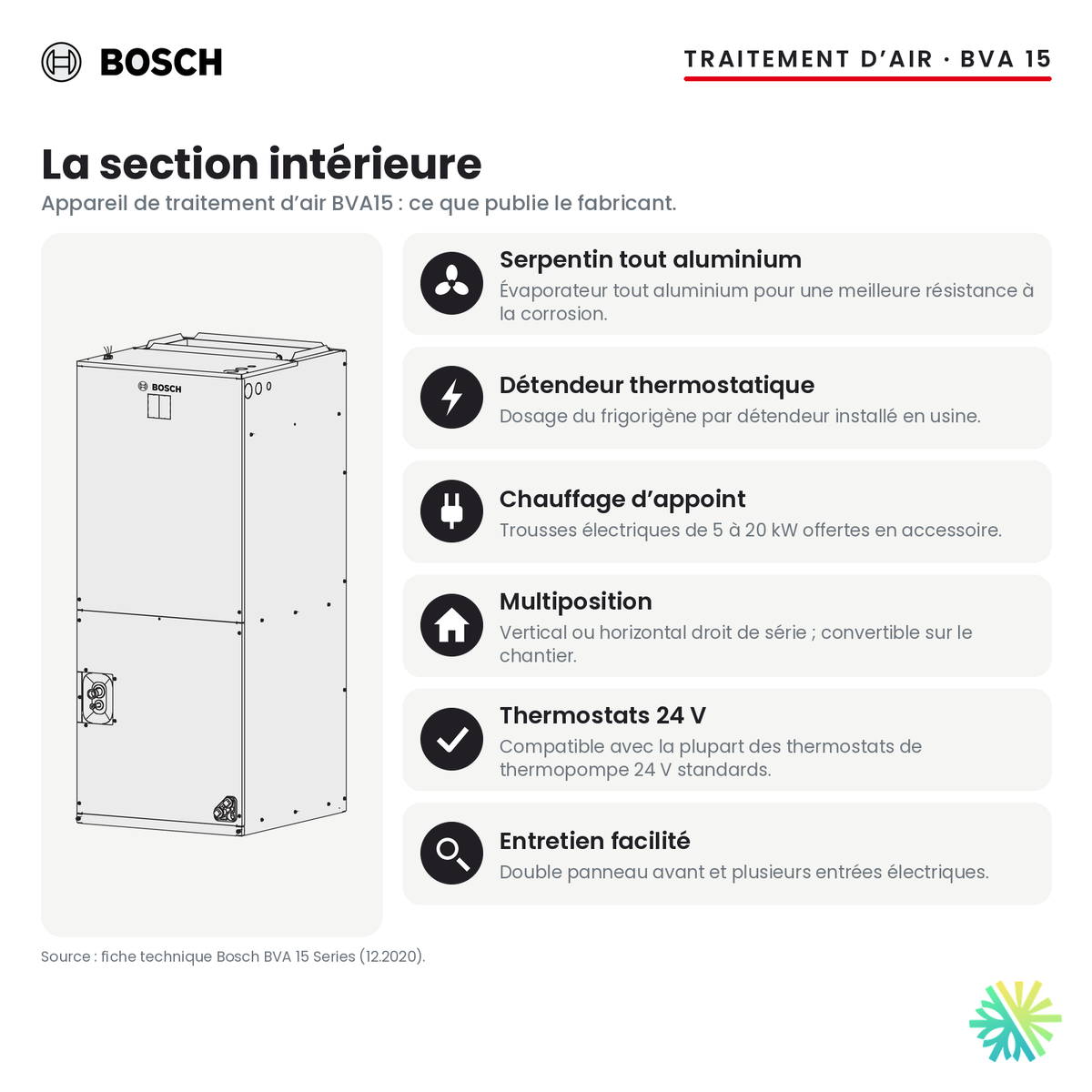

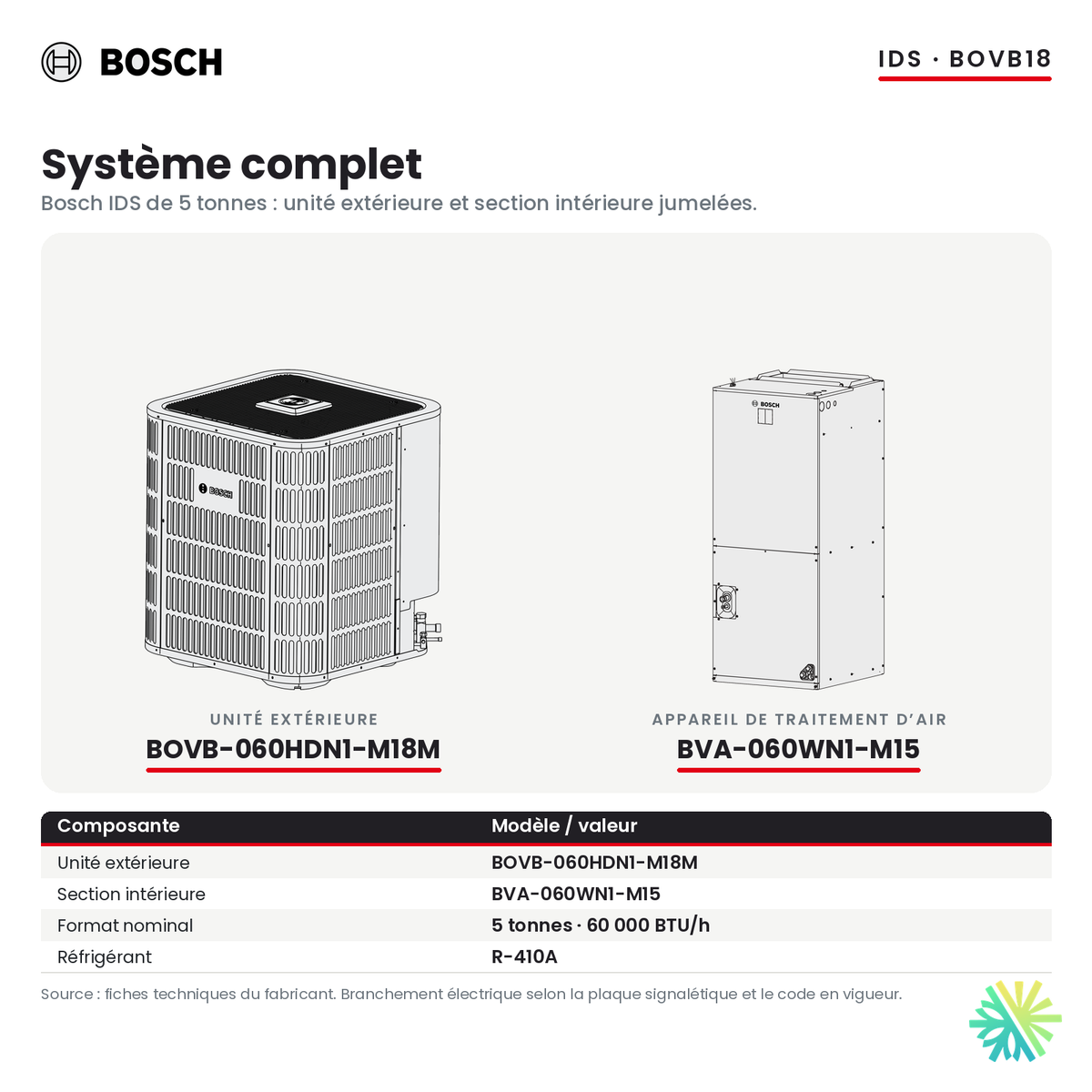

In a very large home with ductwork, a central heat pump handles the cooling and most of the heating through the existing duct system. The Central Heat Pump BOSCH IDS Inverter | 5 Tons - 60,000 BTU (Air Handler BVA-060WN1-M15) - R410A pairs the BOVB-060HDN1-M18M outdoor unit with the BVA-060WN1-M15 indoor unit, an air handler that pushes air through the ducts. Its compressor is variable speed (inverter technology).

Its ratings are 15.0 SEER2, 10.2 EER2 and 8.4 HSPF2. This page explains what variable speed brings to this size, what the certificate publishes for winter and what the installation requires.

What variable speed changes

A conventional compressor runs at full output or not at all: it starts, reaches the setpoint, stops, then starts again. The inverter compressor of the Bosch IDS system instead adjusts its speed to actual demand. In mild weather, it runs slowly and for a long time; when the cold or heat intensifies, it speeds up.

The result is felt in steadiness: fewer starts, more stable temperatures from one room to the next and air that circulates more continuously through the ducts. The system runs on R-410A; a reversing valve lets it heat in winter and cool in summer.

Fewer starts also means less strain on the components. A compressor that starts and stops constantly works under the most demanding conditions; a compressor that slows down and keeps running works more gently and steadily.

Five tons, but rarely at full output

A 5-ton system is chosen to cover the most demanding days of the year. Most of the time, though, the house needs much less: cool fall nights, mild spring days, temperate summer evenings. That is where variable speed makes the difference. Instead of piling up short cycles, the compressor slows down and keeps running.

In a large home, this continuous operation also helps keep temperatures even between the basement, the main floor and the upper floor, because the air never stops circulating for long.

What the certificate shows

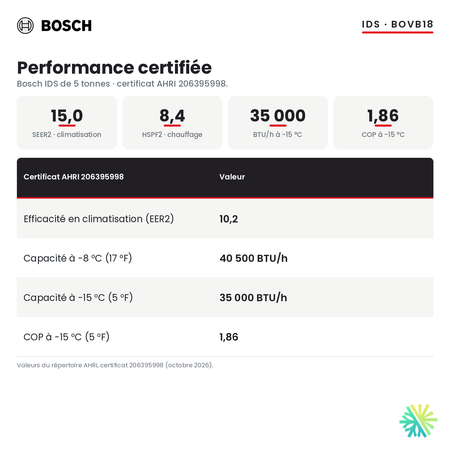

The certificate lists 40,500 BTU/h at -8 °C (17 °F) and 35,000 BTU/h at -15 °C (5 °F), with a COP of 1.86 at the -15 °C point. The two points are measured separately; we report each one as published, without extrapolating.

These figures come from certificate AHRI 206395998, as published in the AHRI certification directory, for the pairing of the BOVB-060HDN1-M18M outdoor unit and the BVA-060WN1-M15 indoor unit.

What the winter points mean

At -8 °C, the listed capacity represents about 68% of the 60,000 BTU nominal size; at -15 °C, about 58%. The heat pump therefore keeps a good share of its capacity when the cold sets in, which reduces the share of heat the backup has to provide.

This pairing is not, however, listed as a cold-climate heat pump. During deep cold, the demand of a very large home can exceed what the outdoor unit delivers: the air handler's backup heat, or the existing furnace in an installation that keeps it, then supplements the heat. We size it according to the load calculation and the certificate points.

To get the most out of variable speed, keep a steady setpoint rather than large nighttime setbacks. The system can then stay at low speed instead of recovering several degrees in the morning, which calls less on the backup heat.

Reading the heating ratings

• HSPF2 (8.4): seasonal heating efficiency over a typical winter. It is the most telling rating for a home that is heated for a good part of the year.
• COP (1.86 at -15 °C): the heat delivered divided by the electricity consumed, at that temperature. An electric baseboard has a COP of 1; at this point, the heat pump delivers nearly twice the energy it consumes.

These two pieces of information are read together. At -15 °C, the heat pump still delivers substantial capacity with a COP above 1: every part of the heat it supplies at that moment does not have to come from the electric backup, whose COP is 1.

Cooling and dehumidification

The SEER2 of 15.0 measures seasonal cooling efficiency over a typical summer; the EER2 of 10.2 measures efficiency on a hot day, at full demand. As in heating, variable speed lets the system run slowly most of the time and speed up during heat waves.

These long, low-speed cycles give the air time to pass over the cold coil, which removes moisture; the water drains through the condensate drain. The house stays cool and dry, even in muggy weather, all the way to the upstairs bedrooms.

Homes suited to the 5-ton size

This size typically targets very large homes with ducts: two spacious levels with a fully finished basement, a very spread-out single-storey home with large glazed areas, or a home enlarged several times. These are typical examples.

Variable speed does not replace proper sizing. The room-by-room load calculation confirms the size based on insulation, windows and airtightness; if it points to another size, we recommend it.

LogisVert

This pairing does not carry an amount on Hydro-Québec's LogisVert list of October 19, 2026. If the grant matters for your project, we will point you to an eligible pairing of comparable size.

Installation in a ducted home

The indoor unit takes the place of the old furnace or air handler and connects to the existing duct system. Before the quote, we check duct sizes and the air return, because a variable-speed heat pump only delivers its full efficiency if the airflow keeps up. The outdoor unit goes on a stand, above the snow line, on a dedicated circuit.

A duct system ready for a large system

At low speed, the system moves little air; on high-demand days, it moves a lot. The duct system must let that maximum airflow through without choking it, otherwise the capacity delivered drops and the registers become noisy. A large home often needs air returns on each level. We measure the duct system during the visit and list the corrections in the quote.

Electrical, backup heat and commissioning

• Electrical: dedicated circuit for the heat pump, supply for the backup heat and a check of the panel's capacity during the visit.
• Outdoor unit: solid stand above the snow line, away from snow sliding off the roof, with clear access for maintenance.
• Line set: insulated, evacuated and checked before the refrigerant is released; condensate drain connected to a compliant discharge point.
• Commissioning: charge, temperatures, airflow, controls and thermostat, then an explanation of the settings.

Maintenance

Replace the system filter according to its format, keep the outdoor unit clear of snow and leaves, and plan annual HVAC maintenance of the coil, condensate drain and electrical connections. In winter, white vapour during defrost is normal. Because the system runs for long periods, a lot of air passes through the filter: check it regularly.
