FORESTAIR E-TECH+ Central Heat Pump | 4 Tons - 48,000 BTU
SEER2 (Seasonal Air Conditioning Efficiency)
HSPF2 (Seasonal heating efficiency)
EER2 (Instantaneous efficiency in air conditioning)
COP at -8 °C (Heating energy efficiency)
CFM (Airflow)
Redefining Energy Efficiency for Quebec's Climate: ForestAir Innovation for Your Comfort
At AirGreen, we understand that choosing a heating and air conditioning system is a crucial decision for homeowners in Montreal, the North Shore, and the South Shore. With the harsh winters we experience, the 4-ton FORESTAIR E-TECH+ Central Heat Pump stands out as a cutting-edge solution, combining industrial robustness with domestic performance. This system is not just a thermal regulation device; it is an engineering marvel designed to maximize your investment while ensuring a healthy and consistent environment in every room of your home.
The expertise we have gained from our many installations in Laval and Longueuil allows us to state that this model precisely meets current energy transition requirements. Thanks to its ENERGY STAR® (Cold Climate) certification and AHRI code 217903147, the FORESTAIR E-TECH+ is eligible for significant provincial subsidies, particularly through the LogisVert program, which can reach $5760. This is an exceptional opportunity to modernize your HVAC (heating, ventilation, and air conditioning) system with high-end equipment.

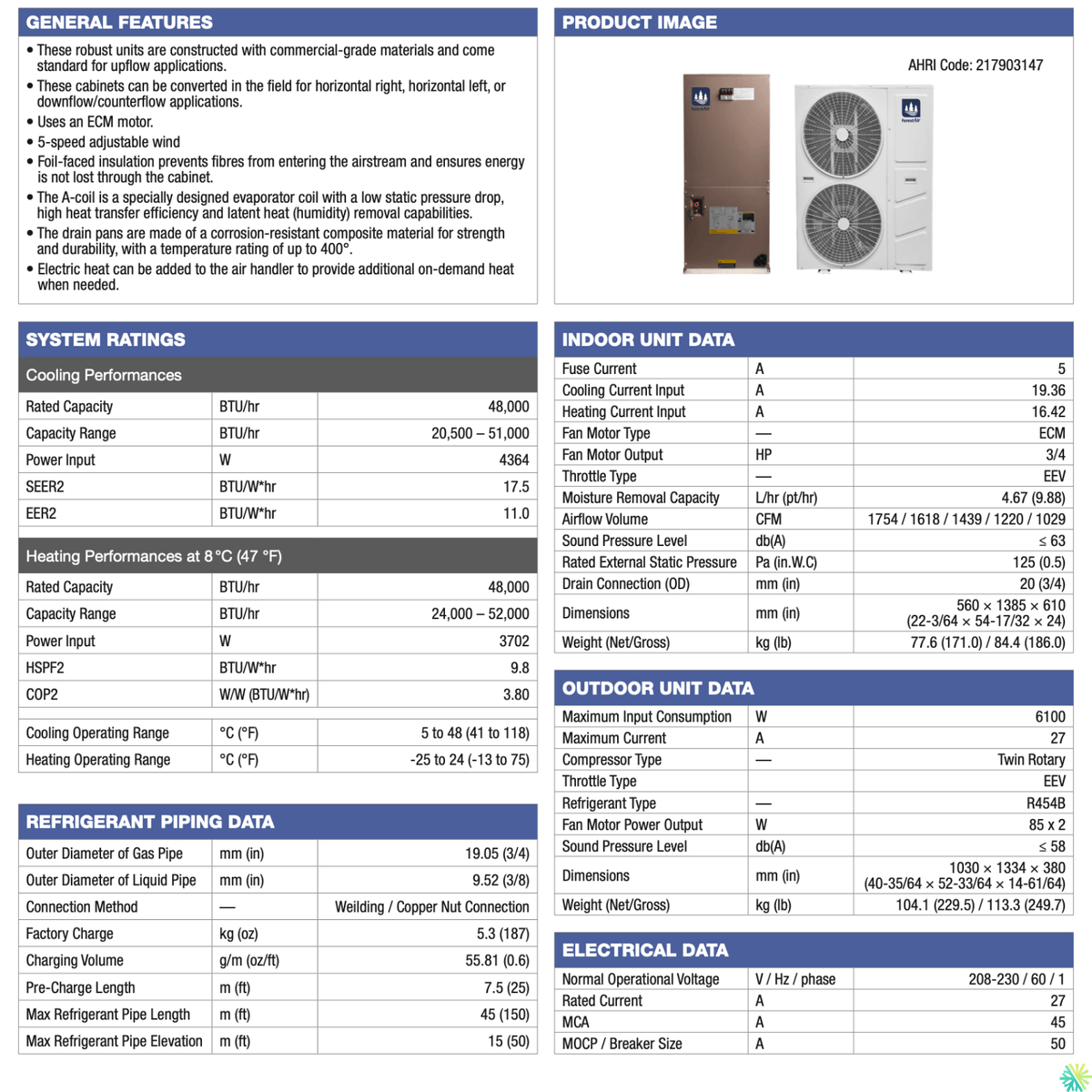

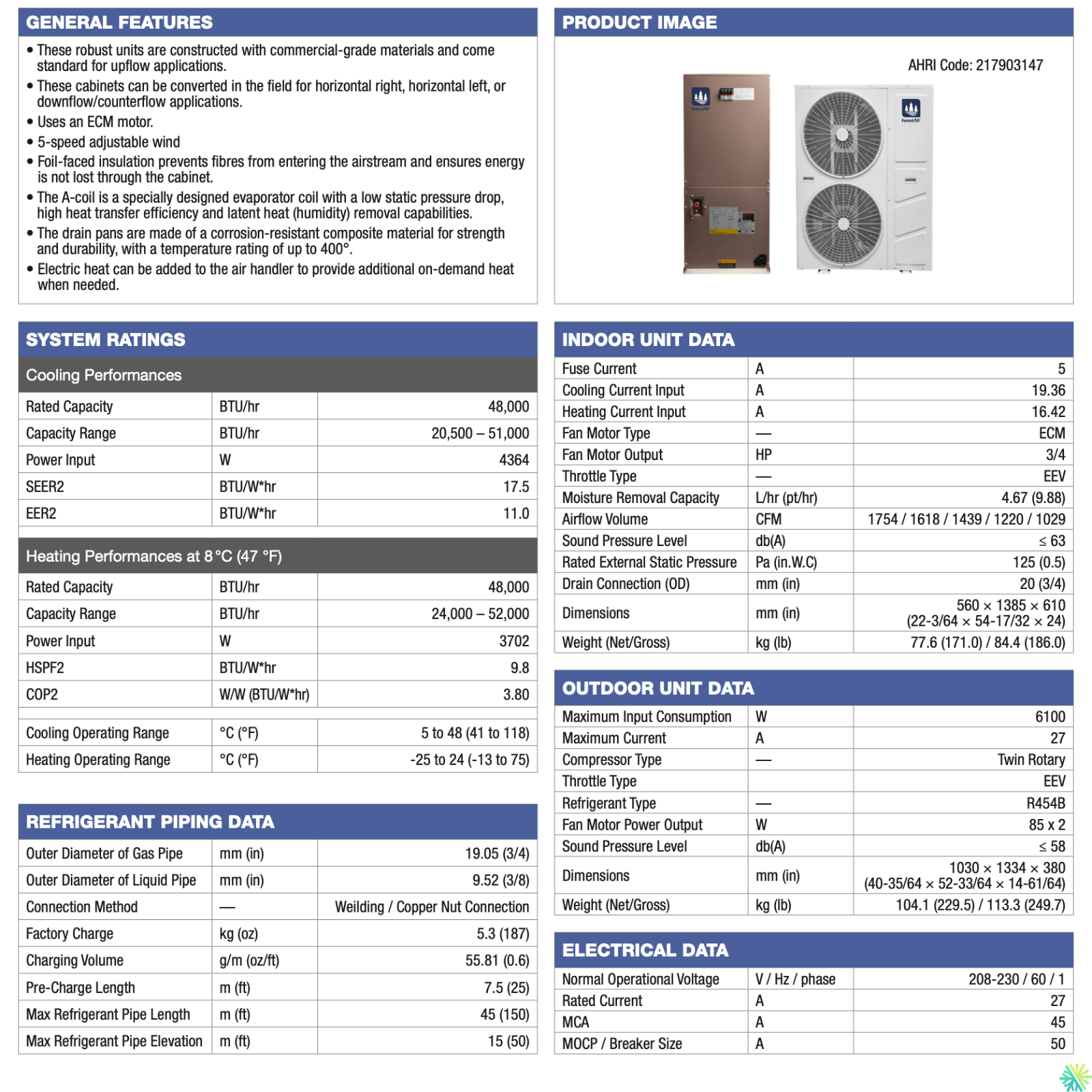

Technical Specifications and Performance of the FA-H48-VKCE/AH-454 Indoor Unit
The indoor unit, or evaporator, is the heart of air distribution in your home. The FA-H48-VKCE/AH-454 model stands out for its versatile design and robustness.
-
Modular and Versatile Design: The units are constructed with commercial-grade materials. While they are configured by default for upflow, our technicians can convert them in the field for horizontal (left or right) or downflow applications. This flexibility is essential during complex renovations in Montreal's historic neighborhoods.
-
High-Efficiency ECM Motor: Equipped with an ECM motor, the unit offers 5 adjustable air speeds, allowing for airflow up to 1754 CFM. This ensures homogeneous air circulation without the noise peaks of conventional motors, with a sound pressure level below 63 dB(A).
-
Air Quality and Insulation: Foil-faced insulation prevents fiberglass fibers from entering the airflow and reduces energy loss through the cabinet.
-
A-coil Technology: The evaporator coil is specially designed to minimize static pressure drop while maximizing heat transfer and moisture removal. Its dehumidification capacity reaches 4.67 L/hr (9.88 pt/hr), a major asset during our humid summers.
-
Thermal Durability: The drain pans are made of corrosion-resistant composite, capable of withstanding temperatures up to 400°F ($204^{\circ}C$).
Power and Resilience of the FA-H48-VKCE/OD-454 Outdoor Unit
The outdoor unit is designed to withstand the extreme climate conditions of the Montérégie and North Shore.
-
Twin Rotary Compressor: This type of compressor ensures operational stability and reduced vibrations.
-
Eco-Friendly R-454B Refrigerant: Ahead of environmental standards, ForestAir uses R-454B fluid, which has a much lower global warming potential than R-410A.
-
Extreme Heating Performance: The nominal heating capacity is 48,000 BTU/hr at 8°C. Even more impressively, the system maintains its 48,000 BTU power at -8°C and still provides 36,000 BTU at -15°C. The heating operating range extends to -25°C.
-
Energy Efficiency (SEER2 and HSPF2): With a SEER2 of 17.5 and an HSPF2 of 9.8, this heat pump guarantees substantial energy savings for both cooling and seasonal heating.
Why choose AirGreen for your central heat pump installation?
Installing a 48,000 BTU system requires rigorous technical expertise. At AirGreen, we don't just deliver a product; we install a durable and optimized solution for your comfort.
Local and Certified Expertise
Our certified refrigeration technicians have extensive experience in installing large-capacity central systems. Whether you are in Laval, Longueuil, or Boucherville, we ensure seamless integration with your existing ducts. We systematically validate the minimum circuit ampacity (MCA) of 45A and the maximum overcurrent protection (MOP) of 50A to guarantee the electrical safety of your residence.
Complete Grant Management
Transitioning to an E-TECH+ system is a smart investment. We help our clients navigate the complex grant processes, such as LogisVert. By choosing a model with a COP of 2.25 at -8°C and a COP2 of 3.80 at 8°C, you ensure optimal energy efficiency that fully justifies the financial incentives.
Piping Specifications and Dimensions
Space planning is crucial. The outdoor unit has dimensions of $1030 \times 1334 \times 380$ mm ($40-35/64 \times 52-33/64 \times 14-61/64$ in). For piping, the system uses a 3/4-inch outer diameter for gas and 3/8-inch for liquid. The maximum piping length can reach 45 m (150 ft) with a maximum elevation of 15 m (50 ft), offering great flexibility for positioning the outdoor unit, even on atypically configured properties on the South Shore.
Warranty and Peace of Mind
ForestAir offers a solid 10-year warranty on the compressor and 10 years on parts. At AirGreen, we add our commitment to satisfaction. We provide transparent pricing with no final surprises, and our $5 million liability insurance protects you throughout the duration of the work.
By choosing the FORESTAIR E-TECH+ 48,000 BTU heat pump, you are opting for the pinnacle of HVAC technology adapted to our Quebec reality. It guarantees a cool summer and a warm winter, while reducing your carbon footprint and electricity bills.
