A discreet and efficient HVAC solution for controlled comfort in Montreal and its surroundings
In the field of residential and commercial HVAC, some configurations require solutions that are both powerful, discreet, and flexible. The DIRECT AIR DA25 | 9000 BTU ducted heat pump excels precisely in these contexts where aesthetics, performance, and architectural integration are essential.
At AirGreen, we have installed this type of system in several properties in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, particularly in high-end condos, modern offices, and residences with suspended ceilings. This vertical ducted model allows for uniform air distribution without compromising interior design.
Why choose a vertical ducted heat pump like the DIRECT AIR DA25?
Invisible yet effective integration
Unlike traditional wall-mounted units, a ducted heat pump is entirely concealed within a ceiling, a false ceiling, or a technical space. Only the ventilation grilles are visible, which allows for:
- A sleek aesthetic
- Uniform air distribution in multiple rooms
- Better zone management
During a recent project in Boucherville (South Shore), we replaced two visible wall-mounted units with a vertical ducted DIRECT AIR system. The result: improved comfort and a much more harmonious interior finish.
Performance adapted to Quebec's climate
This model is designed to operate efficiently in demanding winter conditions:
- Heating down to -25°C
- Capacity at -15°C: approximately 8000 BTU
- Capacity at -8°C: 7700 BTU
According to the technical data from the brochure, Direct Air systems offer an operating range from -25°C to 30°C for heating, making them perfectly suited for Quebec winters.

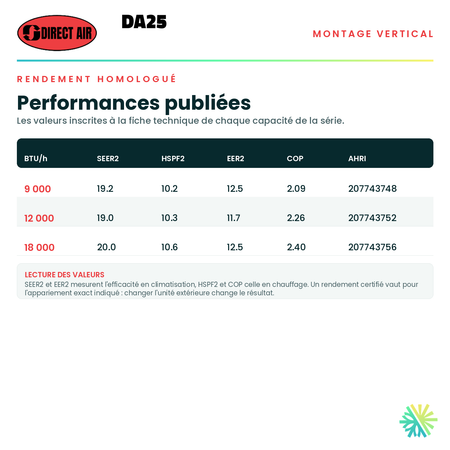

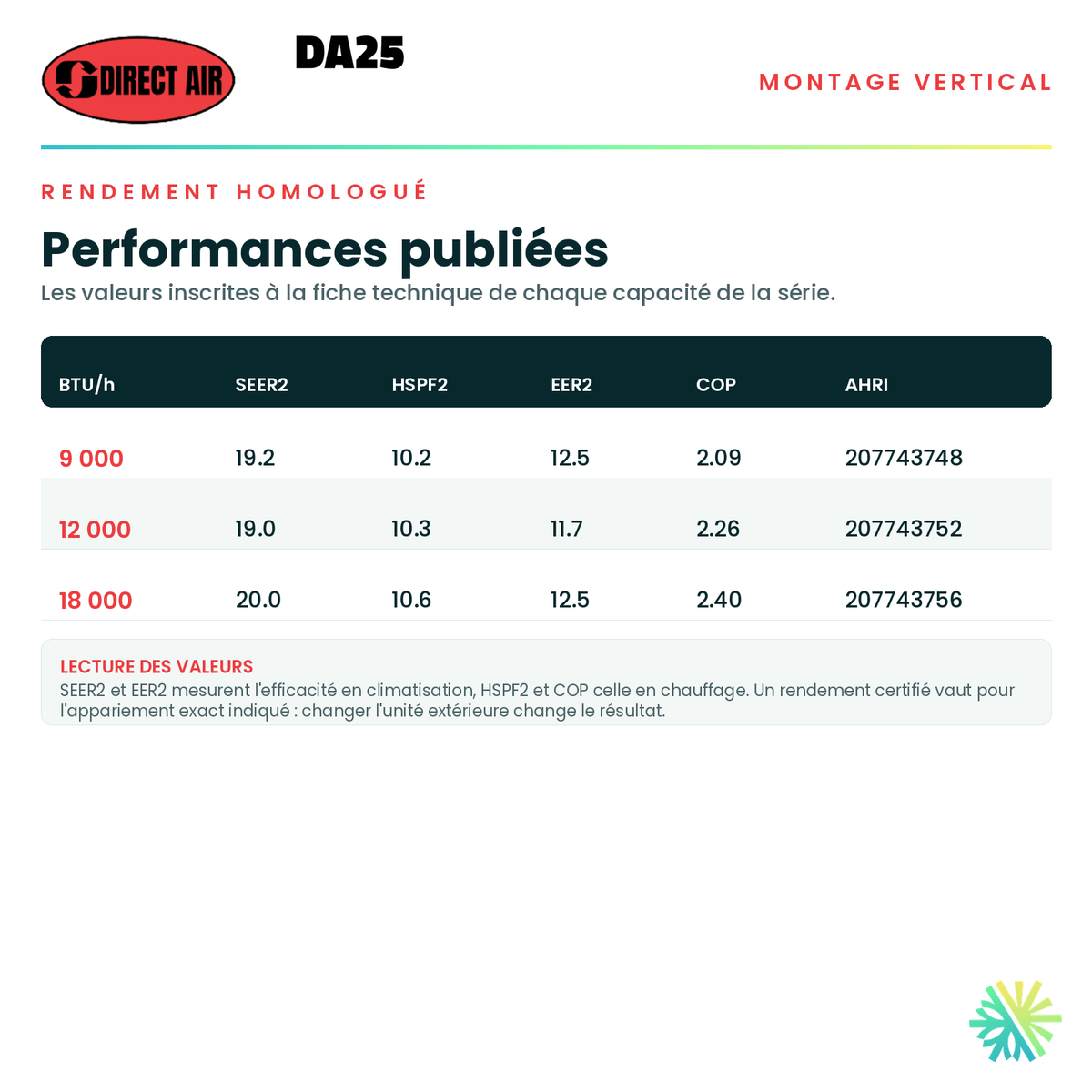

Energy efficiency and optimized consumption
Even if this model is not rated Energy Star Cold Climate, it remains efficient:
- SEER2: 19.23
- HSPF2: 10.21
- EER2: 12.52
- COP at -8°C: 2.13
These values demonstrate interesting energy efficiency for a ducted installation, which is often more complex than wall-mounted systems.

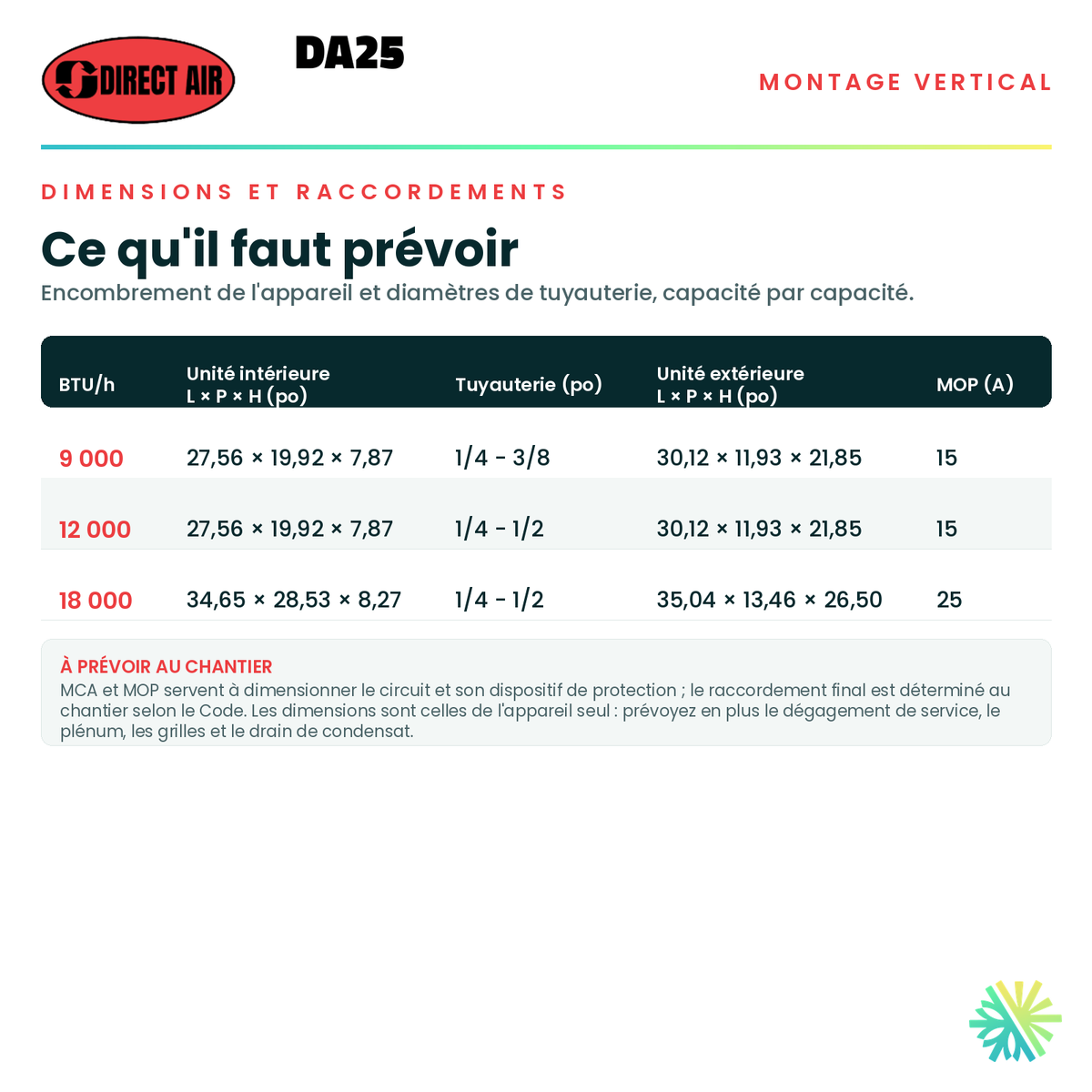

Detailed technical specifications

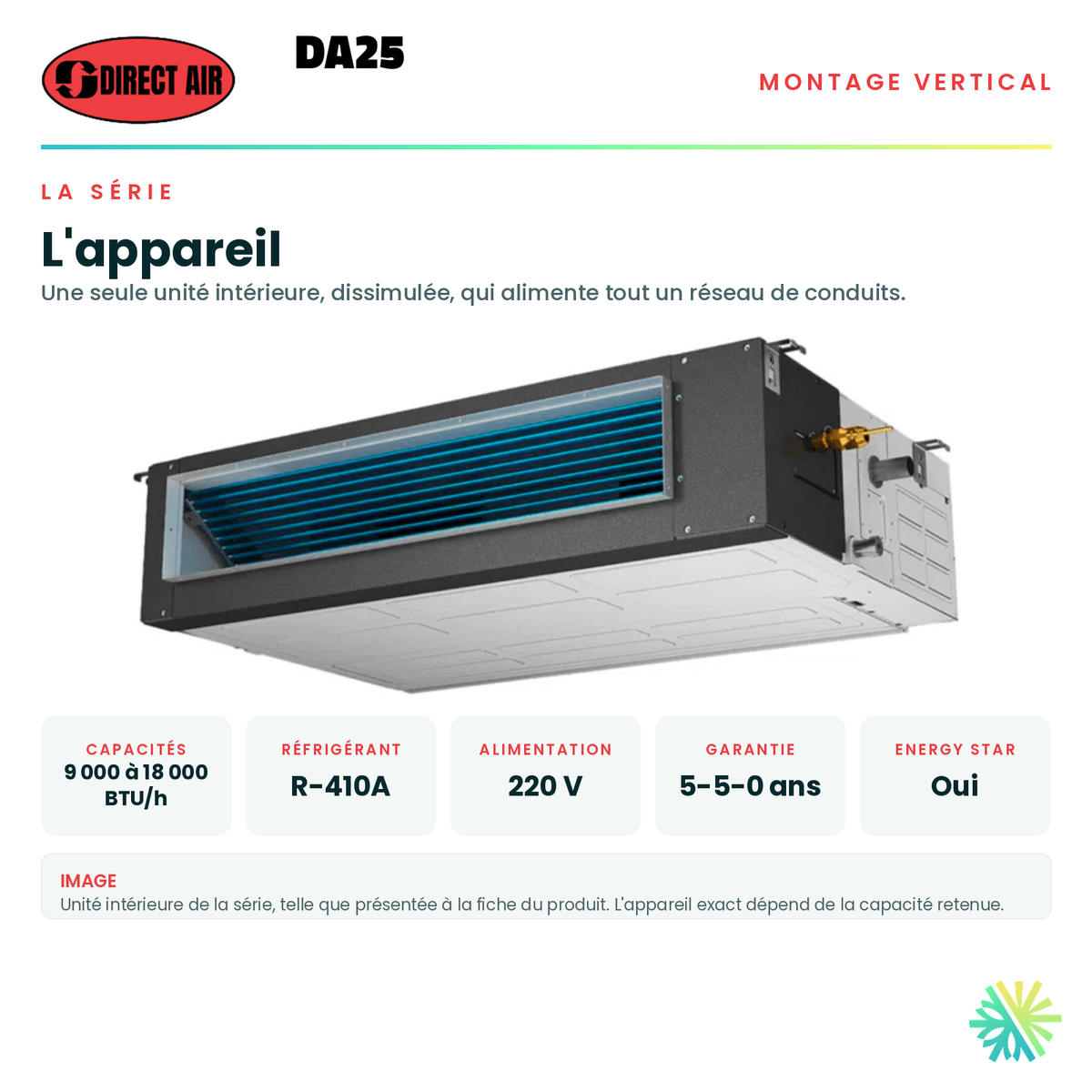

Indoor unit (model DIRM-09HP-DUV)
- Dimensions: 27.56 × 19.92 × 7.87 in
- Sound level: 27 to 33.5 dB(A) (very quiet)
- Optimized airflow for uniform distribution
- Adjustable static pressure for duct adaptation
Outdoor unit (model DIRM-09DA25-1Z)
- Dimensions: 30.12 × 11.93 × 21.85 in
- Sound level: 53 dB(A)
- Voltage: 220V
- Refrigerant: R-410A
Installation and piping
- Piping: 1/4 - 3/8
- Maximum length: up to 25 meters
- Level difference: up to 10 meters
Advanced features and smart comfort
According to the technical documentation (page 2 and 4 of the brochure), this range includes several essential functionalities:
- Automatic restart
- Automatic defrost
- 24-hour timer
- Optional WiFi (Alexa and Google Home compatible)
- Humidity sensor for optimized comfort
- Self-cleaning
- Variable static pressure control
During an installation in Laval, a client specifically requested a system capable of maintaining a stable temperature in several enclosed offices. Thanks to static pressure control and good duct design, we achieved a perfect balance between each room.
Real case: installation in a Montreal condo
In a condo located in the Griffintown neighborhood, we installed a DIRECT AIR DA25 9000 BTU vertical ducted system to replace a noisy and poorly positioned wall-mounted system.
Challenges encountered:
- Limited space in the ceiling
- Need for distribution to 3 zones
- Requirement for absolute silence
AirGreen Solution:
- Compact vertical installation in a technical space
- Custom design of the duct network
- Addition of discreet grilles
Result:
- Significant noise reduction
- Homogeneous comfort in all rooms
- High customer satisfaction
Specific advantages for AirGreen clients
Recognized technical expertise
Our refrigeration technicians are fully proficient in ducted installations, which are often more complex than standard systems.
Optimized installation
We analyze:
- Building configuration
- Duct length
- Pressure losses
- Actual BTU requirements
Total transparency
As always at AirGreen:
- No hidden fees
- Detailed quote before work
- Personalized advice
Common mistakes to avoid with ducted systems
1. Underestimating duct design
Poor design can lead to:
- Poor air distribution
- Excessive noise
- Loss of efficiency
2. Choosing inadequate capacity
A 9000 BTU system is ideal for:
- Small condos
- Compact offices
- Well-insulated spaces
But insufficient for large areas.
3. Neglecting access for maintenance
Poorly planned access complicates:
- Cleaning
- Maintenance
- Repairs
At AirGreen, we always anticipate these aspects.
An ideal solution for which types of projects?
The DIRECT AIR DA25 | 9000 BTU ducted heat pump is perfectly suited for:
- Modern condos in Montreal
- Homes with suspended ceilings in Laval
- Professional offices in Longueuil
- High-end projects on the North Shore and South Shore
Warranty and reliability
This model offers:
- 5 years compressor
- 5 years parts
- 0 years labor (standard)
Warranty extensions are available through AirGreen to secure your investment.
Conclusion: a strategic choice for discreet and lasting comfort
The DIRECT AIR DA25 9000 BTU vertical ducted heat pump represents an ideal solution for those seeking:
- An invisible system
- Reliable performance in Quebec winters
- Uniform air distribution
- A tailor-made installation
At AirGreen, we have the necessary expertise to transform this type of equipment into a solution perfectly suited to your space.
Contact AirGreen for your HVAC project
Are you considering a ducted installation in Montreal, Laval, Longueuil, on the North Shore, or the South Shore?
Contact us today for:
- A free evaluation
- A detailed quote
- Advice tailored to your building
Our team will assist you at every step to ensure a reliable, efficient, and durable HVAC installation.
