Ducted Heat Pump (Vertical) DIRECT AIR HEAT XTREME PRO | 9000 BTU
SEER2 (Seasonal Air Conditioning Efficiency)
HSPF2 (Seasonal heating efficiency)
EER2 (Instantaneous efficiency in air conditioning)
COP at -8 °C (Heating energy efficiency)
CFM (Airflow)
A Discreet and High-Performance HVAC Solution for Modern Spaces in Montreal
In today's HVAC market in Montreal, Laval, Longueuil, and on the North and South Shores, vertical ducted systems are gaining popularity for a simple reason: they offer uniform comfort without compromising interior aesthetics. The DIRECT AIR HEAT XTREME PRO 9000 BTU ducted heat pump fits perfectly into this trend, combining very low-temperature performance, advanced energy efficiency, and installation flexibility.
At AirGreen, we have installed several units of this series in recent condos in Montreal, as well as in renovated homes in Boucherville and Laval. This model is particularly aimed at homeowners seeking a compact, quiet solution capable of performing even during the most demanding Quebec winters.
Why choose a vertical ducted heat pump like the DIRECT AIR HEAT XTREME PRO?
Invisible and Elegant Integration
Unlike traditional wall-mounted units, a ducted heat pump is hidden in a ceiling, closet, or technical space. Air is distributed via ducts, which allows for:
- A sleek aesthetic (no visible units in main rooms)
- Homogeneous air distribution
- Better comfort management in multiple zones
In a recent project in Longueuil, we replaced two visible wall-mounted units with a DIRECT AIR 9000 BTU ducted system. The result: a noticeable improvement in comfort and an immediate enhancement of the interior space.
Exceptional Performance down to -35°C
Quebec's climate imposes high demands. This heat pump stands out for its heating capacity down to -35°C, making it perfectly suited for winters in Montreal and its surroundings.
According to technical documentation, Heat Xtreme Pro models maintain stable performance even in extreme conditions, with an impressive operating range:
- Heating: -35°C to 30°C
- Air Conditioning: -30°C to 50°C
This concretely means less reliance on auxiliary heating systems and reduced energy costs.
Remarkable Energy Efficiency
This unit boasts strong performance:
- SEER2: 120.23
- HSPF2: 112.01
- COP at -8°C: 11.93
These figures translate into optimized consumption, which is particularly important for homeowners looking to reduce their energy bills in regions like the South Shore and the North Shore.
Furthermore, the ENERGY STAR® (Cold Climate) certification confirms its efficiency in cold climates.
Detailed Technical Specifications

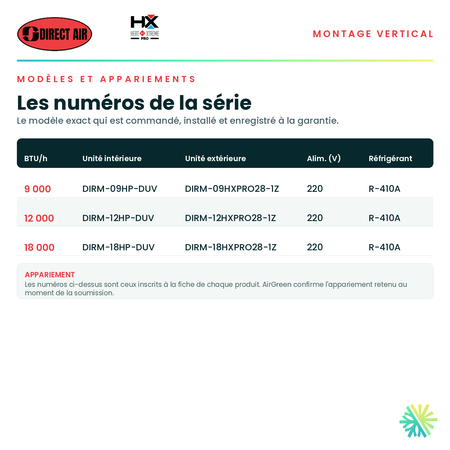

Here are the main characteristics of the 9000 BTU model:
- Cooling Capacity: 9,000 BTU
- Power at -15°C: 10,800 BTU
- Refrigerant: R-410A
- Voltage: 220V
- Piping: 1/4 – 3/8
- Indoor Sound Level: 27 to 33 dB(A)
- Outdoor Sound Level: 54.5 dB(A)
Dimensions:
- Indoor: 27.56 x 19.92 x 7.87 inches
- Outdoor: 31.69 x 12.99 x 21.81 inches
These compact dimensions facilitate installation in confined spaces, a key advantage in urban residential projects in Montreal.
Advanced Features for Optimal Comfort
The Heat Xtreme Pro series includes several intelligent features that enhance the user experience:
- Automatic Restart
- Automatic Defrost
- 24-hour Timer
- Humidity Detection
- Self-Cleaning
- Eco and Turbo Mode
- Optional WiFi compatible with smart systems
In a recent installation in Laval, a client wanted to control their system remotely. The addition of the WiFi module allowed for complete management via smartphone, increasing comfort and energy efficiency.
Installation: What You Need to Know
Essential Expertise
Installing a ducted heat pump is more technical than a standard wall-mounted unit. It requires:
- Duct planning
- Static pressure management
- Integration with the existing ventilation system
At AirGreen, our certified refrigeration technicians ensure compliant and optimized installation. We recently completed a complex project on the North Shore, where limited space required a precise vertical configuration with adjusted static pressure.
Flexibility: Single-Zone or Multi-Zone
This model is compatible with systems:
- Single-zone (only one area served)
- Multi-zone (several rooms with a single outdoor unit)
The documentation specifies an important rule for multi-zone configurations:
The total capacity of the indoor units must be between 66% and 133% of the outdoor unit's capacity
This flexibility allows the system to be adapted to different types of buildings, from condos to duplexes.
AirGreen Real Case: Installation in Montreal
In the Rosemont borough, we recently installed this heat pump in a renovated condo.
Initial Situation:
- Inefficient electric heating
- Non-existent air conditioning
- Limited space for a wall-mounted unit
Proposed Solution:
- Installation of a DIRECT AIR 9000 BTU vertical ducted unit
- Distribution via ducts concealed in the ceiling
Result:
- Uniform temperature in all rooms
- Significant reduction in energy consumption
- No visible units
This type of project perfectly illustrates the benefit of ducted systems in urban environments.
Common Mistakes to Avoid
1. Undersizing or Oversizing the Unit
Even if 9000 BTU may seem standard, each project must be precisely evaluated. Incorrect capacity leads to:
- Thermal discomfort
- Excessive consumption
- Premature wear and tear
2. Neglecting Installation Quality
A poorly executed installation can drastically reduce performance. At AirGreen, we emphasize:
- Duct sealing
- Proper network sizing
- Precise adjustments
3. Ignoring HVAC Maintenance
Regular maintenance is essential to maintain:
- Energy efficiency
- Air quality
- System durability
Warranty and Reliability
This model offers a solid warranty:
- 10 years compressor
- 10 years parts
- Optional labor
The Direct Air brand is known for its reliability and manufacturing standards adapted to the Canadian market.
Why Choose AirGreen for Your HVAC Installation?
We stand out in the HVAC market in Montreal, Laval, Longueuil, and on the South Shore and North Shore thanks to:
- Advanced technical expertise
- Clean and durable installations
- Complete price transparency
- Fast and efficient after-sales service
Each project is custom-designed, based on the client's actual needs and the building's constraints.
Conclusion
The DIRECT AIR HEAT XTREME PRO 9000 BTU vertical ducted heat pump represents an ideal solution for those seeking discretion, performance, and energy efficiency in the Quebec climate.
It integrates perfectly into modern projects and offers a superior alternative to traditional visible systems.
Contact AirGreen Today
Would you like a quote or to verify if this heat pump is suitable for your property in Montreal, Laval, Longueuil, North Shore, or South Shore?
Contact our team now. We will provide you with a comprehensive analysis and a tailored solution, without compromise.
