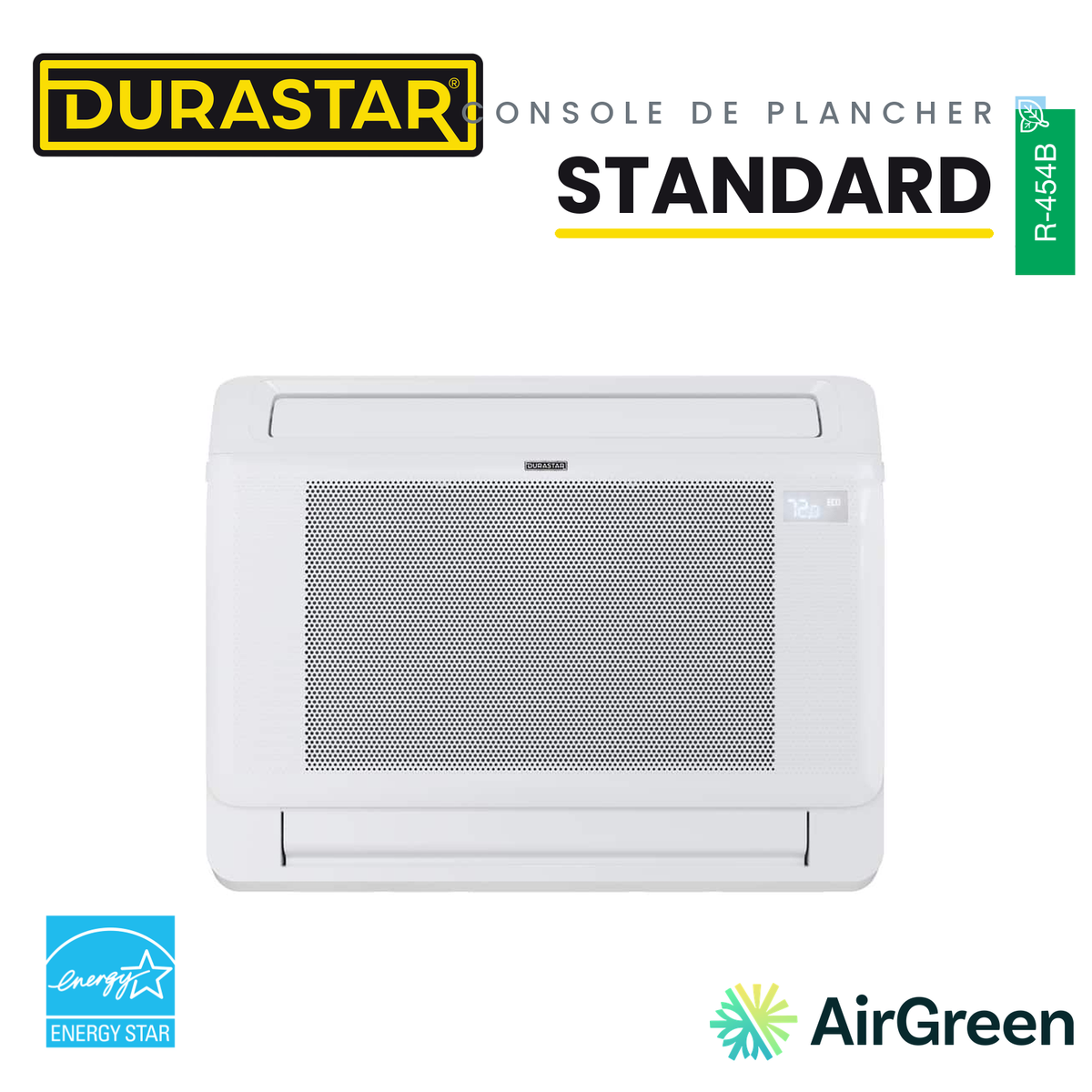

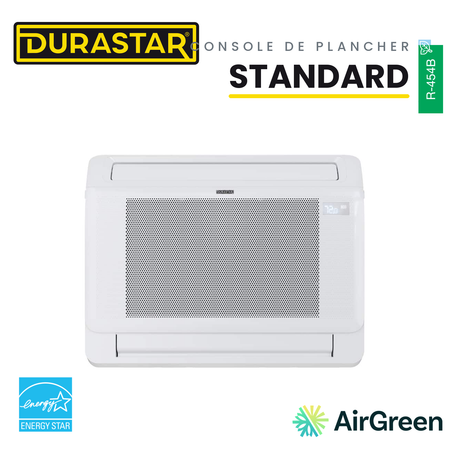

Floor Console Heat Pump DURASTAR Standard | 9,000 BTU - R454B

Replacing a window air conditioner in a glassed-in Candiac office

In Candiac, an office set up under a large bay window heats up on its own as soon as the sun comes out, then cools down abruptly in the late afternoon. The window air conditioner that served as a solution blocks the view, lets cold air in all winter and can be heard from one floor to the next during calls. The DURASTAR Standard 9,000 BTU R454B floor console heat pump frees the window, sits on the floor under the bay and runs at 20 dB(A) at low speed.

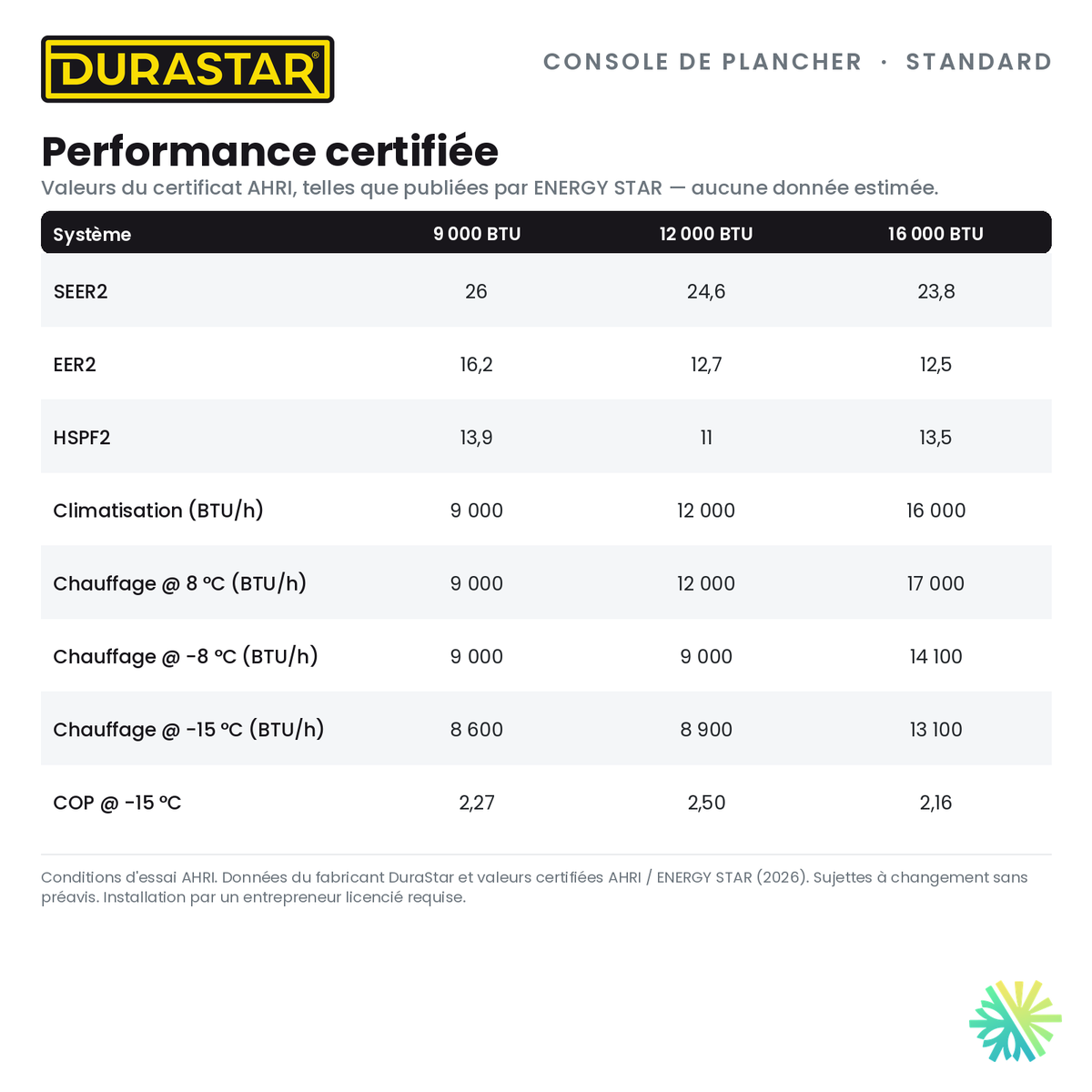

The ratings on the certificate

• Seasonal efficiency of 26.0 SEER2, 16.2 EER2 and 13.9 HSPF2
• At -8 °C: 9,000 BTU/h, with a COP of 2.91
• At -15 °C: 8,600 BTU/h, with a COP of 2.27
• At -25 °C: 4,600 BTU/h, with a COP of 1.42
• Airflow of 441 CFM, 20 to 42 dB(A) indoors

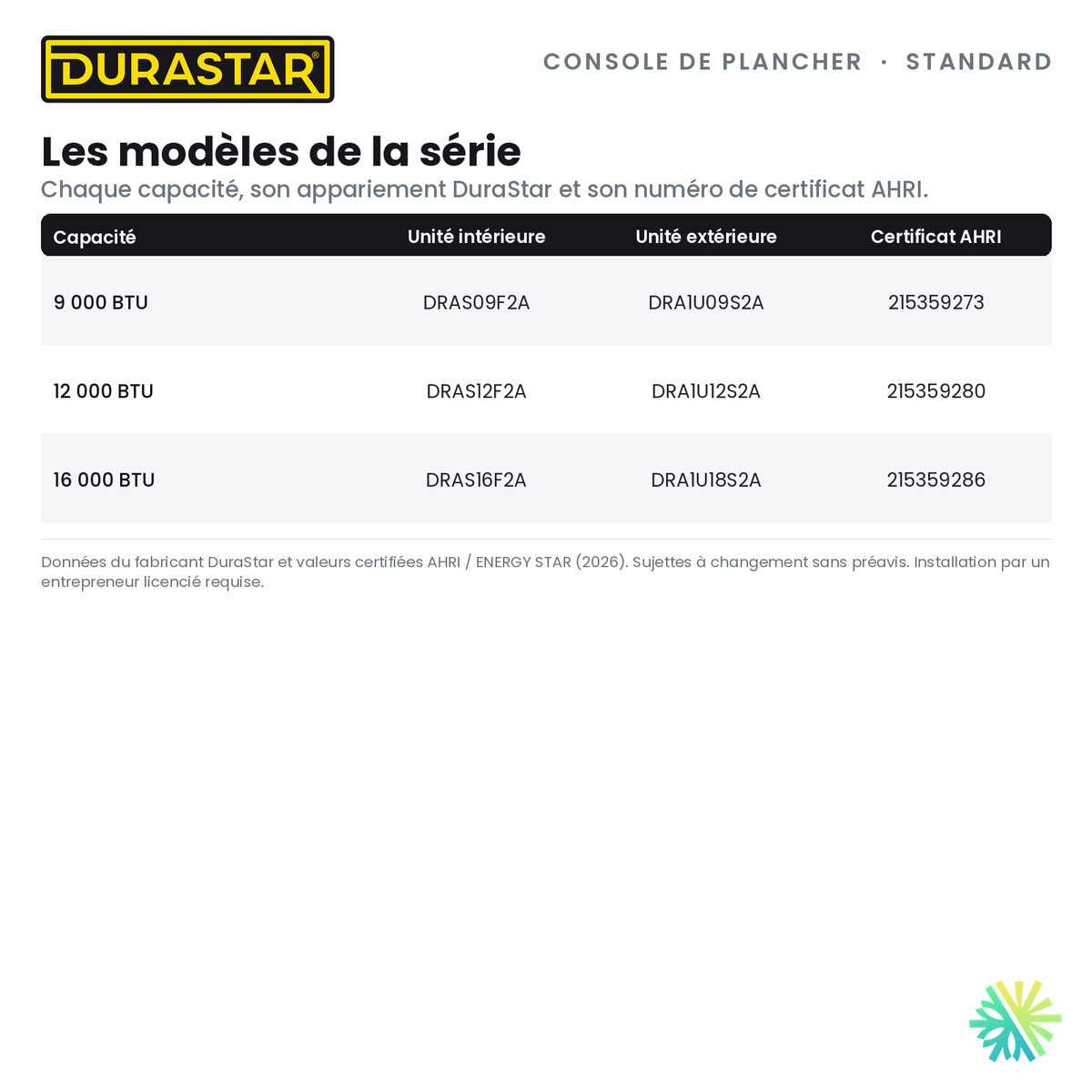

These figures are from certificate AHRI 215359273, as published by NEEP, and the system is ENERGY STAR certified. The 16.2 EER2 is the most telling value in an office: it describes efficiency in full heat, when the bay window turns the room into a greenhouse and the unit runs the longest.

What the replacement changes in the room

The window is sealed and clear again, the noise drops to 20 dB(A) at low speed, and the unit also heats, down to -25 °C. A window air conditioner stops in October; a console works all year and removes 1.1 pints of water per hour on humid July days.

The $0 LogisVert value

This model is not on the current list of heat pumps eligible for Hydro-Québec’s LogisVert program, which is why the spec sheet shows $0, despite ENERGY STAR ID 3621168. The 12,000 BTU size of the same series is listed: for a room approaching 450 square feet, the comparison is worth making. Our financing options cover the difference if needed.

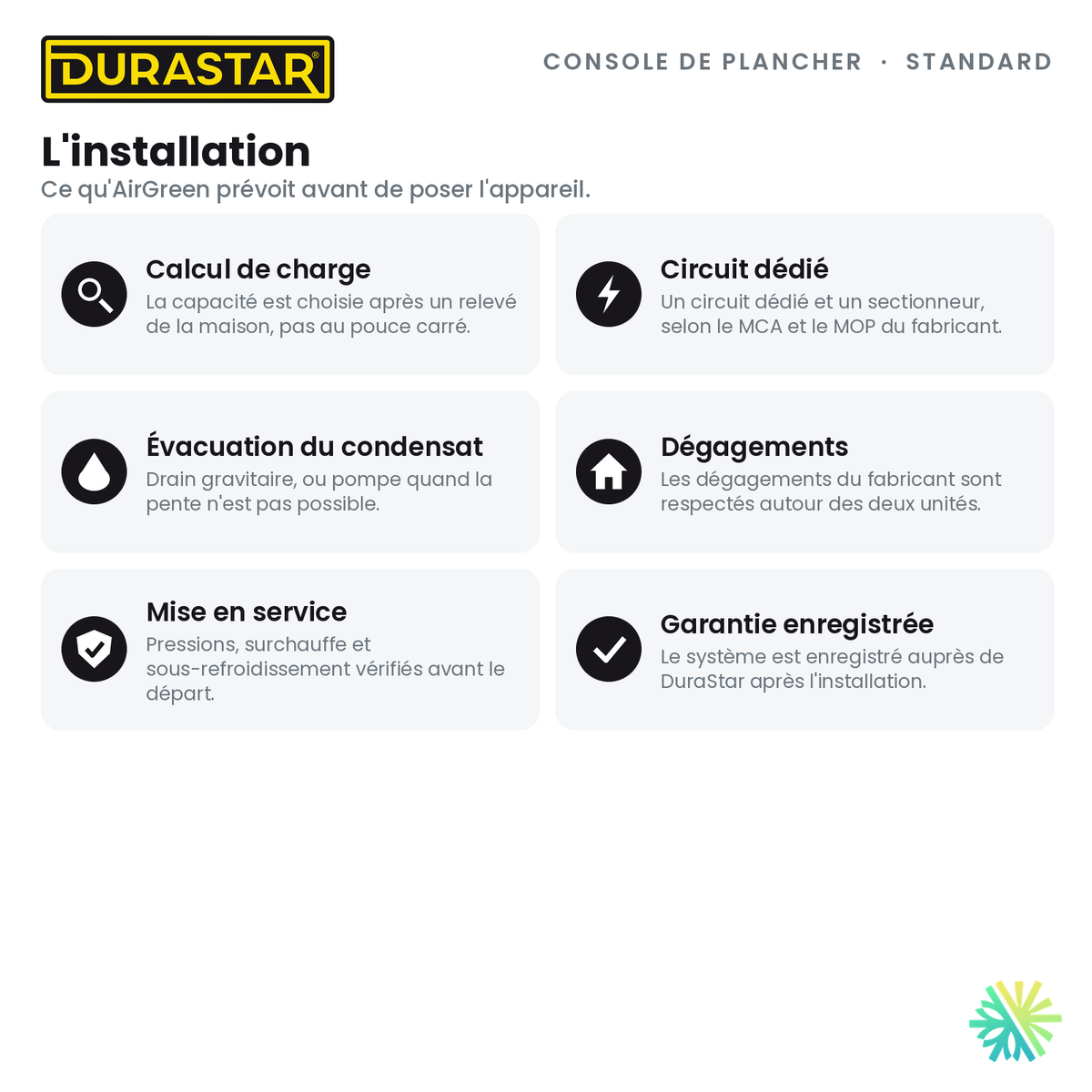

Installing under the bay without marking the floor or the frame

The desk, the rug and the clearance

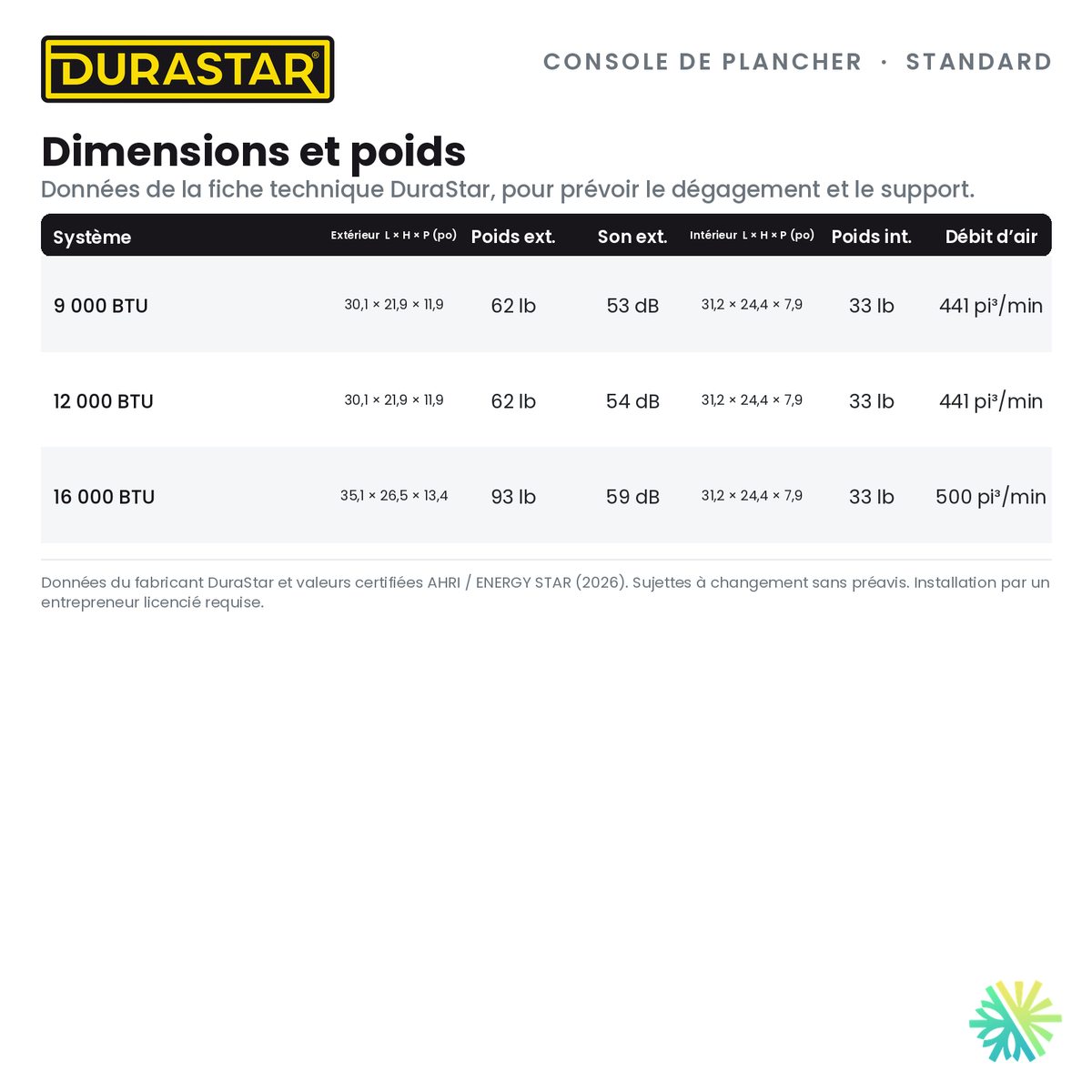

The console measures 31.26 x 7.87 x 24.45 inches and slips under the sill, next to the desk rather than behind it. We keep the strip in front of the grille clear: a filing cabinet or a thick rug pushed against the unit sends the air back into the cabinet and skews the temperature reading.

The opening and the baseboard route

The opening goes through the solid panel under the bay, never through the window frame. The 1/4 and 3/8 inch lines and the drain then run down along the baseboard, under a finishing cover. Our installations are fully surface-mounted, with no work inside the walls, and the hardwood floor is protected along the whole route.

A new circuit instead of the air conditioner outlet

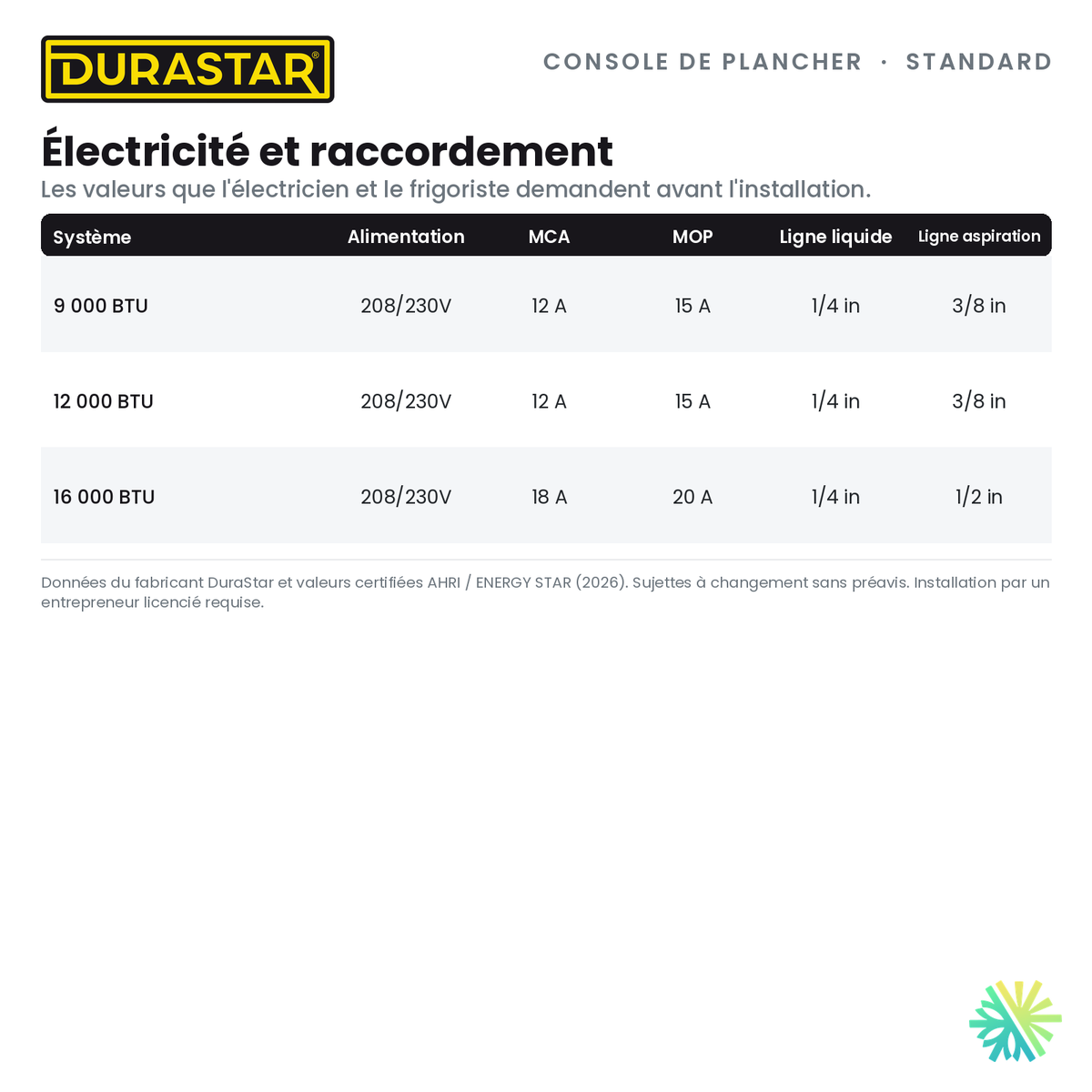

Power is 220 V, with a minimum circuit ampacity of 12 A, a 15 A breaker and a dedicated circuit. The 15 A outlet that fed the window air conditioner is not suitable: we run a new circuit from the panel, after a load calculation, and the outdoor unit is mounted above the snow line.

Maintenance and service

• A three-minute delay on restart protects the compressor
• A short hiss follows start-up: the refrigerant is redistributing
• Heating stops below -25 °C, the manufacturer’s limit

A burning smell, a tripping breaker or water inside call for a shutdown and a service call. The rest comes down to filters rinsed every two weeks, an outdoor unit kept clear of snow and an annual HVAC maintenance; our cleaning service takes care of the coils.

We are a family HVAC business, at work for more than fifteen years in Montréal, Laval, Longueuil, the North Shore and the South Shore. The in-home assessment is free and the quote is in writing, with no on-the-spot signature.

Schedule your free estimate for the DURASTAR Standard 9,000 BTU R454B floor console heat pump. We measure the office’s glass area, confirm the circuit to run and give you a written quote.

Warranty: 10 years on the compressor, 10 years on parts and 6 years on labor, straight from the distributor.
