A 9,000 BTU heat pump that disappears into the ceiling while distributing air where a wall-mounted head cannot

The SENVILLE SENA R454B 9,000 BTU ducted heat pump, consisting of the SENA-09HF-OG outdoor unit and the concealed SENA-09HF-IDG indoor unit, is suited to an HVAC project very different from that of a conventional wall-mounted heat pump.

Instead of installing a visible head on a wall, the indoor unit is concealed in a ceiling, soffit, interceiling space, or suitable mechanical area. Air is then distributed using short ducts and supply grilles, while a return grille allows air to flow back to the unit.

For certain projects in Montreal, Laval, Longueuil, the North Shore, and the South Shore, this is precisely what makes the difference between an installation that is merely functional and one that is truly integrated into the architecture.

Senville’s documentation describes the model as a concealed 9,000 BTU ducted system, ENERGY STAR certified and capable of providing heating and cooling year-round. The manufacturer also states that it can operate in heating mode down to -30 °C.

What this 9,000 BTU SENVILLE ducted system actually includes

The main data provided for the AirGreen configuration are:

The brochure’s technical table confirms 9,000 BTU/h in cooling, a nominal 10,000 BTU/h heating capacity, a 21.4 SEER2, a 13.4 EER2, and an HSPF2 Region 4 of 12.5.

A ducted unit is not a small central furnace

This is the first distinction we explain when carrying out this type of installation.

A 9,000 BTU ducted heat pump uses ducts, but it is not designed to automatically replace a large central system serving an entire house.

Its purpose is rather to discreetly treat a limited area with a few well-positioned air outlets.

For example, on a floor with two small bedrooms and a corridor, it may sometimes be more attractive to install the ducted unit in a ceiling space and distribute the air through several grilles rather than placing two visible wall-mounted units.

In a Montreal condo, it can also serve an adjacent bedroom and office when the architecture allows for a compact duct network.

The principle remains the same: 9,000 BTU must be sized for the zone’s actual heating and cooling load, not for the number of grilles you want to install.

Only 7.87 inches high: a significant advantage in tight ceilings

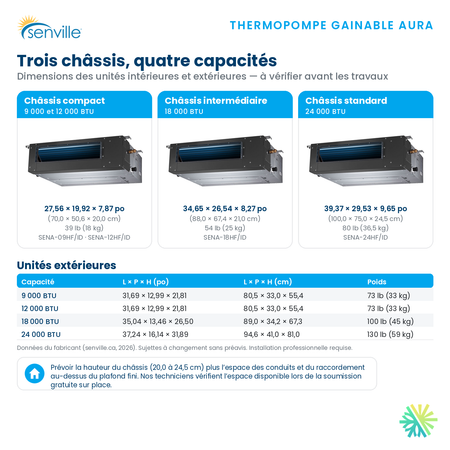

The indoor unit measures approximately:

27.56 in. wide × 19.92 in. deep × 7.87 in. high.

It weighs approximately 39.46 lb.

This low height is particularly advantageous in renovations.

In Montreal and Longueuil, we frequently work in properties where every inch counts: relatively low basement ceilings, existing soffits, structural beams, existing plumbing, or ducts.

An indoor unit less than eight inches high can sometimes fit where a thicker unit would require lowering a large section of ceiling.

But the unit’s dimensions are only part of the calculation.

You must also plan for:

• the duct connections;
• the return grille;
• the supply outlets;
• the condensate drain;
• the refrigerant piping;
• the wiring;
• future access to the filter and components;
• the clearances required for maintenance.

An overly compact installation that makes the unit inaccessible quickly becomes problematic during an HVAC service call.

Approximately 400 CFM: the duct network must accommodate this airflow

The brochure provides the following airflow rates:

• 400.2 CFM at maximum
• 323.7 CFM
• 264.9 CFM
• 176.6 CFM at the low setting

These figures are particularly important for a ducted unit.

With approximately 400 CFM available at maximum, we cannot arbitrarily connect a large number of ducts, elbows, grilles, and long flexible sections without considering pressure losses.

This is one of the most common mistakes in ducted installations: treating the duct as a simple means of transporting air without considering the resistance it imposes on the fan.

The scenario we want to avoid

Let’s consider a representative installation.

A homeowner wants to completely conceal the system and requests four small grilles distributed among several rooms. On paper, this seems simple.

But if the network includes:

• long flexible sections;
• several tight bends;
• diameter reductions;
• a small return grille;
• overly restrictive dampers,

the indoor fan may have much more difficulty moving the 400 CFM specified.

The result may be:

• less air reaching the distant grilles;
• more noise;
• a temperature difference between rooms;
• lower-than-expected performance;
• longer system operation.

At AirGreen, we therefore consider the distribution network an integral part of the heat pump.

A modulation range that drops to approximately 3,400 BTU in cooling mode

The technical table indicates a cooling range of 3,400 to 13,500 BTU/h and a heating range of 3,800 to 16,200 BTU/h.

This modulation is particularly useful for a small area.

The machine does not need to constantly produce its rated 9,000 BTU. When the load decreases, the inverter compressor can reduce its speed.

This is important in a bedroom or small office because a unit operating continuously at full power could reach its setpoint very quickly.

Good modulation can promote:

• more stable temperature;
• fewer on-off cycles;
• greater comfort;
• consumption better suited to demand;
• quieter operation.

A rated heating capacity of 10,000 BTU

Even though the product is marketed as a 9,000 BTU unit, the brochure indicates a rated heating capacity of 10,000 BTU/h.

That is normal: a heat pump's heating capacity and cooling capacity are not necessarily identical.

For winter sizing, we mainly look at the available capacity when the temperature drops.

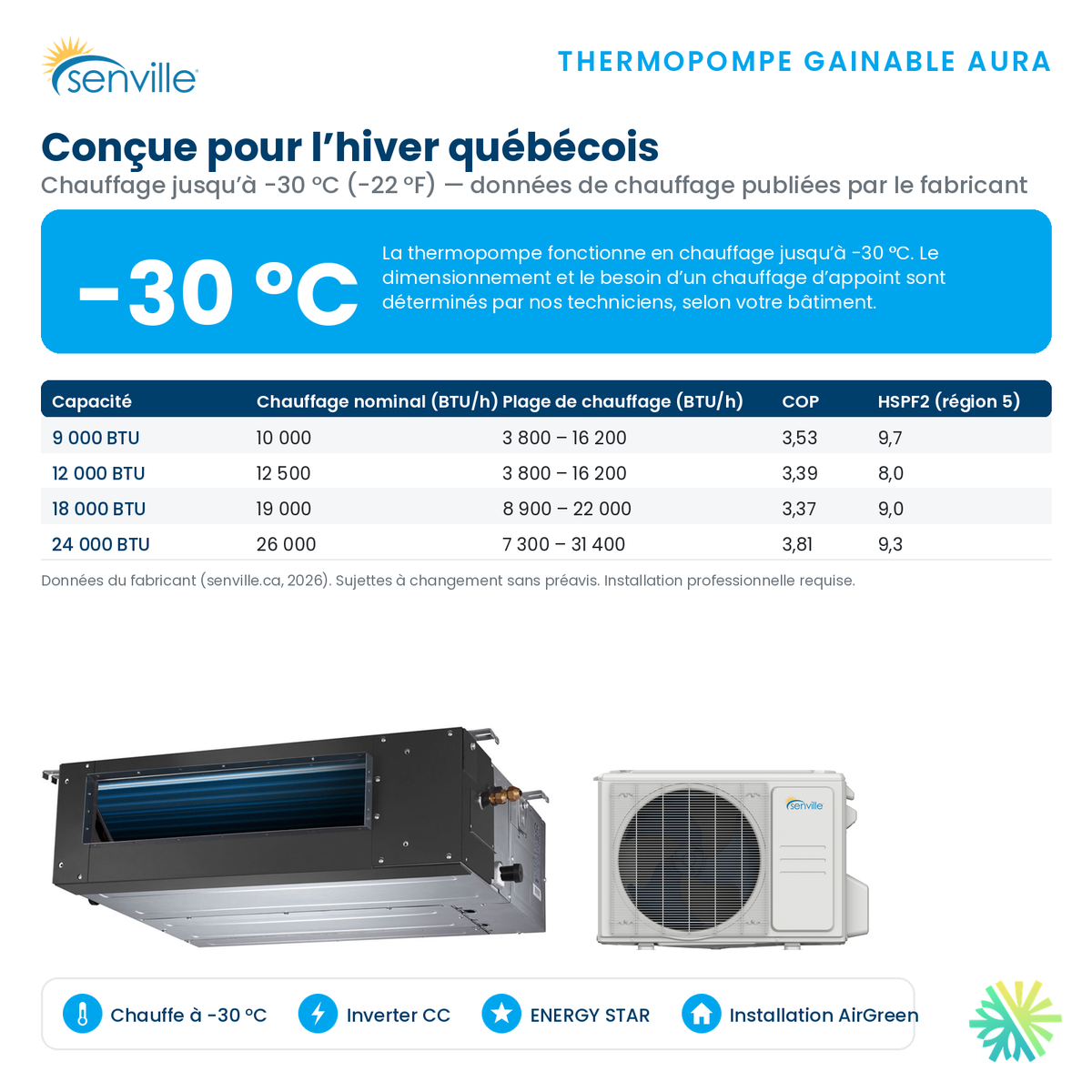

9,600 BTU at -8 °C and 11,200 BTU at -15 °C

The AirGreen product sheet provides two values that are particularly interesting for Quebec:

9,600 BTU/h at -8 °C
11,200 BTU/h at -15 °C

This means that this small unit can maintain significant heating capacity during a large part of the Montreal winter.

However, operation at -30 °C is very different.

At -30 °C: 6,400 BTU maximum

The heat pump is advertised as continuing to operate down to -30 °C, a limit confirmed by Senville documentation.

But the AirGreen product sheet indicates that at this temperature, the maximum capacity is approximately 6,400 BTU/h.

This is a fundamental distinction.

“Operation down to -30 °C” does not mean “9,000 BTU available down to -30 °C.”

If the served zone loses 8,000 BTU/h at this temperature, a supplementary heating source may become necessary.

COP of 2.49 at -8 °C and 1.27 at -30 °C

The COP, or coefficient of performance, helps explain heating efficiency.

At -8 °C, a COP of 2.49 means that the heat pump transfers approximately 2.49 units of heat for every unit of electricity used under this operating condition.

At -30 °C, the maximum published COP drops to 1,27.

Performance therefore decreases as the cold becomes extreme, which is normal for an air-source heat pump.

For a property in Laval, Longueuil, Montreal, the North Shore, or the South Shore, annual savings should be assessed over the entire heating season, not just during a few very cold nights in January.

SEER2 21.4 and HSPF2 12.5: an interesting profile for a small zone

The SEER2 of 21.4 indicates good seasonal cooling efficiency, while the HSPF2 Region 4 of 12.5 characterizes seasonal heating performance.

In a project where this heat pump replaces part of the direct electric heating, winter efficiency often becomes more important than cooling performance alone.

Sizing remains essential, however. An excellent HSPF2 cannot compensate for a unit that is too small for the space’s actual load.

Where AirGreen makes the difference on a 9,000 BTU ducted heat pump

The return grille is just as important as the supply grilles

When we see a completed ducted system, the small supply grilles often attract attention.

The return grille is nevertheless just as important.

The unit must be able to draw in enough air to supply its fan. An overly restrictive return can reduce airflow, increase noise, and unbalance the system.

We therefore look for a location that allows air to return easily to the unit without creating a short circuit between the supply and return.

The ductwork should remain short and logical

A unit rated at only 9,000 BTU and approximately 400 CFM is not intended to supply, without careful planning, an extensive network spanning several floors.

In projects where it performs best, the ductwork is generally:

• relatively short;
• sized for the expected airflow;
• limited in unnecessary bends;
• insulated where necessary;
• installed in a way that limits air leakage.

The exact number of outlets must be determined based on the project rather than according to a fixed rule.

A very interesting solution for two small adjacent rooms

A typical scenario involves a bedroom and an office separated by a partition, with accessible ceiling space nearby.

A wall-mounted head in only one room would not distribute air properly to the other.

Two wall-mounted heat pumps would be possible, but they would involve two visible units and potentially a more extensive installation.

A 9,000 BTU SENVILLE ducted heat pump may sometimes allow the installation of:

• an outlet in the bedroom;
• an outlet in the office;
• a properly positioned common return.

This configuration must naturally be validated based on the load of both rooms.

Very quiet indoor unit

The brochure lists indoor sound levels of approximately:

29.5 to 32.5 dB(A) depending on the operating mode.

This is an interesting feature for:

• a bedroom;
• an office;
• a library;
• a workspace;
• a small studio.

With a ducted system, however, perceived noise also depends on the ducts and grilles.

A grille that is too small or an air velocity that is too high can create a whistling sound even if the mechanical unit itself is quiet.

An issue to correct in the outdoor sound data

The submitted specification sheet indicates 615.0 dB(A) for the outdoor sound level. This value does not match the manufacturer’s technical table.

The Senville brochure indicates 56 dB(A) for the outdoor unit.

For the technical analysis of this product, 56 dB(A) is therefore the figure provided in the manufacturer’s documentation.

This verification illustrates why we always compare the commercial specification sheet with the technical documentation before finalizing a quote.

A compact 72.75 lb outdoor unit

The outdoor unit measures approximately:

31.69 × 12.99 × 21.81 in

and weighs only 72.75 lb.

Its maximum outdoor airflow is approximately 1,470.6 CFM.

This relatively compact format makes several installations easier where space is limited.

But even a small heat pump designed to operate down to -30 °C must be installed high enough to prevent snow from obstructing its coil.

Defrost cycles must be anticipated

In heating mode, the outdoor coil may accumulate frost. The heat pump then periodically performs a defrost cycle.

It produces water that can freeze beneath the unit.

We therefore plan for:

• sufficient clearance;
• space beneath the unit;
• drainage that does not damage surfaces;
• a location that does not create an ice patch in a passageway.

This is particularly important for an installation on a balcony or near an entrance.

R-454B with a factory charge for up to 25 feet

The brochure indicates a charge of 35.27 oz of R-454B and a factory charge for 25 ft of piping.

It also specifies that an installation with a 50 ft line set requires the installer to add refrigerant.

The actual line length must therefore be measured during planning.

With a ducted system, because the indoor unit is sometimes positioned fairly deep inside the building, the refrigerant line route may be longer than with a wall-mounted heat pump located directly on an exterior wall.

1/4–3/8 piping

The AirGreen product sheet indicates piping of:

1/4 in – 3/8 in

for this combination.

When replacing a system, we never assume that old lines can be reused simply because their dimensions appear to match.

The condition of the copper, the type of previous refrigerant, the cleanliness of the lines, and the manufacturer’s requirements must also be verified.

An important difference to verify in the electrical data

The provided AirGreen product sheet indicates:

MCA: 25 A
MOP: 25 A

However, the supplied Senville brochure indicates:

MCA: 15 A
Max Fuse: 15 A

This difference must not be resolved by assumption.

Before the electrical installation, we must follow the nameplate for the exact model and the manual corresponding to the installed SENA-09HF-OG / SENA-09HF-IDG combination.

This is particularly important because an oversized or improperly protected circuit must never be selected solely from a commercial product sheet.

Optional WiFi, Alexa mentioned in the brochure

The AirGreen product sheet indicates optional WiFi.

The brochure also identifies the system as compatible with remote control and mentions Alexa Enabled in the technical table.

In practice, the smart function must be confirmed based on the controller or WiFi module supplied with the configuration ordered.

R-454B: professional installation remains mandatory

Senville’s documentation specifies that professional installation is required to maintain warranty coverage and achieve the intended operation.

This makes particular sense with a ducted unit.

Coordination is required:

• refrigeration;
• electricity;
• drainage;
• ductwork;
• mechanical support;
• service access;
• control.

A poorly designed ducted system can be properly charged with refrigerant yet still deliver poor results simply because its air distribution system is inadequate.

The condensate drain must be accessible

In air conditioning, the indoor unit produces condensate.

Because the unit is concealed, a drainage problem may remain unnoticed longer than with a wall-mounted head.

We therefore pay particular attention to:

• the drain slope;
• the connection;
• accessibility for cleaning;
• preventing backflow;
• at the risk of damage to the ceiling.

A leak from a concealed unit above a ceiling can cost much more than a simple drain cleaning performed preventively.

Maintenance must not be sacrificed for aesthetics

The main aesthetic advantage of a ducted system is hiding the unit.

But concealing it must never mean blocking access.

We plan a realistic way to reach:

• the filter;
• the heat exchanger;
• the fan;
• the condensate pan;
• the electrical connections;
• the components required for diagnosis.

During HVAC maintenance, our technicians must be able to access the system without dismantling a large portion of the ceiling.

Self-diagnostics and leak detection

Senville mentions self-diagnostics and leak detection functions, designed to help identify certain system anomalies.

These features are useful, but they do not replace a professional inspection.

A lack of comfort may also be related to the air distribution system, filters, drainage, or grille sizing.

Warranty: another documentation difference to confirm

The AirGreen product sheet presents a warranty 10-10-0, namely:

10-year compressor – 10-year parts – 0-year labor, with the possibility of additional coverage.

However, the attached Senville brochure indicates:

10-year compressor – 5-year parts.

The technical table also repeats this ten-year compressor and five-year parts coverage.

We therefore recommend confirming the warranty conditions applicable to the exact combination and the registration terms in effect at the time of purchase.

Who do we particularly recommend a 9,000 BTU Senville ducted system for?

This configuration may be particularly suitable for:

• a primary bedroom with an adjoining bathroom;
• two small adjacent rooms;
• an office and a bedroom;
• a small condo;
• an addition;
• a space where the walls must remain clear;
• a project where the appearance of a wall-mounted head is undesirable;
• a suspended ceiling or soffit that can conceal the unit;
• a small area requiring independent control;
• a project seeking a cold-climate ENERGY STAR heat pump.

It is less suitable for an entire large house when the homeowner wants to connect it to an extensive central duct system.

Why 9,000 BTU may be exactly the right capacity

We sometimes see homeowners automatically request 12,000 or 18,000 BTU “to be sure.”

This reasoning can compromise the result.

A properly sized heat pump is more likely to operate for longer periods at low output, maintain a stable temperature, and manage humidity in the summer.

In a well-insulated small area in Boucherville, Laval, or Montréal, 9,000 BTU may be much more appropriate than a significantly larger model.

The right capacity always depends on the actual heat losses and gains.

What we check before recommending this model at AirGreen

Before confirming an installation, we want to know:

• the actual area to be served;
• the insulation;
• the windows;
• the thermal behavior of the rooms;
• the space available for the indoor unit;
• the ductwork layout;
• the return grille location;
• how the condensate will be drained;
• the length of the refrigerant lines;
• the outdoor unit location;
• the available electrical circuit;
• future accessibility for maintenance.

This step is particularly important with a ducted system, because much of the installation disappears once the ceiling is closed.

A compact heat pump that prioritizes integration over visibility

The SENVILLE SENA R454B 9,000 BTU ducted heat pump combines a SEER2 of 21.4, an HSPF2 of 12.5, an airflow of approximately 400 CFM, an indoor unit measuring only 7.87 in. in height, and heating operation down to -30°C.

Its main appeal, however, is architectural and functional: to provide the comfort of a heat pump without necessarily installing a visible wall-mounted head in the room.

For a small area in Montréal, Laval, Longueuil, the North Shore, the South Shore, or Montérégie, this solution can be extremely suitable when the ductwork is properly designed.

Contact AirGreen for a quote on the SENVILLE SENA R454B 9,000 BTU ducted heat pump. We can assess the heating load, ductwork, grilles, return air, drainage, electrical system, refrigerant lines, and unit locations before the work begins.
