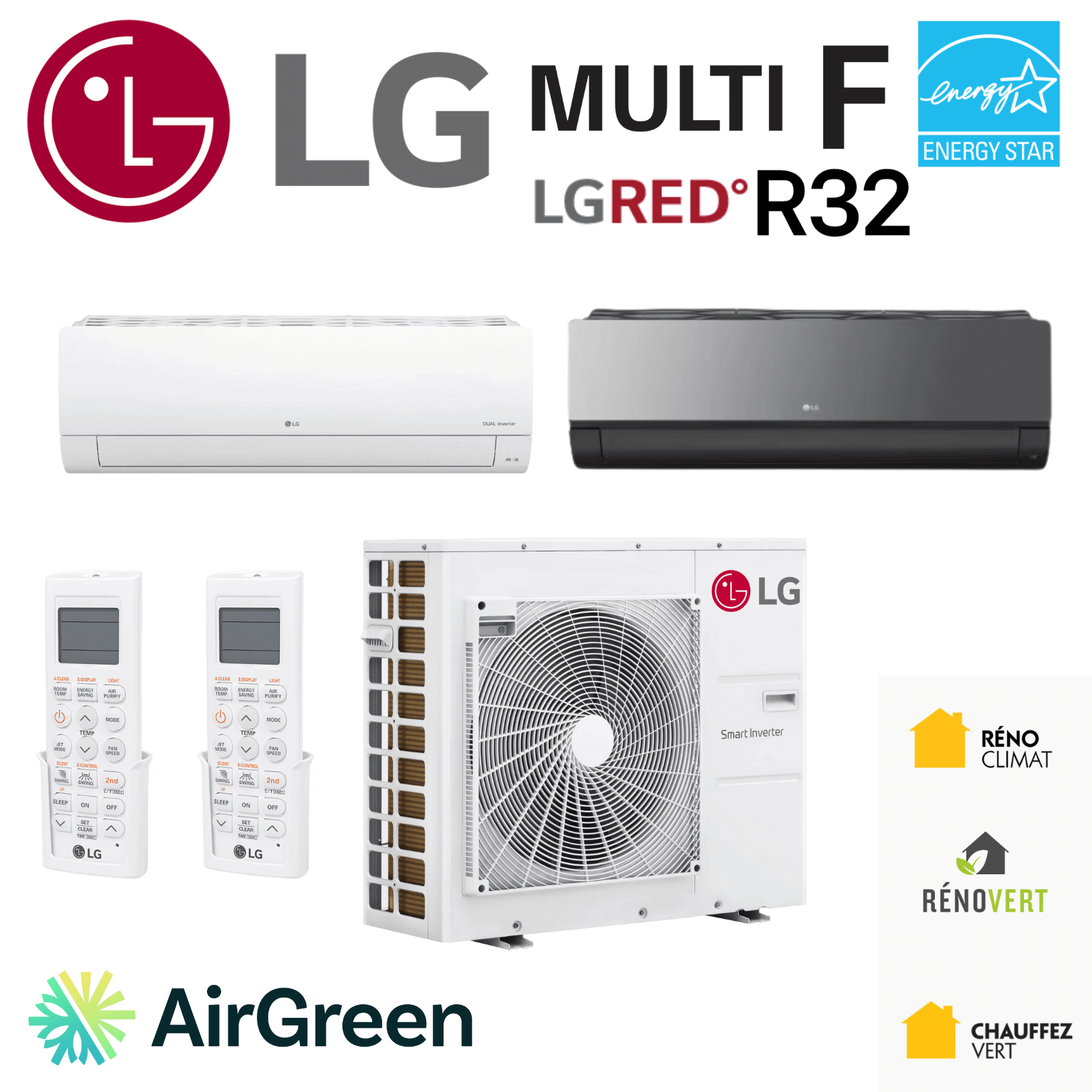

LG Multi F LGRED R32 Heat Pump | 2 Indoor Units - 1 Compressor 24000 BTU
The LG Multi F LGRED R32 24 000 multi-zone heat pump heats and cools 2 rooms with a single outdoor unit. it delivers 17,800 BTU/h at −8 °C, heats down to −25 °C and qualifies for a $2,136 LogisVert grant. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
2 rooms, one outdoor unit.
Compared with the 59 multi-zone systems of 24,000 BTU we sell. Every number on this page carries its source.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 3 heads and modulates from 10,248 to 28,500 BTU/h depending on what the rooms call for (NEEP).
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately, also from your phone.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 91 % of its rated capacity.
Tap a temperature: certified capacity, efficiency and the cost of one hour of heating.
It slows down, it speeds up: the certified modulation range
Light bar: from minimum to maximum capacity. Dark mark: the rated value.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
A grant you can calculate, not guess.
The capacity at −8 °C comes from Hydro-Québec’s list of October 1, 2026. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).
Where it ranks among same-size multi-zone systems.
Compared with the 59 multi-zone systems of 24,000 BTU we sell, using the LogisVert list figures. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.
What is particular about this machine.
Only facts published by ENERGY STAR, NEEP or the manufacturer.

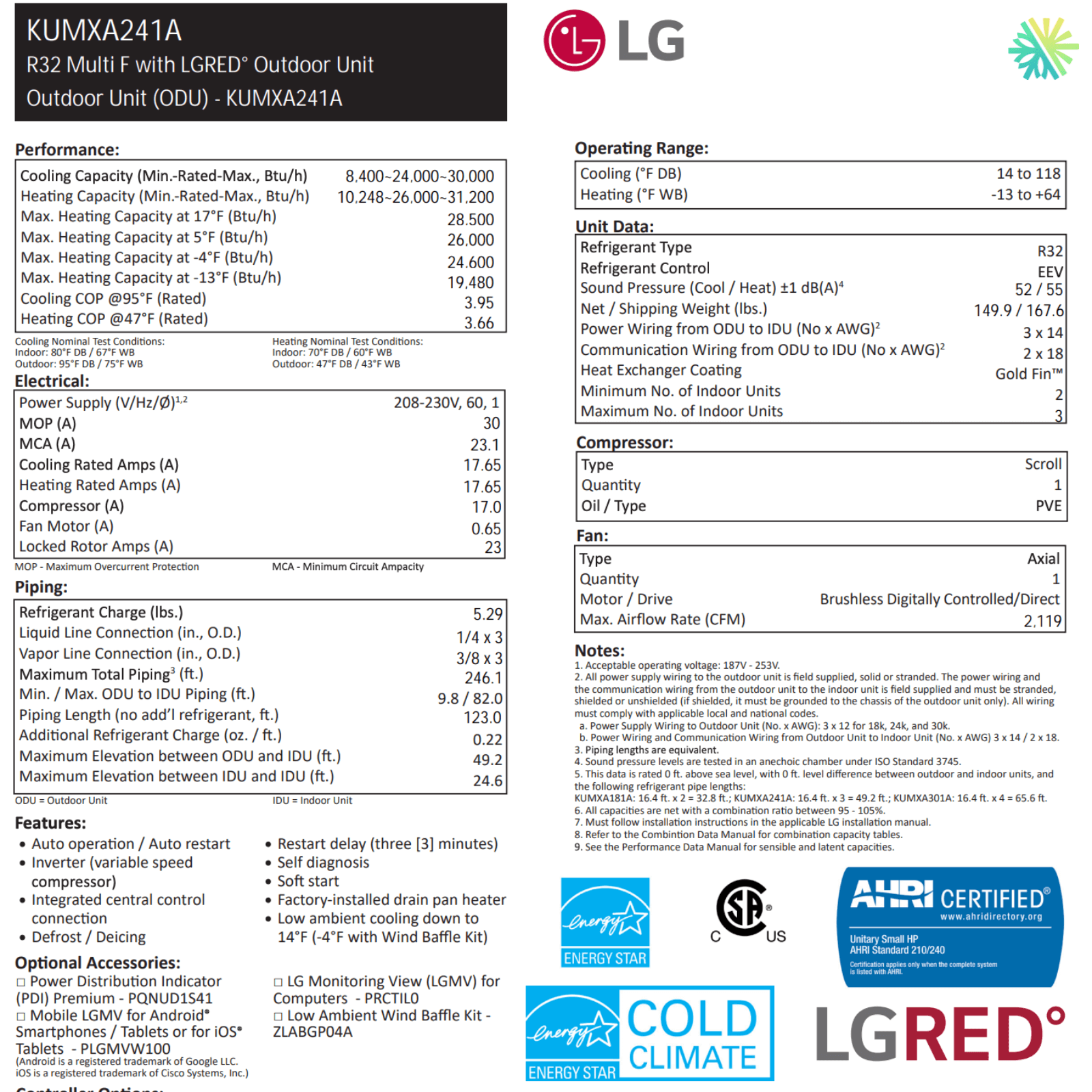

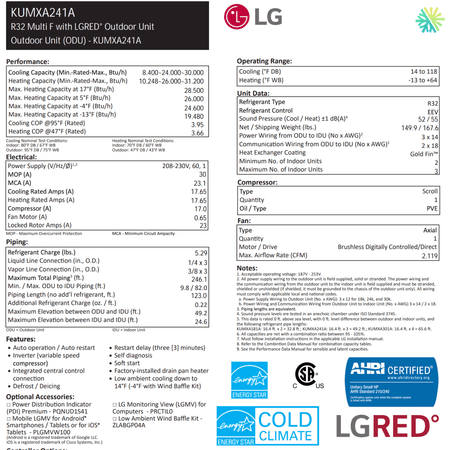

Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
A multi-zone solution truly adapted to the climatic realities of Quebec
At AirGreen Heat Pumps, Air Conditioning & Heating , we have been installing HVAC systems for over 15 years in Montreal , Laval , Longueuil , and on the North and South Shores. The LG Multi F LGRED R32 heat pump with a 24,000 BTU compressor perfectly meets the needs we encounter in the field: complexly configured homes, condominiums, duplexes, single-family homes with distinct zones, and buildings where optimizing outdoor space is crucial.
This dual-zone system allows two independent indoor units to be powered by a single outdoor compressor , while also offering the possibility of upgrading to a triple-zone configuration. In practice, this means precise temperature control, a reduced outdoor footprint, and a scalable solution designed for the long term.
Why the Multi F concept tangibly changes the occupant experience
In several projects completed by AirGreen in Rosemont , Ahuntsic , Laval-des-Rapides , and Brossard , we observed that heating and cooling needs vary significantly from room to room. A north-facing bedroom, a south-facing living room with windows, or a home office occupied all day cannot be treated uniformly.
The LG Multi F LGRED R32 system addresses this reality precisely:
-
Each indoor unit has its own temperature settings ;
-
The compressor adjusts its capacity using inverter technology , avoiding abrupt on/off cycles;
-
Air distribution is optimized thanks to automatic motorized flaps (horizontal and vertical).
The result: stable comfort, without unpleasant variations, even during the coldest winters or the hottest summers.
Actual heating performance, even at very low temperatures
A key concern for our customers in Quebec is winter performance. The LG Multi F LGRED R32 is designed to provide heating capacity down to -25°C , making it perfectly suited to the winters of Montreal , Laval , and the Montérégie region.
During recent installations in Villeray duplexes and semi-detached houses on the South Shore , we observed excellent thermal stability even during prolonged periods of intense cold. The available power remains sufficient to maintain comfort without excessive reliance on supplemental electric heating.
From a technical standpoint, the LGRED R32 compressor is associated with:
-
intelligent defrosting , reducing efficiency losses;
-
an integrated condensate tray heater , limiting ice buildup;
-
an extended operating range, validated for cold climates.
These elements make a tangible difference to energy consumption and long-term reliability.
Choosing R-32 refrigerant: efficiency and environmental responsibility
The switch to R-32 gas represents a significant evolution in the HVAC field. Compared to older refrigerants, it offers:
-
a reduced global warming potential ;
-
improved thermodynamic efficiency;
-
a lower refrigerant charge for an equivalent capacity.
In our projects in Longueuil and on the North Shore , this choice is often part of a comprehensive approach to energy improvement, particularly for owners wishing to maximize access to provincial LogisVert subsidies .
Technical configuration and compatibility of indoor units

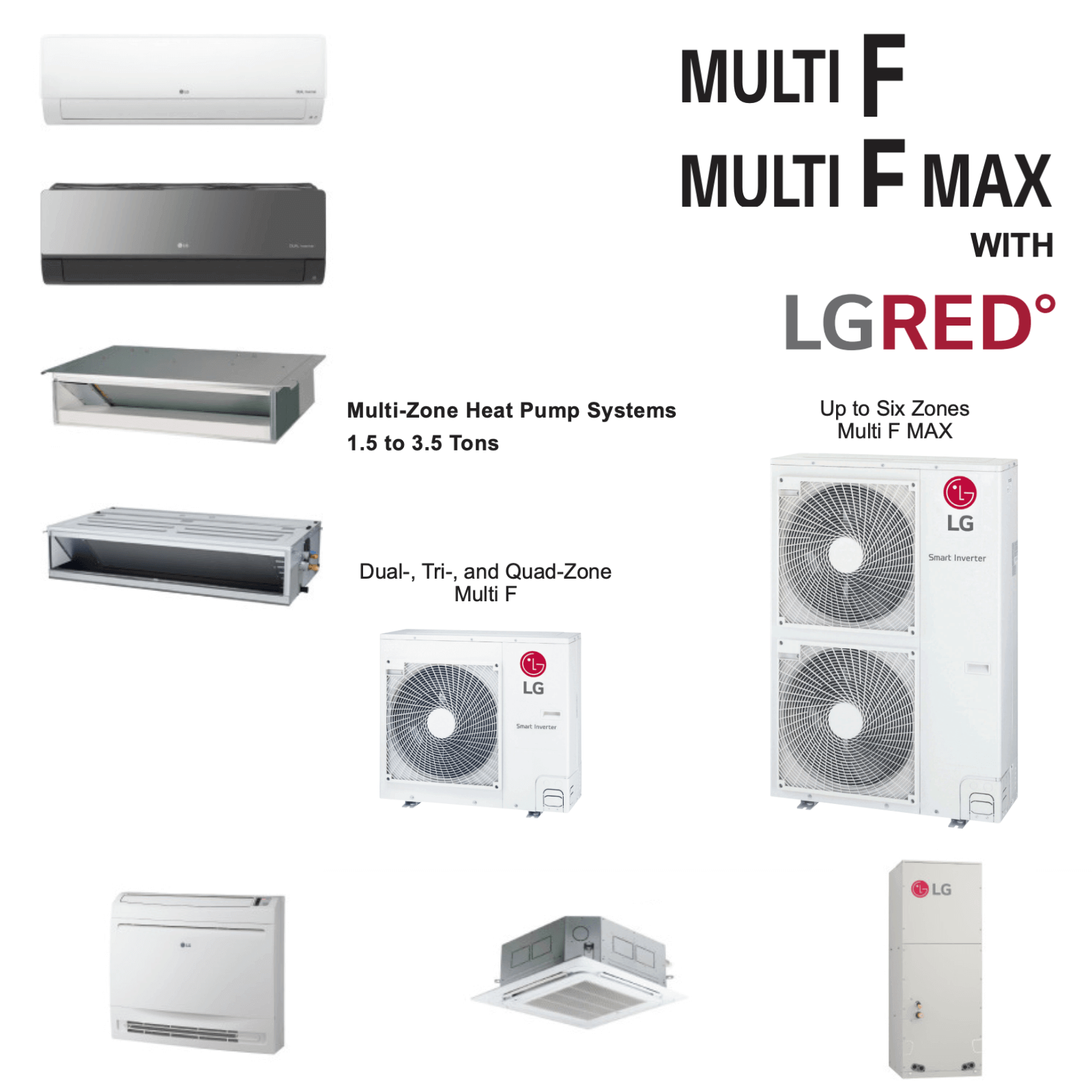

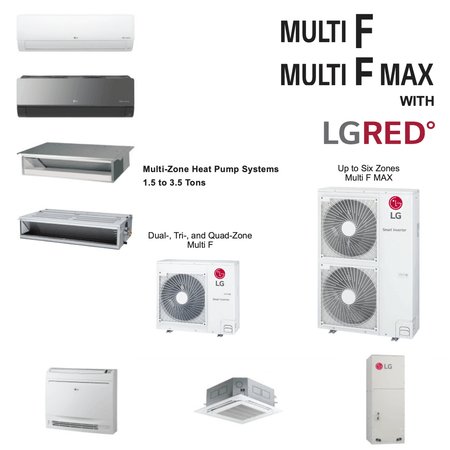

Flexibility is one of the major advantages of this heat pump. The KUMXA241A compressor can be paired with several LG indoor unit models, both wall-mounted and compact, depending on the home's layout. This variety allows the system to be precisely adapted to architectural constraints such as low ceilings, load-bearing walls, and hard-to-reach areas.
In the field, our AirGreen teams always take the time to assess:
-
the distribution of thermal loads by zone;
-
the lengths of refrigeration pipes;
-
electrical constraints (220 V, MCA 24 A , MOP 30 A ).
This step is essential to ensure a compliant, efficient and durable HVAC installation.
Noise level and acoustic comfort
Another often underestimated aspect is noise. The outdoor compressor operates at a moderate noise level , well-suited to dense residential environments like Montreal . Inside, the wall units operate at very low levels in normal mode, which is particularly appreciated in bedrooms and home offices.
We have notably installed this system in multi-unit residential buildings where condominium regulations impose strict acoustic constraints: the feedback is very positive.
Professional installation: the AirGreen approach
A multi-zone heat pump requires careful installation. At AirGreen , we emphasize several key points:
-
wall or floor mount suitable for winter conditions;
-
precise management of drainage slopes;
-
careful insulation of the pipes to prevent losses and condensation;
-
complete commissioning with performance testing.
Our certified refrigeration technicians work daily in Montreal , Laval , Longueuil , on the North Shore and the South Shore , with a thorough knowledge of local standards and climatic realities.
Maintenance and durability
Like any HVAC system, longevity also depends on maintenance. We recommend:
-
regular cleaning of the filters of the indoor units;
-
an annual system check;
-
a visual inspection of the compressor before and after winter.
These simple actions help to preserve energy efficiency and reduce the risk of breakdowns in the long term.
Guarantee and peace of mind
The LG Multi F LGRED R32 heat pump is covered by a 10-year warranty on the compressor and parts . Labor is also covered for 6 years, straight from the distributor, and AirGreen can offer additional warranty options depending on the project, providing homeowners with added peace of mind.
Why choose AirGreen for this LG Multi F system?
Beyond the product itself, it's the quality of the installation and after-sales service that makes the difference. Our clients choose us because:
-
our concrete field experience;
-
Our prices are transparent and confirmed before work begins;
-
our $5 million liability insurance ;
-
our ability to offer truly tailored solutions, without compromise.
Each project is analyzed as a unique case, whether it is for a condo in Montreal , a family home in Laval or a multi-unit building on the South Shore .
In summary
The LG Multi F LGRED R32 Heat Pump | 2 Indoor Units - 1 Compressor 24000 BTU represents a high-performance, flexible, and durable HVAC solution for Quebec climates. It combines precise zone control, energy efficiency, reliable operation in winter conditions, and upgrade potential.
Are you considering this system for your property?
Contact AirGreen Heat Pumps, Air Conditioning & Heating directly for a complete evaluation, a detailed quote and advice tailored to your situation in Montreal , Laval , Longueuil , on the North Shore or the South Shore .
Warranty: 10 years on the compressor, 10 years on parts and 6 years on labor, straight from the distributor.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 17,800 BTU/h at −8 °C, 22,000 at −15 °C.
How many heads can I connect?
Up to 3 on this outdoor unit. This product is configured for 2 heads.
How much is the LogisVert grant?
$2,136 according to Hydro-Québec’s list of October 1, 2026. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.
Is it ENERGY STAR certified?
Yes, cold climate, ID 3553131. It also meets the ENERGY STAR Most Efficient criteria, according to the ENERGY STAR database.
Down to what temperature does it heat?
Down to −25 °C.
Is it noisy?
Indoors, the reference head goes down to 29 dB(A). Outdoors, 55 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 10 years on the compressor and 10 years on parts. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
