LG MULTI F MAX LGRED heat pump | 3-Heads | 24,000 BTU Compressor | Montreal, Laval, Longueuil, South Shore and North Shore
The LG Multi F Max LGRED 24 000 multi-zone heat pump heats and cools 3 rooms with a single outdoor unit. it delivers 17,400 BTU/h at −8 °C, heats down to −25 °C and qualifies for a $2,088 LogisVert grant. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
3 rooms, one outdoor unit.
Compared with the 59 multi-zone systems of 24,000 BTU we sell. Figures come from the manufacturer’s data and the AHRI certification.
The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 3 heads.
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.
Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately, also from your phone.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 108 % of its rated capacity.
Tap a temperature: capacity, efficiency and the cost of one hour of heating.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
A grant you can calculate, not guess.
The capacity at −8 °C comes from Hydro-Québec’s list of October 1, 2026. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).
Where it ranks among same-size multi-zone systems.
Compared with the 59 multi-zone systems of 24,000 BTU we sell, using the LogisVert list figures. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.

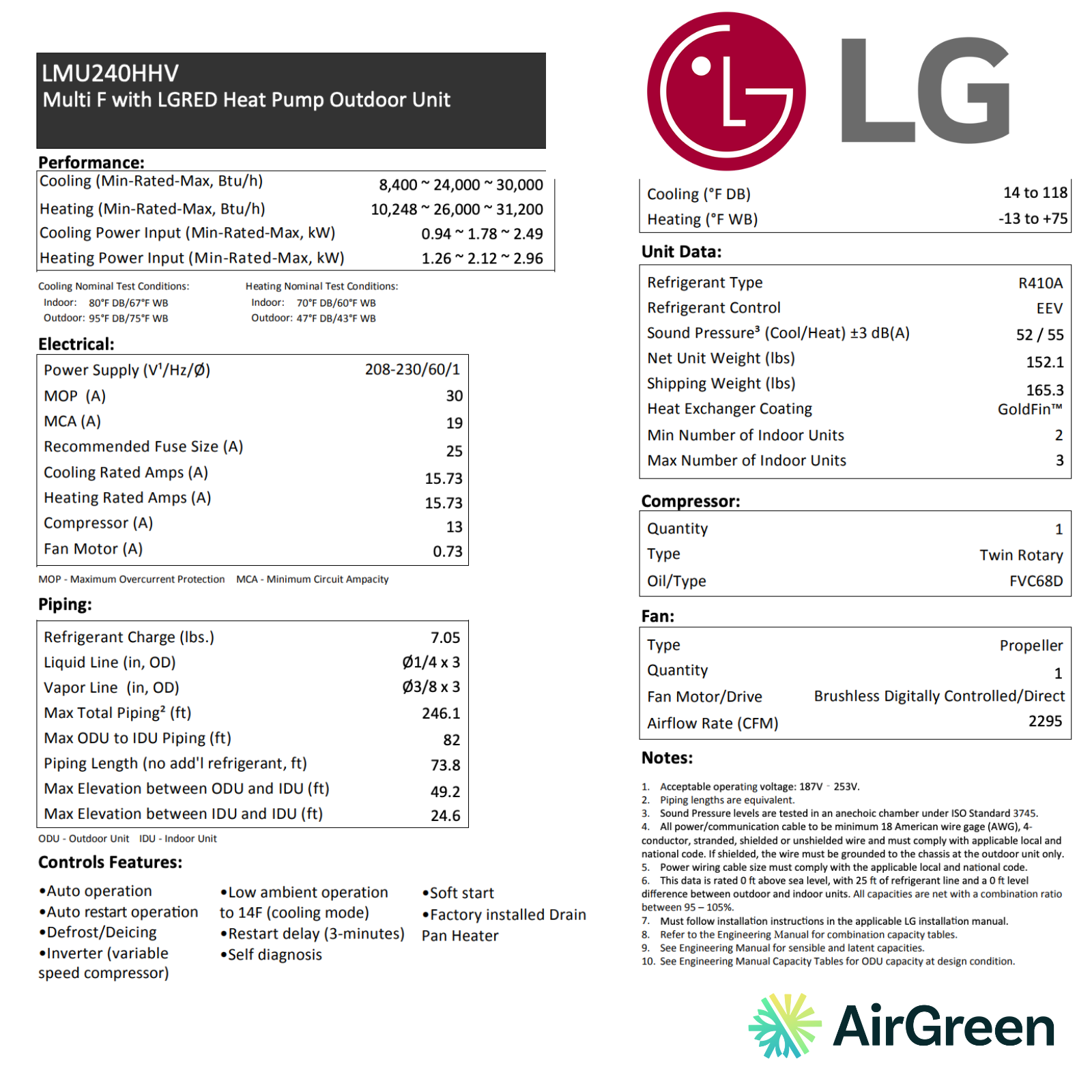

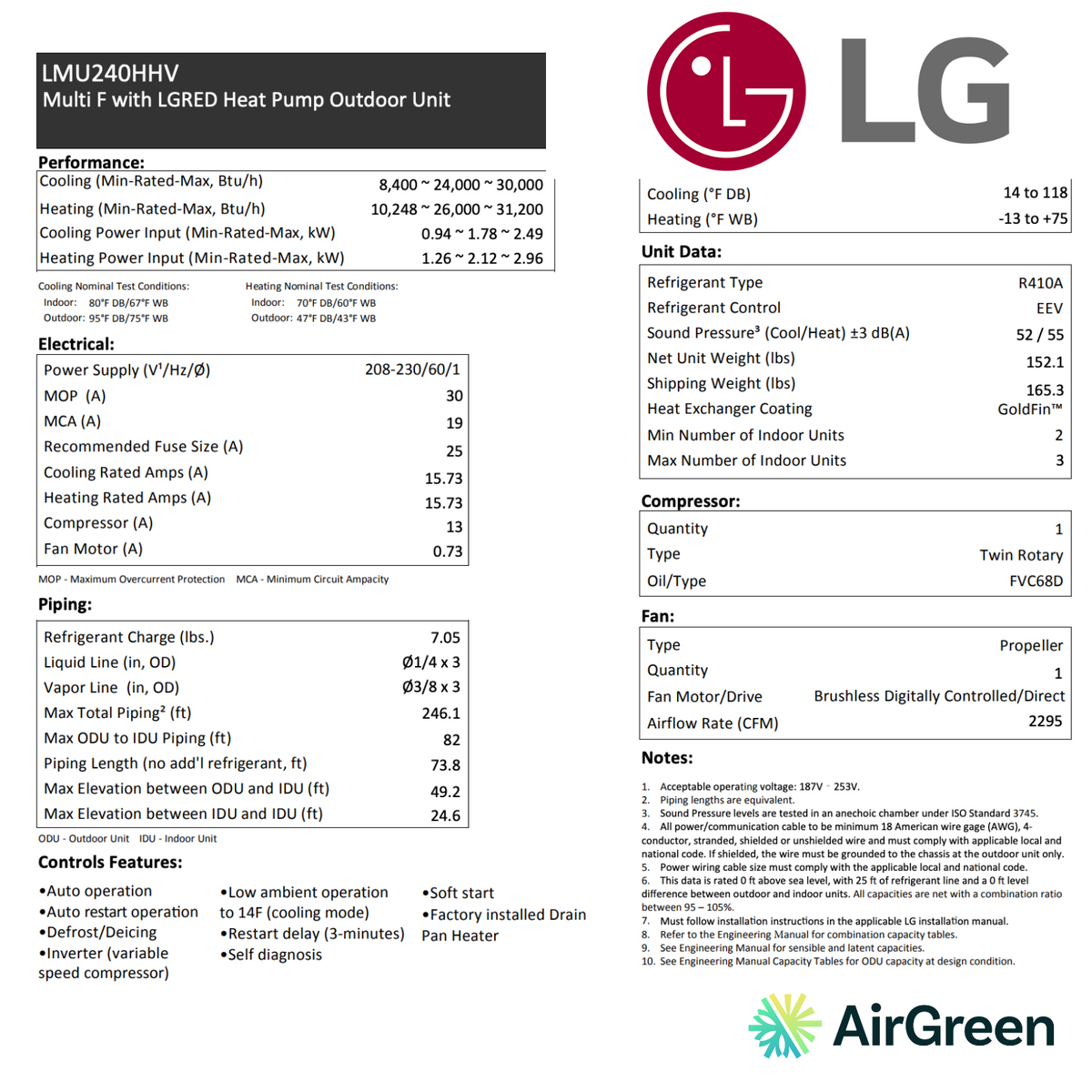

Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
LG MULTI F MAX LGRED Heat Pump | 3-Heads | 24,000 BTU Compressor | Montreal, Laval, Longueuil, South Shore, and North Shore
A Landmark Innovation in Home Comfort
Product Introduction
At the forefront of innovation and home comfort, the LG MULTI F MAX LGRED Heat Pump stands as a cutting-edge solution for your home's thermal regulation. Designed by LG, a leading brand in electronics and thermal solutions, this wall-mounted 3-zone heat pump is the epitome of energy efficiency and customized comfort.
Top-Tier Technical Features
Equipped with a powerful 24,000 BTU compressor, the LG MULTI F MAX heat pump is capable of providing exceptional cooling capacity while maintaining optimal heating levels down to -25°C. Its triple zone design allows for an even temperature distribution across up to three distinct areas, ensuring personalized comfort in each room of your home.
The unit's exterior dimensions (37.41 x 15.66 x 32.84) make it a compact yet incredibly efficient device, easy to integrate into various types of spaces. Integrated WiFi technology offers additional convenience, allowing users to control their heating and cooling system remotely via a dedicated app.
Performance and Energy Savings
Boasting an impressive 21.0 SEER rating and Energy Star® certification, this heat pump is synonymous with significant savings on energy bills. The system uses environmentally friendly R-410A gas and incorporates advanced features such as automatic operation, auto restart, and an efficient defrost mode.
Subsidies and Warranties
Purchasing the LG MULTI F MAX heat pump can be made more appealing with available federal and provincial subsidies, amounting to up to $5,000 and $2,088 respectively, offering an attractive opportunity for homeowners eager to improve their energy efficiency. Moreover, the extended warranty (10 years for the compressor, parts, and labor) ensures unparalleled peace of mind.
Professional Installation and After-Sales Service
At AirGreen, we understand the importance of professional installation to ensure your heat pump operates optimally. Our specialized technicians, trained directly by LG, possess the necessary expertise to install your LG MULTI F MAX heat pump precisely, adhering to the highest standards of quality and safety. Our commitment doesn't end at installation; we also offer responsive after-sales service to address all your questions and assist you whenever needed.
Why Choose the LG MULTI F MAX LGRED Heat Pump?
- Energy Efficiency: Lower your electricity bills with a device designed to maximize energy conservation.
- Personalized Comfort: Enjoy ideal temperature in each zone of your house, regardless of the season.
- Durability and Reliability: With an extended warranty and the support of a recognized brand, you are assured of a lasting investment.
- Quality Installation and Support: Our team of experts ensures flawless installation and continuous support, so your comfort is always our priority.
In conclusion, the LG MULTI F MAX LGRED Heat Pump is more than just a heating and cooling device; it's a comprehensive solution that transforms your home into a haven of comfort and energy efficiency. At AirGreen, we are proud to offer this exceptional product, accompanied by our expertise and dedication to your total satisfaction.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 17,400 BTU/h at −8 °C, 26,000 at −15 °C.
How many heads can I connect?
Up to 3 on this outdoor unit. This product is configured for 3 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 5 combinations, from 9+9+9 to 12 + 12 + 12 (in thousands of BTU). Each head is sized for its room.
How much is the LogisVert grant?
$2,088 according to Hydro-Québec’s list of October 1, 2026. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.
Is it ENERGY STAR certified?
Yes, cold climate, ID 2411139. It also meets the ENERGY STAR Most Efficient criteria, according to the ENERGY STAR database.
Down to what temperature does it heat?
Down to −25 °C.
Is it noisy?
Indoors, the reference head goes down to 29 dB(A). Outdoors, 55 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 10 years on the compressor and 10 years on parts; labour is not included by the manufacturer. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
