Kinghome Rooftop R410A 2-Ton Packaged Heat Pump | Montréal, Laval, Longueuil, South Shore and North Shore
Heating and cooling an apartment or a small business from the flat roof

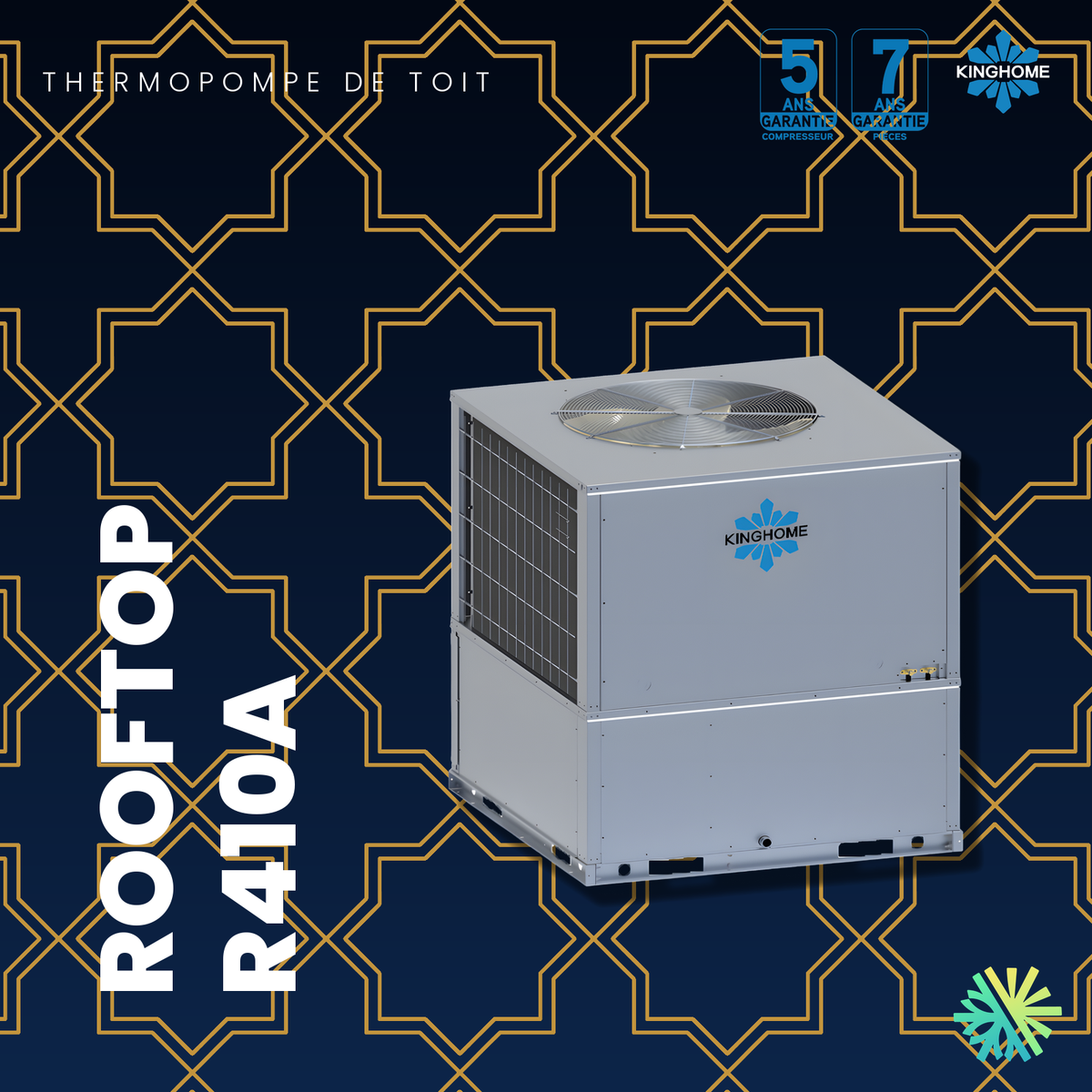

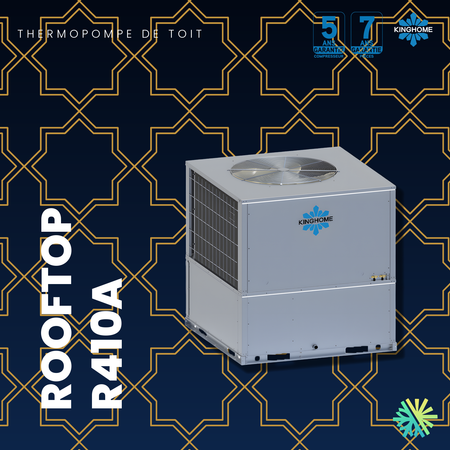

In Montréal, much of the building stock is made up of plexes and small commercial buildings with flat roofs. The top-floor unit of a triplex, a shop on a commercial street or an office above a store often face the same headache: no yard for an outdoor unit, a balcony that's too narrow, a façade where no equipment can be mounted. A packaged heat pump installed on the roof solves that. The 2-ton KRH02TCU combines the compressor, both coils and the fans in a single cabinet, and connects directly to the ducts of the apartment or commercial space.
It's a light commercial unit, also used in residential settings when the building lends itself to it. It's an excellent replacement for an old gas-fired rooftop unit or for a window air conditioner paired with electric baseboards.
A refrigerant circuit sealed at the factory

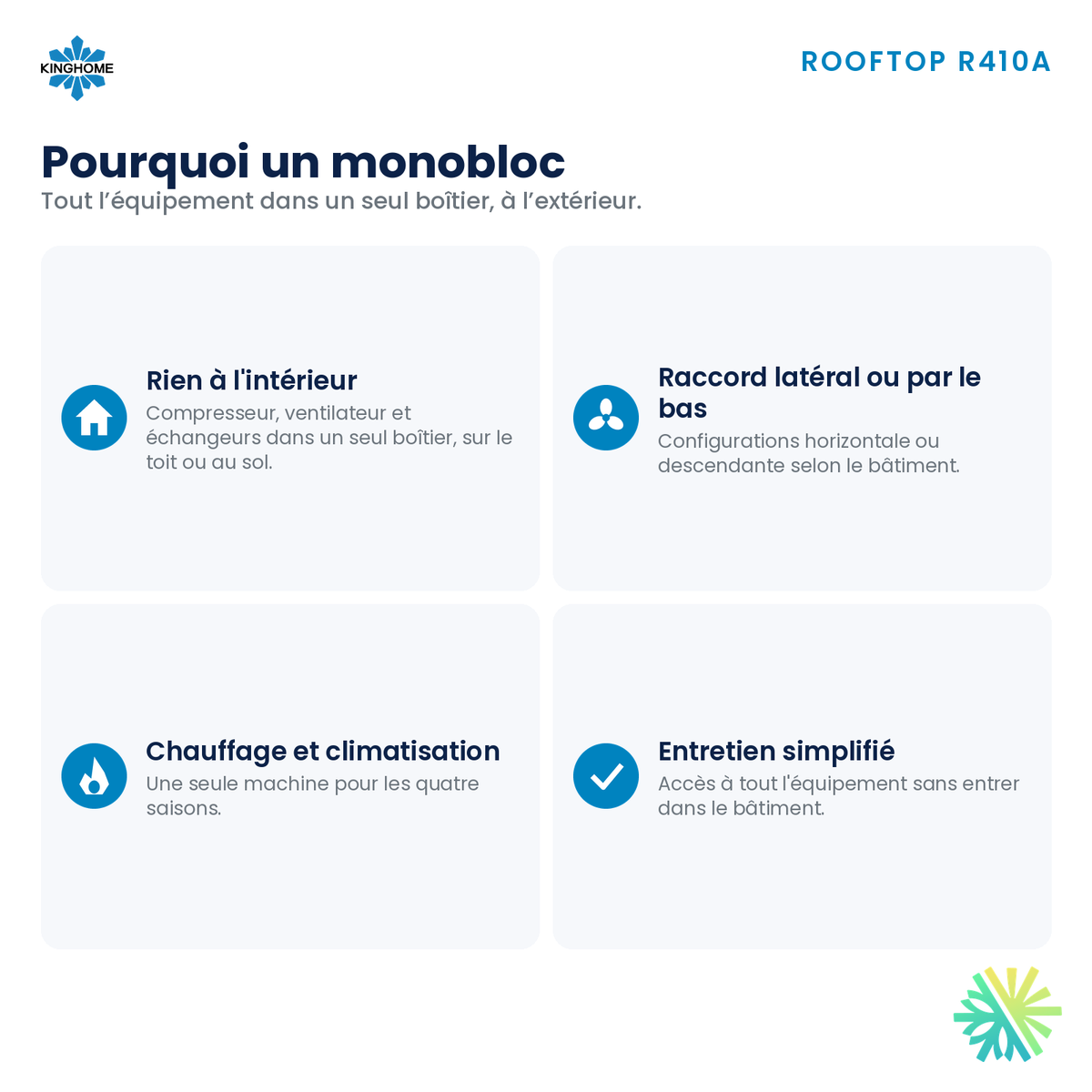

In a split system, the refrigeration technician connects an outdoor unit to an indoor unit on site with a refrigerant line. In a packaged unit, the entire circuit is assembled, charged and sealed at the factory. There's no refrigerant line to run through the building's walls, no indoor unit to fit into a closet, and fewer fittings that could leak. On the job site, the work focuses on the roof curb, the supply and return ducts, the electrical supply and the condensate drain. The unit runs on R-410A.
The cabinet accepts a horizontal or downflow connection, so it can be installed on a roof curb that drops straight into the ceiling of the unit below, or next to a wall duct outlet.
Heating capacities for Québec winters

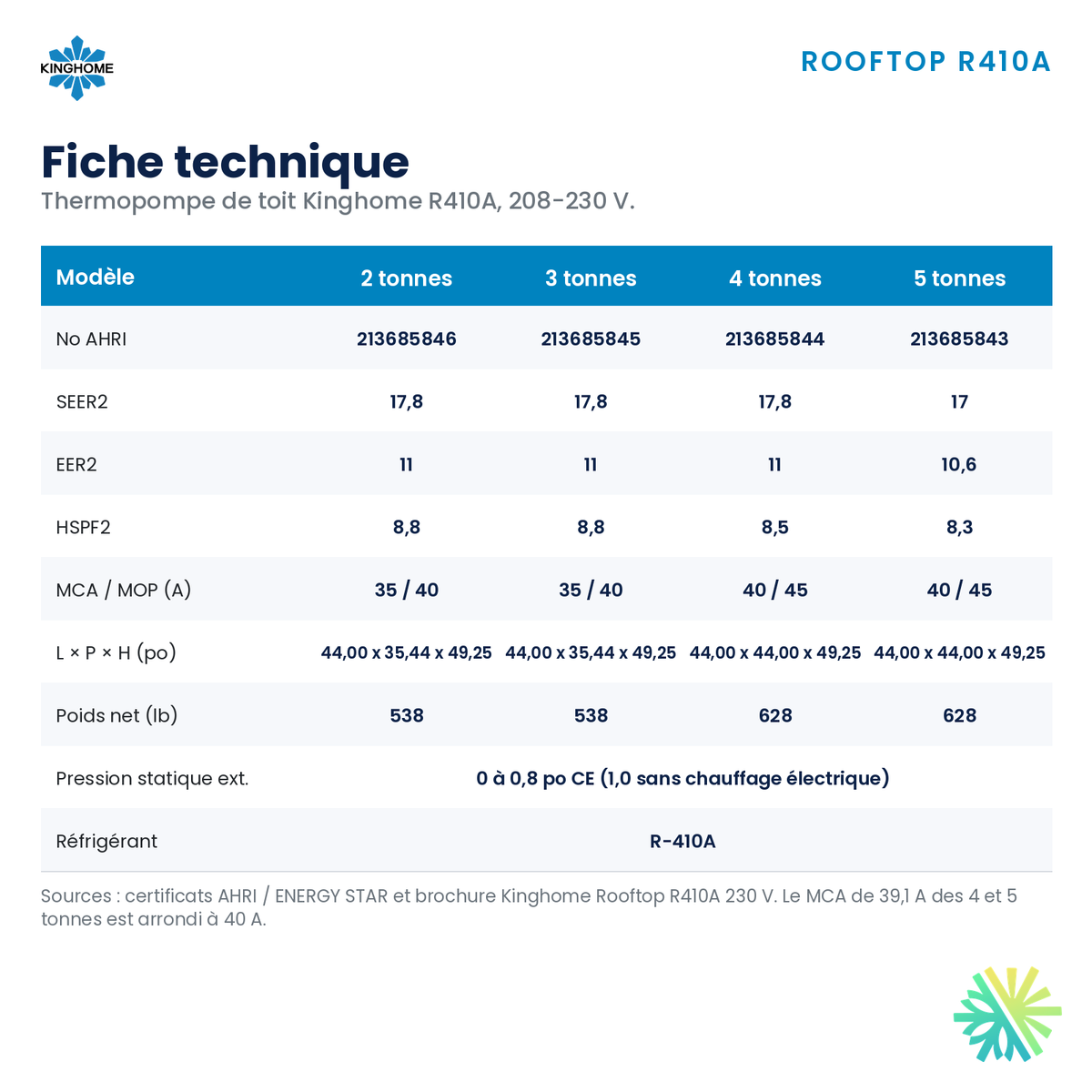

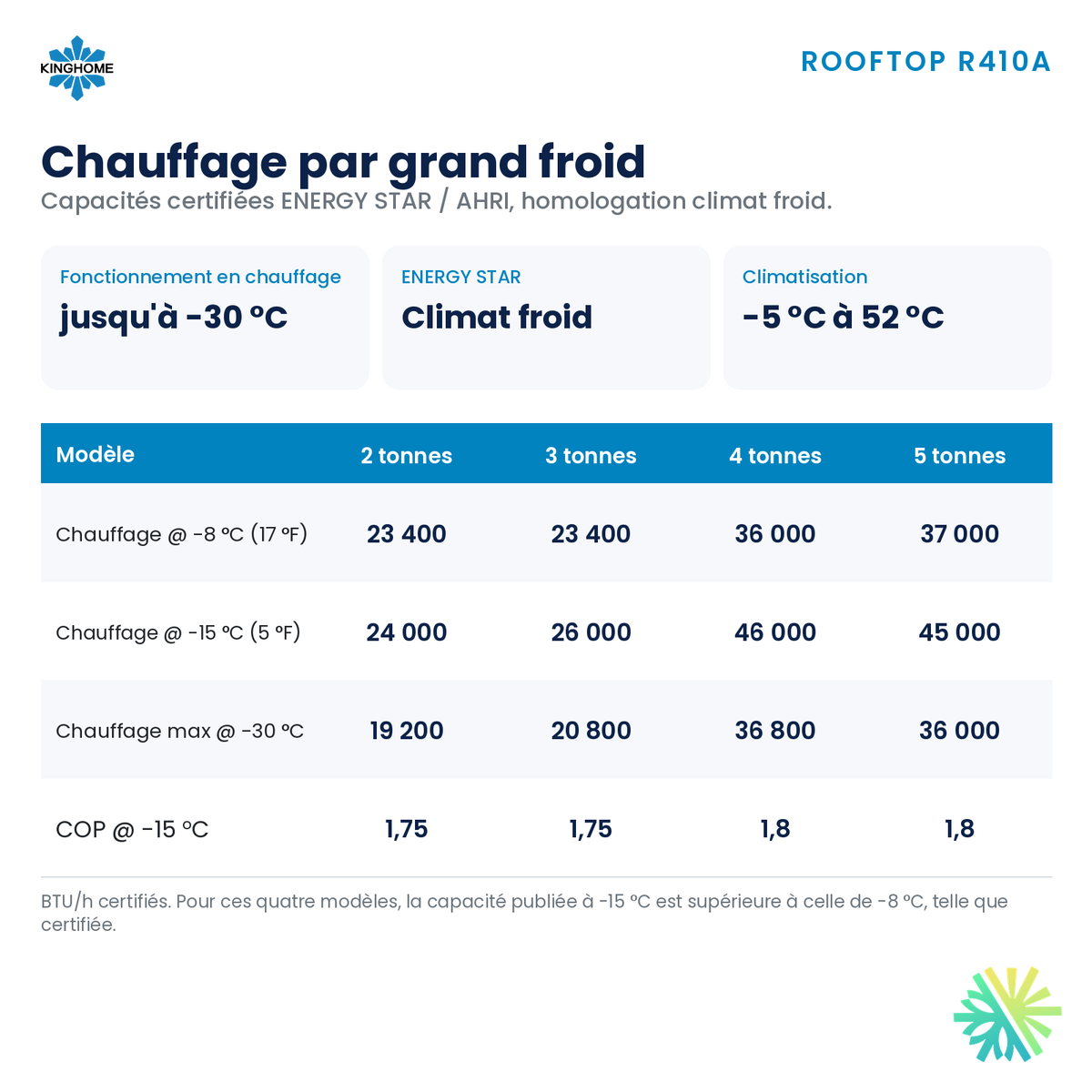

The unit is certified at 17.8 SEER2, 8.8 HSPF2 and an EER2 of 11. Its heating capacities listed on NEEP (AHRI No. 213685846) are as follows:
- At -8.3 °C: 23,400 BTU/h, with a COP of 2.26
- At -15 °C: 24,000 BTU/h, with a COP of 1.75
- At -30 °C: 19,200 BTU/h, with a COP of 1.33
At -15 °C, the unit delivers 100% of its nominal capacity of 24,000 BTU/h, and it keeps 80% of it at -30 °C with a COP above 1. For a roof exposed to the wind, that's reassuring: capacity doesn't collapse just when the building needs it most. The heating range goes down to -30 °C, and the unit carries the ENERGY STAR cold climate designation (ID 2842330). As with the other models in the range, the value at -15 °C is higher than the one at -8.3 °C; these are the figures as certified.
Built for the roof

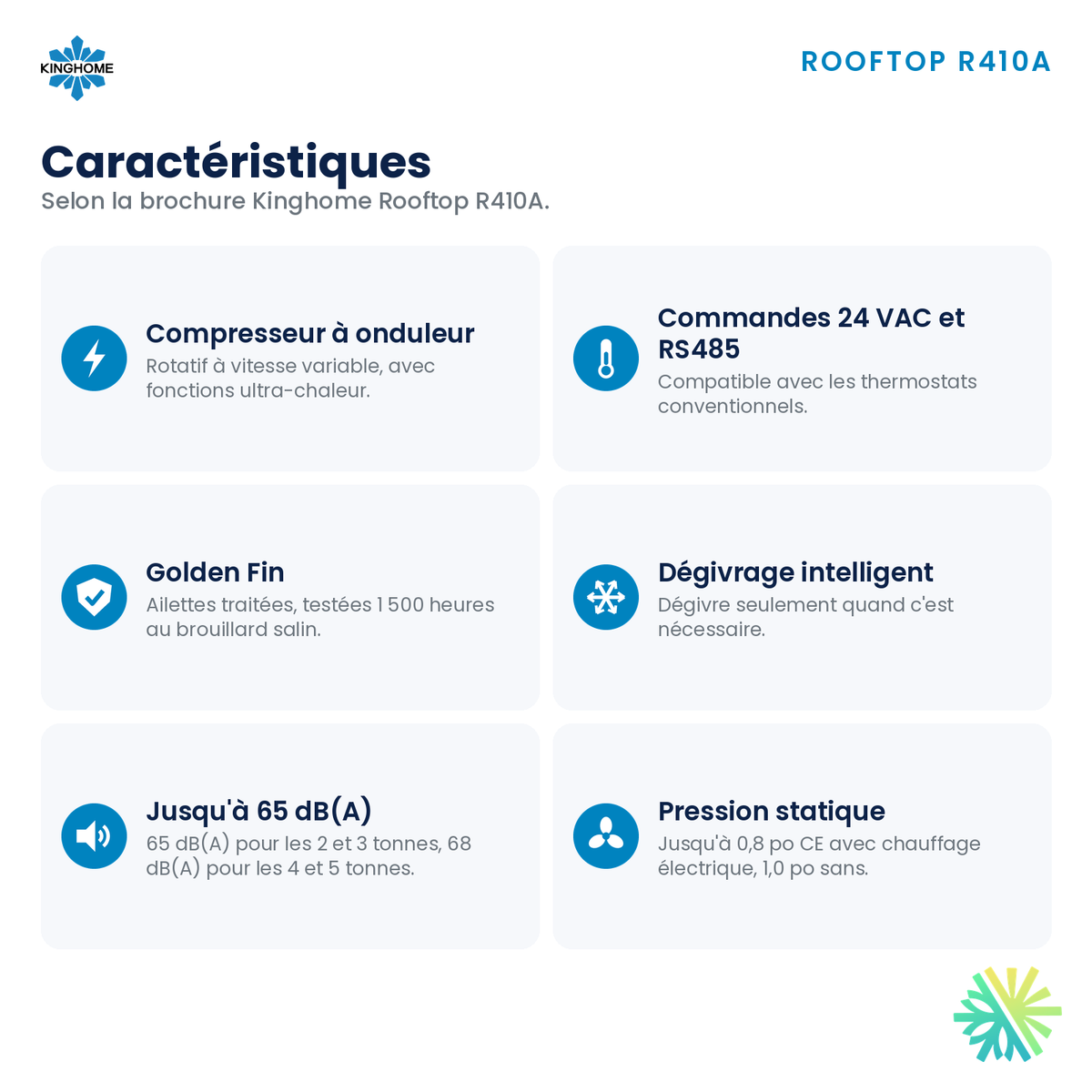

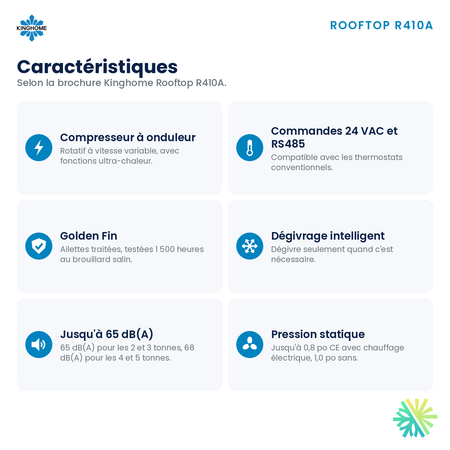

The rotary compressor is inverter-driven and modulates its speed to match demand, which avoids the short cycling typical of older rooftop units. The outdoor coil has a Golden Fin anti-corrosion treatment, and the unit has passed a salt spray test, useful protection against de-icing salts and the elements. Smart defrost triggers cycles based on actual conditions rather than at fixed intervals. The unit is controlled with a conventional low-voltage thermostat, and also accepts digital communication control. The published sound level is 65 dB(A).

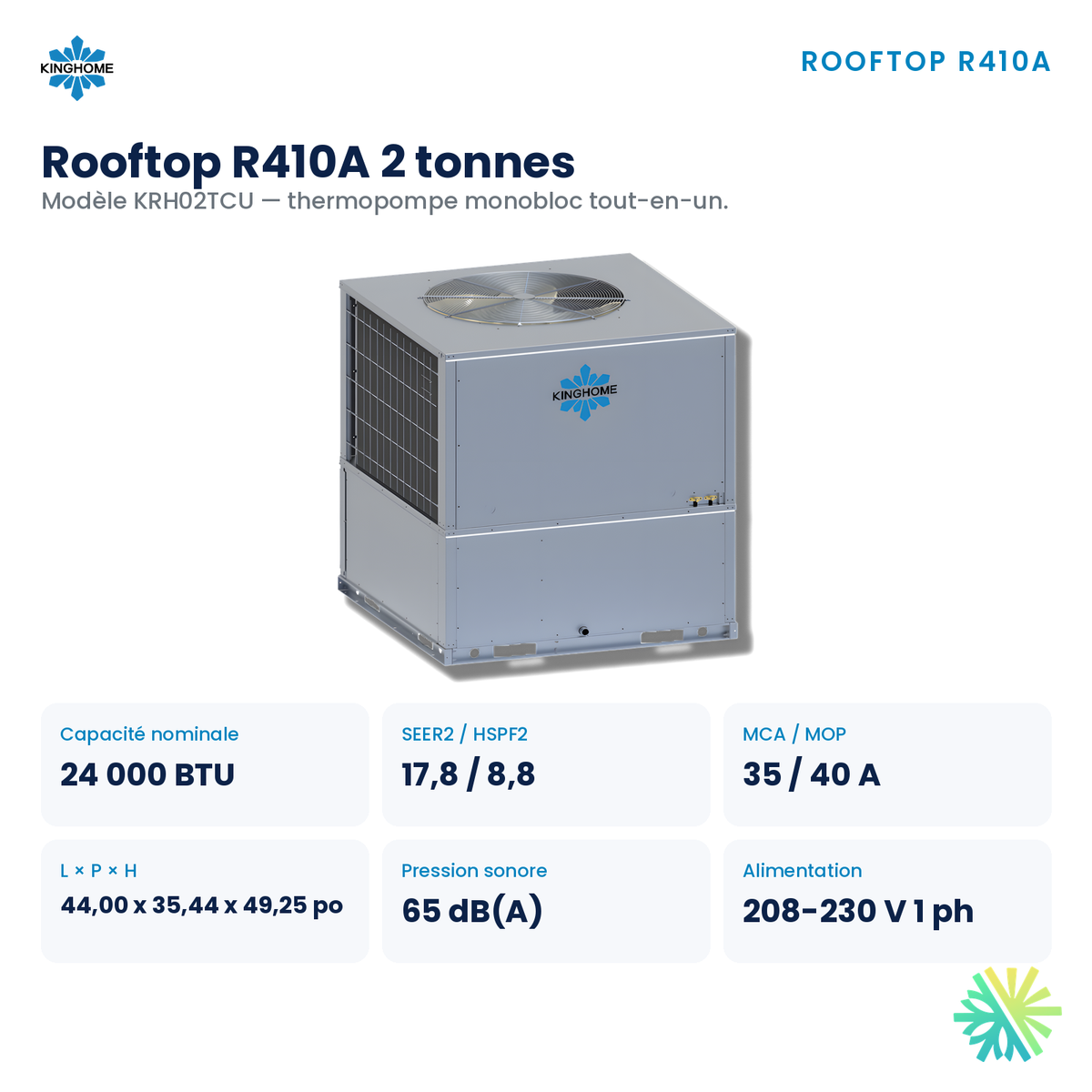

Its dimensions are 44.00 x 35.44 x 49.25 inches. This footprint fits on a standard roof curb and generally leaves enough room for maintenance, even on a plex roof crowded with chimneys and vents.
What we check before installation
A rooftop installation takes more preparation than a ground-mounted heat pump. During a visit in Montréal, Laval, Longueuil, on the North Shore or on the South Shore, we confirm the following points.
The roof structure and membrane
We check that the structure can carry the weight of the unit and its curb, and we locate the joists. The roof curb must be securely fastened and fully sealed to the existing membrane; depending on the age of the roof, we coordinate this tie-in with your roofer. We also plan access: crane or hoist, and clearance for maintenance.
Electrical supply
The unit requires a 220 V single-phase supply, a minimum circuit ampacity (MCA) of 35 A and a maximum overcurrent protection (MOP) of 40 A. Running on single-phase power is an advantage in plexes and small businesses, which often don't have three-phase service. We check the remaining capacity of the panel and the cable route to the roof, with a disconnect switch near the unit.
Snow, wind and the drain
On a flat roof, snow builds up and the wind moves it around. The roof curb keeps the unit above the accumulation, and we orient the air intake away from snowdrifts whenever possible. The condensate drain is connected with a trap, and defrost water must flow to a roof drain rather than freeze on the membrane.
Ducts
We look at the existing duct system or the route of the new ducts: supply and return sizing, insulation of segments exposed to the cold, sealed joints. An uninsulated duct in a ventilated attic loses part of the heat before it reaches the living space.
The LogisVert grant
This unit has an indicative LogisVert amount of $2,808, according to Hydro-Québec's list; eligibility is confirmed on the installation date. Only Hydro-Québec confirms the assistance granted. The program targets residential buildings; the file references are AHRI 213685846 and ENERGY STAR ID 2842330.
Why choose AirGreen
- Salaried refrigeration technicians experienced with rooftop installations in urban settings.
- Civil liability insurance of $5,000,000.
- Warranty registration handled by us.
- After-sales service for the seasonal maintenance of your rooftop unit.
Request your free estimate for the 2-ton rooftop packaged unit: we go up on the roof, check the structure, the panel and the ducts, then give you a clear quote.
Documentation
Warranty: 5 years on the compressor and 7 years on parts, on registered models, according to the Kinghome brochure.
