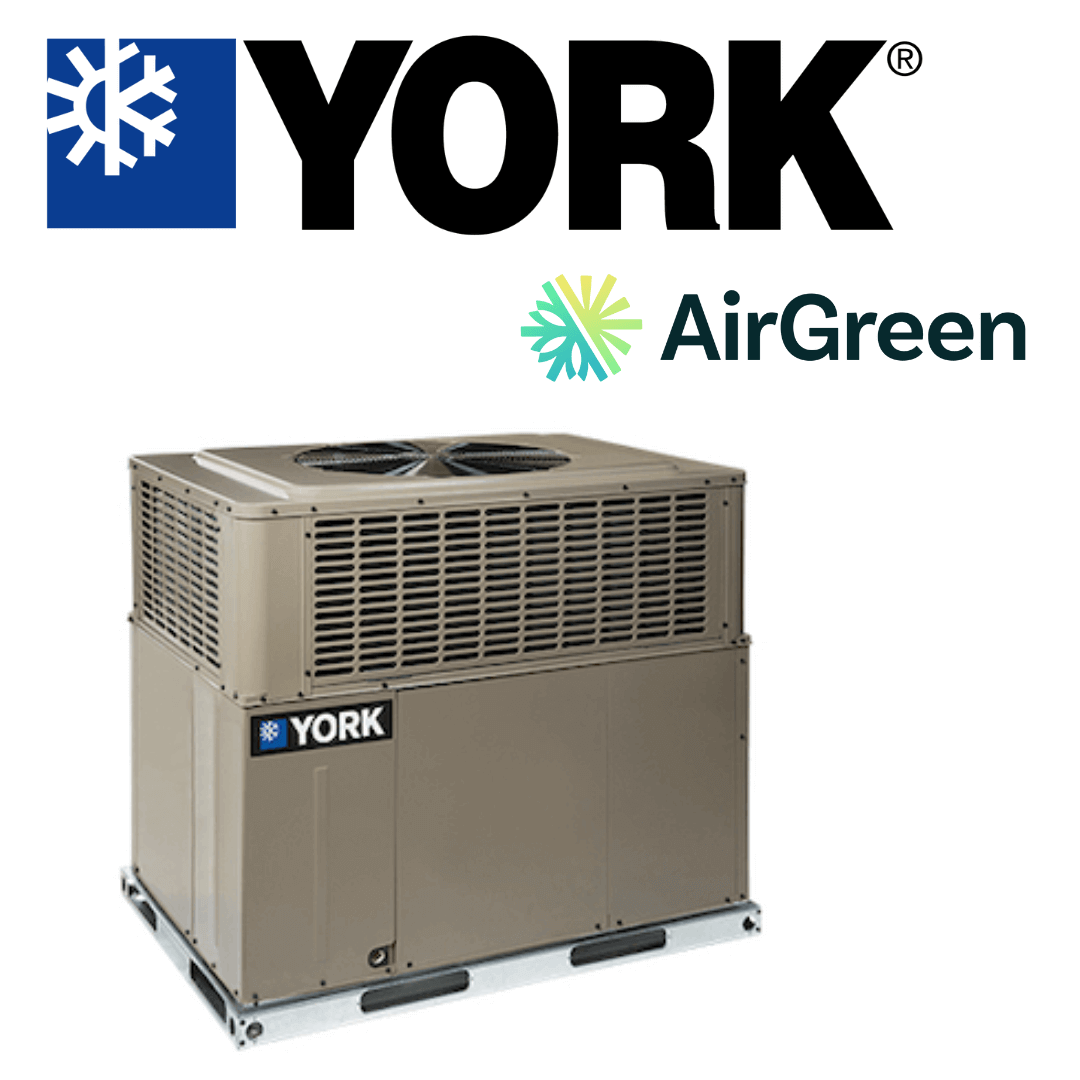

The York PHE4 Packaged Heat Pump System of 4 Tons
At AirGreen, we pride ourselves on being the leading HVAC service provider in Montreal, Laval, Longueuil, North Shore, and South Shore. Our commitment to quality and innovation is evident in the products we offer and the services we render. One such product that has garnered attention is the York PHE4 Packaged Heat Pump System. This article delves deep into the features, specifications, and benefits of the PHE4, ensuring you make an informed decision for your heating and cooling needs.
Unveiling the York PHE4
The York PHE4 is a state-of-the-art SINGLE PACKAGE HEAT PUMP/ELECTRIC HEAT system designed for optimal performance and efficiency. With a SEER rating of 14 and an HSPF of 8, this unit promises reliable operation while ensuring energy savings.
Key Specifications:
- Brand: York
- Model Name: PHE4
- Model Number: PHE4B4834
- Tonnage: 4 Tons
- SEER: 14
- HSPF: 8
- Sound Level: 73.8 dB
- Indoor Airflow: 1500 CFM
- Refrigerant: R-410A
- Dimensions: 45.75 x 51.25 x 53 inches
- Warranty: 10 years (Compressor-Coil-Parts)
Distinguishing Features:
-
Utility Connections Made Simple: The PHE4 offers electric utility access from either the bottom or side of the unit. This design ensures quick connections with minimal field labor. Additionally, a field-supplied and installed electrical disconnect switch is essential.
-
On-Site Flexibility: The compact design cabinet, available in two footprints, provides installers with flexibility in placing the unit on curbs or pads, ensuring optimal space utilization.
-
Convertible Airflow Design: This feature allows for maximum field adaptability. The bottom duct openings are factory-covered, ready for side supply/return application. If a bottom supply/return setup is needed, the panels can be easily switched without any cutting.
-
Condensate Management: The unit comes with a corrosion-resistant condensate pan and a rigidly mounted 3/4-inch NPT female connection for efficient condensate drainage.
-
Durable Finish: The PHE4 boasts a G90 galvanized steel cabinet with a powder paint coating, ensuring longevity and resistance against corrosion.
-
Efficient Coil Design: The outdoor coils feature grooved copper tubes and enhanced aluminum fins for improved heat transfer and durability.
-
Low Maintenance: With long-life, permanently lubricated fan motor bearings and an easily removable blower assembly, the PHE4 promises hassle-free maintenance.

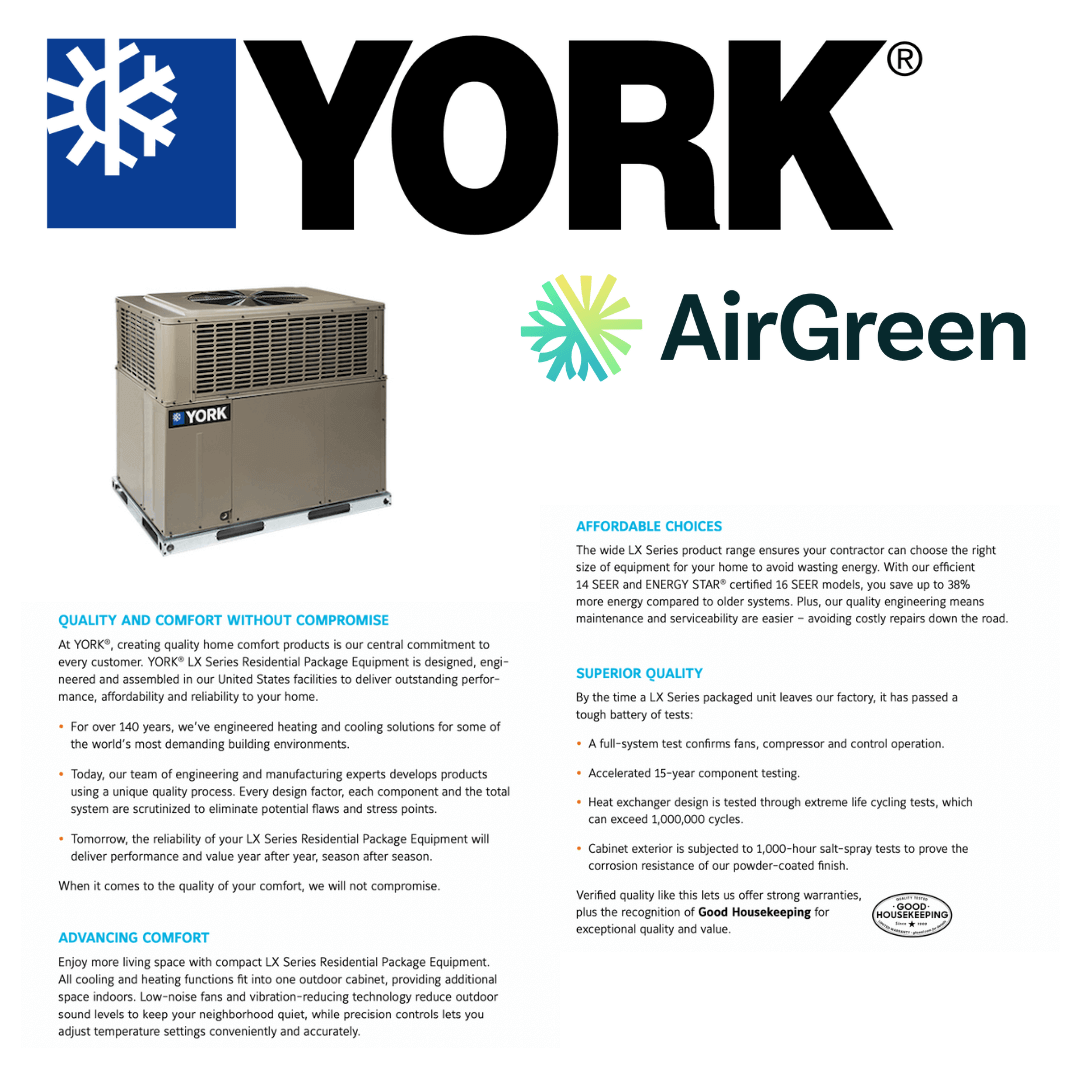

Additional Insights from the Official Brochure
The PHE4 series is designed for outdoor installation, requiring only utility and duct connections at the installation point. It boasts an operating efficiency with all models rated at 14.0 SEER and 8.0 HSPF. The unit's design ensures reduced installation time and costs, with all units being completely wired, charged with R-410A refrigerant, and tested before shipment.
Furthermore, the PHE4 series emphasizes easy service access. Individual access panels provide entry to all major components, ensuring effortless maintenance and troubleshooting. The unit's controls are also designed for simplicity, with a printed circuit board containing a status/diagnostic indicator light and color-coded internal wiring for easy identification.
Conclusion
The York PHE4 Packaged Heat Pump System is a testament to AirGreen's commitment to offering top-notch HVAC solutions. Whether you reside in Montreal, Laval, Longueuil, North Shore, or South Shore, our team is ready to assist you in experiencing the unparalleled benefits of the PHE4. With its advanced features, robust build, and efficient performance, it's an investment that promises comfort for years to come.
