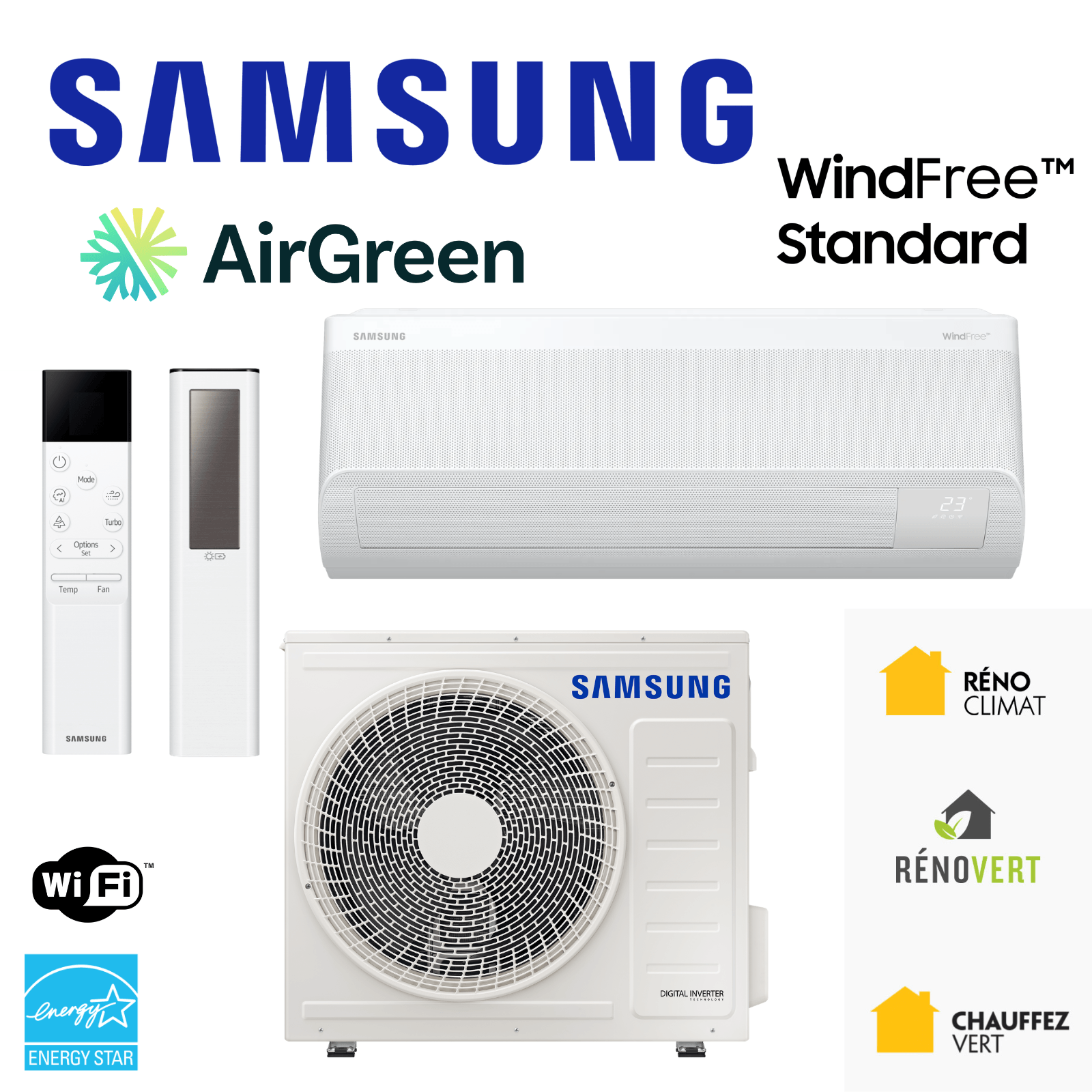

SAMSUNG WindFree Standard R32 Wall-Mounted Heat Pump | 12,000 BTU

In stock
SKU: AR12DXFAMWKXCV
12,000BTU/h · cooling capacity
−20.6 °Cheats down to
$545Indicative LogisVert amount. Only Hydro-Québec confirms the assistance granted.
ENERGY STAR®Built-in Wi-FiRefrigerant R-3212-12-6 warranty
Talk to a technician · 514 316-2973
Model number (outdoor)AR12DXFAMWKXCV
Model number (indoor)AR12DXFAMWKNCV
AHRI215399297

A smart, comfortable HVAC solution built for Quebec conditions

At AirGreen, we install wall-mounted heat pumps in homes in Montreal, Laval, Longueuil, the North Shore and the South Shore. Among the models we regularly recommend for well-defined residential projects, the SAMSUNG WindFree Standard 12,000 BTU stands out for a very specific combination: draft-free comfort, high energy efficiency and smart control.

This model is especially well suited to homeowners who want a reliable, quiet and technologically advanced solution for a condo, an apartment or an open-concept house.


WindFree™ technology: comfort without compromise

No more cold drafts

One of the most striking features of this heat pump is its WindFree™ technology, which releases air through thousands of micro-perforations. The result: even comfort with no direct jet of air.

According to the manufacturer's technical data, air released in WindFree mode moves at less than 0.15 m/s, which ASHRAE standards consider still air.

What it means in the field:

We installed this model in a condo where the client complained of constant discomfort with the old unit. After the installation, the client told us:

  • No more feeling of direct cold air
  • Better temperature stability
  • Long periods of use without discomfort

Energy performance and real-world efficiency

Solid performance for year-round use

This heat pump offers 12,000 BTU in heating and cooling, with an impressive modulating range:

  • Cooling: 3,000 to 15,500 BTU
  • Heating: 2,200 to 23,000 BTU, according to the Samsung technical sheet

This means it adjusts its output to actual needs, which reduces energy consumption.

Performance ratings

  • SEER2: 24.0
  • EER2: 13.25
  • HSPF2: 9.0

These are good seasonal efficiency values, even though the unit is not ENERGY STAR Cold Climate certified.

Operating temperature

  • Heats down to -20.6 °C (-5 °F) outdoors, according to Samsung

Data listed on NEEP (AHRI 215399297): 10,900 BTU/h at -8 °C (COP 3.04); 8,000 BTU/h at -15 °C (COP 1.76); 10,000 BTU/h at -20.6 °C (COP 1.81).

At AirGreen, we mainly recommend this model for:

  • Well-insulated condos
  • Urban dwellings
  • Projects with existing backup heating

Smart control and advanced connectivity

Built-in WiFi and the SmartThings app

This heat pump includes a built-in WiFi module for:

  • Remote control through the app
  • Energy-use tracking
  • Custom scheduling

In several installations, our clients use this feature to:

  • Cut consumption while they are away
  • Adjust the temperature before they get home
  • Optimize their comfort without lifting a finger

Built-in artificial intelligence

The system includes an AI Auto mode that, according to Samsung, adjusts operation automatically based on the environment and usage habits.


HVAC installation: key technical points

Installation specifications

  • Voltage: 208-230V
  • Maximum breaker: 20A
  • Piping: 1/4 – 3/8
  • Maximum length: 66 feet
  • Maximum height difference: 49 feet

These specifications offer a lot of installation flexibility, especially in the plexes and multi-storey houses typical of Montreal and Longueuil.

Accessibility and maintenance

The indoor unit is designed to make the following easier:

  • Access to connections
  • Filter maintenance
  • Quick service calls

At AirGreen, this makes long-term maintenance simpler for our clients.


Sound level: a major advantage in the city

  • Indoor: 22 to 39 dB(A)
  • Outdoor: 46 dB(A)

This sound level is especially appreciated in:

  • Open-concept condos
  • Bedrooms
  • Home offices

During an installation, a client specifically asked us for an ultra-quiet solution for a home office. This model fully met those expectations.


Advanced features that make a difference

This heat pump includes several features that are useful every day:

  • Eco Mode to reduce consumption
  • Good Sleep Mode to optimize night-time comfort
  • Auto Clean to limit moisture inside the unit
  • Freeze Wash for advanced cleaning
  • Automatic restart after a power outage
  • Smart diagnostics (Smart Install)

These features are not always highlighted, but they contribute directly to the system's durability and performance.


Grant and return on investment

LogisVert program

  • Indicative LogisVert amount of $545 (Hydro-Québec list of October 14, 2026). Only Hydro-Québec confirms the assistance granted.

Even though this model is not eligible for extreme-climate programs, it remains an excellent choice to:

  • Keep the upfront cost down
  • Lower the summer energy bill
  • Improve overall comfort

Real AirGreen case: installation in a duplex

We recently installed this heat pump in a duplex.

Initial situation:

  • Noisy old system
  • Poor air distribution
  • Discomfort in the bedrooms

AirGreen solution:

  • Installation of the SAMSUNG WindFree 12,000 BTU
  • Optimized placement for even air distribution
  • Addition of a discreet drain

Result:

  • Noticeably less noise
  • Stable comfort in every room
  • Simpler use through the mobile app

Common mistakes to avoid with this type of heat pump

At AirGreen, we often see the same mistakes:

1. Wrong sizing

A 12,000 BTU unit is not right for every space. An assessment is essential.

2. Poorly placed installation

The wrong location can cancel out the benefits of WindFree mode.

3. Overlooking the building's insulation

Performance also depends on the building envelope.

4. Choosing on price alone

A poorly matched system costs more in the long run.


Why choose AirGreen for your HVAC installation

We don't just sell heat pumps. We offer a complete approach:

  • Free on-site assessment
  • Installation by refrigeration technicians working under AirGreen's RBQ licence 5645-9605-01
  • A clear, transparent warranty
  • Real expertise in the Montreal, Laval, Longueuil and surrounding market

We have installed this model in many different configurations, which lets us optimize each project for its specific constraints.


Conclusion: an ideal heat pump for optimized urban comfort

The SAMSUNG WindFree Standard R32 Wall-Mounted Heat Pump | 12,000 BTU is particularly well suited to modern homes:

  • Draft-free comfort
  • Quiet operation
  • Smart control
  • Flexible installation

It is designed for homeowners looking for a reliable, efficient solution that fits the realities of urban Quebec.


Contact AirGreen today

For a personalized quote, an on-site assessment or simply to check whether this model suits your situation, contact us now.

At AirGreen, we guide you to the best HVAC solution for your property, with a professional, transparent approach tailored to your needs.

Warranty: 12 years on the compressor, 12 years on parts and 6 years on labor, straight from the distributor.
