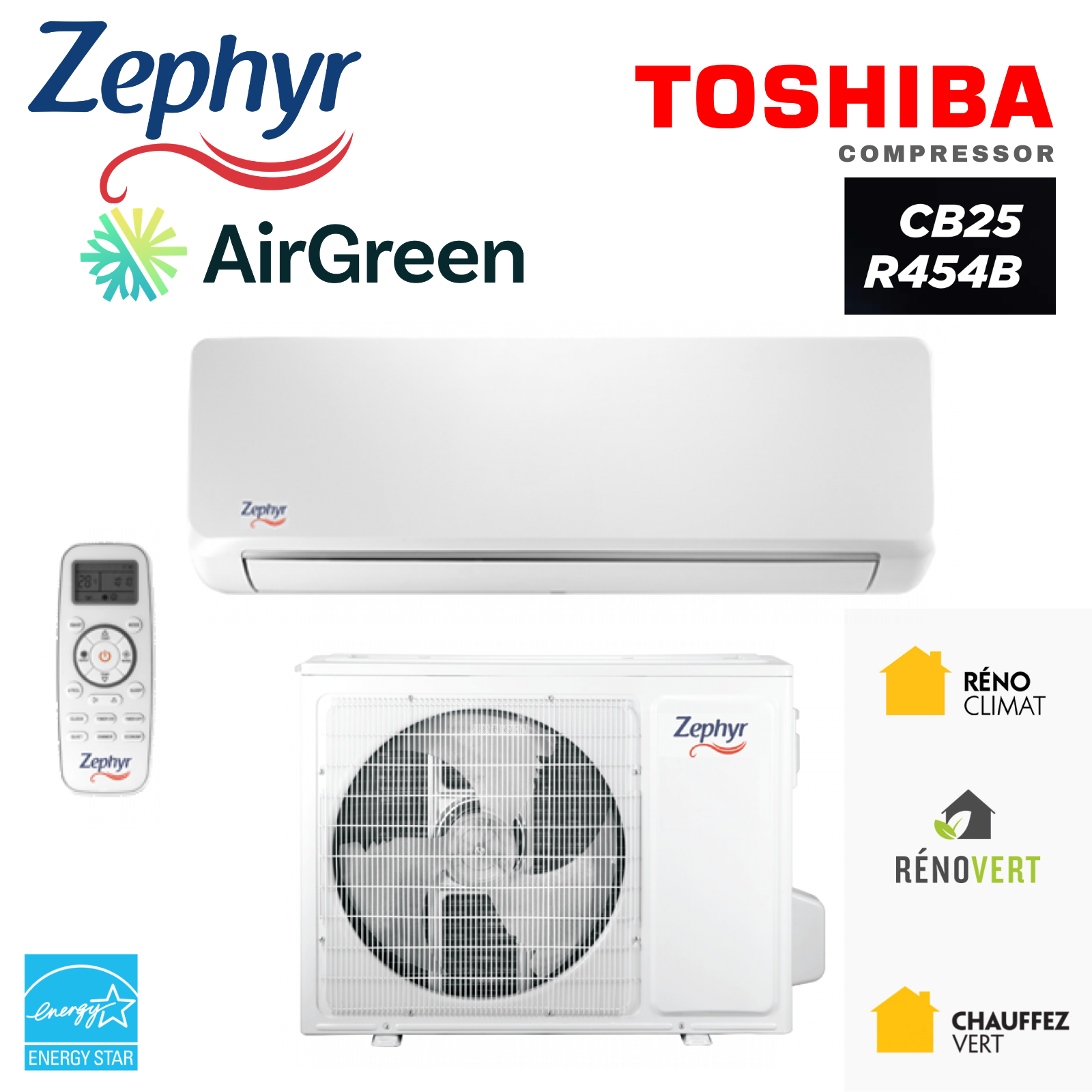

Zephyr ZE-09DB25 Wall-Mounted Heat Pump – 9,000 BTU, 115 V, R454B

A compact, efficient wall-mounted heat pump designed for year-round comfort

The Zephyr ZE-09DB25 Wall-Mounted Heat Pump is an interesting HVAC solution for homeowners looking for a wall unit with 9,000 BTU cooling capacity, capable of providing stable comfort in a bedroom, office, condo, small living room, closed room, or moderately sized residential space. At AirGreen, we often see this type of model as a very relevant option when the customer wants an efficient, discreet, affordable heat pump well suited to Quebec’s climate realities.

Unlike more powerful units designed for large open areas, the ZE-09DB25 positions itself as a compact but serious wall-mounted heat pump. It offers a 9,000 BTU cooling capacity and a heating capacity rated at 12,000 BTU at 8.3 °C, making it a versatile device for everyday heating and cooling needs. It operates with R454B refrigerant, a new generation refrigerant increasingly present in recent HVAC systems.

According to the Zephyr CB25 brochure, this model is designed to operate in heating mode down to -30 °C and in cooling mode down to -15 °C outdoor temperature, with several comfort functions such as silent mode, night mode, iFeel mode, quick start, 4D mode, automatic cleaning, and automatic defrost.

Important technical features to know

For model ZE-09DB25, the main data listed in the brochure are as follows:

Brand: Zephyr
Series: CB25
Model: ZE-09DB25
Type: Wall-mounted heat pump
Cooling capacity: 9,000 BTU
Heating capacity at 8.3 °C: 12,000 BTU
Refrigerant: R454B
Voltage: 115 V, 60 Hz, 1 phase
SEER2: 22.0
HSPF2 IV: 9.5
EER2: 12.25
Heating COP at 8.3 °C: 3.40
Energy Star V6.1: yes
Airflow: 253 to 400 CFM
Indoor sound pressure: 42 / 40 / 37 / 35 / 32 dB(A)
Outdoor sound pressure: 53 dB(A)
MOP: 20 A
MCA: 16 A
Liquid piping: 1/4 in
Gas piping: 3/8 in
Piping length: 10 to 65 feet
Maximum elevation difference: 50 feet
Precharge of piping: 25 feet
Compressor: GMCC rotary
Expansion valve: EEV
Indoor DC motor: yes
Outdoor DC motor: yes
Basic warranty: 10 years parts
Labor warranty: available depending on the distributor

The dimensions indicated in the brochure are in L × H × D format. For the indoor unit, the dimension is 33 7/16 × 11 9/16 × 8 1/16 in, approximately 33.44 × 11.56 × 8.06 in. For the outdoor unit, the dimension is 31 7/8 × 23 × 11 in, approximately 31.88 × 23.00 × 11.00 in.

An ideal 9,000 BTU heat pump for targeted rooms

The ZE-09DB25 is particularly suited for projects where the need is not to cool an entire house but rather to treat a specific area. This could be a master bedroom, a home office, a closed family room, a small living space, a condo, a room above a garage, or a space that becomes too hot in summer and too cold in winter.

At AirGreen, we always remind that a wall-mounted heat pump must be chosen according to the actual building configuration, not just the number of BTUs. A 9,000 BTU unit can be perfect in a well-insulated room but insufficient in a very open, highly windowed space or one exposed to the sun all day. Conversely, choosing a machine that is too powerful for a small room can create discomfort, especially in cooling mode, as the device may quickly reach the desired temperature without properly dehumidifying the air.

That is why we always analyze several elements before recommending this type of device: room size, insulation, window orientation, ceiling height, sun exposure, air circulation, possible location of the indoor unit, distance to the outdoor unit, electrical access, and condensation drainage.

Heating performance: an important factor for Quebec

One of the strengths of this heat pump is its heating operating range down to -30 °C. For Montreal, Laval, Longueuil, the South Shore, and the North Shore, this feature is very important because a wall-mounted heat pump must be able to operate in real winter conditions.

The technical sheet indicates the following heating capacities:

Nominal capacity at -8.3 °C: 9,300 BTU
Maximum capacity at -15 °C: 9,200 BTU
COP at -15 °C: 1.9
Maximum capacity at -20 °C: 6,900 BTU
Maximum capacity at -25 °C: 5,900 BTU

These figures are very useful. They show that the heat pump can continue to operate at low temperatures, but its capacity decreases as the cold intensifies. This is normal for a heat pump. In a well-insulated room, it can cover a large part of the heating needs. In a more challenging room, supplementary heating may still be necessary on the coldest days.

At AirGreen, we always make this clear: a high-performance wall-mounted heat pump can significantly reduce the use of traditional electric heating, but it must be properly sized and installed.

The R454B refrigerant: a new generation for modern installations

The ZE-09DB25 operates with R454B, a refrigerant used in several new generations of HVAC equipment. For the customer, the type of refrigerant may seem secondary, but it influences the device’s design, installation practices, and technical requirements.

With new refrigerants, installation must be especially precise. Best practices must be followed: compatible piping, clean flares, leak testing, thorough vacuuming, adherence to minimum and maximum lengths, electrical compliance, and final operational verification.

A modern device like the Zephyr ZE-09DB25 should not be installed quickly or roughly. Poor installation can affect performance, noise levels, compressor lifespan, and even the warranty.

Indoor comfort: 4D mode, automatic oscillation, and inverter technology

The brochure highlights the 4D mode and automatic oscillation, which help distribute air better throughout the room. This feature is important to avoid cold or hot spots and achieve a more balanced temperature.

Variable frequency technology, also called inverter technology, allows the heat pump to adjust its power in real time. Instead of operating only on/off like an older device, it modulates its capacity according to needs. Result: less temperature variation, better comfort, and more controlled energy consumption.

The model also includes several useful everyday functions:

Night mode to reduce operating intensity during sleep.
Silent mode for quieter operation.
iFeel mode to adjust comfort according to the temperature sensed near the remote control.
Turbo function to reach the desired temperature faster.
24-hour timer to schedule operation.
LED wireless remote control for simple control.
LED dimmer to reduce the display brightness.
Diffuser position memory to restore the preferred setting.
Automatic cleaning to help keep the indoor unit cleaner.
Automatic defrost to support operation in winter.

A 115 V unit: convenient, but to be checked before installation

A very important point of the ZE-09DB25 model is its 115 V power supply. This can be advantageous in some projects, as several small 9,000 BTU wall-mounted heat pumps use this voltage type. However, this does not mean it can be connected just any way.

The technical sheet indicates a 16 A MCA and a 20 A MOP. This means that an appropriate circuit with the correct electrical protection must be planned. The nominal current is 8.8 A in cooling and 9.3 A in heating.

Before confirming the installation, we always check the electrical panel, circuit availability, wire gauge, breaker location, and installation compliance. In some older buildings in Montreal or Longueuil, this step is essential because panels may already be full or poorly organized.

1/4 - 3/8 inch piping: an essential detail in replacement

The ZE-09DB25 uses 1/4 inch liquid and 3/8 inch gas piping. This information is crucial when replacing an old heat pump. You should never assume existing lines are compatible just because an old wall unit was already installed.

When replacing, we check:

the diameter of the refrigerant lines;
the condition of the piping;
the total length of the run;
the old refrigerant used;
the possibility to clean or replace the lines;
accessibility of the wall passage;
compliance with the manufacturer’s requirements.

The brochure indicates a total pipe length of 10 to 65 feet, with a precharge designed for 25 feet. This must be taken into account when calculating the installation, especially if the outdoor unit is placed far from the indoor unit.

Indoor unit location: small size, big importance

Even though the ZE-09DB25 is a compact unit, its location must be chosen carefully. A poor position can create an unpleasant draft, poor air distribution, or uneven temperature in the room.

We generally avoid placing the unit directly above a bed, desk, or sofa if the air is likely to blow directly on occupants for several hours. Instead, we look for a location that allows air to circulate naturally in the room.

In Montreal condos and plexes, you also need to consider brick walls, shared walls, plaster ceilings, condominium restrictions, and exterior aesthetics. On the South Shore or North Shore, houses sometimes offer more flexibility, but you still need to think about drainage, pipe distance, and future access for maintenance.

Outdoor unit location: noise, snow, and maintenance

The outdoor unit of the ZE-09DB25 has a sound pressure level of 53 dB(A), which remains reasonable for a wall-mounted heat pump. However, the location must be chosen carefully, especially in dense neighborhoods where neighbors are close.

The outdoor unit must be installed on a stable base, with the necessary clearances to ensure good air circulation. In Quebec, you also need to consider snow, ice, water accumulation from the roof, and access for maintenance.

At AirGreen, we always recommend an installation that takes winter into account. A unit that is too low, poorly protected, or installed in an area where snow accumulates can lose efficiency and require more maintenance.

HVAC Maintenance: preserving performance year after year

A well-installed wall-mounted heat pump must also be properly maintained. The owner can perform some maintenance themselves, especially regular filter cleaning. However, periodic professional inspection is still recommended to preserve performance and detect problems before they become costly.

We especially recommend:

Clean the filters regularly;
Ensure the condensation drain remains free;
Keep the outdoor unit clear;
Remove leaves, dust, snow, and debris around the unit;
Monitor for unusual noises;
Have the unit inspected if performance decreases;
Schedule professional cleaning when the indoor heat exchanger becomes dirty.

Features like automatic cleaning and automatic defrosting improve daily use, but they do not replace serious maintenance.

Mistakes to avoid before buying a 9,000 BTU heat pump

In our experience, many problems stem from a poor initial choice. Here are the most common mistakes:

Choose a 9,000 BTU heat pump without verifying the actual area.
Install the unit in a room that is too large or too open.
Neglect sun exposure and window placement.
Forget to check the electrical panel.
Reuse old piping without validation.
Place the indoor unit in the wrong location.
Install the outdoor unit too close to a wall or neighbor.
Ignore snow and winter clearance.
Compare price only without considering installation.

A good heat pump that is poorly installed will rarely deliver good results. Conversely, a well-chosen, well-installed, and well-maintained heat pump can provide remarkable comfort for many years.

Why choose AirGreen to install the Zephyr ZE-09DB25

At AirGreen, we install, maintain, and repair HVAC systems in Greater Montreal, including Montreal, Laval, Longueuil, on the South Shore and the North Shore. Our approach is simple: offer the right device, in the right place, with a clean and compliant installation.

For a model like the Zephyr ZE-09DB25, we first verify the feasibility of the project: required capacity, indoor location, outdoor location, pipe length, electrical supply, drainage, maintenance access, and the client’s real expectations.

Our customers benefit from:

a clear evaluation before work begins;
a recommendation adapted to the building;
installation compliant with technical requirements;
an honest explanation of winter performance;
support for warranties;
a structured after-sales service;
a team specialized in wall-mounted, central, and multi-zone heat pumps.

We know that a heat pump is a significant investment. Our goal is for every customer to understand what they are buying, how the device will operate, and what conditions must be met to achieve a lasting result.

A compact, efficient HVAC solution well suited for small spaces

The Zephyr ZE-09DB25 Wall-Mounted Heat Pump is an interesting option for customers looking for a 9,000 BTU wall-mounted heat pump, operating on R454B, with a 115 V power supply, an Energy Star V6.1 certification, a low indoor noise level down to 32 dB(A) in silent mode, and a heating capacity suited for Quebec winters.

It is especially suitable for targeted rooms where you want to improve comfort without installing a central system. Its inverter technology, 4D mode, silent mode, night mode, automatic defrost, and heating up to -30 °C make it a complete machine for serious residential use.

To get a clear quote, check if this model suits your building or compare the Zephyr ZE-09DB25 with other available wall-mounted heat pumps, contact AirGreen. Our team can guide you to the right HVAC solution based on your space, budget, and comfort goals.
