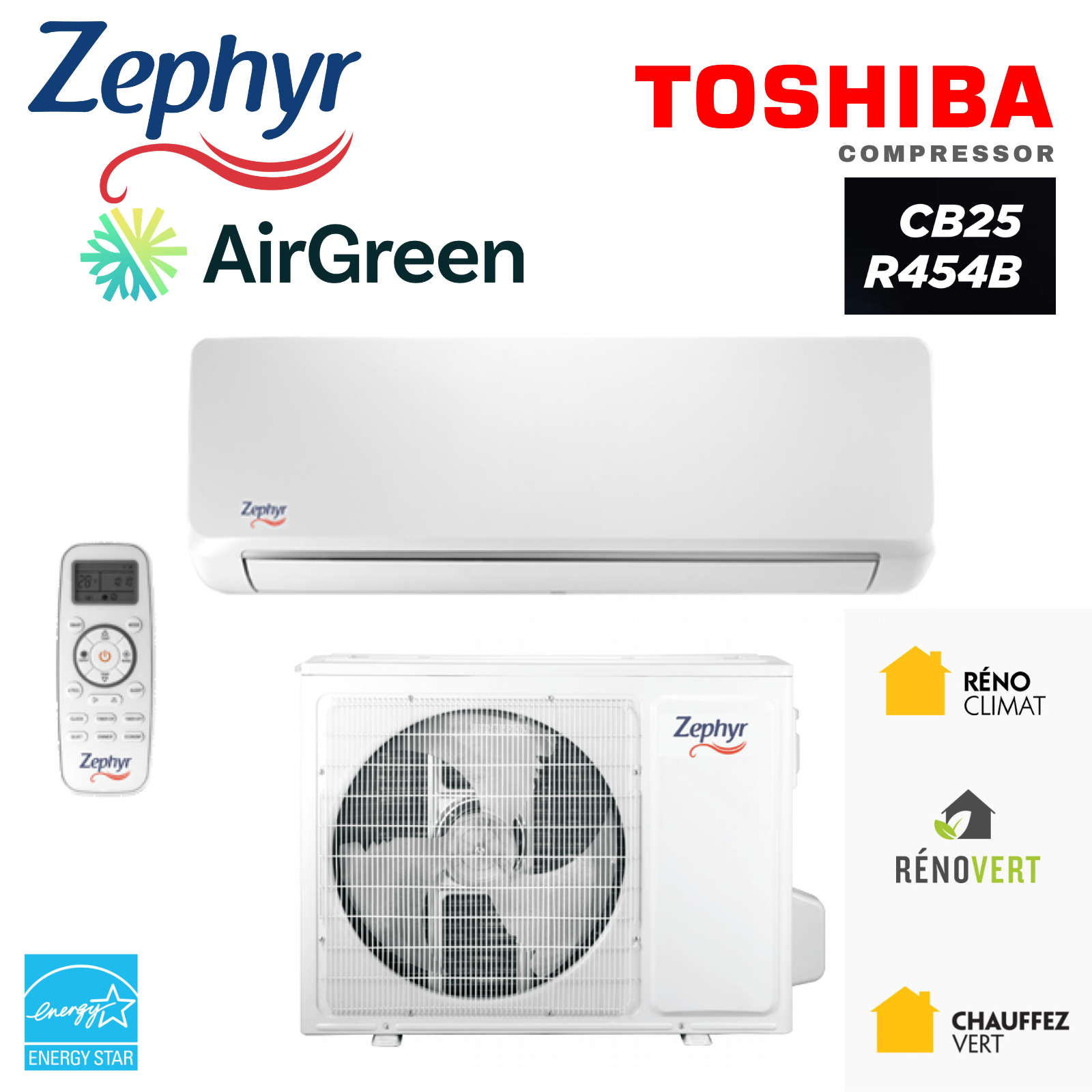

Zephyr CB25 R454B Wall-Mounted Heat Pump ZE-09CB25 – 9,000 BTU, high efficiency and reliable comfort down to -30 °C

The Zephyr CB25 R454B Wall-Mounted Heat Pump ZE-09CB25 is a compact, efficient HVAC solution well suited for residential spaces requiring stable comfort year-round. With its 9,000 BTU capacity, energy efficiency up to 25.0 SEER2, and operation with R454B refrigerant, this model is especially aimed at owners who want to cool and heat a bedroom, office, condo, small living area, extension, or a room that is difficult to balance.

At AirGreen, we recommend this type of wall-mounted heat pump when the customer is looking for a discreet, efficient, and properly sized solution for the realities of the Quebec climate. In Montreal, Laval, Longueuil, on the South Shore and North Shore, needs often vary greatly from one building to another: insulation, window orientation, ceiling height, available exterior walls, desired noise level, access to the electrical panel, and installation constraints must be evaluated before confirming the final choice.

The ZE-09CB25 model stands out with several key features: heating down to -30 °C, cooling down to -15 °C, variable frequency technology, 4D mode, airflow from 253 to 383 CFM, outdoor sound pressure of 53 dB(A), and a Zephyr basic 10-year parts warranty according to the technical brochure.

1. Introduction to the Zephyr CB25 ZE-09CB25

The Zephyr CB25 ZE-09CB25 is a wall-mounted heat pump with 9,000 BTU designed to provide precise comfort in small to medium-sized spaces. Unlike an overly powerful unit that could cause short cycling, poor dehumidification, or uneven air sensation, a well-selected 9,000 BTU heat pump can offer an excellent balance of performance, efficiency, and comfort.

This model is particularly suitable for:

a master bedroom,
a home office,
a condo,
a room above a garage,
a partially open basement,
a small living area,
a renovated, better-insulated space,
a home where the comfort of a single zone needs to be improved.

The Zephyr CB25 brochure emphasizes reliable daily use, with several features designed for comfort: night mode, silent mode, iFeel mode, quick start, 24-hour timer, base heating, compressor heating, fireproof electrical box, and auto-adaptive voltage technology.

At AirGreen, we often see customers who just want “a small heat pump,” but the right choice always requires more precision. A wall unit must be chosen according to the room, but also according to how the air actually circulates. A closed bedroom, a south-facing office, and an open-concept condo do not behave the same way, even if the area seems similar.

2. Important technical features of the ZE-09CB25

For the model Zephyr CB25 ZE-09CB25, the main data indicated in the brochure are as follows:

Brand: Zephyr
Series: CB25
Model: ZE-09CB25
Type: wall-mounted heat pump
Refrigerant: R454B
Cooling capacity at 35 °C: 9,000 BTU/h
Heating capacity at 8.3 °C: 9,000 BTU/h
SEER2: 25.0
HSPF2 IV: 11.0
EER2: 13.65
Heating COP at 8.3 °C: 3.88
COP at -15 °C: 2.1
Energy Star V6.1: Yes
Airflow: 253 to 383 CFM
Indoor sound pressure: 42 / 39 / 32 / 30 / 28 dB(A)
Outdoor sound pressure: 53 dB(A)
Voltage: 208V / 230V, 60 Hz, 1 phase
MOP: 15 A
MCA: 9.5 A
Required communication wire: 4/14 copper multi-strand 600 V
Liquid piping: 1/4 in
Gas piping: 3/8 in
Minimum-maximum piping length: 10 to 98 feet
Maximum elevation difference: 50 feet
Precharge length: 25 feet
Indoor unit dimensions: 33 7/16 × 11 9/16 × 8 1/16 in
Outdoor unit dimensions: 31 7/8 × 23 × 11 in
Air conditioning range: -15 °C to 48 °C
Heating range: -30 °C to 24 °C
Basic warranty: 10 years parts

This data is important because it directly influences the feasibility of the project. For example, the model ZE-09CB25 operates on 208V / 230V, unlike the 115V variants of the same family. This means that before confirming an installation, the electrical panel, available circuit breaker, wiring, route between the panel and the outdoor unit, as well as installation compliance must be checked.

3. Why R454B is relevant for a new installation

The model ZE-09CB25 uses the refrigerant R454B, a new generation gas increasingly present in modern HVAC equipment. For the customer, the type of refrigerant may sometimes seem secondary, but it plays an important role in the device's design, installation practices, and the transition to newer equipment.

A heat pump at R454B requires rigorous installation. Connections must be clean, flares well made, pressure testing properly done, vacuum pulling thorough, and pipe length must meet the manufacturer's requirements. A modern device can offer excellent performance, but only if installed according to best practices.

At AirGreen, we emphasize this point: the real performance of a heat pump depends as much on installation quality as on the technical sheet. A good unit poorly installed can lose efficiency, become noisy, cause drainage problems, or provide less comfort than expected.

4. Winter comfort: heating down to -30 °C

One of the major advantages of the Zephyr CB25 ZE-09CB25 is its ability to operate in heating mode down to -30 °C according to the brochure. For Quebec, this is a crucial point. Winters in Montreal, Laval, Longueuil, on the North Shore and South Shore can quickly challenge a wall-mounted heat pump, especially during prolonged cold periods.

The technical sheet also indicates heating capacities at low temperatures:

Heating at -8.3 °C: 9,000 BTU/h
Maximum heating at -15 °C: 9,000 BTU/h
Maximum heating at -20 °C: 6,000 BTU/h
Maximum heating at -25 °C: 5,000 BTU/h

These figures are very useful because they help to better understand the actual behavior of the device. A heat pump can operate at very low temperatures, but its available capacity may decrease when the cold becomes extreme. That is why a proper building assessment remains necessary.

In a well-insulated bedroom or office, the ZE-09CB25 can provide excellent comfort for much of the winter. In a more exposed room, with large windows or older insulation, supplemental heating may still be necessary on the coldest days.

5. Energy efficiency: a very interesting model at 9,000 BTU

With a SEER2 of 25.0 and an HSPF2 of 11.0, the Zephyr CB25 ZE-09CB25 positions itself as a very efficient model in its category. The SEER2 reflects seasonal cooling efficiency, while the HSPF2 indicates seasonal heating performance.

The model also features an EER2 of 13.65 and a COP of 3.88 at 8.3 °C, confirming its focus on high energy performance. For an owner, this means the device can help reduce operating costs when properly sized, installed, and used.

However, you should avoid choosing a heat pump based solely on an efficiency number. A device that performs well on paper still needs to be installed in the right place, with the right capacity, proper duct routing, and good indoor ventilation setup. This is what turns theoretical performance into real comfort.

6. 4D mode, automatic oscillation, and better air distribution

The brochure highlights the 4D mode and automatic oscillation, designed to better distribute air throughout the room. This feature is especially useful in spaces where you want to avoid cold spots, poorly conditioned corners, or the feeling of air always directed to the same place.

Variable frequency technology also allows the heat pump to adjust its power in real time. Instead of simply operating on/off like an older system, the device modulates its operation to reduce temperature fluctuations and improve comfort.

The brochure also mentions several practical features:

LED dimmer
5 indoor fan speeds
LED wireless remote control
Automatic heating 8 °C / 46 °F
Reversible drain hose
Turbo function
Automatic defrost
Automatic cleaning
Diffuser position memory
Heated chassis for the outdoor base

These options make daily use more pleasant. The silent mode is useful at night, the iFeel mode helps adjust comfort according to the temperature sensed near the remote control, and the night mode allows gentler use during rest hours.

7. HVAC installation: the details that make the difference

Installing a wall-mounted heat pump is not just about mounting an indoor unit and connecting an outdoor unit. For the Zephyr CB25 ZE-09CB25, several elements must be checked before starting work.

The indoor unit measures 33 7/16 × 11 9/16 × 8 1/16 in. This makes it a compact size, convenient for many residential spaces. However, necessary clearances, mounting height, airflow direction, and refrigerant line routing must still be planned.

The required piping is 1/4 in for the liquid and 3/8 in for the gas. The total allowed length is 10 to 98 feet, with a precharge indicated up to 25 feet. When replacing an old unit, one should never assume the existing lines are compatible. At AirGreen, we always check the diameter, condition, length, old refrigerant used, and feasibility of reuse.

The outdoor unit measures 31 7/8 × 23 × 11 in. Its location must be chosen carefully: clearances, snow, ice, drainage, maintenance access, noise, neighbors, and base stability. On the South Shore, North Shore, and in many areas of Montreal and Laval, space constraints can quickly influence the choice of wall or outdoor location.

8. Noise level and daily comfort

The noise level is often underestimated when purchasing a wall-mounted heat pump. However, in a bedroom, office, or condo, noise can become a deciding factor.

The ZE-09CB25 displays an indoor sound pressure level of 42 / 39 / 32 / 30 / 28 dB(A) depending on the speed used. This allows operation to be adapted according to needs: more powerful in fast mode, quieter in night or silent mode.

The outdoor unit has a sound pressure level of 53 dB(A). This level remains reasonable, but location is still important. A unit placed near a bedroom, terrace, narrow yard, or neighbor may be perceived differently depending on the environment.

At AirGreen, we always take the time to recommend a logical location, not only for performance but also for long-term sound comfort.

9. Maintenance and durability

A high-performance wall-mounted heat pump must be maintained regularly to retain its efficiency. Even with features like automatic cleaning, automatic defrosting, and smart modes, maintenance remains essential.

We specifically recommend:

clean the filters regularly,
ensure the condensate drain remains clear,
keep the outdoor unit free of snow, leaves, and debris,
monitor for unusual noises,
have the device inspected if performance decreases,
schedule professional cleaning when the indoor unit is dirty.

The ZE-09CB25 model benefits from a basic 10-year parts warranty. The brochure also specifies that a labor warranty is available and that you should refer to the distributor for details.

At AirGreen, we always clearly explain the difference between parts warranty, compressor warranty, labor, travel, diagnostics, and maintenance. This helps avoid misunderstandings after installation.

10. Why choose AirGreen to install the Zephyr CB25 ZE-09CB25

AirGreen installs, maintains, and repairs HVAC systems in Greater Montreal, including Montreal, Laval, Longueuil, the South Shore, and the North Shore. Our field experience allows us to recommend the right solution based on the building, interior layout, and client goals.

Choosing AirGreen for a wall-mounted heat pump like the Zephyr CB25 ZE-09CB25 means benefiting from:

a clear evaluation before installation,
proper sizing for the space,
thorough electrical inspection,
installation following good HVAC practices,
thoughtful unit placement,
an honest explanation of low-temperature performance,
a structured after-sales service,
a team experienced with the realities of Quebec homes, condos, and plexes.

A 9,000 BTU heat pump may seem simple, but the result depends heavily on the installation. A good indoor location improves air distribution. A good outdoor location protects the unit in winter. Proper piping ensures reliability. Proper electrical setup prevents future issues.

11. Conclusion: a compact, efficient wall-mounted heat pump well suited to the Quebec climate

The Zephyr CB25 R454B ZE-09CB25 Wall-Mounted Heat Pump is an excellent option for customers looking for an efficient, modern 9,000 BTU solution capable of heating down to -30 °C. Its SEER2 of 25.0, HSPF2 of 11.0, operation with R454B, 4D mode, silent mode, automatic defrost, and 10-year basic parts warranty make it a very attractive model for many residential projects.

It is especially suitable for spaces where precise comfort is desired without oversizing the equipment. For a bedroom, office, condo, or closed room, the ZE-09CB25 can offer a great balance of comfort, efficiency, and reliability.

To get a clear quote, compare this model with other Zephyr wall-mounted heat pumps, check electrical feasibility, or plan an installation in Montreal, Laval, Longueuil, on the South Shore or North Shore, contact AirGreen. Our team will help you choose the right HVAC solution based on your building, budget, and comfort goals.
