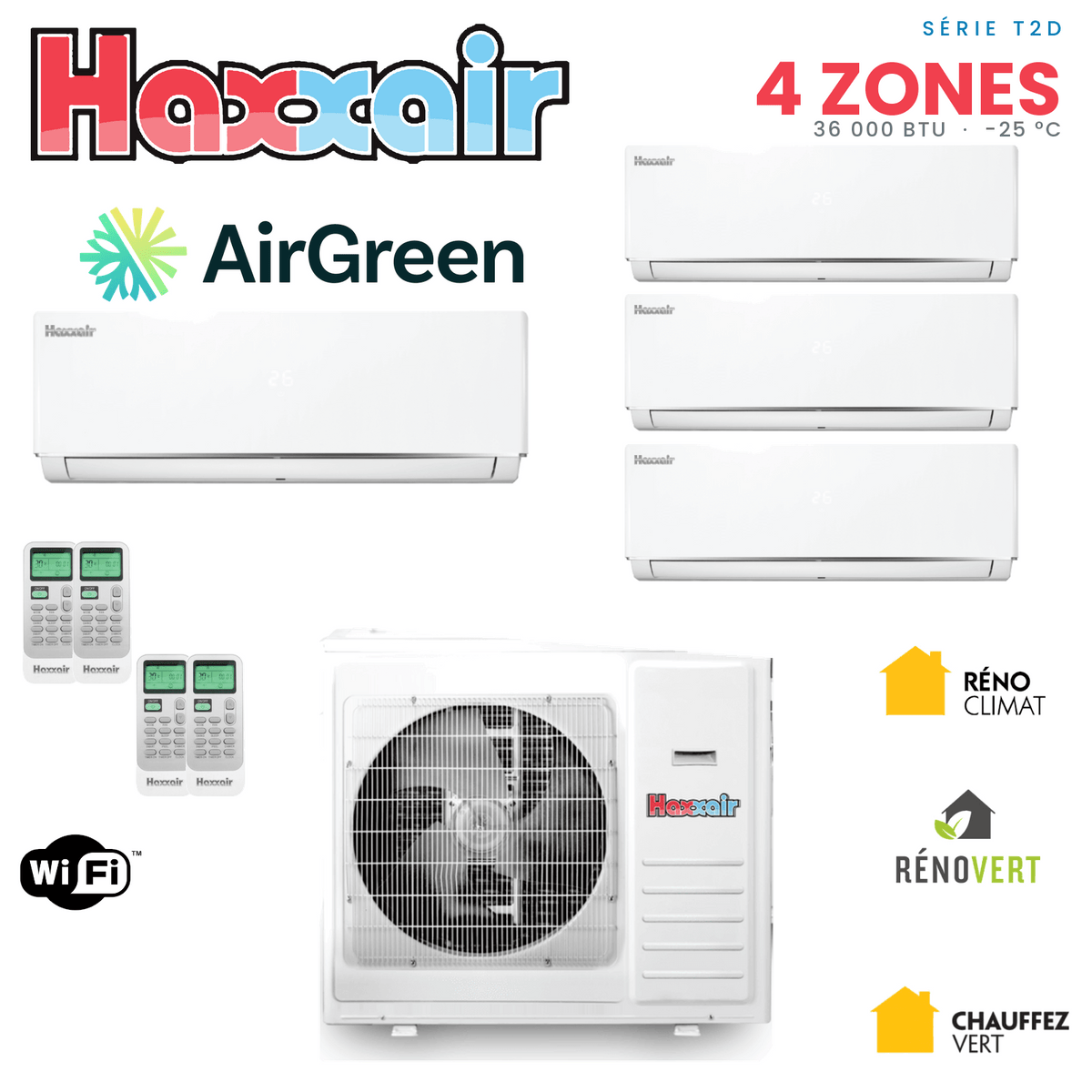

Ductless Quad Zone Heat Pump Haxxair T2D Compressor 36 000 BTU Montreal
The Haxxair T2D 36 000 multi-zone heat pump heats and cools 4 rooms with a single outdoor unit. it delivers 22,400 BTU/h at −8 °C, heats down to −25 °C and qualifies for a $2,688 LogisVert grant. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
4 rooms, one outdoor unit.
Compared with the 141 multi-zone systems of 36,000 BTU we sell. Every number on this page carries its source.

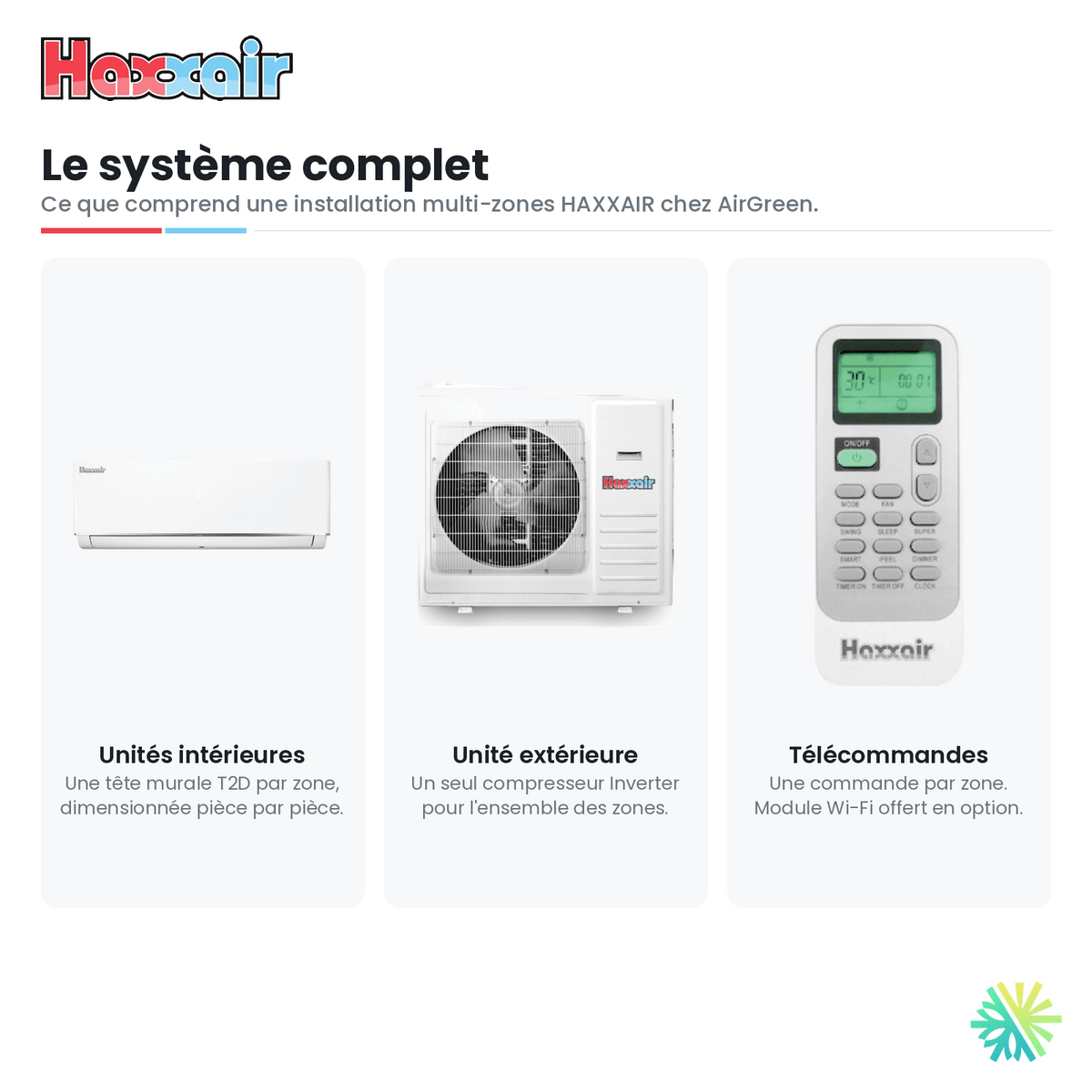

The parts that make a multi-zone system.
Tap a part to learn more.
Outdoor unit
One compressor for the whole house. It supplies up to 4 heads and modulates from 8,000 to 40,000 BTU/h depending on what the rooms call for (NEEP).
Base pan heater
A heater keeps the outdoor unit’s base pan free of ice below 1 °C and during defrost (NEEP).
Refrigerant lines
One pair of lines per head.

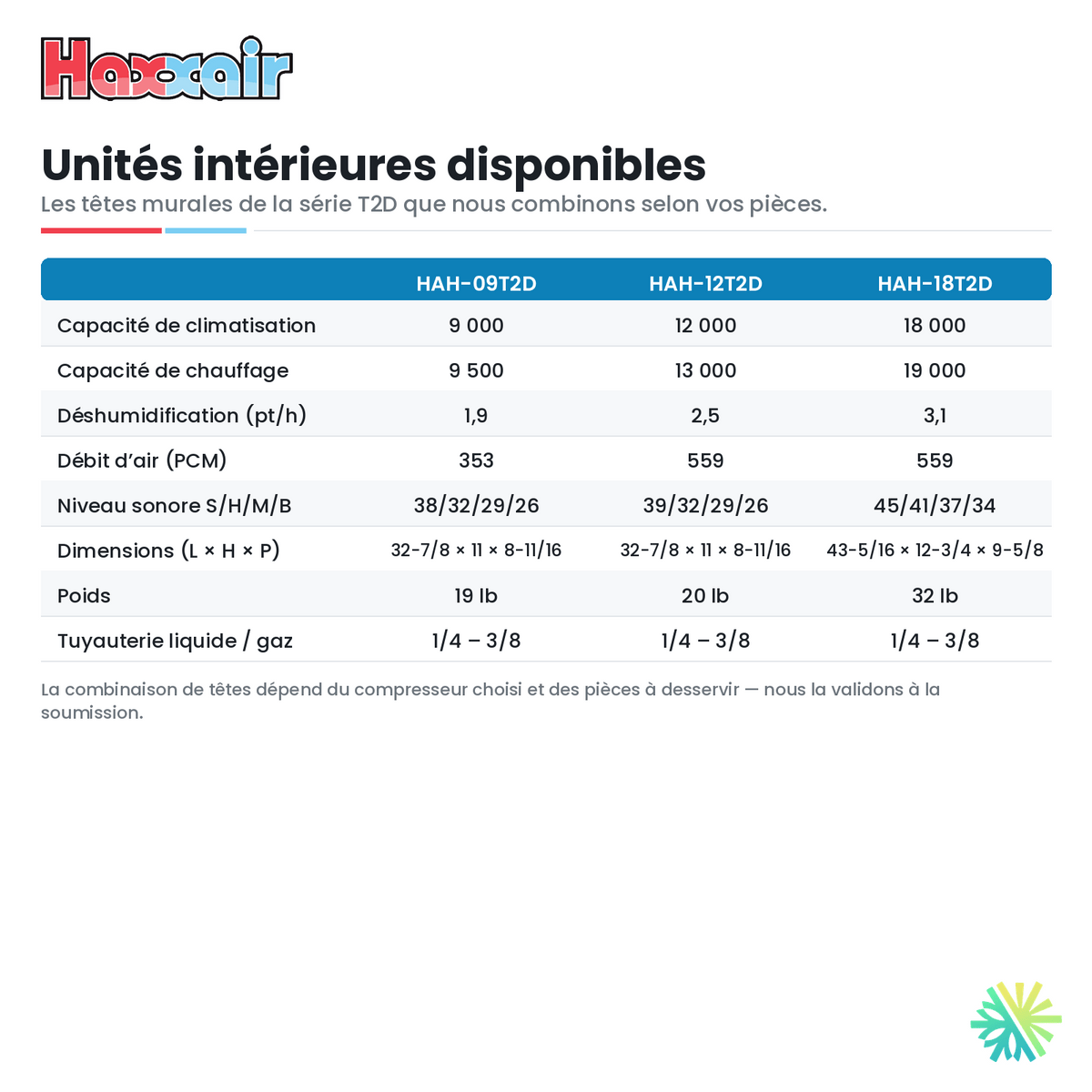

Indoor heads
One head per room, each with its own remote and temperature. The combination is chosen in the “Zones” menu.
Control
Each zone is set separately.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 100 % of its rated capacity.
Tap a temperature: certified capacity, efficiency and the cost of one hour of heating.
It slows down, it speeds up: the certified modulation range
Light bar: from minimum to maximum capacity. Dark mark: the rated value.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
A grant you can calculate, not guess.
The capacity at −8 °C comes from Hydro-Québec’s list of October 1, 2026. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).
Where it ranks among same-size multi-zone systems.
Compared with the 141 multi-zone systems of 36,000 BTU we sell, using the LogisVert list figures. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.
What is particular about this machine.
Only facts published by ENERGY STAR, NEEP or the manufacturer.
Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
HAXXAIR 36 000 BTU wall-mounted High Intensity (T2D) Quad Zone heat pumps are specially designed for Quebec winters! Manufactured by HISENSE! Ditributed in Greater Montreal by AirGreen.
Ultra-quiet mode : Based on the principles of airflow and acoustics, the HAXXAIR wall-mounted heat pump is built by optimizing the structure of the indoor air duct to reduce any nuisance. This technology effectively eliminates noise interference and allows your family to sleep undisturbed when the unit operates at night.
Energy Savings : Using 3D inverter technology, optimized inner air duct, technologically advanced intergrooved tubing and thinner fins, HAXXAIR heat pumps gain energy efficiency, reducing 30% annual electricity consumption on your Hydro-Québec bills.
For harsh winters : HAXXAIR wall-mounted heat pumps are all equipped with a heating element in the condensation tray of the compressor (outdoor unit), in order to prevent the accumulation of ice and snow that can occur during the winter in Montreal. This promotes the flow of water through the drainage holes, minimizing the risk of ice.
Special heating 8°C mode : When the climate becomes freezing, the special heating mode of the HAXAAIR heat pump keeps your house or chalet from freezing by maintaining a reasonable minimum temperature, allowing you to preserve your home while being away for long periods of time.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 22,400 BTU/h at −8 °C, 36,000 at −15 °C.
How many heads can I connect?
Up to 4 on this outdoor unit. This product is configured for 4 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 10 combinations, from 9+9+9+9 to 12+12+12+18 (in thousands of BTU). Each head is sized for its room.
How much is the LogisVert grant?
$2,688 according to Hydro-Québec’s list of October 1, 2026. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.
Is it ENERGY STAR certified?
Yes, cold climate, ID 3542752. It also meets the ENERGY STAR Most Efficient criteria, according to the ENERGY STAR database.
Down to what temperature does it heat?
Down to −25 °C.
Is it noisy?
Indoors, the reference head goes down to 40 dB(A). Outdoors, 59 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 10 years on the compressor and 10 years on parts; labour is not included by the manufacturer. AirGreen extended warranty: available.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
