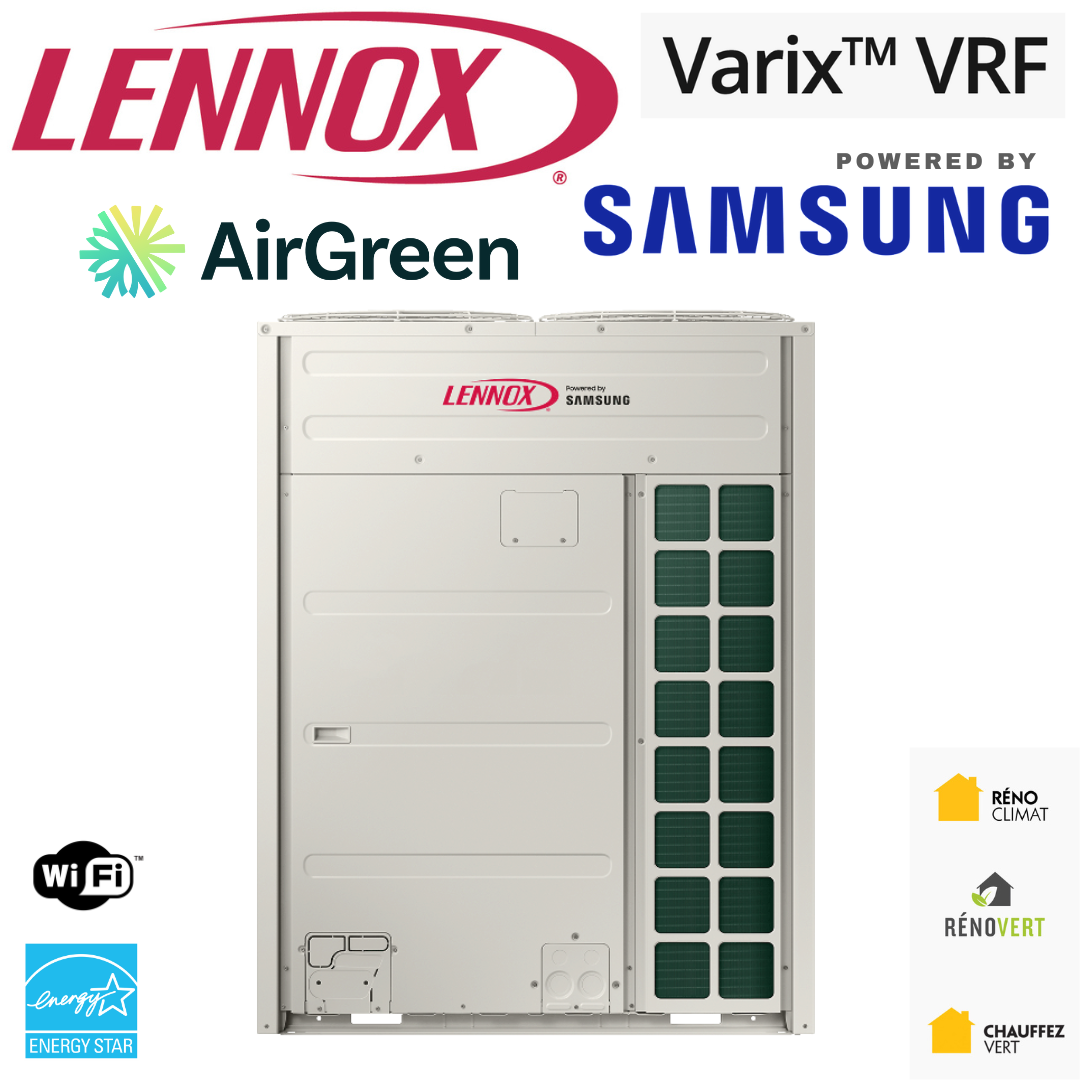

Lennox VARIX VPC S4M VRF Heat Pump | 16 Tons | 208-230V
The high-performance HVAC solution for complex commercial projects
In the demanding world of commercial heating, ventilation, and air conditioning (HVAC), certain technologies stand out for their efficiency, intelligence, and ability to adapt to the realities of modern buildings. At AirGreen, we are proud to offer the Lennox VARIX VPC S4M 16-ton VRF heat pump , a next-generation outdoor unit. Designed to meet the most complex multi-zone climate control needs, this heat pump embodies the perfect balance of energy efficiency, precise control, and flexible integration.
Smart technology for uncompromising zoned comfort
VRF (Variable Refrigerant Flow) technology allows this Lennox heat pump to dynamically modulate the refrigerant flow to each indoor unit, ensuring extremely precise temperature control. This approach results in a significant reduction in energy consumption, while providing comfort tailored to each area of the building.
The VARIX VPC S4M can power up to 33 independent zones , allowing personalized temperature control in offices, retail, hotels, restaurants and educational institutions.
Powerful technical features
-
Cooling capacity : 192,000 BTU
-
Heating operating range : down to -30 °C (-22 °F), per Lennox
-
Energy efficiency : High IEER with inverter technology
-
Sound pressure (external) : 66 dB(A)
-
Dimensions : 73.25 x 30.13 x 66.75 in
-
Power supply : 208-230 V three-phase
-
Refrigerant : R-410A
-
Wi-Fi available as an option with the Lennox adapter, for easy remote control
A design optimized for field realities
The compact size of this unit makes it easy to integrate into environments where space is limited. The oversized heat exchanger increases the heat transfer surface area by up to 36% , allowing optimal operation, even in harsh climates such as Montreal , Laval , Longueuil , North Shore or South Shore .
Performance adapted to Quebec's extreme climates
Per Lennox, this heat pump heats down to -30 °C (-22 °F) and cools up to 50 °C (122 °F), for freezing winters and scorching summers alike.
Flexible installation options for every project
The heat pump supports different types of indoor units:
-
4-track cassette (2x2 and 3x3)
-
360 degree cassette
-
Wall, floor, concealed units
-
Ducted units (low, medium, high pressure)
-
Exterior Ventilation
Testimonials from projects carried out by AirGreen
In Brossard , we installed this heat pump in a multifunctional complex where each room had different thermal needs. The client saw a reduction of more than 30% in their energy bill in one year.
Key benefits for your business project
-
Precise zoned control for individualized temperature management
-
Heating or cooling, one mode at a time : The Varix VPC is a heat pump: the whole system heats or cools at the same time. To heat some zones while others are cooled, Lennox offers the heat-recovery version (VRC) with mode selection boxes.
-
Reduced maintenance : fewer moving parts = fewer breakdowns
-
Real-time energy monitoring , remote diagnosis
-
Easy integration with building management systems (BMS)
Why trust AirGreen
At AirGreen, we have years of experience installing commercial VRF systems . Our certified technicians provide a turnkey service, from site assessment to commissioning, with transparent pricing and no payment until complete satisfaction .
Contact us today
Do you have a commercial project on the South Shore, North Shore, Laval, or Montreal? Our team is ready to assist you with a free on-site estimate.
Call us at (514)-316-2973 or email us at sales@airgreen.ca to discuss with a specialist.
Warranty: 10 years on the compressor and 10 years on parts. 6-year legal warranty of good working order on parts and labour (Consumer Protection Act, since October 5, 2026), backed by AirGreen and LENNOX. It does not cover routine maintenance, including cleaning and washing the unit, which remains the customer's responsibility, nor damage caused by abusive use. Regular maintenance following LENNOX's instructions is strongly recommended.
