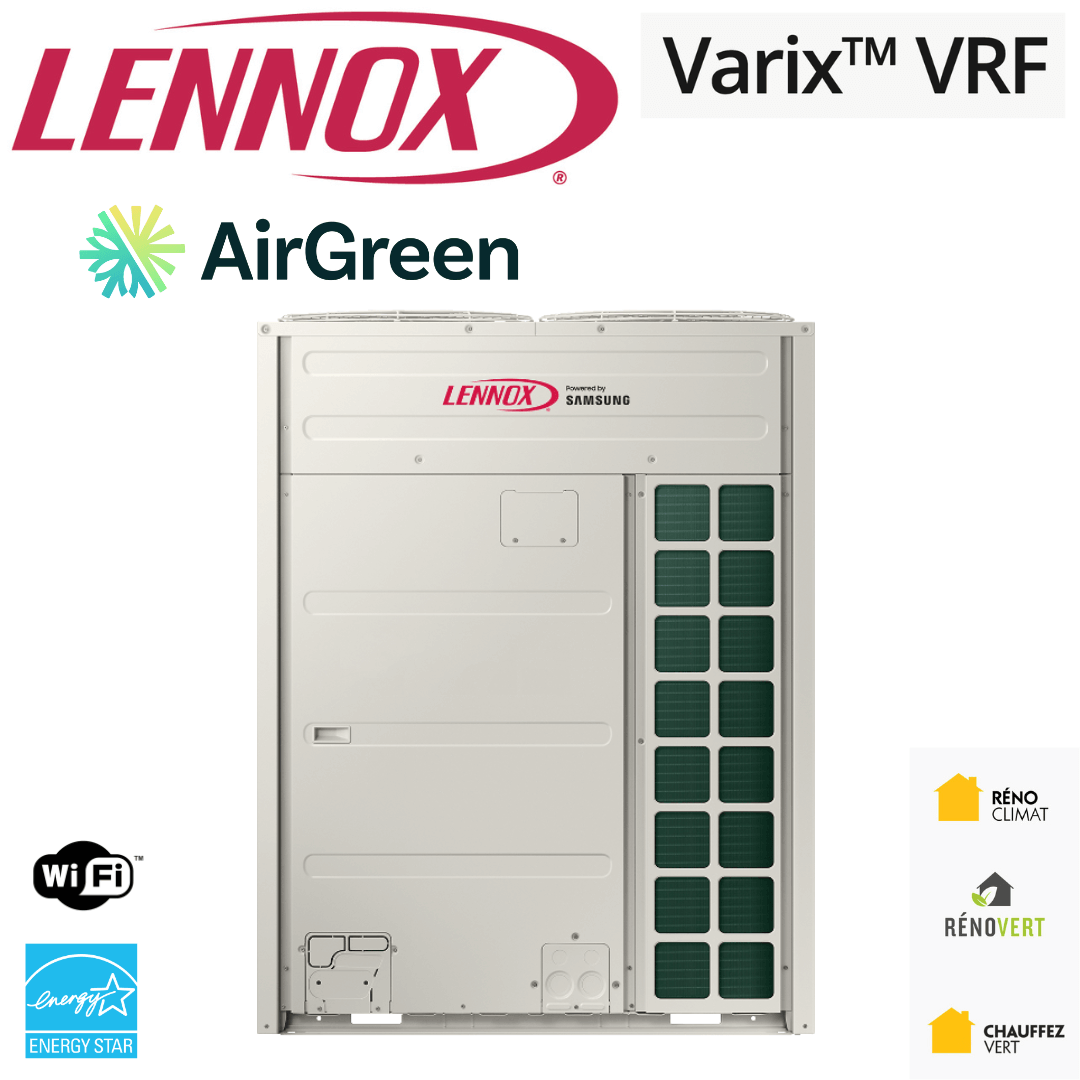

Lennox VARIX VPC S4M VRF Heat Pump | 24 Tons | Parts by Samsung

• Energy Star®: Yes
• WiFi: Included
• Efficiency: SEER
• Warranty (Compressor - Parts - Labor): 10-10-0
• Additional Warranty (10-10-10): Possible
• Voltage: 220 V
• Sound Pressure Level (Outdoor): 66.8 dB(A)
• Gas (Freon): R-410A

A VRF solution designed to optimize each zone

At AirGreen, we are proud to offer the Lennox VARIX VPC S4M | 24 Ton | Parts VRF heat pump by Samsung , an HVAC technology capable of providing comfort, efficiency and flexibility in large commercial and residential buildings. In this article, we discuss the specifics of this system, the advantages of its installation, feedback from our customers and the expertise that AirGreen brings to your projects in Montreal , Laval , Longueuil , on the North Shore and the South Shore .

VRF technology: more control, less consumption
VRF (Variable Refrigerant Flow) describes a mode of operation that allows for precise modulation of the refrigerant flow rate for each indoor unit. This allows a single outdoor condenser to power multiple indoor units while ensuring separate heating and cooling requirements for each zone. This HVAC system ensures uniform comfort and optimized energy management.

With the Lennox VARIX VPC S4M | 24 Ton VRF heat pump , Lennox, in partnership with Samsung, offers a system that combines reliability, robustness and intelligence. The result: a heat pump that can heat or cool up to 49 zones (depending on the configuration) with great installation flexibility and high efficiency, even when the outdoor temperature drops to -30 °C.

Key technical features

• Cooling Capacity: 288,000 BTU (24 tons)

• Advertised heating capacity: down to -30°C, ideal for the harsh winters of Montreal and the North Shore

• Multiple zones: up to 49 zones to customize comfort in various spaces

• External dimensions (L x W x H): (51 x 30.13 x 66.75) x 1 + (73.25 x 30.13 x 66.75) x 1

• Sound pressure level (outdoor unit): 66.8 dB(A)

• Refrigerant gas: R-410A (compliance with current environmental standards)

• Warranty (Compressor - Parts - Labor): 10-10-0 (possibility of extension 10-10-10)

• Brand: Lennox, with parts by Samsung

These specifications are accompanied by an innovative design including an enlarged heat exchanger, a flash injection compressor (to maintain heating capacity in cold climates) and a multi-serration fan that reduces noise and friction.

An installation adapted to the reality of the Quebec climate
With winters known for their extreme temperatures, the Lennox VARIX VPC S4M VRF heat pump meets the specific needs of building owners and managers in Quebec. The reliable heating option down to -30°C allows you to maintain a high level of comfort even in the middle of February. So, whether you manage a residential building in Laval , a large commercial complex in Longueuil or an administrative building on the South Shore , you can count on stable performance and controlled operational costs thanks to precise modulation of the refrigerant flow.

Why choose AirGreen for your VRF project?

1. HVAC Expertise : Our team includes technicians and refrigeration engineers specializing in HVAC maintenance and HVAC installation . We master every step, from initial assessment to preventative maintenance.

2. Tailored Solutions : Whether for a medium-sized office, a large residential building or an industrial facility, we analyze the existing configuration to recommend the best VRF heat pump solution.

3. Comprehensive support : We don't stop at commissioning. AirGreen remains at your side to ensure the longevity and optimal performance of your system, offering periodic maintenance contracts and rapid response in the event of unforeseen events.

4. Concrete achievements : We have already installed this Lennox VARIX VPC S4M VRF heat pump in several buildings in Montreal and the greater North Shore region. The feedback is unanimous: increased comfort, reduced consumption and significant improvement in temperature control in each zone.

Case study: Office building in Laval
To illustrate the reliability of this system, we would like to share an experience with one of our clients, the owner of a three-story office building in Laval . The initial objective was to replace an old chilled water system that had become inefficient and noisy.

• Diagnosis : Before installation, our experts checked the building's current distribution, thermal losses and constraints related to the configuration.

• VRF Solution : The Lennox VARIX VPC S4M | 24 Ton VRF heat pump option quickly became the obvious choice. It could serve more than 30 offices with individual control.

• Installation : The work was planned to minimize the impact on daily operations. We coordinated the installation of the outdoor unit on the roof and the routing of refrigerant pipes for each floor.

• Results : The building manager saw an approximately 25% reduction in their annual energy bill, largely due to the VRF's ability to modulate power based on actual needs. Employees, meanwhile, praised the increased comfort: each zone benefits from a specific temperature setting, eliminating the uncomfortable fluctuations that previously existed.

Installation flexibility and technical advantages

• Multi-zone management : Each indoor unit controls its own temperature, preventing overheating or overcooling of unoccupied spaces.

• Integration into existing buildings : Thanks to refrigerant lines that are thinner than conventional ventilation ducts, VRF limits structural modifications.

• Small footprint : The outdoor unit, made up of two compact blocks in this 24-ton configuration, can be easily installed on a roof or at the rear of a building.

• Heat Recovery Mode : On some Lennox modules, heat recovery can further improve efficiency by re-injecting energy extracted from spaces being cooled into those requiring heating.

• Noise reduction : With a noise level of around 66.8 dB(A), the outdoor unit remains relatively discreet for neighbors and occupants.

Skip to content: The importance of a user-centric solution
On our official website, you can click "Skip to content" to quickly access important information about the Lennox VARIX VPC S4M | 24 Ton VRF Heat Pump | Parts by Samsung . This approach reflects our priority: providing concrete and useful information as soon as you need it, without wasting your time.

Investing in a VRF heat pump: the return on investment
Beyond comfort and flexibility, a high-capacity VRF system like this Lennox solution involves several financial advantages:

• Energy savings : The modulated operation of the heat pump prevents overconsumption and limits bills.

• Less maintenance : VRF systems have fewer moving parts than a centralized chilled water or ventilation system, reducing the risk of breakdown.

• Building valuation : Future tenants and buyers are placing increasing importance on energy performance. Having a state-of-the-art HVAC system can make all the difference in a competitive market.

HVAC Maintenance: Extending the Life of Your Heat Pump
To enjoy optimal performance, it is essential to adopt appropriate HVAC maintenance :

• Regular cleaning : Filter and dust indoor units to maintain constant airflow.

• Seasonal Checks : Before each winter, we recommend inspecting connections, checking refrigerant levels, and calibrating temperature probes.

• Remote monitoring : With certain connectivity options (Wi-Fi or BACnet protocol), our teams can detect potential performance anomalies in advance and intervene quickly.

AirGreen: a trusted network in Montreal, Laval, Longueuil, North Shore and South Shore
As a local company specializing in heating , ventilation and air conditioning , we are proud to serve the entire metropolitan area. Our expertise ranges from simple residential heat pumps to complex systems for office buildings or institutional complexes. Our mission: to provide complete support, from product selection to HVAC maintenance , including HVAC installation and commissioning.

Our site allows you to discover our different product ranges, including:

• Heat pumps

• Air conditioning systems

• Heating

• Air exchangers

• Wi-Fi Accessories and Control

In addition, we remain available to our customers via several channels:

• Facebook

• Instagram

• LinkedIn

• Pinterest

• Twitter

• YouTube

We understand the need to deliver reliable, environmentally friendly HVAC solutions, while respecting budgetary constraints and the unique needs of each client. This is why we prioritize strong partnerships like the one with Lennox, reinforced by Samsung parts , a guarantee of reliability for all our projects.

Unparalleled support and after-sales service
We understand that every building is unique. Whether it's a data center in Longueuil, a residential tower in downtown Montreal , or a luxury residence on the South Shore , our specialists adapt and offer customized configurations, taking into account:

• Of the total surface area

• The number of rooms or areas

• The purpose of the building (shops, offices, homes)

• Possible renovation work in progress

Finally, our response teams are trained to respond quickly. An air conditioning or heating failure can have a significant impact on productivity or occupant comfort. We are therefore committed to providing personalized assistance to minimize any downtime.

Conclusion: a profitable and sustainable investment
The Lennox VARIX VPC S4M | 24 Tons | Parts VRF heat pump by Samsung stands out for its ability to efficiently manage the indoor comfort of large buildings. Thanks to refrigerant flow modulation, integrated advanced technologies and complete monitoring provided by AirGreen, this product represents a wise investment for anyone looking to optimize their HVAC installation in the greater Montreal area, Laval , Longueuil , on the North Shore and the South Shore .

We can attest to concrete results for our clients, who have seen their energy bills decrease and their comfort levels increase significantly. It's worth noting that the integration of such a system significantly enhances the value of a building, ensuring its modernity and energy efficiency.
