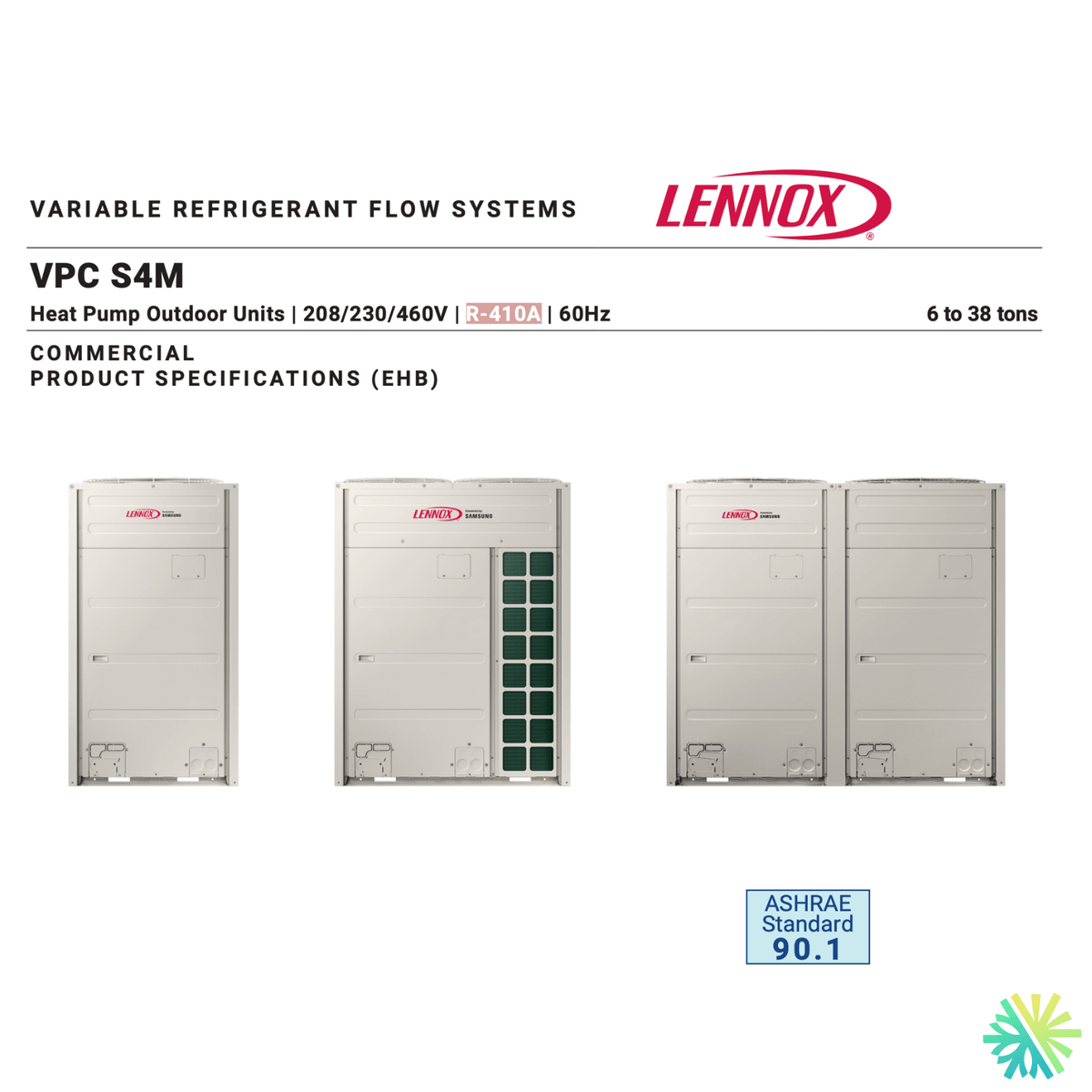

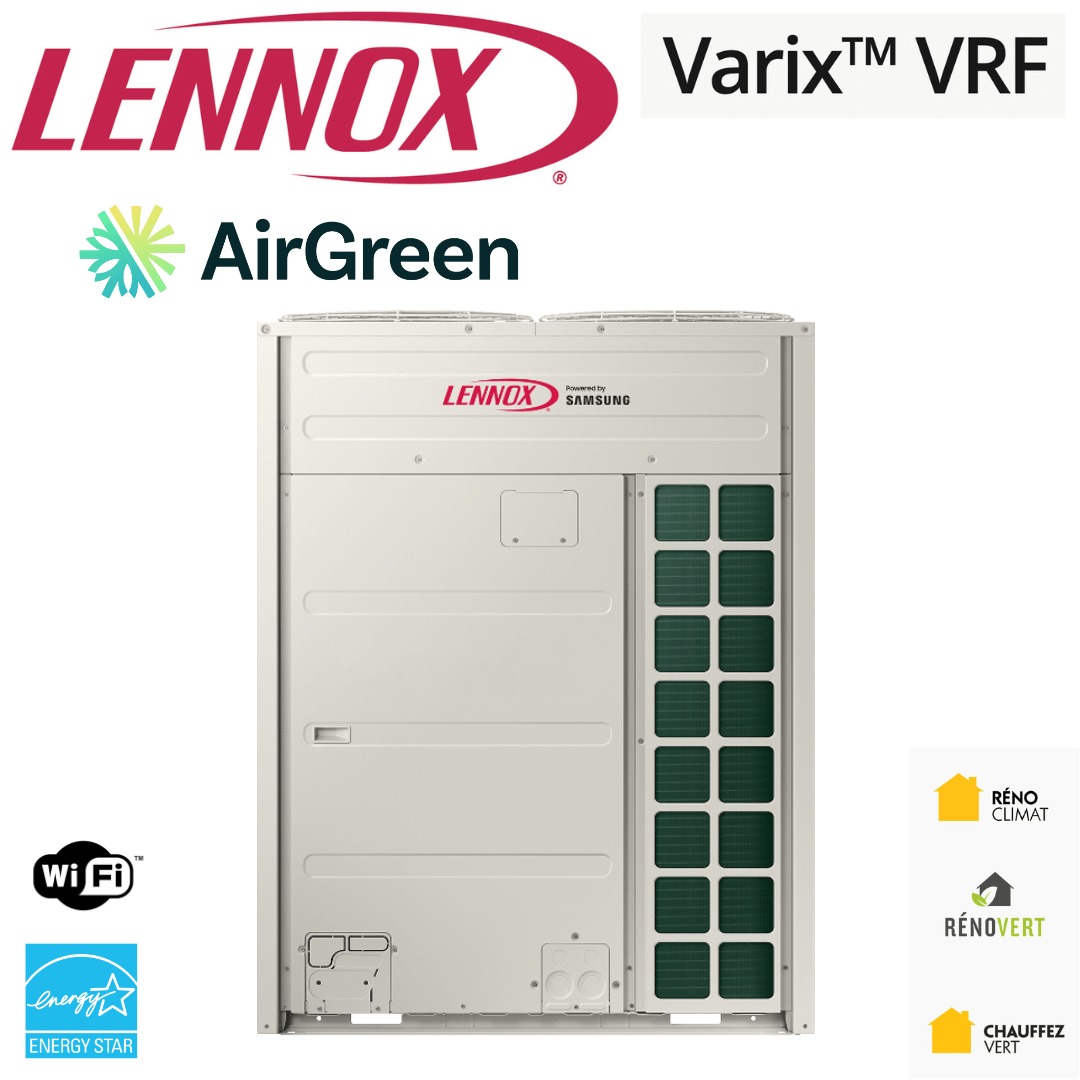

Lennox VARIX VPC S4M VRF Heat Pump | 38 Tons | Parts by Samsung

• Energy Star®: Yes
• WiFi: Included
• Efficiency: SEER
• Warranty (Compressor - Parts - Labor): 10-10-0
• Additional Warranty (10-10-10): Possible
• Voltage: 220 V
• Sound Pressure Level (Outdoor): 68.4 dB(A)
• Gas (Freon): R-410A

A complete HVAC solution for demanding commercial environments
At AirGreen, we put our expertise at the service of businesses and institutions in Montreal , Laval , Longueuil , the North Shore and the South Shore . We are proud to offer the Lennox VARIX VPC S4M | 38 Tons | Parts by Samsung VRF heat pump , a high-end equipment designed to offer reliable performance even in difficult climatic conditions. This unit, which integrates state-of-the-art components and a robust compressor, meets the heating , ventilation and air conditioning ( HVAC ) needs for a wide range of commercial and institutional configurations.

Our technicians understand that optimizing energy consumption and HVAC installation flexibility are essential factors for any project. That's why we emphasize the tangible benefits of this VRF heat pump, while also taking into account the daily experience of property managers and their occupants.

Versatility and intelligence of a VRF system
VRF (Variable Refrigerant Flow) technology provides precise refrigerant flow management to meet partial and total cooling or heating loads in each building zone. The Lennox VARIX VPC S4M VRF heat pump, with a capacity equivalent to 456,000 BTU in cooling mode, can serve up to 64 zones . In the field, this modularity translates into stable comfort, reduced operating costs and significantly improved productivity in office spaces, commercial buildings and institutional complexes.

Key Features and Benefits for Business

Essential technical data

• Cooling capacity : 456,000 BTU

• Heating capacity : up to -30°C

• Overall size : Modular assembly with external dimensions of (51 x 30.13 x 66.75) x 2 + (73.25 x 30.13 x 66.75) x 1

• Maximum Zones : 64

• Sound pressure level (Outdoor) : 68.4 dB(A)

• Gas (Freon) : R-410A

• Warranty (Compressor - Parts - Labor) : 10-10-0, with the possibility of extension (10-10-10)

With its -30°C heating capacity, the Lennox VARIX VPC S4M VRF heat pump provides reliable coverage for our harsh Quebec winters. For example, we installed this model in a large retail space on the South Shore , where outdoor temperatures in January can drop below -25°C. The managers of this establishment noted stable indoor temperature control and lower electricity bills, thanks to the high energy efficiency of VRF technology.

Lennox and Samsung Alliance: the strength of two leaders

This Lennox VRF heat pump incorporates Samsung components , enhancing the overall reliability of the system. We understand that a quality HVAC solution relies as much on mechanical robustness as on electronic precision. Samsung components help regulate refrigerant flow in a targeted manner, while reducing the risk of breakdowns. For commercial buildings, business continuity is crucial: a shutdown of air conditioning or heating can have significant consequences on occupant comfort and the protection of sensitive equipment.

Wi-Fi integration and Energy Star® compatibility

Built-in Wi-Fi access makes it easy to monitor the unit's performance in real time. We often recommend our customers combine this feature with a centralized management system to better control energy consumption and access operating data at a glance. Furthermore, the fact that the Lennox VARIX VPC S4M VRF heat pump is Energy Star® certified demonstrates compliance with high performance standards. This is especially valuable if you're considering government grant programs, as having energy-efficient equipment can make a project more eligible for financial assistance.

Grants and regulatory support

We help our clients navigate grant and financial support opportunities, both federally and provincially. While the Lennox VARIX VPC S4M VRF heat pump offers a level of performance that already promotes energy savings, these grants can accelerate the return on investment. At AirGreen, we also work to facilitate the process of municipal permits and bylaws .

Field experience and on-site adaptations

Our HVAC installation teams regularly work in Montreal , Laval , Longueuil , and on the North Shore and South Shore to assess possible configurations. Throughout our projects, we have identified several crucial points:

• Access to the roof or installation area : The Lennox VARIX VPC S4M VRF heat pump is quite bulky, but the modular layout can make installation easier if space is limited.

• Ductwork Distribution : Some clients prefer a single central system, while others divide the building into several sub-zones to optimize heating and cooling distribution.

• Regular HVAC maintenance : Proactive monitoring of filters and the refrigerant system is essential to ensure the longevity of your unit. We recommend, at a minimum, a seasonal check of the compressor and overall efficiency to prevent performance declines.

Advanced VRF technology: energy saving and comfort mechanisms

Intelligent refrigerant flow control

Thanks to the VRF concept, the heat pump can modulate the exact amount of refrigerant delivered to each zone. Sensors, combined with advanced algorithms (which benefit from research in thermal management intelligence), ensure personalized comfort. If the ground floor requires more air conditioning on a hot summer day, the VRF adjusts it without affecting the temperature on the upper floors.

Enlarged heat exchanger and recovery mode operation

Lennox's VARIX range, particularly the VPC S4M series, features a larger heat exchanger to optimize heat transfer. Heat recovery from certain cooling zones can be redirected to spaces requiring heating, reducing waste. In a large office building in Laval, for example, our team installed three units in recovery mode. North-facing areas, which are more susceptible to morning cold, benefit from the excess heat produced by south-facing areas that already require air conditioning.

Quiet operation and long-term reliability

The outdoor noise level of 68.4 dB(A) is a popular feature for environments with close proximity to neighbors or for businesses seeking to avoid noise pollution. Additionally, the reduced number of mechanical parts compared to some conventional (or constant flow) systems results in long-term reliability, which reduces maintenance costs.

Concrete examples of AirGreen installations

Project in a shopping center on the South Bank

We recently equipped a shopping center in Boucherville with two Lennox VARIX VPC S4M | 38 Ton VRF heat pump modules. The owners wanted to reduce energy costs and standardize the temperature in the stores, some of which are very busy. Thanks to multi-zone management, the electricity bill decreased by approximately 20% in the first air conditioning season.

Upgrading an institutional building in Montreal

In a government agency located in the heart of Montreal, we replaced an old, inefficient air conditioning and heating system with a VRF network. The installed 38-ton heat pump is equipped with sensors that adjust the setpoint according to the facility's schedule. Wi-Fi mode simplifies remote management, and administrative staff can remotely monitor comfort parameters.

Collaboration with general contractors and engineering firms

At AirGreen, we understand that every project requires teamwork. We work closely with engineering firms to determine the heat load for each floor and assess building specifications (ceiling height, insulation, orientation, etc.). We then coordinate with the general contractor to ensure the HVAC installation runs smoothly, on time, and on budget.

Additional information and navigation on our site
To simplify the consultation of our products, we invite you to:

• Skip directly to the main content at the top of the page to view our technical sheets.

• Browse the AirGreen Heat Pumps, Air Conditioning & Heating section and discover our achievements on the official AirGreen Facebook , Instagram , LinkedIn , Pinterest , Twitter and YouTube .

• Check out our All Tags and Search Products tabs to filter our gear.

• Write to us at sales@airgreen.ca or call us at 514-316-2973 (Montreal - Laval) for any specific requests.

• Select Language fr , log in or Open Cart if you wish to place an order.

• Access the different sections: Home , Residential , Commercial , Products , Grants , Permits and Regulations , Financing , Service Call , Our Achievements , Important Articles , Info , FAQ .

• Click on the Home » Lennox VARIX VPC S4M VRF Heat Pump | 38 Tons | Parts by Samsung link to Skip to product information , open the media library, or view gallery photos (upload photos 1 to 4) and learn about our pricing and delivery policies.

All these steps will help you evaluate the features of the Lennox VRF heat pump, check stock availability (unit number: VPC456S4M-4Y ), and request an accurate price or estimate based on your needs.

Why choose AirGreen for the installation of your Lennox VARIX VPC S4M VRF heat pump?

1. Personalized assessment : We tailor our recommendations to each site, whether you are a local business, a hospital center, or an office complex.

2. Qualified Technicians : Our refrigeration technicians have hands-on experience in everything from HVAC maintenance to advanced system installation. They are fully proficient with the Lennox VARIX VPC S4M VRF heat pump.

3. Cost transparency : Before starting work, we present a clear quote, guaranteeing no unpleasant surprises at the end of the project.

4. Rigorous and rapid installation : Thanks to our expertise, we ensure compliance with current standards, and we provide responsive after-sales support.

5. Service throughout the region : Whether you are located in Montreal, Laval, Longueuil, on the North Shore or the South Shore, our teams respond quickly to install and maintain your VRF heat pump.

Our results speak for themselves: a properly sized VRF system improves comfort, operational reliability, and reduces energy consumption. This is why many businesses, clinics, and office buildings have trusted us for years.

Contact us for a free, personalized estimate
Would you like a quote for the HVAC installation of the Lennox VARIX VPC S4M | 38 Tons | Samsung Parts VRF heat pump or any other product? We would be happy to discuss your project, show you our work and answer your questions. At AirGreen, we make it a point of honor to support you from the choice of equipment to the commissioning and HVAC maintenance .

Call us now at 514-316-2973 , email us at sales@airgreen.ca , or visit one of our branches. We look forward to working with you to optimize your indoor environment.
