Electronic Thermostat HONEYWELL SuitePRO Fan Coil TB6575A1000/U | Montreal, Laval, Longueuil, South Shore & North Shore
In many condo towers, hotels and schools, each room is heated and cooled by a fan coil powered directly at line voltage.
Quick facts
In many condo towers, hotels and schools, each room is heated and cooled by a fan coil powered directly at line voltage. No 24 V transformer, no furnace: a coil, a multi-speed fan and hot-water or chilled-water piping. The Honeywell SuitePRO TB6575A1000/U is a digital fan coil thermostat designed for these installations. It runs directly on 120/240 VAC and is a worthwhile replacement for old rotary-dial thermostats.
The thermostat for line-voltage fan coils
The SuitePRO controls 2-pipe or 4-pipe fan coils, with manual or automatic changeover between heating and cooling. In a 2-pipe system, the same loop carries hot water in winter and chilled water in summer; in a 4-pipe system, the two loops are separate, so one suite can be heated while another is cooled. The thermostat handles both configurations.
A well-managed three-speed fan
The 3-speed fan can be set to HI, MED, LOW, AUTO or OFF. In automatic mode, the VersaSpeed algorithm adjusts the speed on its own: high speed when the room is far from the setpoint, low speed as it gets close. Comfort is steadier and fan noise drops once the room is at the right temperature, which is appreciated in a bedroom.
Activity detection and automatic fan rest options let you adapt the fan's behaviour to how the room is used.
Accuracy and savings
P+I (proportional plus integral) control holds the temperature precisely, avoiding the wide swings that mechanical thermostats cause. An energy-saving mode can be activated by an external dry-contact input, for example from a building management system, a hotel key card or a timer. Optional freeze protection helps protect the coil when the room gets too cold.
No batteries, settings retained
The SuitePRO does not run on batteries. Settings are retained during a power outage, so after an interruption, the thermostat picks up where it left off. For a building's maintenance staff, that's one less thing to worry about.
Optional sensors
The thermostat accepts an optional remote temperature sensor, when the thermostat's location isn't representative, and pipe sensors, useful in particular for automatic changeover in a 2-pipe system.
Installation and use
The SuitePRO mounts on a single 2 x 4 box or a junction box. Since it's powered at 120/240 VAC +/-10%, 50/60 Hz, it must be installed by a qualified person with the power off. Our technicians:
- check the type of fan coil (2-pipe or 4-pipe), the voltage and the speed wiring;
- remove the old thermostat and check the condition of the box and the conductors;
- install the SuitePRO and connect the pipe sensors or remote sensor if needed;
- configure changeover, fan options and freeze protection;
- test heating, cooling and each speed.
Day to day, the four-button interface and digital LCD screen, with setpoint and mode icons, are easy to understand for occupants, hotel guests or school staff. The setpoint ranges from 10 to 32 °C (50 to 90 °F). The Premier White housing measures 97 x 148 x 29 mm.
For building managers, consistency is an asset: the same thermostat in every suite, the same interface for occupants, and the same procedure for maintenance staff.
Who it's for
The SuitePRO suits hotels, condos and classrooms equipped with line-voltage fan coils. It's meant for building managers replacing a series of mechanical thermostats, as well as condo owners who want to modernize the control in their unit.
SuitePRO or MultiPRO 7000
The MultiPRO 7000 (TB7100A1000/U) also controls fan coils, but on 24 VAC or batteries, with optional programming. The SuitePRO runs directly on line voltage and isn't programmable: it's designed for fan coils powered at 120/240 V, where a simple, robust control is what's wanted.
Winter comfort
In a condo tower, a Québec winter means rooms exposed to the wind and glass façades that lose heat. Precise control and a well-managed fan hold the setpoint without overheating. Economy mode and freeze protection help manage unoccupied units.
Maintenance
The thermostat needs no maintenance. The fan coil, however, needs a clean filter and a clear coil; regular maintenance preserves the unit's airflow and efficiency.

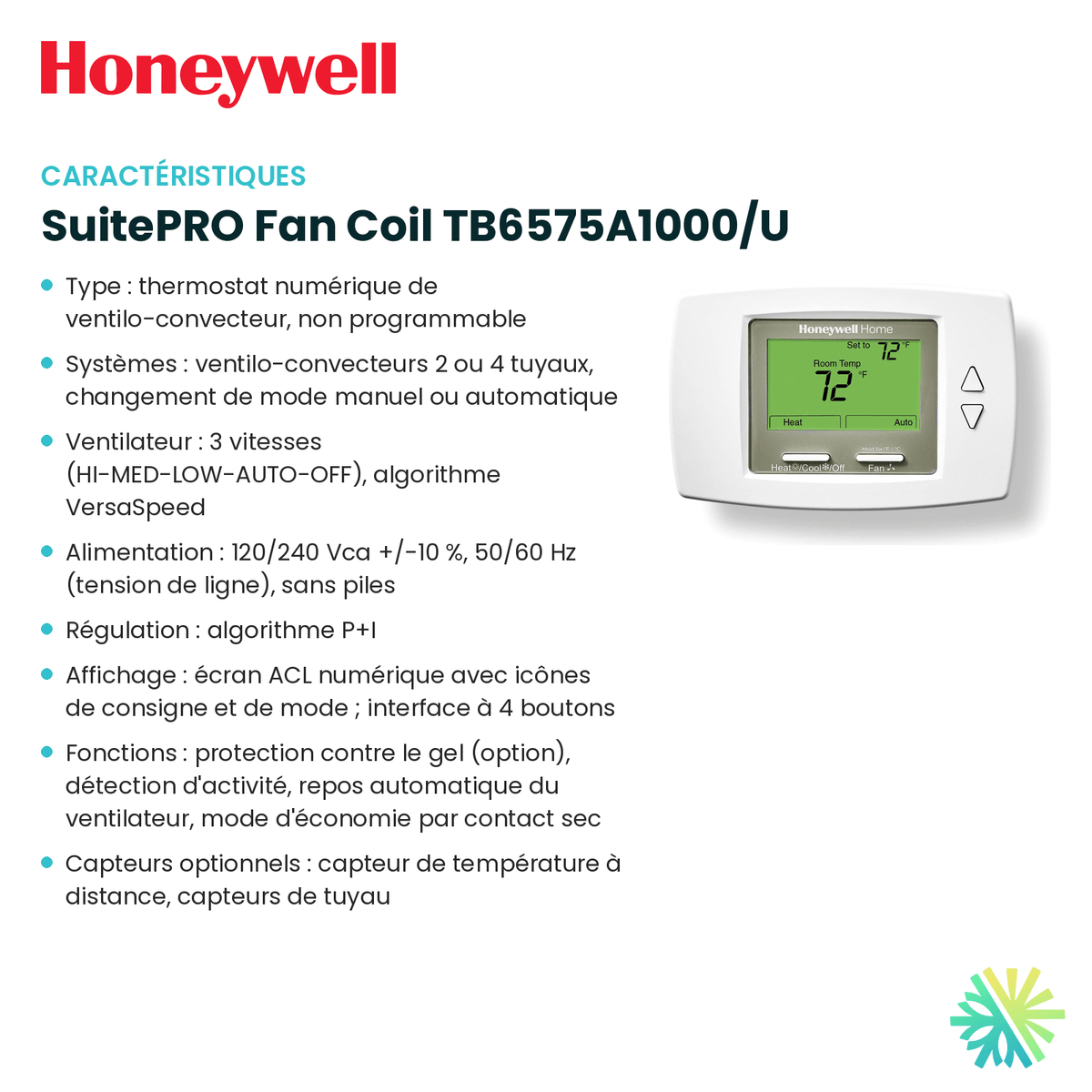

Technical specifications
- Type: digital fan coil thermostat, non-programmable
- Systems: 2-pipe or 4-pipe fan coils, manual or automatic changeover
- Fan: 3 speeds (HI-MED-LOW-AUTO-OFF), VersaSpeed algorithm
- Power: 120/240 VAC +/-10%, 50/60 Hz (line voltage), no batteries
- Control: P+I algorithm
- Display: digital LCD screen with setpoint and mode icons; 4-button interface
- Functions: freeze protection (optional), activity detection, automatic fan rest, economy mode via external dry contact, settings retained during an outage
- Optional sensors: remote temperature sensor, pipe sensors
- Setpoint range: 10 to 32 °C (50 to 90 °F)
- Mounting: single 2 x 4 box or junction box
- Dimensions: 97 x 148 x 29 mm (3.81 x 5.81 x 1.13 in.)
- Colour: Premier White
- Approvals: UL-873, CSA, FCC Part 15 Class B
Why AirGreen
AirGreen is a family HVAC business holding an RBQ licence, active in Montréal for more than 15 years, with a showroom in Boucherville. We work in homes as well as in buildings, and we know how to work in occupied spaces.
For the sale and professional installation of the Honeywell SuitePRO TB6575A1000/U thermostat, contact AirGreen. We work in Montréal, Laval, Longueuil, the North Shore and the South Shore.
Key facts: HONEYWELL SuitePRO Fan Coil TB6575A1000/U
Four things to know, then its ID card in twelve answers. “—” means the manufacturer does not publish it.
Is the HONEYWELL SuitePRO Fan Coil TB6575A1000/U compatible with your heating?
Two steps, thirty seconds. The verdict takes your system and your wiring into account.
Full compatibility table
The terminals behind the thermostat
Tap an element to see what it does. A working diagram, not a substitute for the manufacturer’s installation guide.
Try the HONEYWELL SuitePRO Fan Coil TB6575A1000/U before you buy
Raise the setpoint, change the mode: see how it responds.
Winter, Rate Flex D and rebates: what this thermostat changes
With Hydro-Québec’s Rate Flex D, electricity costs less most of the winter and more during a few peak hours. Turning the setpoint down a few degrees during those hours is what counts.
The sensor decides which room counts
An interactive drawing of what this kind of control does day to day.
The HONEYWELL SuitePRO Fan Coil TB6575A1000/U or its closest sibling?
The most useful comparison: the model right next to it in our catalogue.
The right thermostat in three questions
If this model is not the right one for you, the page says so and shows you which one is.
Products that go with the HONEYWELL SuitePRO Fan Coil TB6575A1000/U
Parts named in its spec sheet that we sell and install.
Installed and set up by our technicians, in five steps
What we do at your place, in order. The on-site estimate is free.
- 01InspectionEquipment, stages to control and existing wiring.
- 02C wireCommon wire added if the model needs it and it is missing.
- 03MountingWall base, terminal wiring, cover plate if needed.
- 04SettingsEquipment type, stages, dual energy and accessories.
- 05Start-upConnection, app, schedule and tests with you.
HONEYWELL SuitePRO Fan Coil TB6575A1000/U specifications
From the manufacturer’s sheet. Type a word: the list filters as you write.
No line matches. Try another word.
Frequently asked questions about the HONEYWELL SuitePRO Fan Coil TB6575A1000/U
Short answers, no detours.
What does the HONEYWELL SuitePRO Fan Coil TB6575A1000/U work with?
According to the manufacturer’s sheet: 2- or 4-pipe fan coils, manual or automatic changeover.
Does it need a C wire?
Per the spec sheet, it can run on batteries; a common wire is still recommended when available.
Can it control electric baseboards?
No. It is a low-voltage (24 V) thermostat. 120/240 V baseboards need a line-voltage electronic thermostat.
Can it be controlled remotely?
Not directly: it has no built-in Wi-Fi.
What is the warranty?
2 years, per the manufacturer’s information.
Does AirGreen install it?
Yes. We sell and install this product in Montréal, Laval, Longueuil, the South Shore and the North Shore. The on-site estimate is free.
