Homes heated by a hot-water boiler have particular needs.
Quick facts
Homes heated by a hot-water boiler have particular needs. Water stores heat and releases it slowly, which calls for patient regulation, and the circulator pump can sit idle all summer. The Honeywell TH135-01-B/U, from the Aube line, takes these realities into account. This non-programmable electronic thermostat controls heating only on 24 V low-voltage, millivolt and hot-water (hydronic) systems. It offers three presets, Comfort, Economy and Vacation, pump protection and a choice of two regulation modes. Its 79 x 79 mm square housing is one of the most compact in our selection.
A compact thermostat designed for hot water
The TH135 works on 24 VAC or 24 VDC systems and on millivolt systems. It handles a 5 A resistive or 2 A inductive load. It's powered by two AA alkaline batteries, with a low-battery indicator that warns you 60 days ahead. Its thermistor sensor displays the temperature in 0.1-degree increments, in Celsius or Fahrenheit, and stated accuracy is ±0.5 °C.
Two regulation modes
Regulation is selectable. Adaptive proportional mode adjusts the equipment's operation to keep the temperature close to the setpoint, which suits hot-water systems well. Conventional mode with anticipation reproduces the operation of a traditional thermostat. Cycles can be set to 15 or 20 minutes, or 4 or 3 cycles per hour. Our technicians choose the combination best suited to your boiler or equipment at start-up.
Pump protection
A circulator pump that sits idle for months can seize. The TH135 runs it once every 24 hours, even when no heat is called for. This simple feature helps keep the pump ready for fall. The thermostat also has a remote input for the Aube CT240 telephone controller. It carries CSA certification (CAN/CSA-C828-06).
Technical specifications
- Stage: 1 heating (heating only)
- Systems: low-voltage or millivolt central heating, hot-water (hydronic) heating
- Power: 24 VAC or 24 VDC and millivolt systems; 2 AA alkaline batteries
- Load: 5 A resistive / 2 A inductive
- Non-programmable, 3 presets: Comfort, Economy, Vacation
- Selectable regulation: adaptive proportional or conventional with anticipation
- Selectable cycles: 15 or 20 minutes (4 or 3 cycles per hour)
- Pump protection: runs every 24 hours
- Display: LCD, temperature in 0.1-degree increments; Celsius or Fahrenheit
- Setting range: 5 to 30 °C (40 to 85 °F); accuracy: ±0.5 °C
- Low-battery indicator (60-day advance warning)
- Remote input for Aube CT240 telephone controller
- Sensor: built-in thermistor; CSA certification (CAN/CSA-C828-06)
- Connectivity: none
- Dimensions: 79 x 79 x 22 mm (3.1 x 3.1 x 0.8 in.)
- Colour: white
Installation and start-up
Replacing a low-voltage thermostat doesn't take long when the wiring is in good shape, but it calls for care. The AirGreen technician shuts off power to the equipment, notes the position of each wire, removes the old control and mounts the new base. The thermostat is then configured for your equipment and each available function is tested. If the existing wires are too short, damaged or poorly labelled, we fix it on the spot. Before leaving, we set the starting setpoint with you and explain how to switch from one mode to another.
The presets day to day
The TH135 has no schedule, but its three presets fill much of that role. Comfort mode is the temperature for when you're home, Economy mode a reduced setpoint for the night or the workday, and Vacation mode a temperature for longer absences. Switching from one to another takes a single button press. It's a simple way to cut heating time without programming anything. The AA batteries power the control; the low-battery indicator leaves you plenty of time to replace them.
Simple energy management
You don't need to program a schedule to manage your heating better. A well-chosen setpoint, held accurately, is already a good starting point. In winter, many households set a comfortable temperature for living areas and a lower one for bedrooms, the basement or rooms where little time is spent. For absences of several days, lowering the setpoint before leaving is still the most cost-effective move. These habits, applied consistently, show up on the bill.
The TH135 next to the TH140-28 and the TH141HC

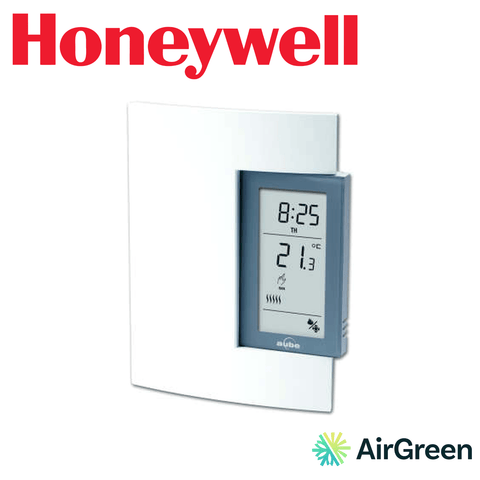

The TH135-01-B/U, the TH140-28-01-B/U and the TH141HC-28-B/U are three battery-powered electronic controls from the Aube line. The TH135 is non-programmable, with presets, in a compact 79 x 79 mm housing. The TH140-28 is 7-day programmable, with four periods per day, and works from millivolts up to 240 V. The TH141HC adds cooling, with automatic changeover and fan control. For a home heated with hot water, with no air conditioning, that doesn't want a schedule, the TH135 is the most straightforward choice.
Keeping the control reliable
Avoid placing lamps, TVs or furniture right under the thermostat: the heat they give off or the air they block throws off the reading. Clean the surface with a soft, dry cloth. When batteries are installed, change them before winter so a sudden cold snap doesn't catch you off guard. If you notice the heating starting and stopping very often, or not stopping at all, contact us: it may be a cycle setting, a loose wire or a part of the unit that needs checking.
The know-how of a family business
AirGreen grew out of a family of tradespeople and has kept their instincts: do the job right the first time, explain clearly and stay reachable after the installation. For more than 15 years, we have been installing and maintaining heating, cooling and ventilation equipment in homes and businesses in Montréal, Laval, Longueuil, the North Shore and the South Shore. Our RBQ licence governs our work, and our team knows furnaces and heat pumps as well as electric baseboard heaters and floor heating. When we replace a thermostat, we take the opportunity to look over the equipment it controls and point out anything that deserves your attention. Our Boucherville showroom welcomes you if you'd like to compare several models.
To move ahead, write to us or call AirGreen. Our advisors confirm compatibility with your installation, then our technicians install and commission the thermostat at your home in Montréal, Laval, Longueuil, the North Shore or the South Shore.
Key facts: HONEYWELL TH135-01-B/U
Four things to know, then its ID card in twelve answers. “—” means the manufacturer does not publish it.
Is the HONEYWELL TH135-01-B/U compatible with your heating?
Two steps, thirty seconds. The verdict takes your system and your wiring into account.
Full compatibility table
The terminals behind the thermostat
Tap an element to see what it does. A working diagram, not a substitute for the manufacturer’s installation guide.
Try the HONEYWELL TH135-01-B/U before you buy
Raise the setpoint, change the mode: see how it responds.
Winter, Rate Flex D and rebates: what this thermostat changes
With Hydro-Québec’s Rate Flex D, electricity costs less most of the winter and more during a few peak hours. Turning the setpoint down a few degrees during those hours is what counts.
The HONEYWELL TH135-01-B/U or its closest sibling?
The most useful comparison: the model right next to it in our catalogue.
The right thermostat in three questions
If this model is not the right one for you, the page says so and shows you which one is.
Products that go with the HONEYWELL TH135-01-B/U
Parts named in its spec sheet that we sell and install.
Installed and set up by our technicians, in five steps
What we do at your place, in order. The on-site estimate is free.
- 01InspectionEquipment, stages to control and existing wiring.
- 02C wireCommon wire added if the model needs it and it is missing.
- 03MountingWall base, terminal wiring, cover plate if needed.
- 04SettingsEquipment type, stages, dual energy and accessories.
- 05Start-upConnection, app, schedule and tests with you.
HONEYWELL TH135-01-B/U specifications
From the manufacturer’s sheet. Type a word: the list filters as you write.
No line matches. Try another word.
Frequently asked questions about the HONEYWELL TH135-01-B/U
Short answers, no detours.
What does the HONEYWELL TH135-01-B/U work with?
According to the manufacturer’s sheet: low-voltage or millivolt central heating, hot water (hydronic) heating.
Does it need a C wire?
Per the spec sheet, it can run on batteries; a common wire is still recommended when available.
Can it control electric baseboards?
No. It is a low-voltage (24 V) thermostat. 120/240 V baseboards need a line-voltage electronic thermostat.
Can it be controlled remotely?
Not directly: it has no built-in Wi-Fi.
What is the warranty?
3 years, per the manufacturer’s information.
Does AirGreen install it?
Yes. We sell and install this product in Montréal, Laval, Longueuil, the South Shore and the North Shore. The on-site estimate is free.
