TRANE XR203 thermostat TCONT203AS42MA

Clear keys for a well-programmed heat pump or dual fuel system

Some people prefer real buttons to a touchscreen: a firm press, instant feedback, no second-guessing. The Trane TCONT203AS42MA is made for them. This programmable electronic thermostat uses easy-to-understand context-sensitive keys and a 3.5 in backlit display, while handling demanding systems: heat pump, dual fuel and up to 4 heating stages and 2 cooling stages.

Who it's for

The TCONT203AS42MA suits owners of a central heat pump or a dual fuel system who want a simple programmable thermostat without Wi-Fi. It is popular with seniors and with anyone who finds touchscreens unintuitive.

Compatible systems

The thermostat controls gas, oil or electric systems, heat pumps and dual fuel systems, up to 4 heating stages and 2 cooling stages. In a Quebec home where the heat pump handles heating and cooling while a furnace or electric elements take over in extreme cold, it manages that split precisely.

Power

It runs on 24 V. A common wire (C) is preferred but not required: two AA batteries, included, keep it running if the wiring does not have one. Battery access is easy, with no need to take the unit apart.

Guided programming

Programming is done in 7-day or 5/1/1-day mode (weekdays, Saturday, Sunday). Sequential programming guides you step by step: day, period, time, temperature. You don't have to dig through menus: the thermostat offers you the next step, and the context-sensitive keys clearly show their function on each screen.

Information always in view

The backlit display shows the indoor temperature and the setpoint at the same time. You can tell at a glance whether the room is at the temperature you want or whether the system is still getting there, even at night thanks to the backlight.

Day to day

Once the schedule is set, the thermostat automatically applies the comfort and setback periods. For a one-off adjustment, one or two presses are enough. Keys that show their function prevent handling mistakes, which makes it a device suited to the whole family.

Energy savings in winter

With a heat pump, programming helps avoid overly sharp temperature recoveries that call on the electric backup heat or the furnace. A moderate setback at night and while you are away, applied every day, cuts the system's run time over the long heating months, without hurting comfort when you are home.

A heat pump deserves a thermostat that understands it

A heat pump is not managed like a furnace. It heats gently, over long periods, and its backup heat, electric or fuel-fired, should only come on when it is needed. A thermostat designed only for a furnace cannot make that distinction. The TCONT203AS42MA, on the other hand, is made for heat pumps and dual fuel: it controls the compressor and the additional heating stages separately, which lets the heat pump do most of the work during the heating season.

A schedule suited to a heat pump

With a heat pump, night setbacks are best kept moderate. Too large a drop forces the system to climb back up several degrees in the morning, and that is often when the backup heat kicks in. We generally recommend reasonable gaps between comfort and setback periods, adjusted to the home's insulation. During commissioning, we set up this schedule with you and explain how to adjust it if the morning comfort is not what you want.

Placing the thermostat correctly

For accurate control, the thermostat has to read a temperature that represents the house. We install it on an interior wall, away from heat sources, sunny windows, air vents and doors to the outside. When we replace a thermostat, we use the visit to check that the existing location is suitable.

The TCONT203 and its siblings

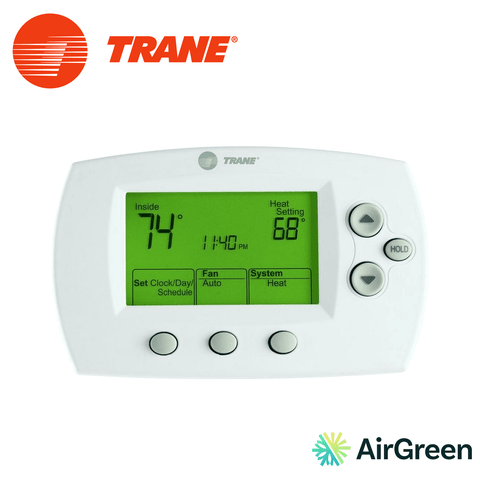

In Trane's line of push-button thermostats, the TCONT203AS42MA is the multi-stage version: it handles a heat pump, dual fuel and up to 4 heating stages. The TCONT202AS11MA, which shares the same display and programming, is limited to 1 heating stage and 1 cooling stage, with no backup heat; it suits a basic furnace with an air conditioner. For a large touchscreen, the TCONT302AS42DA and TCONT303AS42DA models offer a 5 in display. If you have a heat pump and prefer buttons, the 203 is the right choice.

Specifications

• Stages: up to 4 heating / 2 cooling; heat pump and dual fuel
• Systems: gas, oil or electric; heat pump; dual fuel
• Power: 24 V; common wire preferred, not required with 2 AA batteries (included)
• 3.5 in diagonal backlit display; context-sensitive keys
• Programming: 5/1/1-day or 7-day
• Guided sequential programming
• Indoor temperature and setpoint shown at the same time
• Easy battery access
• Connectivity: none
• Dimensions: 3.75 in H x 6.0 in W x 1.12 in D
• Colour: glossy white

Professional installation by AirGreen

Installation

Our technicians identify your equipment: heat pump, electric backup heat, furnace, number of stages. They check the wiring and whether a C wire is present, connect the thermostat and configure it for your system. Every mode is tested: heat pump heating, backup heat, cooling and fan.

Commissioning

We set up the weekly schedule with you in 7-day or 5/1/1 mode, and we show you sequential programming so you can change it yourself afterwards.

Maintenance

If the thermostat runs on batteries, replace them when the indicator appears. Wipe the housing with a dry cloth. Have your heat pump and your backup heating unit serviced every year, and clean or replace the filters regularly.

Why AirGreen

AirGreen Inc. is a family-owned HVAC company that has been based in Montreal for more than 15 years, holds an RBQ licence and has a showroom in Boucherville. We install central and wall-mounted heat pumps, furnaces and dual fuel systems, and we configure each thermostat for the equipment in place.

To buy the Trane TCONT203AS42MA thermostat and have it professionally installed, contact AirGreen. We work in Montreal, Laval, Longueuil, the North Shore and the South Shore.
