TRANE thermostats: which one really runs your system?

13 TRANE controls, from the XR102 to the ComfortLink II XL1050, plus the zoning panels, the relay panel and the sensors that go with them. Trane’s guides give the systems each control runs; our tool lines them up side by side, backup heat included.

Book my free estimate Find the right thermostat

Updated November 5, 2026. Compatibility from Trane’s guides and sheets, listed at the bottom of the page.

20products on this page

7systems in the tool

5heating stages at most: 2 compressor, 3 auxiliary

8zones at most with ComfortLink II and the XL1050

Our short answer

For a single-stage 24 V central heat pump with electric backup, like the RunTru A5HP5, seven controls sold here run both the compressor and the backup: Priority, XL824, XR724, XR103, XR203, XR302 and XR303. The XL850 and the XL1050 do it with the BAY24VRPAC52DC relay panel, the XR102 and XR202 run the compressor only, and a Trane Link system takes the UX360.

Sold and installed by AirGreenCompatibility from Trane’s own guidesComfortLink II zoning up to 8 zonesFree on-site estimate

The products

The 20 TRANE thermostats and controls

Price on quote, after the free on-site estimate.

Thermostats · 13Zoning and sensors · 7

TRANE

01 · The right thermostat

Your system, and the TRANE controls that run it

Pick your system. For each of the 13 controls sold here, the answer comes from a Trane guide or sheet, with the stages it runs and the source.

Your system

Single-stage 24 V heat pump with electric backup: like the RunTru A5HP5 on the central heat pump page.

Of 13 controls: 7 yes, 2 with the relay panel, 2 compressor only, 1 no, 1 commercial use.

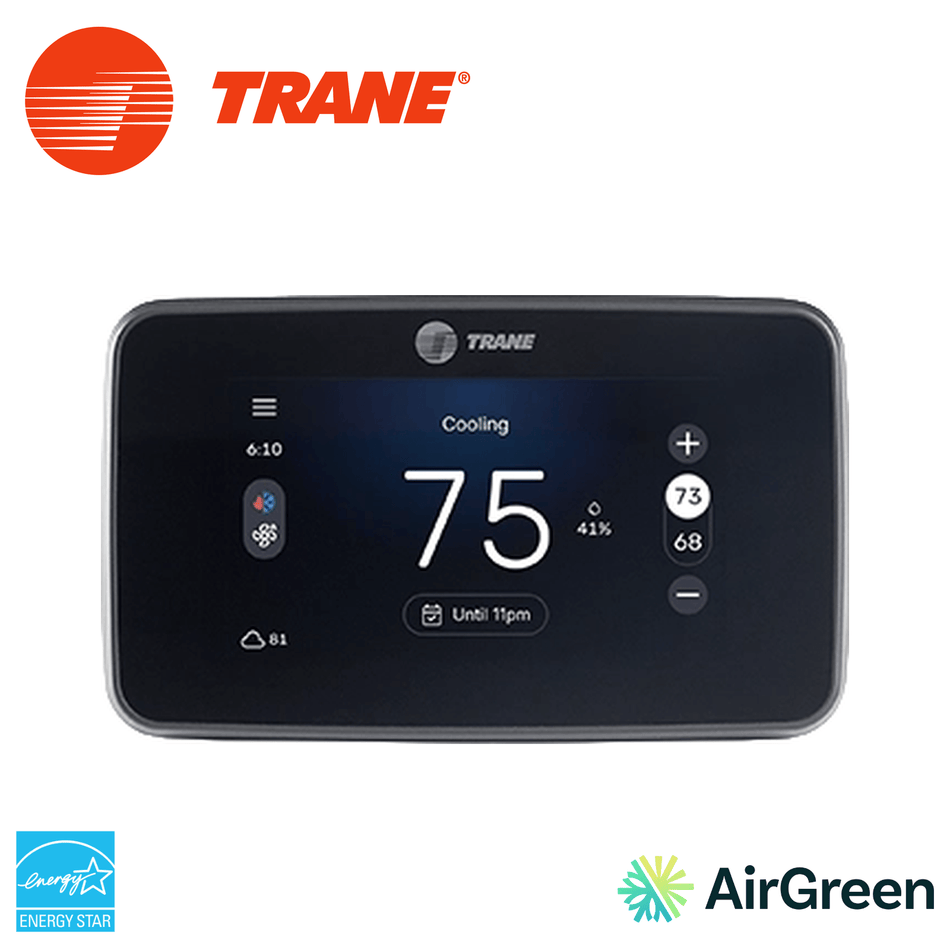

Prioritysmart thermostat, 24 V
Yes
Up to 2 compressor and 3 auxiliary heat stages.Trane: CNTR-PSD001A-EN (2026); guide CNTR-SVN004A-EN (2026)
XL824smart thermostat, 24 V
Yes
Up to 2 compressor and 3 auxiliary heat stages.Trane: handbook 22-8301-39 (2026); trane.com, XL824 page

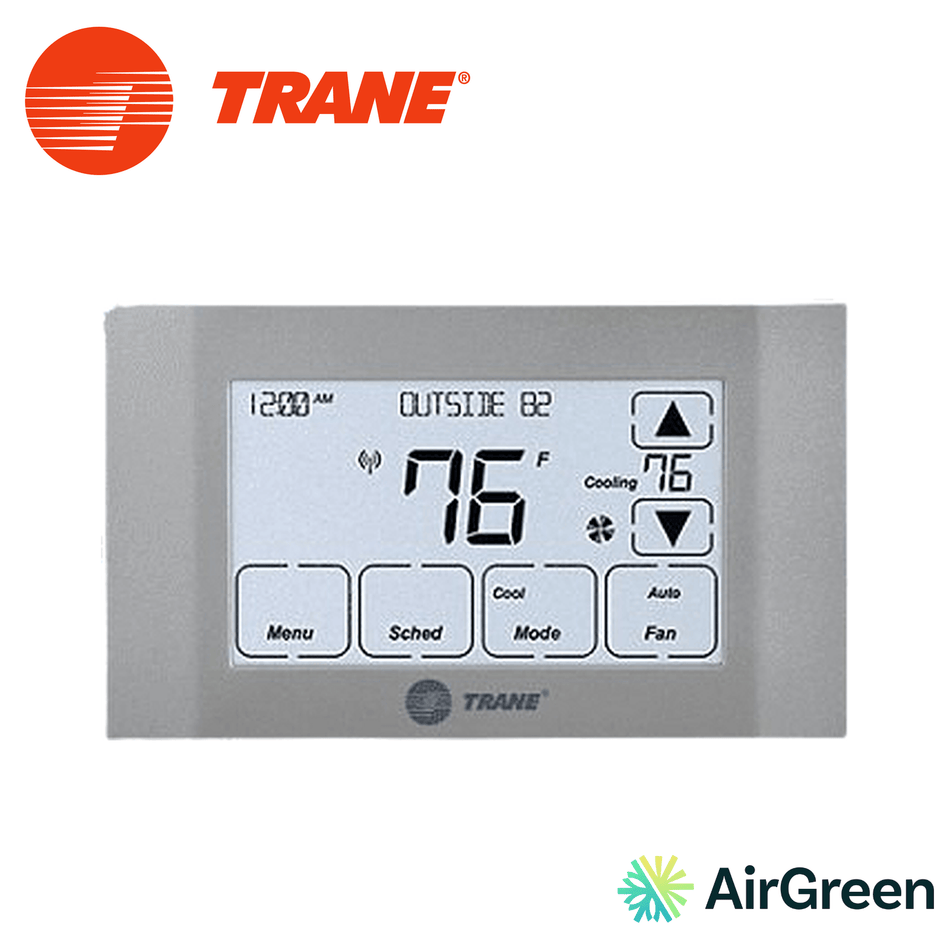

XR724Wi-Fi thermostat, 24 V
Yes
Up to 4 heating and 2 cooling stages.Trane: guide 18-HD82D1-1E-EN (2021)
XR102non-programmable
Compressor only
The compressor, with a jumper: Trane says it does not support auxiliary heat.Trane: guide 18-HD54D1-1B-EN (2020)

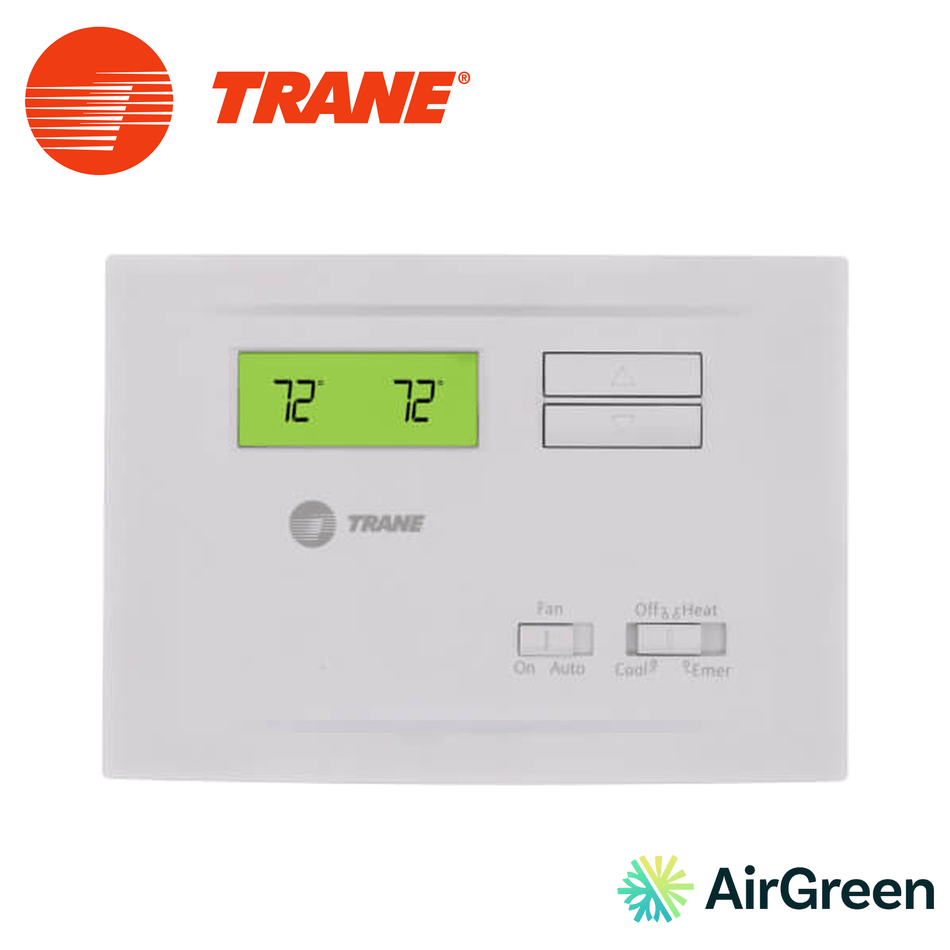

XR103non-programmable, heat pump
Yes
2 heating and 1 cooling stage, with emergency heat (terminal E).Trane: guide 18-HD55D1-1C-EN (2020)

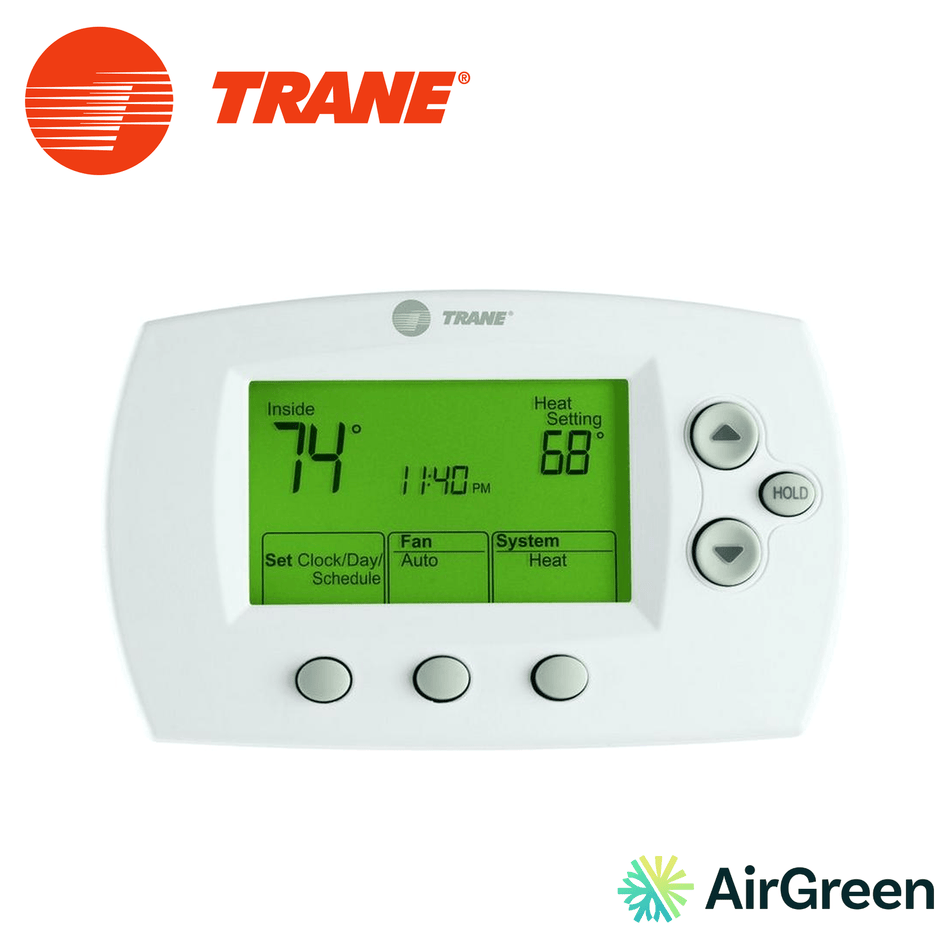

XR202programmable
Compressor only
The compressor, with a Y–W jumper: Trane says it does not support auxiliary heat.Trane: guide 18-HD51D1-1C-EN (2020)

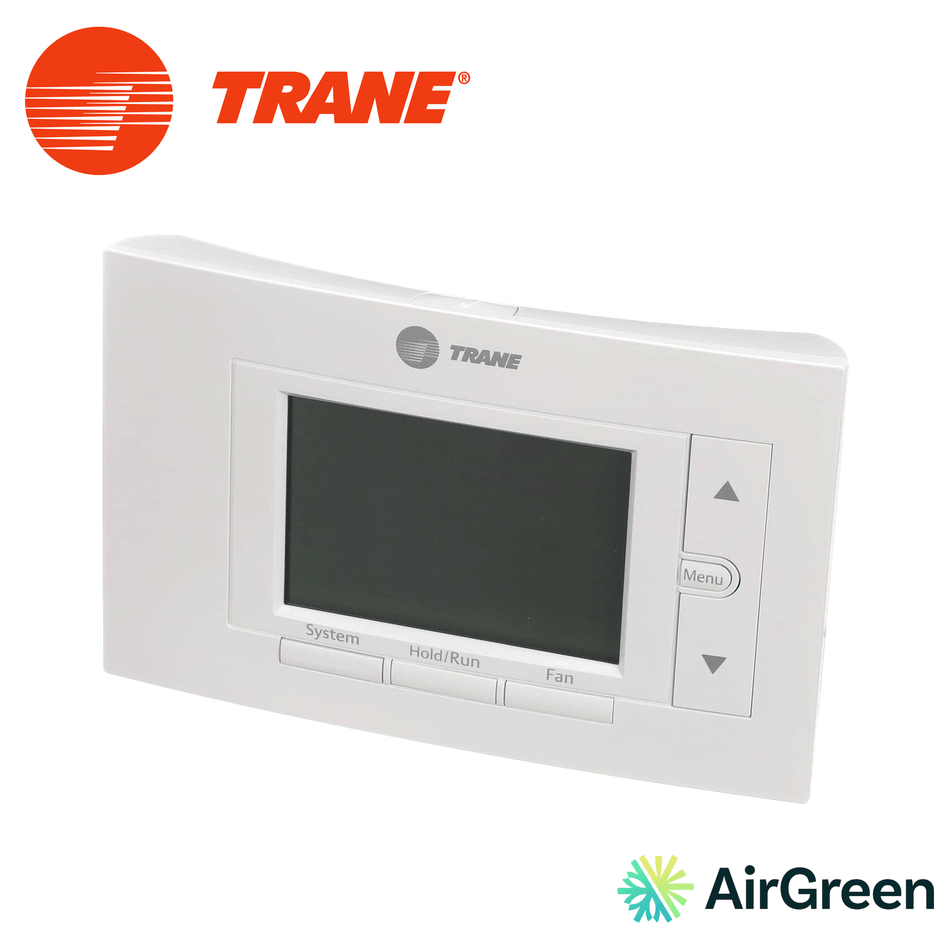

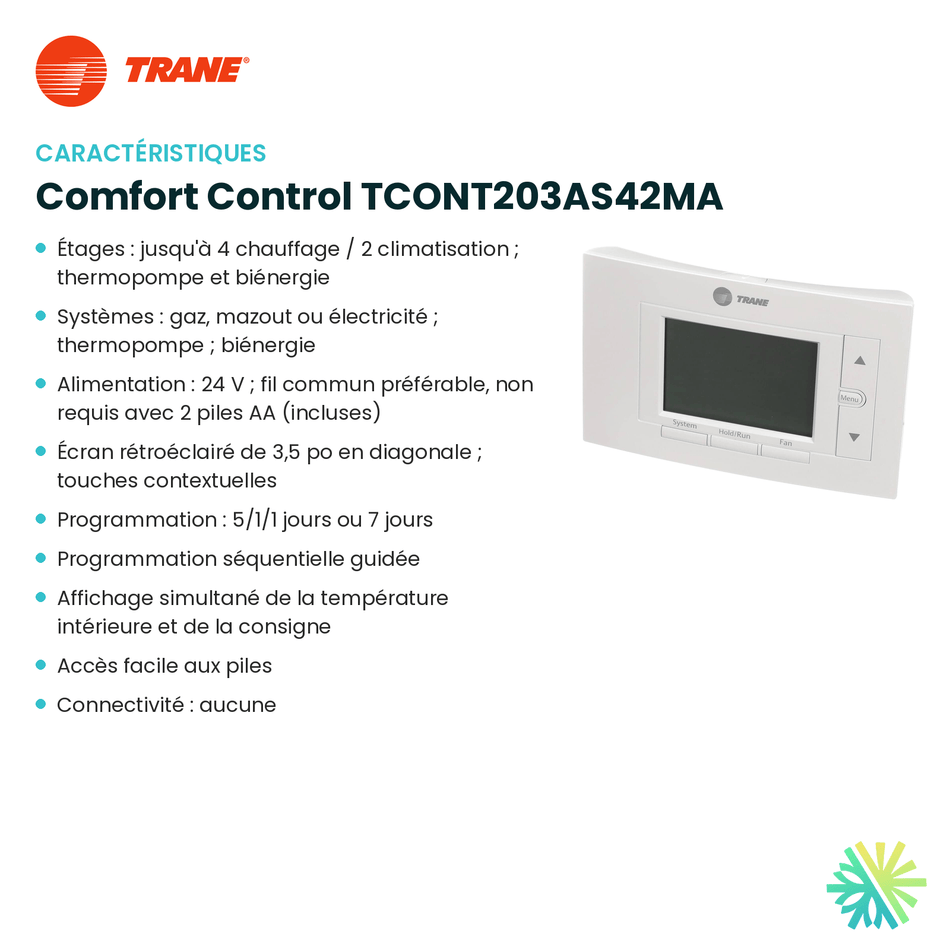

XR203programmable
Yes
HP1 setting: 3 heating and 1 cooling stage.Trane: guide 18-HD50D1-1D-EN (2020)

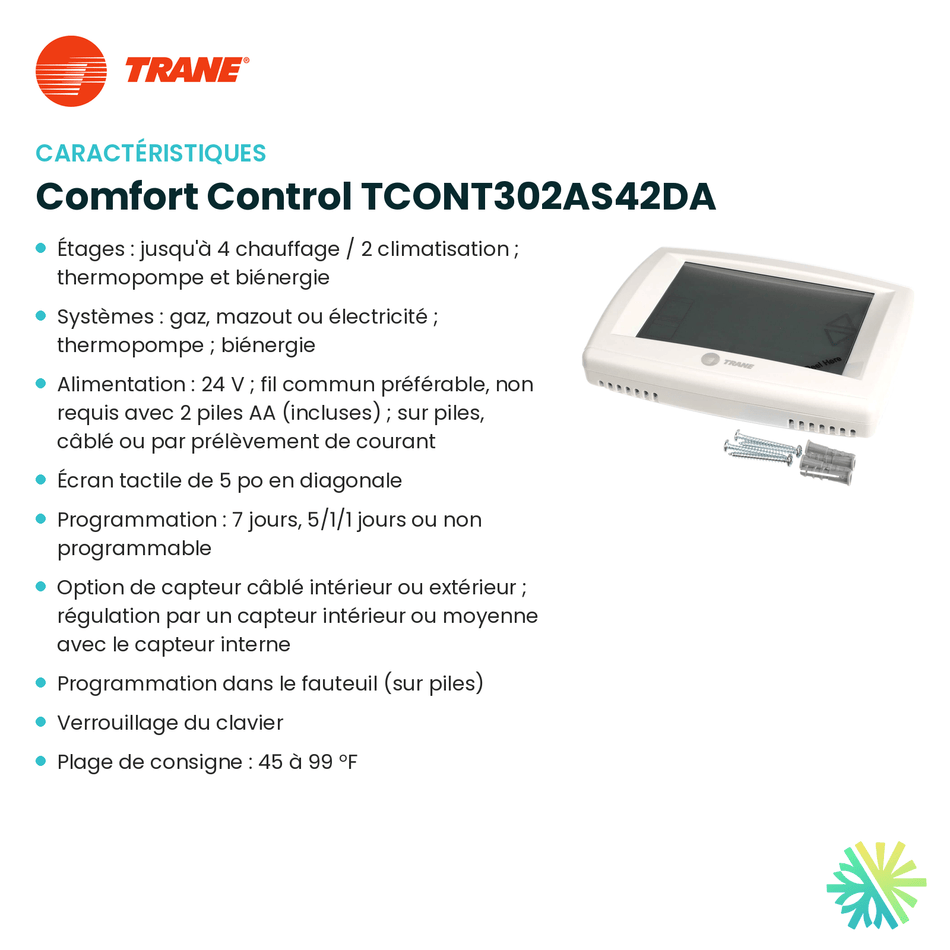

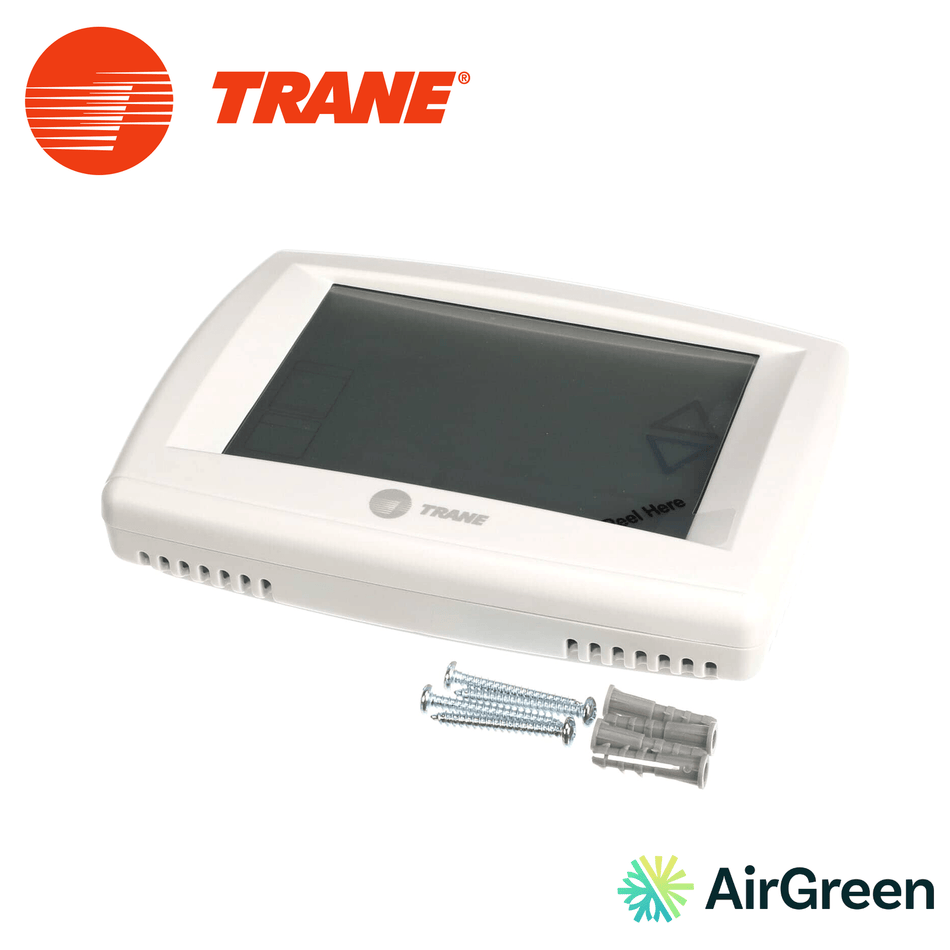

XR302programmable, touchscreen
Yes
HP1 setting: 3 heating and 1 cooling stage.Trane: guide 18-HD48D1-1C-EN (2020)
XR303programmable, touchscreen, humidity
Yes
HP1 setting: 3 heating and 1 cooling stage.Trane: guide 18-HD48D1-1C-EN (2020)
ComfortLink II XL850communicating, 3 wires
With the relay panel
With the BAY24VRPAC52DC relay panel: on its own, the XL850 is a communicating control.Trane: CNTR-PSD001A-EN (2026); guide 18-HD68D1-10 (2017)
ComfortLink II XL1050communicating, 3 wires, zoning
With the relay panel
With the BAY24VRPAC52DC relay panel: on its own, the XL1050 is a communicating control.Trane: CNTR-PSD001A-EN (2026); guide 18-HD68D1-10 (2017)
Trane Link UX360kit: UX360 thermostat and SC360 system controller
No
Trane limits it to Trane Link equipment.Trane: trane.com, UX360 page
Pivotcommercial thermostat
Commercial use
Trane intends it for single-zone, constant-volume commercial buildings (“Commercial Applications Only”).Trane: catalogue 22-8301-37 (2024); data sheet BAS-PRD040B-EN (2020)

Sources: the Trane installer’s guides and sheets named under each answer, gathered in product data CNTR-PSD001A-EN (May 29, 2026) and the 2026 handbook 22-8301-39. “Not stated” means Trane does not list that system for that control. The final setup is done in the TRANE control, at commissioning.

TRANE

02 · The 13 controls

The TRANE controls in figures

Control	Wiring	Heating / cooling, max stages	Screen	Wi-Fi	Trane warranty, base / registered
Priority	24 V	5 / 2	4.36 in, glass touchscreen	2.4 and 5 GHz (Wi-Fi 6 compatible)	3 / 5 years
XL824	24 V	5 / 2	4.3 in, colour touchscreen	802.11 b/g/n and Ethernet	5 / 10 years
XR724	24 V	4 / 2	4.3 in, black and white touchscreen	Yes (band not stated)	1 / 5 years
XR102	millivolt or 24 V	1 / 1	1.9 in	No	— / 5 years
XR103	24 V, heat pump only	2 / 1	1.9 in	No	— / 5 years
XR202	millivolt or 24 V	1 / 1	3.5 in, backlit	No	— / 5 years
XR203	24 V	4 / 2	3.5 in, backlit	No	— / 5 years
XR302	24 V	4 / 2	5 in, backlit touchscreen	No	— / 5 years
XR303	24 V	4 / 2	5 in, backlit touchscreen	No	— / 5 years
ComfortLink II XL850	ComfortLink II, 3 wires	5 / 2	4.3 in, colour	802.11 b/g/n and Ethernet	5 / 10 years
ComfortLink II XL1050	ComfortLink II, 3 wires	5 / 2	7 in, colour	802.11 b/g/n and Ethernet	5 / 10 years
Trane Link UX360	Trane Link, 4 wires (CAN bus)	5 / 2	7 in, colour	Wi-Fi or Ethernet	5 / 10 years
Pivot	24 V, commercial use	5 / 2	4.3 in	2.4 GHz only and Ethernet	5 years on material

Sources: product data CNTR-PSD001A-EN (May 29, 2026), handbooks 22-8301-39 (2026) and 22-8301-37 (2024), each model’s installer’s guide, trane.com pages (October 1, 2026). Warranty: Trane extends it when the control is registered within 60 days; for the XR102 to XR303, Trane publishes 5 years registered, with no base term. The XR303 also has a built-in humidity sensor (humidify 5 to 50%, dehumidify 40 to 95%). Trane does not cover labour.

TRANE

03 · Priority or XL824

The two 24 V smart thermostats, side by side

Both run a heat pump up to 2 compressor and 3 auxiliary stages, and both need the common wire. The rest differs: warranty, ENERGY STAR list, Wi-Fi, size and sensors.

Trane figure

Priority

XL824

Trane warrantybase / registered

3 / 5 years

5 / 10 years

ENERGY STARsmart thermostats

Not on the list

On the list since April 12, 2019, United States and Canada

Wi-Ficonnection

2.4 and 5 GHz, Wi-Fi 6 compatible

802.11 b/g/n, plus Ethernet

Heat pumpheating stages

2 compressor, 3 auxiliary

Common wire (C)24 V power

Required (B/C terminal)

Required (B/C to 24 V common)

Screentouchscreen

4.36 in diagonal, glass

4.3 in, colour

Sizewidth × height × depth

87.2 × 145.1 × 22.1 mm

137.9 × 86.1 × 33.0 mm

Auxiliary contactshumidifier, dehumidifier, ventilation

Outdoor sensortemperature

Wired or Internet, no model named by Trane

BAYSEN01ATEMPA, on this page

Wireless indoor sensorper Trane

BAYSENSEAW00UAA, not on this page

ZSENS930AW00MA, on this page

See the Priority See the XL824

Sources: product data CNTR-PSD001A-EN (May 29, 2026); guides CNTR-SVN004A-EN (Priority, May 29, 2026) and 18-HD72D1-11F-EN (XL824, February 23, 2024); handbook 22-8301-39 (2026); ENERGY STAR smart thermostats dataset 7p2p-wkbf, checked October 28, 2026. For the Priority’s size, the trane.com page gives slightly different values; we use the installer’s guide.

TRANE

04 · Zoning and sensors

The panels and sensors, and what they need

Seven products on this page are not thermostats: they complete a control. Trane says which control each one works with.

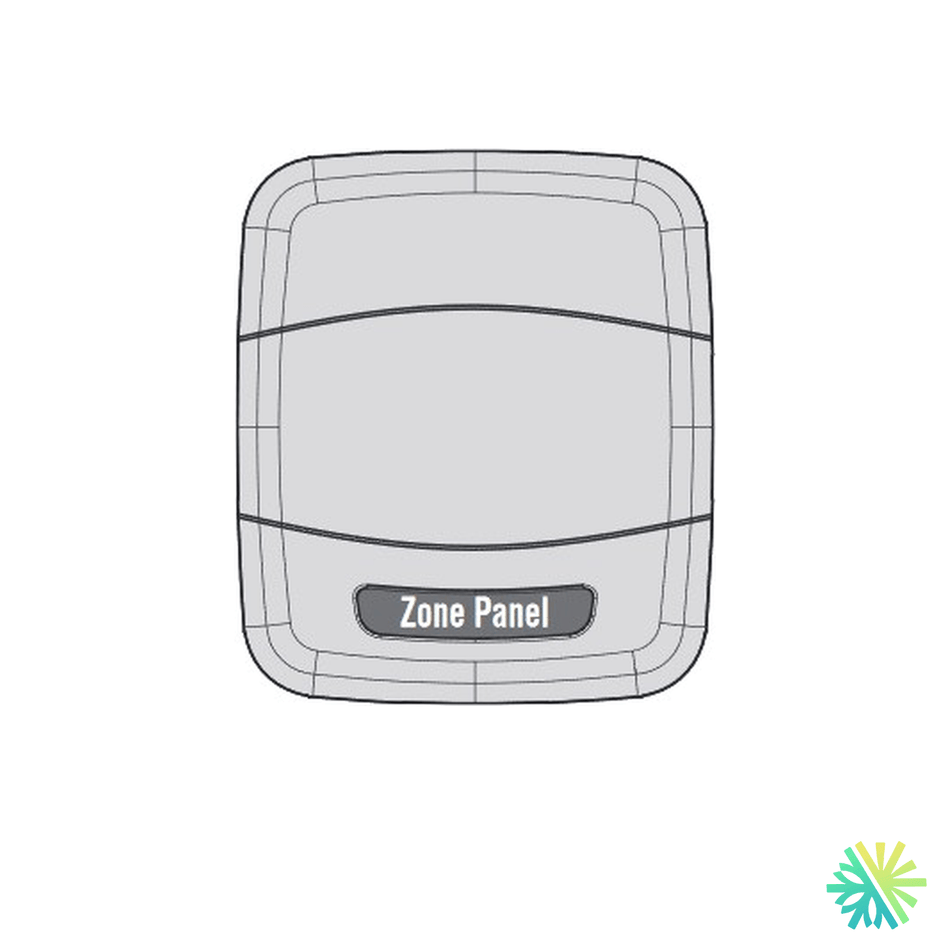

ComfortLink II zone panel

ZZONEPNLAC52ZB

Zones 1 to 4, up to 4 motorized dampers per zone (6 VA max per zone).
It needs the XL1050 and a Trane variable-speed indoor unit; on a 24 V system, the BAY24VRPAC52DC relay panel too.
A discharge air temperature sensor is required, at least 20.3 cm (8 in) above the edge of the supply duct.

Trane: guide 18-HD66D1-4 (2017); catalogue 22-8301-37See the product

ComfortLink II Zone Expander

The same panel as the one in the zoning assembly, set for zones 5 to 8 (zone switch down).
Trane requires it beyond 4 zones: the system then goes up to 8 zones.

Trane: catalogue 22-8301-37, CCZO-12; guide 18-HD66D1-4See the product

XL1040 zone sensor

TZON1040AC52ZA

Communicating zone sensor with a 4.3 in colour touchscreen.
It needs the XL1050, software version 5.7 or later.
Schedules are set on the XL1050, not on the XL1040; the zone stays in Auto mode.

Trane: guide 18-HD88D1-1D-EN (2021)See the product

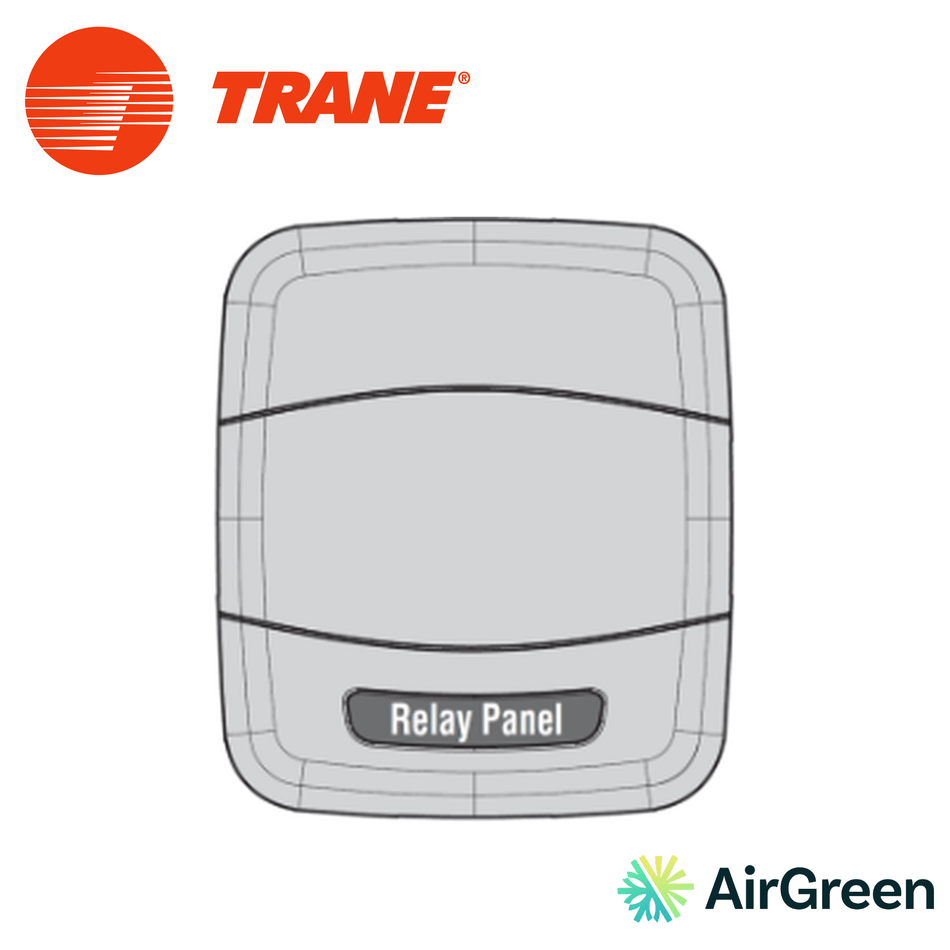

24 V relay panel

BAY24VRPAC52DC

Three wires (D, R, B) from the control to the panel: the XL850 or the XL1050 then runs 24 V equipment.
Standard system: 3 heating and 2 cooling stages. Heat pump: 5 heating stages (2 compressor, 3 auxiliary) and 2 cooling.
Hum, Aux1 and Aux2 dry-contact outputs (18 to 30 VAC, 2 A max); NORM/DUAL switch for dual fuel.

Trane: guide 18-HD68D1-10 (2017)See the product

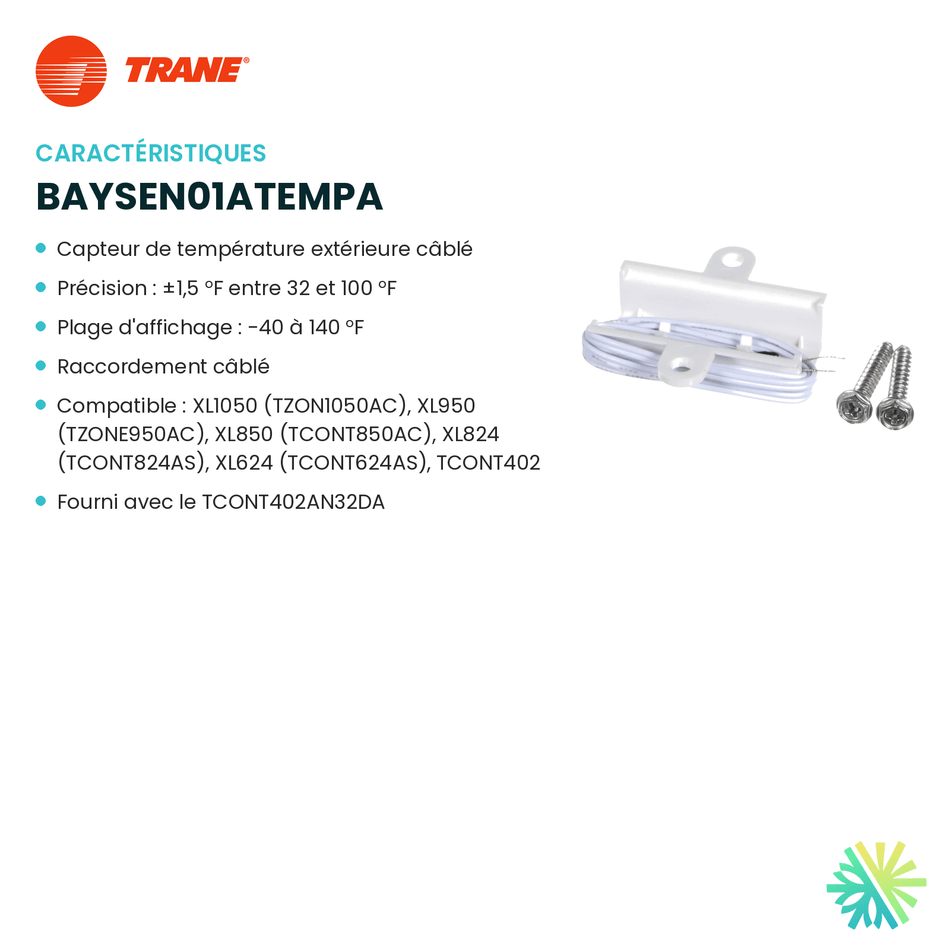

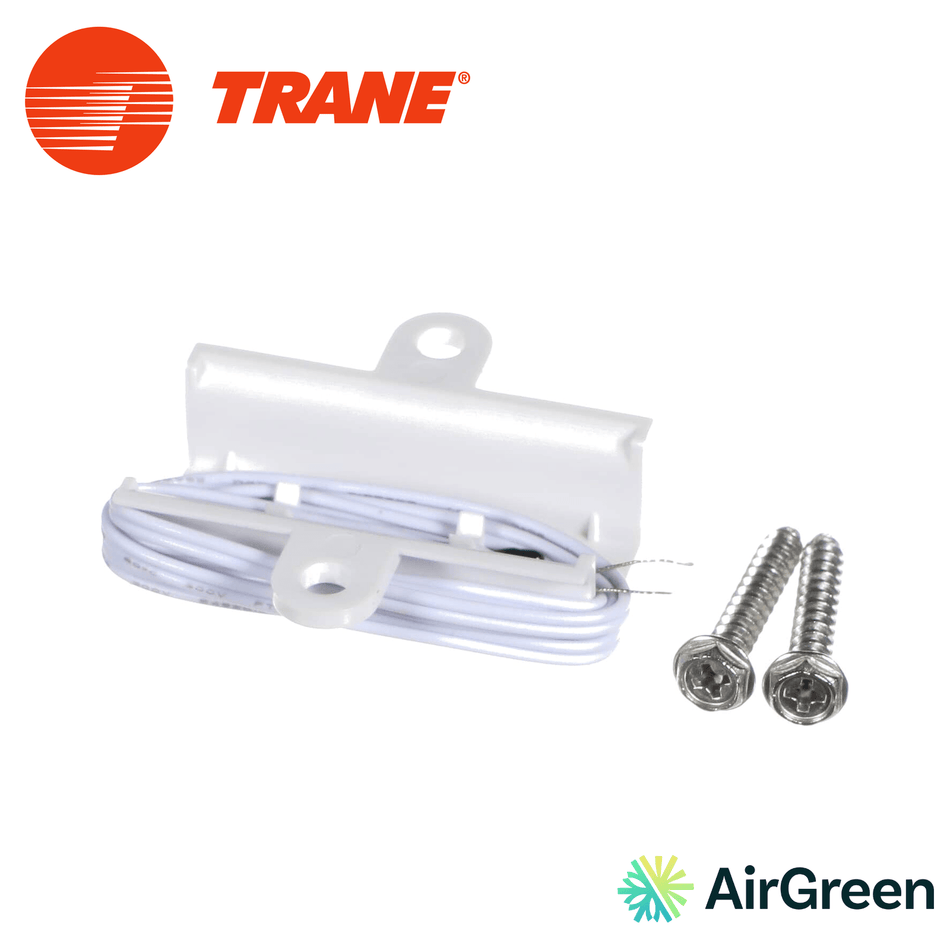

Outdoor temperature sensor

BAYSEN01ATEMPA

A 10 kΩ thermistor, mounted on the north side, out of direct sun, at least 30.5 cm (12 in) above the normal snow line.
Wire up to 61 m (200 ft), 18 AWG minimum.
With the XL824, the XR724, the XL850, the XL1050 and the zone panel. Not with the XR302 and XR303, which take the BAYSEN30ATEMPAA.

Trane: guide 18-HD61D1-2; guides 18-HD82D1-1E-EN, 18-HD48D1-1C-ENSee the product

Wireless temperature and humidity sensor

ZSENS930AW00MA

Z-Wave sensor on two AAA batteries; up to 4 sensors set the temperature of the conditioned space.
With the XL824, the XL850 and the XL1050 (software 5.4 or later) and the UX360 (SC360 controller, software 1.70 or later).
It is not the Priority’s sensor: Trane gives the Priority the BAYSENSEAW00UAA.

Trane: guide 18-HD83D1-5B-EN (2021); handbook 22-8301-39See the product

Wired indoor sensor

ZZSENSAL0400AA

Temperature only, no humidity sensing; accurate to ±0.5 °F (0.3 °C) at 75 °F (23.9 °C).
Mounted about 1.5 m (5 ft) above the floor, with less than 61 m (200 ft) of cable.
With the XL824, the XR724, the XL850, the UX360, the zone panel and the relay panel’s RS terminal. Not with the XR302 and XR303, which take the ZZSENSAL0300AAA.

Trane: guide 18-HD31D1-2; guides 18-HD82D1-1E-EN, 18-HD48D1-1C-ENSee the product

TRANE

05 · Did you know

Three details from Trane’s guides

The XR103 does not need batteries to run: its two AAA cells only keep its memory.

Guide 18-HD55D1-1C-EN (September 2020)

On the Priority, the installer picks the outdoor temperature below which the backup heat may start: from −3.9 to 21.1 °C, with 7.2 °C (45 °F) from the factory.

Installer’s guide CNTR-SVN004A-EN (May 29, 2026)

The BAY24VRPAC52DC relay panel serves the ComfortLink II controls. A Trane Link system uses another panel, the BAC24VRPA252UA.

Guides 18-HD68D1-10 (2017) and 18-HD101D1-1D-EN (2024)

06 · Who does what

The control is TRANE, the installation is AirGreen

What Trane brings

The controls, their guides and the systems each one runs
Its limited warranty on the controls, longer if the control is registered within 60 days: for example 5 years base and 10 years registered on the XL824, the XL850, the XL1050 and the UX360 kit
Its two communicating protocols, ComfortLink II (3 wires) and Trane Link (4 wires)

What AirGreen brings

The free on-site estimate and the written quote
Installation and wiring by our technicians, under AirGreen’s RBQ licence 5645-9605-01
Commissioning: the system type, the stages and the backup threshold set in the control
6 years on labour, guaranteed by AirGreen, for installations done since October 5, 2026

07 · Questions

What people ask us about TRANE thermostats

Which thermostat for a RunTru E4HL5?

The E4HL5 is a variable-speed heat pump that RunTru runs on 24 V: its “24V Inverter”, wired to the Y1 and Y2 terminals of a standard thermostat (sell sheet 26-7319-02; manual 88-E4HL5001-1B-EN). In our reading, it therefore needs a control that handles two compressor stages: the Priority, XL824, XR724, XR203, XR302 or XR303, or the XL850 and XL1050 with the BAY24VRPAC52DC relay panel. Trane does not list the XR102, XR103 or XR202 for a two-stage heat pump.

Is the Priority ENERGY STAR certified?

No. The ENERGY STAR smart thermostat dataset holds a single Trane-brand thermostat, the XL824, certified since April 12, 2019 for the United States and Canada; the Priority is not in it (checked October 28, 2026).

Does a TRANE thermostat need a common (C) wire?

On the Priority, the XL824, the XR724 and the XR103, yes: Trane requires the 24 V common. The XR202, XR203, XR302 and XR303 run on two AA batteries; on the XR302 and XR303, the 24 V common is needed for a remote sensor. The XR102 runs on two AAA batteries.

My system is Trane Link: which thermostat?

The UX360, sold as a kit with the SC360 system controller. Trane says a Trane Link system must use this thermostat and this controller; they communicate over 4 wires (CAN bus), and no other control on this page connects to it.

Can the XL850 run an ordinary 24 V heat pump?

Yes, with the BAY24VRPAC52DC relay panel. On its own, the XL850 is a ComfortLink II communicating control. With the panel, three wires (D, R, B) are enough and it runs 24 V equipment: up to 5 heating stages on a heat pump (2 compressor, 3 auxiliary), 3 on a standard system.

Are TRANE thermostats right for electric baseboards?

In AirGreen’s view, no. Trane’s guides give these controls a low-voltage input (24 V, or millivolt for the XR102 and XR202), and none of them names electric baseboard heaters. That is our reading, not a Trane statement: baseboards need a 240 V thermostat designed for them.

Is the Pivot right for a home?

No, per Trane: it sells it as a commercial thermostat (“Commercial Applications Only”), for single-zone, constant-volume commercial buildings. It uses the Pivot app, not Trane Home.

AirGreen × TRANE

The right TRANE thermostat, installed by AirGreen

We look at your system and the wiring in place; the written quote says which TRANE control goes with it, backup heat included.

Book my free estimate Call 514-316-2973

RBQ 5645-9605-01Subclasses 15.8, 15.10 and 16. Gas and oil work: a partner holding the required licence.

On-site estimateFree, with a written quote.

Showroom1370 Joliot-Curie Street, Suite 712, Boucherville.

HoursMonday to Thursday, 8 a.m. to 6 p.m.; Friday, 8 a.m. to 4 p.m.
