TRANE XL824 smart thermostat TCONT824AS52DC

In stock
SKU: TCONT824AS52DC

The Trane XL824 is more than a thermostat: it's also the hub of a connected home.

24 Vlow-voltage thermostat
Wi-Fiincluded
5 yearsmanufacturer warranty
ENERGY STARWi-Fi includedTouch screenProgrammableVoice control
Get my installed price 514 316-2973

Quick facts

Model numberTCONT824AS52DC
ProgrammableYes
Wi-FiIncluded
Touch screenYes
ENERGY STARYes
Warranty5 years

The Trane XL824 is more than a thermostat: it is also the hub of a connected home. With its built-in Z-Wave Plus bridge, it can link more than 200 Z-Wave devices, from locks to lighting, while controlling your furnace, air conditioner or heat pump with the precision of a smart thermostat that is ENERGY STAR certified. For homeowners who want to bring comfort and home automation together in a single device, it is a logical choice.

Comfort and the connected home, together in one place

Compatible systems, and those that are not

The XL824 installs on traditional 24 V HVAC systems of any brand: single-stage, two-stage or multi-speed. It handles gas and electric, heat pump and dual fuel systems. With a heat pump, it controls up to 5 heating stages and 2 cooling stages; in a conventional configuration, up to 2 heating stages and 2 cooling stages. However, it is not designed for variable-speed communicating systems or zoned systems. For those installations, Trane offers other controls, such as the XL850 or the XL1050, and we will direct you to the right model.

Who it is for

The XL824 suits owners of a furnace with an air conditioner, a central heat pump or a dual fuel system who want a connected thermostat and, at the same time, a control point for their Z-Wave devices. Thanks to its Ethernet connection, it also suits homes where the Wi-Fi is unreliable at the thermostat's location. Families who check the weather before leaving in the morning appreciate finding it right on the screen.

A high-definition screen

The 4.3 in high-definition colour touchscreen, measured diagonally (display area of 4.15 x 2.65 in), shows the temperature, indoor humidity, the schedule and the 5-day weather forecast, along with weather radar. The thermostat measures 5.43 in wide, 3.39 in high and 1.30 in deep.

Connection and remote control

The XL824 connects over Wi-Fi (802.11 b/g/n) or by wired Ethernet, a welcome option when the wireless signal is weak at the thermostat's location. You control it remotely from a phone, tablet or computer with the Trane Home app, and it is compatible with Amazon Alexa and Google Home. The software is upgradable, so improvements can be added over time.

Programming and humidity management

7-day programming allows up to four periods per day. The thermostat displays indoor relative humidity and offers an enhanced dehumidification function in cooling mode, useful on hot, humid July days in Montreal. In winter, the programming lowers the setpoint overnight and while you are away, then restores comfort at the right time.

Optional sensors

The XL824 accepts a BAYSEN01ATEMPA outdoor sensor, a ZZSENSAL0400AA wired indoor sensor or a ZSENS930AW00MA wireless indoor sensor, all sold separately. The outdoor sensor is especially relevant with a heat pump or a dual fuel system, because it gives the thermostat the actual temperature outside your home.

Savings and ENERGY STAR

The XL824 is ENERGY STAR certified. Programming, remote control and precise management of the heating stages help reduce unnecessary operating hours during the Quebec winter, while keeping comfort steady when you are at home.

XL824, Priority or XR724

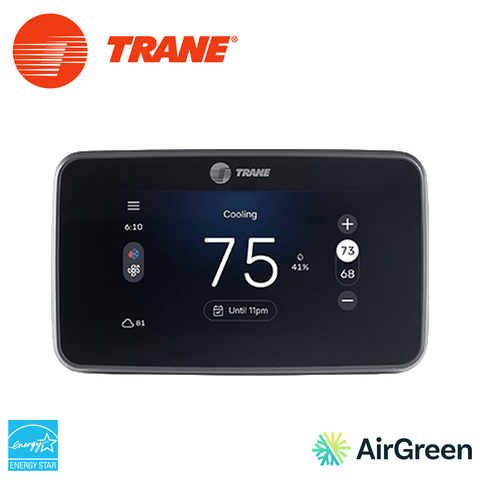

The XL824 stands out for its Z-Wave bridge, its Ethernet connection and its HD colour screen with weather. The newer Priority TCONT24P1S52DA is offered by Trane as a replacement option: it focuses on Wi-Fi 6, occupancy detection, geofencing and advanced diagnostics. The XR724 offers Wi-Fi and voice control with a black and white screen, without a built-in Z-Wave bridge. If Z-Wave home automation is part of your plans, the XL824 remains the most complete on that front.

Technical specifications

  • Stages: heat pump up to 5 heating / 2 cooling; conventional 2 heating / 2 cooling
  • Systems: traditional 24 V HVAC systems of any brand, single-stage, two-stage or multi-speed; gas/electric, heat pump, dual fuel; not compatible with variable-speed communicating systems or zoned systems
  • Power: 24 V; 3 VA typical, 7 VA maximum
  • 4.3 in diagonal high-definition colour touchscreen (4.15 x 2.65 in)
  • Connectivity: Wi-Fi 802.11 b/g/n or Ethernet; built-in Z-Wave Plus bridge, more than 200 Z-Wave devices
  • Trane Home app; remote control by phone, tablet or computer
  • Voice control: Amazon Alexa, Google Home
  • 7-day programmable, up to 4 periods per day
  • Indoor humidity display; enhanced dehumidification in cooling mode
  • 5-day weather forecast and weather radar
  • Optional sensors: outdoor BAYSEN01ATEMPA, wired indoor ZZSENSAL0400AA, wireless indoor ZSENS930AW00MA
  • Upgradable software
  • Dimensions: 5.43 in W x 3.39 in H x 1.30 in D
  • ENERGY STAR certified

Installation and configuration by AirGreen

Before the installation

Our technicians check that your equipment is indeed a compatible traditional 24 V system, count the available wires and confirm the number of heating and cooling stages to be connected. If your system is a variable-speed communicating system or a zoned system, we let you know at the visit and propose the appropriate control.

Commissioning

The XL824 is mounted on the wall, wired, configured for your equipment, then connected to your Wi-Fi network or by Ethernet cable. We link the Trane Home app, set up a 7-day starting schedule and, if you wish, pair your first Z-Wave devices. The optional sensors are installed and tested at the same time.

Maintenance

Clean the screen with a soft, dry cloth. Keep the software up to date to benefit from improvements. On the system side, annual maintenance of the furnace, air conditioner or heat pump and regular filter replacement allow the thermostat to maintain comfort with a minimum of energy.

Why AirGreen

AirGreen Inc. is a family-owned HVAC company established in Montreal for more than 15 years, holding an RBQ licence, with a showroom in Boucherville. We install central and wall-mounted heat pumps, furnaces and air conditioners, and we choose the control that truly matches your equipment.

For the purchase and professional installation of the Trane XL824 TCONT824AS52DC smart thermostat, contact AirGreen. We serve Montreal, Laval, Longueuil, the North Shore and the South Shore.

01 · Key facts

Key facts: TRANE XL824 TCONT824AS52DC

Four things to know, then its ID card in twelve answers. “—” means the manufacturer does not publish it.

Type24 V thermostatTRANE XL824 TCONT824AS52DC
Fortraditional 24 V HVAC systems of all brands,…Systems
Power24 VPower supply
ConnectionWi-Fi 802.11 b/g/n or EthernetConnectivity
02 · Compatible?

Is the TRANE XL824 TCONT824AS52DC compatible with your heating?

Two steps, thirty seconds. The verdict takes your system and your wiring into account.

Full compatibility table

Heating systemVerdictWhy
Central heat pumpYesThe spec sheet lists heat pumps.
Dual energy (heat pump + furnace)YesThe spec sheet lists heat pumps.
Electric furnaceYes24 V control of the furnace.
Gas or oil furnaceYes24 V control of the furnace; the thermostat does not touch the fuel supply.
Steam, gravity or hot waterTo confirmPossible in 24 V depending on the model: our technicians confirm the wiring.
Baseboards, convectors, radiant ceilingNoA baseboard runs on 120/240 V: it needs a line-voltage electronic thermostat.
Fan-forced heaterNoA fan-forced heater needs a line-voltage thermostat rated for fans.
Electric floor heatingNoElectric floor heating needs a floor thermostat with a probe.
Wall or ducted mini-split heat pumpNoA wall heat pump is controlled by its own brand’s controller or a compatible Wi-Fi module.
03 · Wiring

The terminals behind the thermostat

Tap an element to see what it does. A working diagram, not a substitute for the manufacturer’s installation guide.

04 · Try it

Try the TRANE XL824 TCONT824AS52DC before you buy

Raise the setpoint, change the mode: see how it responds.

05 · Your savings

How much good programming can save you

Set up your typical week. The math follows the rule published by Natural Resources Canada.

06 · Winter and rebates

Winter, Rate Flex D and rebates: what this thermostat changes

With Hydro-Québec’s Rate Flex D, electricity costs less most of the winter and more during a few peak hours. A programmable thermostat does the work for you.

07 · Room by room

The sensor decides which room counts

An interactive drawing of what this kind of control does day to day.

08 · Head to head

The TRANE XL824 TCONT824AS52DC or its closest sibling?

The most useful comparison: the model right next to it in our catalogue.

09 · The right choice

The right thermostat in three questions

If this model is not the right one for you, the page says so and shows you which one is.

10 · The system

Products that go with the TRANE XL824 TCONT824AS52DC

Parts named in its spec sheet that we sell and install.

11 · Installation

Installed and set up by our technicians, in five steps

What we do at your place, in order. The on-site estimate is free.

  1. 01InspectionEquipment, stages to control and existing wiring.
  2. 02C wireCommon wire added if the model needs it and it is missing.
  3. 03MountingWall base, terminal wiring, cover plate if needed.
  4. 04SettingsEquipment type, stages, dual energy and accessories.
  5. 05Start-upConnection, app, schedule and tests with you.
12 · Specifications

TRANE XL824 TCONT824AS52DC specifications

From the manufacturer’s sheet. Type a word: the list filters as you write.

GeneralStagesheat pump up to 5 heating / 2 cooling; conventional 2 heating / 2 cooling
GeneralSystemstraditional 24 V HVAC systems of all brands, single-stage, two-stage or multi-speed; gas/electric, heat pump, dual energy; not compatible with variable-speed communicating systems or zoned systems
ElectricalPower supply24 V; 3 VA typical, 7 VA maximum
GeneralOther4.3 in. diagonal high-definition colour touch screen (4.15 x 2.65 in.)
ConnectivityConnectivityWi-Fi 802.11 b/g/n or Ethernet; built-in Z-Wave Plus bridge, over 200 Z-Wave devices
GeneralOtherTrane Home app; remote control by phone, tablet or computer
ConnectivityVoice controlAmazon Alexa, Google Home
GeneralOther7-day programmable, up to 4 periods per day
GeneralOtherIndoor humidity display; enhanced dehumidification in cooling
GeneralOther5-day weather forecast and weather radar
GeneralOptional sensorsoutdoor BAYSEN01ATEMPA, wired indoor ZZSENSAL0400AA, wireless indoor ZSENS930AW00MA
GeneralOtherUpgradable software
Format and contentsDimensions5.43 in. W x 3.39 in. H x 1.30 in. D
GeneralOtherENERGY STAR certified
13 · Questions

Frequently asked questions about the TRANE XL824 TCONT824AS52DC

Short answers, no detours.

What does the TRANE XL824 TCONT824AS52DC work with?

According to the manufacturer’s sheet: traditional 24 V HVAC systems of all brands, single-stage, two-stage or multi-speed; gas/electric, heat pump, dual energy; not compatible with variable-speed communicating systems or zoned systems.

Can it control electric baseboards?

No. It is a low-voltage (24 V) thermostat. 120/240 V baseboards need a line-voltage electronic thermostat.

Can it be controlled remotely?

Yes, over Wi-Fi.

Does it qualify for a rebate?

If you heat with natural gas from Énergir, an ENERGY STAR smart thermostat on Énergir’s list can qualify for $100 (up to 75% of the price). Have Énergir confirm the model before buying.

What is the warranty?

5 years, per the manufacturer’s information.

Does AirGreen install it?

Yes. We sell and install this product in Montréal, Laval, Longueuil, the South Shore and the North Shore. The on-site estimate is free.

AirGreen · Montréal, Laval, Longueuil, South Shore, North Shore

Your thermostat, installed and set up by our technicians

We check your system and wiring, install the thermostat, connect it and program it with you. One visit, one installed price.

RBQ 5645-9605-01Ventilation, refrigeration and electrical
Free estimateon site, before any purchase
Quote in 24 hinstalled price, no surprises
Bouchervilleshowroom

Sources checked on October 5, 2026.

  • Manufacturer’s spec sheet for this product (summarized in the description and specifications above)
  • Natural Resources Canada, “Keeping the Heat In”, section 9 (modified September 29, 2025)
  • Hydro-Québec, electricity rates in effect April 1, 2026; Rate Flex D and Winter Credit Option pages (consulted October 5, 2026)
  • Énergir, smart thermostat grant (consulted October 5, 2026)

Savings shown are estimates; only Hydro-Québec and Énergir confirm a rate or a rebate.
