KINGHOME Multi-Zone R32 Floor-Ceiling Unit | 18,000 BTU
For open areas under a concrete ceiling: lofts, condos and neighbourhood shops
Lofts converted from old industrial buildings in Griffintown, the Sud-Ouest or Saint-Henri often share the same features: exposed concrete ceilings, brick walls or large windows, and an open area where the kitchen, dining room and living room share the same volume. No cassette fits there without a drop ceiling, and free wall space up high is rare. The KINGHOME 18,000 BTU floor-ceiling unit is designed for this kind of space. It hangs under the ceiling and pushes air horizontally over a long distance, or sits at the bottom of a wall when the ceiling offers no acceptable anchoring point.
We also install it in neighbourhood businesses: hair salons, shops, small cafés, yoga studios on the ground floor of a plex. These spaces share the same need for a unit that covers a large room without a drop ceiling.
Like every KINGHOME multi-zone head, this one doesn't work on its own. It connects to an Ultra Heat outdoor unit for a multi-zone heat pump, and it's the complete system that carries the efficiency certification.
What a horizontal airstream brings to an open area
In a large volume, the air has to travel across the whole room for the farthest corner to stay comfortable. A wall-mounted head blows downward, close to the unit; a floor-ceiling unit mounted on the ceiling throws the air along the ceiling surface, which carries it farther before it comes back down. In a loft, that's often what makes the difference between a comfortable living room and a kitchen that stays hot in July.

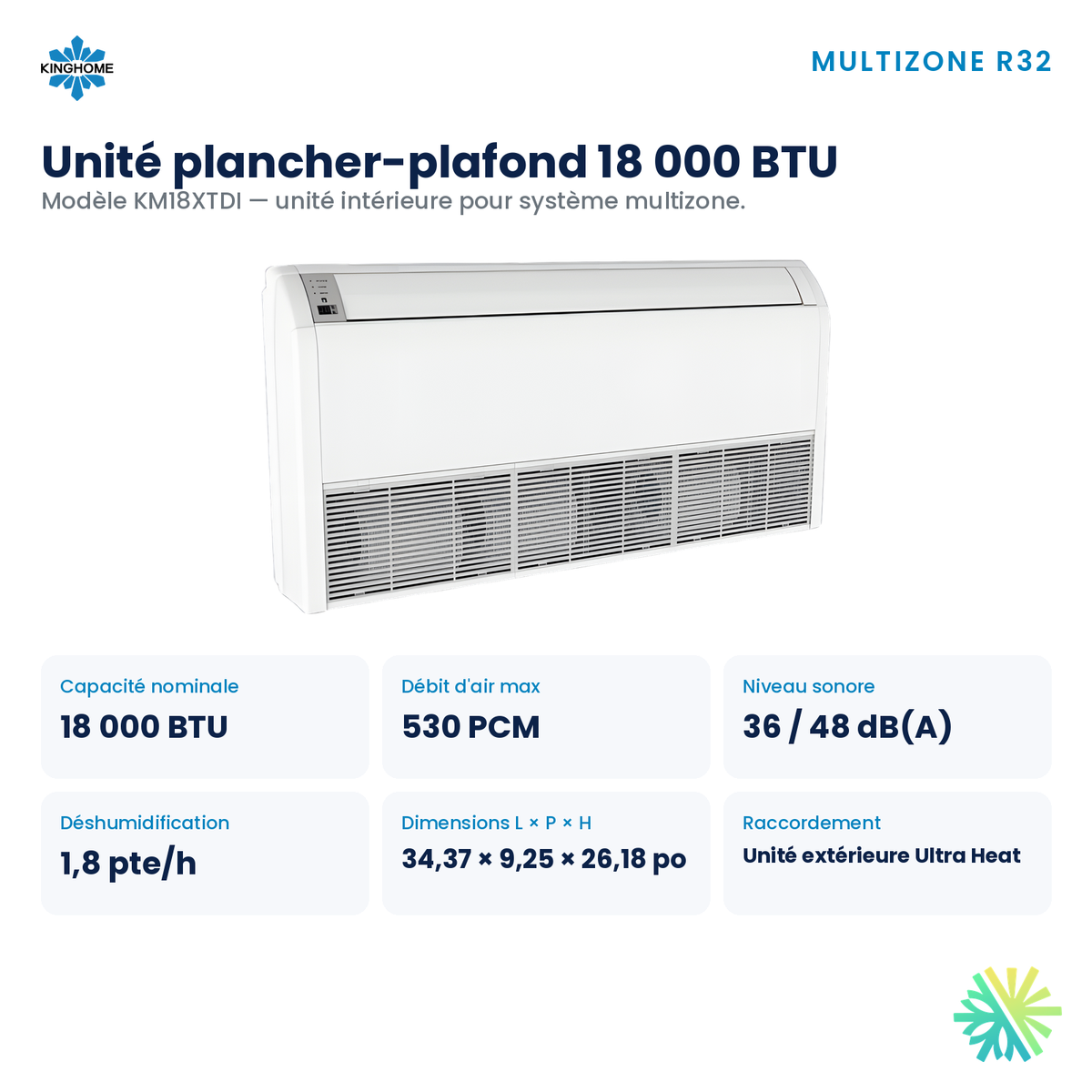

Specs for the 18,000 BTU size
- Nominal capacity: 18,000 BTU, R-32 refrigerant
- Maximum airflow: 530 CFM
- Indoor sound level: 36 to 48 dB(A)
- Dehumidification: 1.8 pt/h, or about 0.85 L/h
- Dimensions: 34.37 x 9.25 x 26.18 inches (width x depth x height)
- 220 V power supplied by the outdoor unit
- Wi-Fi: optional

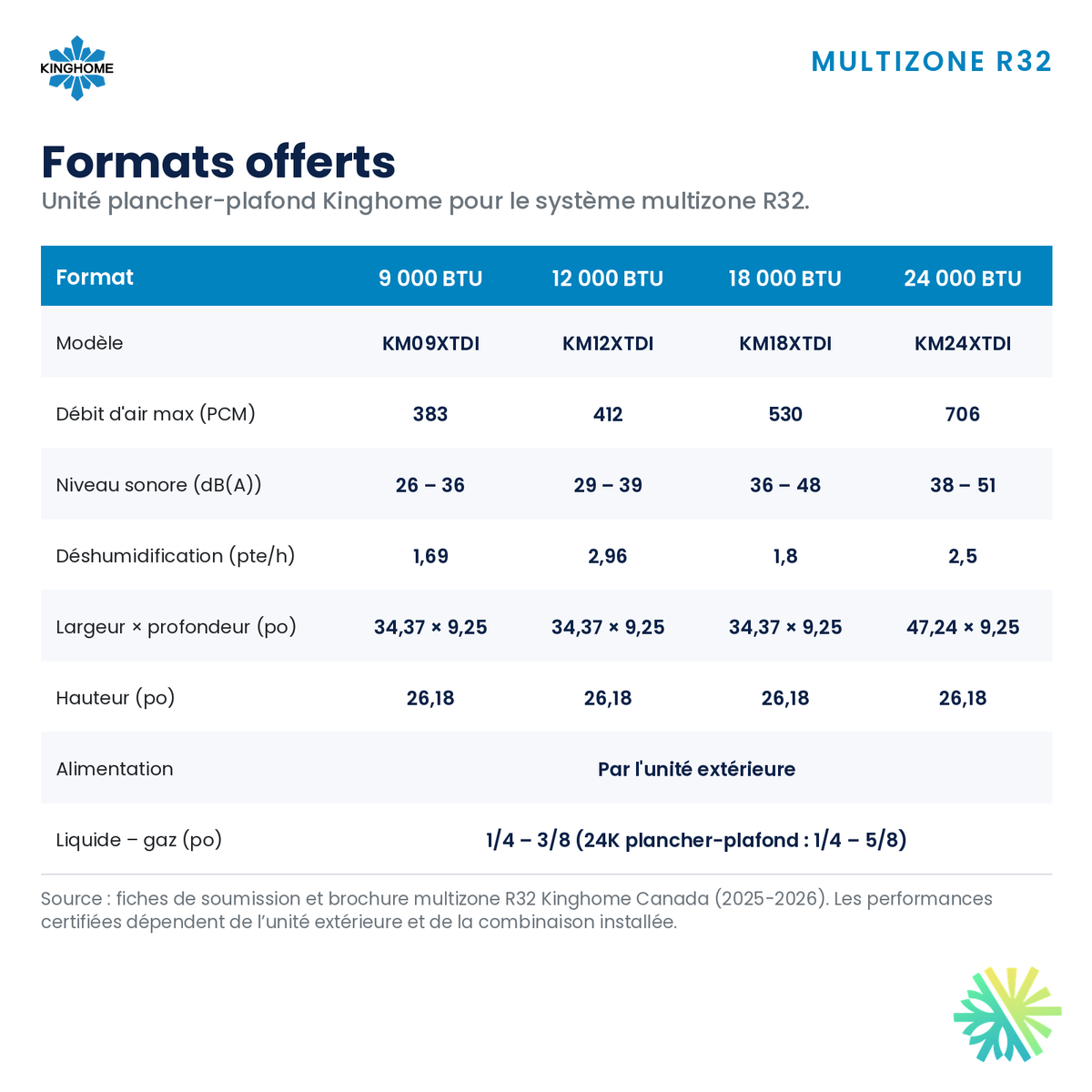

The 530 CFM airflow is this size's strong point: it can move the air in a large open area. The cabinet is the same as on the 9,000 and 12,000 BTU sizes, which keeps it compact for its capacity.
One point deserves to be stated clearly. The dehumidification published by the manufacturer for this size is 1.8 pt/h, lower than that of the 12,000 BTU in the same series. This size is therefore first and foremost a unit for a large, dry or heated room: a loft, a living room, a shop. For a damp basement, we suggest the 12,000 BTU instead, or a ducted unit that dries the air better.
At 36 dB(A) on low speed and 48 dB(A) at maximum, the unit remains well suited to a living area or a shop. In a bedroom, we prefer a smaller size.
Choosing between 18,000 and 24,000 BTU
We don't size an open area by its square footage. A loft with large south-facing windows and a high ceiling can need more than a house with the same floor area. On the other hand, a condo surrounded by other heated units loses little heat. The 18,000 BTU is the right fit when the on-site assessment of heating needs confirms it; if the open area needs more than this capacity, the wider 24,000 BTU in the same series takes over. Oversizing to be on the safe side leads to short cycles and less dry air in summer.
Compatible Ultra Heat outdoor units

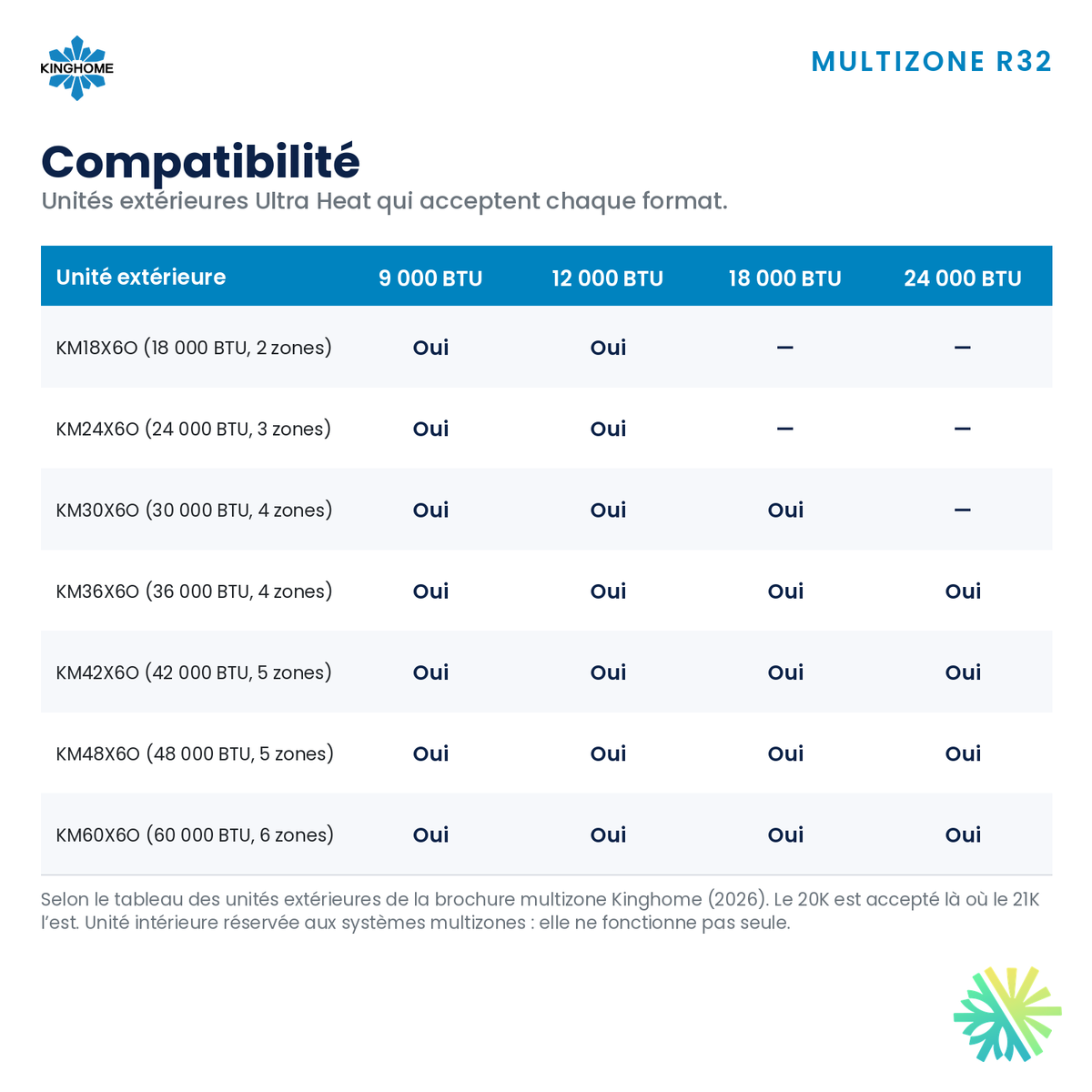

The compatibility table in the KINGHOME multi-zone brochure accepts 18,000 BTU heads on the following units:
- KM30X6O and KM36X6O (up to 4 zones)
- KM42X6O and KM48X6O (up to 5 zones)
- KM60X6O (up to 6 zones)
The KM18X6O and the KM24X6O don't accept it. In a loft, a common setup combines this unit in the open area with one or two wall-mounted heads in the closed bedrooms, on a KM30X6O. The KM30X6O to KM48X6O units carry the ENERGY STAR cold climate designation and heat down to -30 °C according to their spec sheet; the KM60X6O doesn't carry this designation.
Features

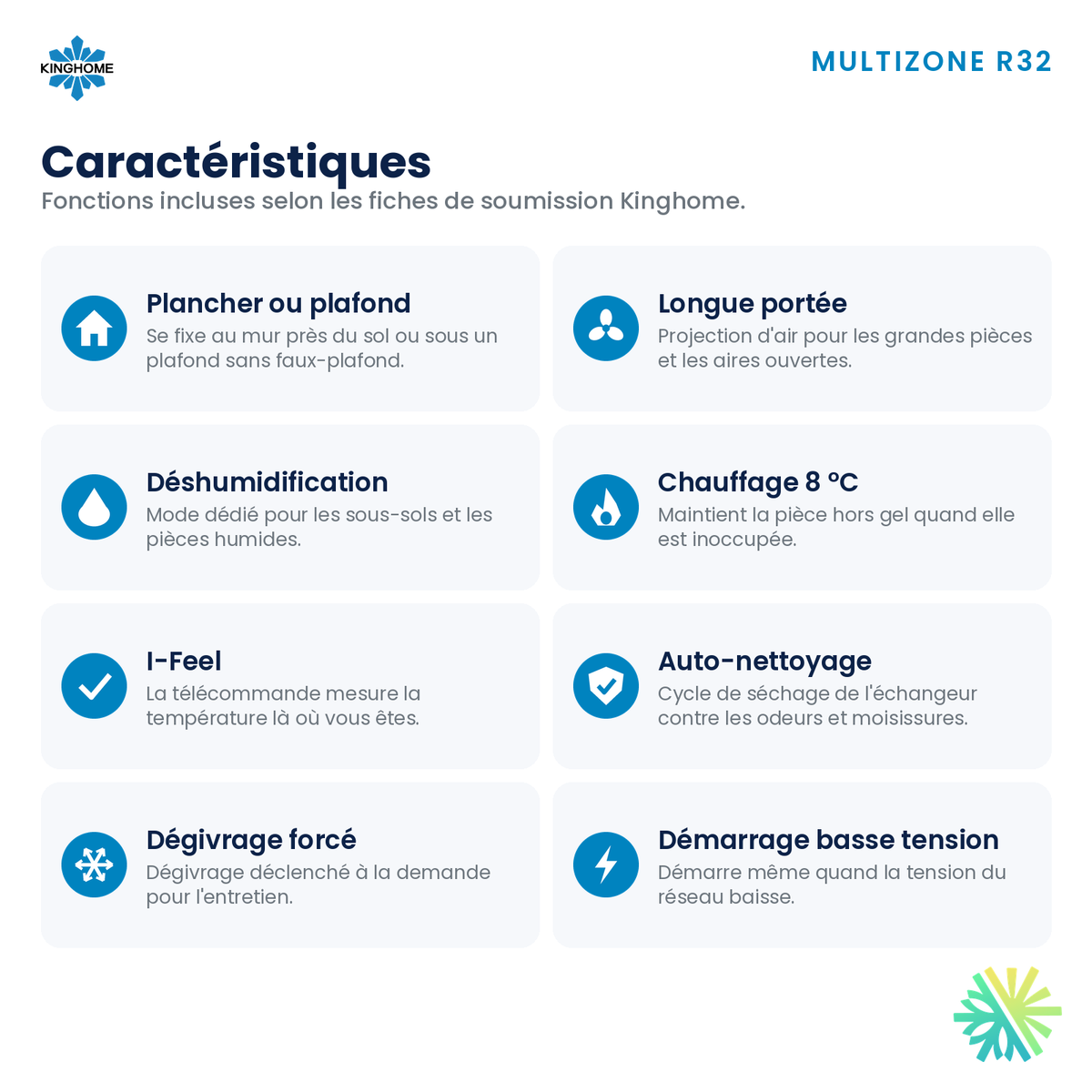

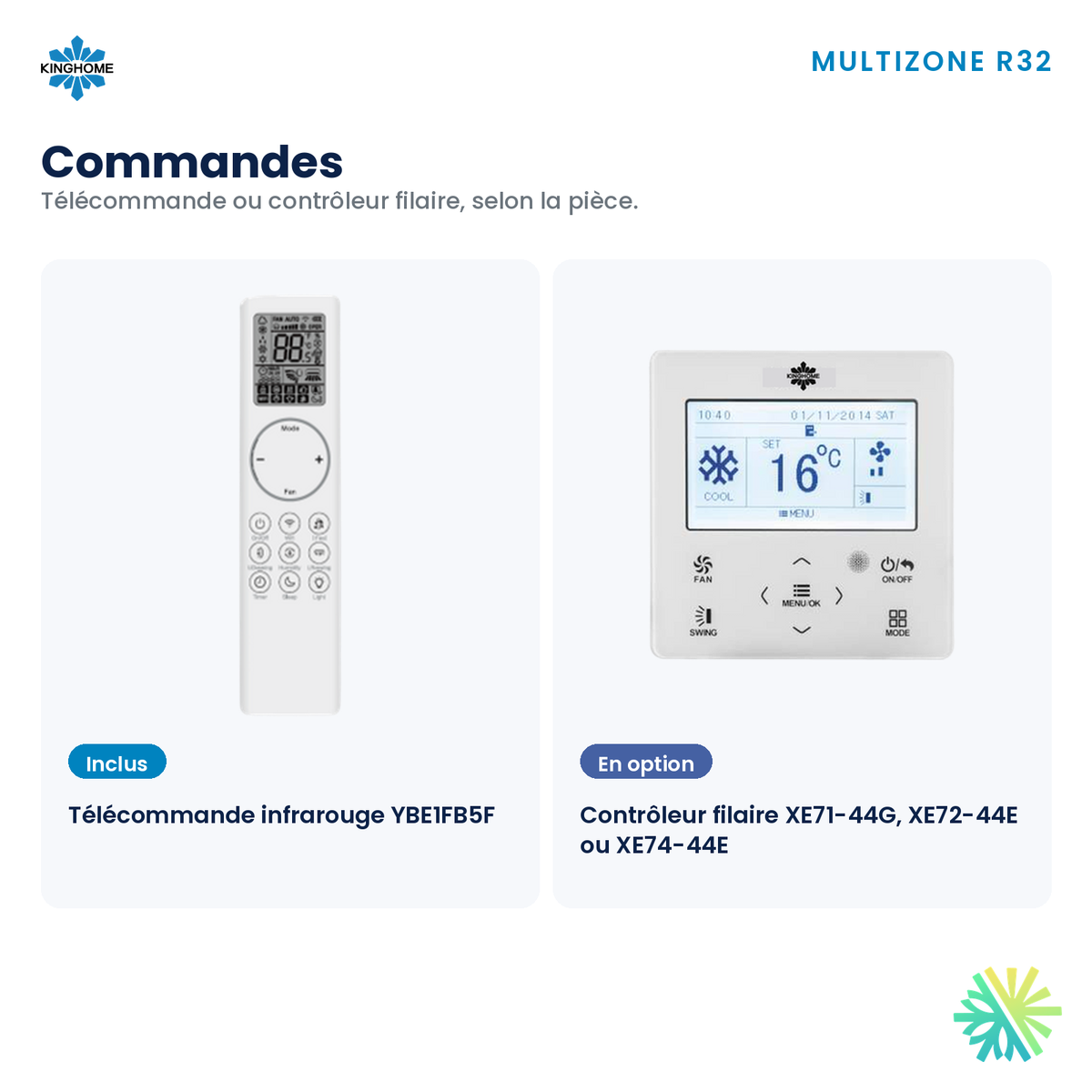

The manufacturer's spec sheet lists the dehumidification mode, the I-feel function, self-cleaning, forced defrost, soft start, low-voltage start-up and a frost-protection maintenance heating mode. The infrared remote is supplied. Wi-Fi is added through an optional wired wall controller, often preferred in a business so customers can't change the set point.
What we check before the installation
Here are the points we look at for this size in Montréal, Laval or Longueuil, on the North Shore or on the South Shore.
Anchoring to the concrete
In a concrete ceiling, the unit hangs from anchors and threaded rods. In a condo, we first check the condo by-laws: some boards regulate anchors in the slab or require an approval. We provide the spec sheets needed for the request.
The power supply
The head gets its 220 V from the outdoor unit. The circuit to plan at the panel is the outdoor unit's, based on its minimum circuit ampacity (MCA) and maximum overcurrent protection (MOP). In a business, we check the unit's panel and the available capacity, especially when cooking appliances or dryers share the service.
The outdoor unit
Depending on the building: a wall bracket above the snow, a back balcony, or a flat roof with a suitable base. We always let the defrost water drain freely, without forming ice on a balcony or a sidewalk.
The piping
The connection diameters follow the manufacturer's spec sheet, and the total length of all the lines has to stay within the outdoor unit's limits. In a loft with exposed concrete, the piping often stays visible: we group it in a clean line-set cover, aligned with the structure.
The drain
The condensate has to drain by gravity right from the unit's outlet, to a drain or outdoors. On a concrete slab, a slope is rarely possible over a long distance: we add a condensate pump when needed.
LogisVert assistance
This head doesn't appear on the Hydro-Québec list by itself, since it has no certification of its own. For a home, the LogisVert assistance is tied to the complete system, Ultra Heat outdoor unit and combination of heads: its indicative amount is calculated using the LogisVert rule ($120 per 1,000 BTU/h of certified heating capacity at -8.3 °C, or $50 with the KM60X6O, which has no cold climate designation); eligibility is confirmed on the installation date. The amount published for each outdoor unit corresponds to the certification with wall-mounted heads; we confirm your combination before the quote. A commercial space is generally not eligible for this residential program. Only Hydro-Québec confirms the assistance granted.
Why go with AirGreen
- Salaried refrigeration technicians, used to concrete condos and commercial spaces.
- Civil liability insurance of $5,000,000, which condo boards and landlords often ask for.
- Kinghome warranty registration taken care of.
- After-sales service you can reach for maintenance.
Ask for your free estimate: we assess the open area, the ceiling and the possible outdoor unit location, then give you a precise quote.

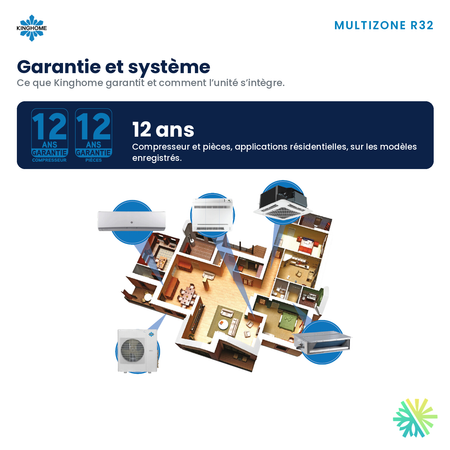

Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor.
