KINGHOME Multi-Zone R32 Floor-Ceiling Unit | 24,000 BTU

In stock
SKU: KM24XTDI
24,000BTU/h · cooling capacity
−30 °Cheats down to
Floor or ceiling mountMulti-zone systems onlyOptional Wi-FiRefrigerant R-3212-year warranty
Talk to a technician · 514 316-2973
Model number (outdoor)Multi-zone only
Model number (indoor)KM24XTDI
AHRIMulti-zone only

The largest floor-ceiling size: retail, classrooms, large open basements

Some rooms go beyond what an ordinary residential head can cover: the dining room of a small restaurant, the main room of a daycare, an open-plan office with ten workstations, an artisan's workshop, a community hall or a garage converted into a family room. For these spaces, we install the KINGHOME 24,000 BTU floor-ceiling unit, the largest size in the series. It hangs under the ceiling, even a concrete or sheet-metal one, or sits at the bottom of a wall, and it throws air across the full length of a large room.

This unit is an indoor head for a multi-zone heat pump. It only works with a compatible KINGHOME Ultra Heat outdoor unit. It has no SEER2 or HSPF2 rating of its own: the certified performance is the system's, published on the outdoor unit's sheet.

A wider cabinet for stronger airflow

This is the only size in the series with a different cabinet. It measures 47.24 inches wide, compared with 34.37 inches for the 9,000 to 18,000 BTU sizes. The extra width houses a larger fan and coil, which gives a maximum airflow of 706 CFM, the highest in the floor-ceiling series.

In a commercial space, that airflow matters as much as the capacity: a dining room that fills up on Friday night builds up heat and humidity quickly, and the air has to circulate all the way to the back of the room, not just near the unit.

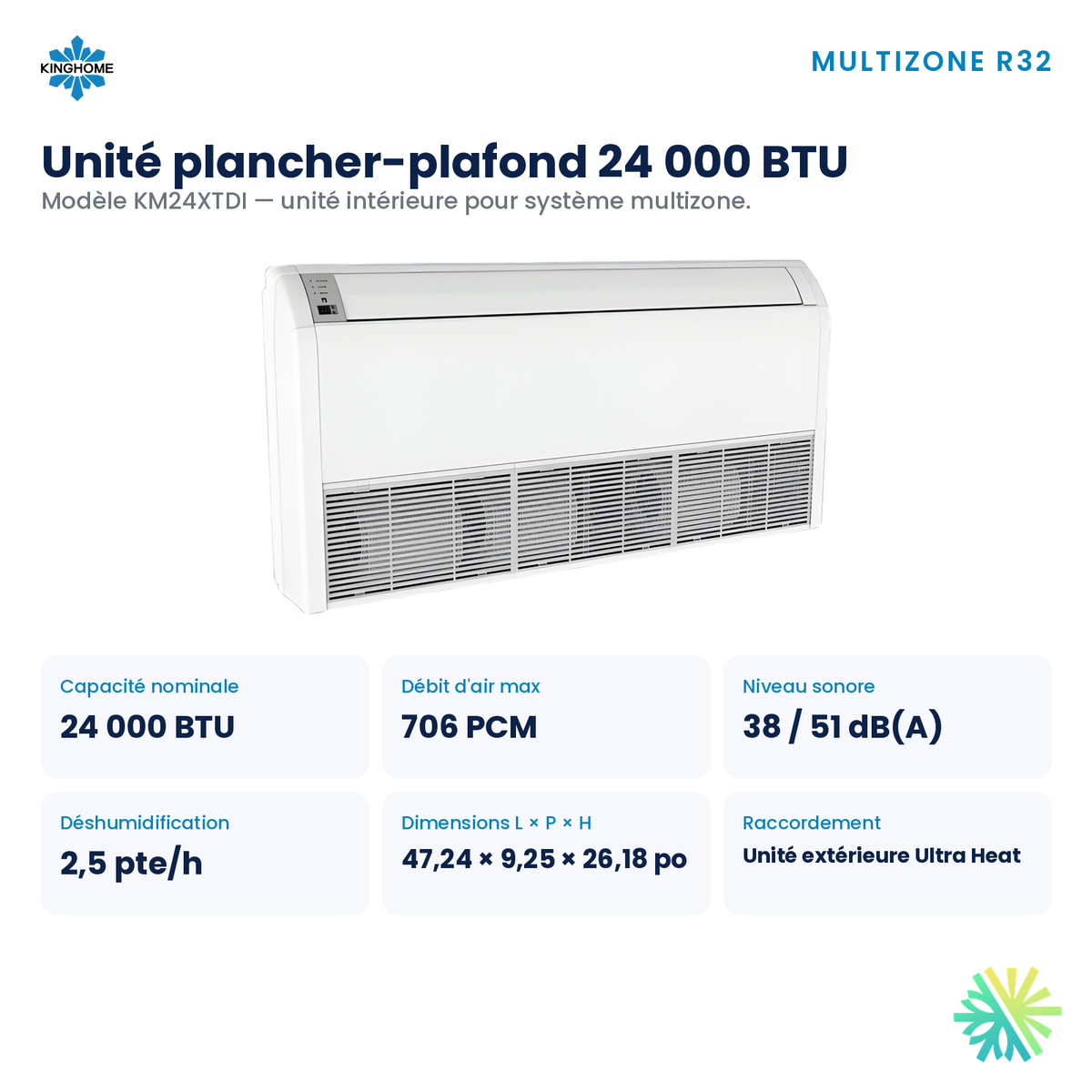

Specs for the 24,000 BTU size

  • Nominal capacity: 24,000 BTU, R-32 refrigerant
  • Maximum airflow: 706 CFM
  • Indoor sound level: 38 to 51 dB(A)
  • Dehumidification: 2.5 pt/h, or about 1.2 L/h
  • Dimensions: 47.24 x 9.25 x 26.18 inches (width x depth x height)
  • 220 V power supplied by the outdoor unit
  • Wi-Fi: optional

The sound level of 38 to 51 dB(A), according to the manufacturer's spec sheet, is consistent with a unit of this capacity. In a bedroom or a closed office, this size would be oversized and louder than necessary: in that case we recommend the smaller sizes.

Where this size is the right choice

The 24,000 BTU suits large single-volume rooms: a street-front shop on the ground floor of a Montréal building, a daycare room on the South Shore, an open office in a Laval building, a full basement with no partitions in a house on the North Shore. It often replaces an aging window or wall air conditioner paired with electric unit heaters on the ceiling.

Sizing a commercial room takes into account factors that don't come up in residential work: the number of occupants, cooking equipment, lighting, frequent opening of the front door. We factor these in during the on-site assessment of heating and cooling needs, before recommending this size. If the room needs more, we split the load between two heads rather than pushing a single unit.

Compatible Ultra Heat outdoor units

According to the compatibility table in the KINGHOME multi-zone brochure, the 24,000 BTU heads only connect to the following outdoor units:

  • KM36X6O (up to 4 zones)
  • KM42X6O and KM48X6O (up to 5 zones)
  • KM60X6O (up to 6 zones)

The KM18X6O, KM24X6O and KM30X6O units don't accept it. In a small commercial space, a typical combination puts this unit in the main room and a 9,000 or 12,000 BTU head in the office or the staff room, on a KM36X6O. The KM36X6O to KM48X6O units carry the ENERGY STAR cold climate designation and heat down to -30 °C according to their sheets. The KM60X6O doesn't carry this designation, which we point out in the quote whenever it's being considered.

Features and controls

The manufacturer's spec sheet lists the dehumidification mode, the I-feel function, self-cleaning, forced defrost, soft start, low-voltage start-up and a frost-protection maintenance heating mode, which is useful for a space that's closed on weekends. The infrared remote is included. In a commercial space, we recommend the optional Wi-Fi wired wall controller: the setpoint stays fixed on the wall and can be managed remotely. The multi-zone brochure also mentions central control for buildings that group several systems together.

What we check before the installation

Here's what we look at for this size, in light commercial as in residential settings, in Montréal, Laval, Longueuil, on the North Shore or on the South Shore.

Structure and anchoring

At 47.24 inches wide, the unit needs solid anchoring in the structure: concrete, steel joists or wood joists. We check what the ceiling is made of, whether there are sprinklers and light fixtures, and the clearance needed to service the filter.

Electrical supply

The head gets its 220 V power from the outdoor unit. The circuit to plan for is the outdoor unit's, at least a KM36X6O, based on the minimum circuit ampacity (MCA) and maximum overcurrent protection (MOP) listed on its sheet. In a commercial space, we check the tenant's panel and the landlord's authorization before any quote.

The outdoor unit

On a flat roof, the unit sits on a base suited to the membrane; on the ground or on a wall, it's raised above the snow. In a commercial laneway, we take snow removal and vehicle traffic into account.

Piping

The diameters follow the manufacturer's spec sheet for this head, and the total length of all the lines stays within the outdoor unit's limits. In a commercial space, we run the lines in a raceway or above a ceiling to prevent damage.

The drain

A unit of this capacity produces a lot of condensate in summer. The drain needs a continuous slope to a drain line; when that isn't possible, we install a condensate pump. Above a dining room or a classroom, we make no compromises on this point.

LogisVert assistance

This head doesn't appear on the Hydro-Québec list by itself, since it has no certification of its own. For a home, the LogisVert assistance is tied to the complete system: its indicative amount is calculated using the LogisVert rule ($120 per 1,000 BTU/h of certified heating capacity at -8.3 °C, or $50 with the KM60X6O, which has no cold climate designation); eligibility is confirmed on the installation date. The amount published on an outdoor unit's page corresponds to the certification with wall-mounted heads; we confirm the combination before the quote. A commercial space generally falls under programs other than LogisVert. Only Hydro-Québec confirms the assistance granted.

Why go with AirGreen

  • Salaried refrigeration technicians, in residential and light commercial work.
  • Civil liability insurance of $5,000,000.
  • Kinghome warranty registration done at commissioning; for commercial applications, the Kinghome brochure provides coverage of 5 to 7 years on the compressor and parts.
  • After-sales service and maintenance contracts for businesses.

Ask for your free estimate: we assess the room, how it's used and its electrical setup, then recommend the right multi-zone combination.

Documentation

Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor.
