A Chigo wall unit that cooled poorly despite apparent operation
In Saint-Vincent-de-Paul, in the eastern sector of Laval, our AirGreen team was called for a HVAC service call on a Chigo wall air conditioner installed high up in a residential room. At first glance, the device still seemed to be working: the indoor unit turned on, the louvers opened, the fan ran, and the remote control responded correctly. Yet, the client had noticed for some time a marked drop in comfort, especially on hotter days.
The main symptom was simple to describe but more complex to diagnose correctly: the wall air conditioner was blowing air, but the room was no longer cooling as before. At times, the air seemed cool, then became lukewarm. The client also noticed a duller noise near the wall unit, as well as a slight trace of moisture near the wall under the device. This type of situation requires a thorough check, as several causes can produce similar symptoms: clogged filter, dirty coil, drainage problem, faulty sensor, lack of refrigerant, weakened fan motor, or unstable electronic board.
At AirGreen, we avoid concluding too quickly that a device needs to be replaced. An older Chigo wall air conditioner can still offer good performance if the fault is well identified and proper maintenance is carried out at the right time. In this specific case, our goal was to determine whether the device was suffering from a mechanical, electrical, refrigeration problem, or simply a gradual buildup of dirt that eventually reduced its performance.
A high wall installation that required a methodical intervention

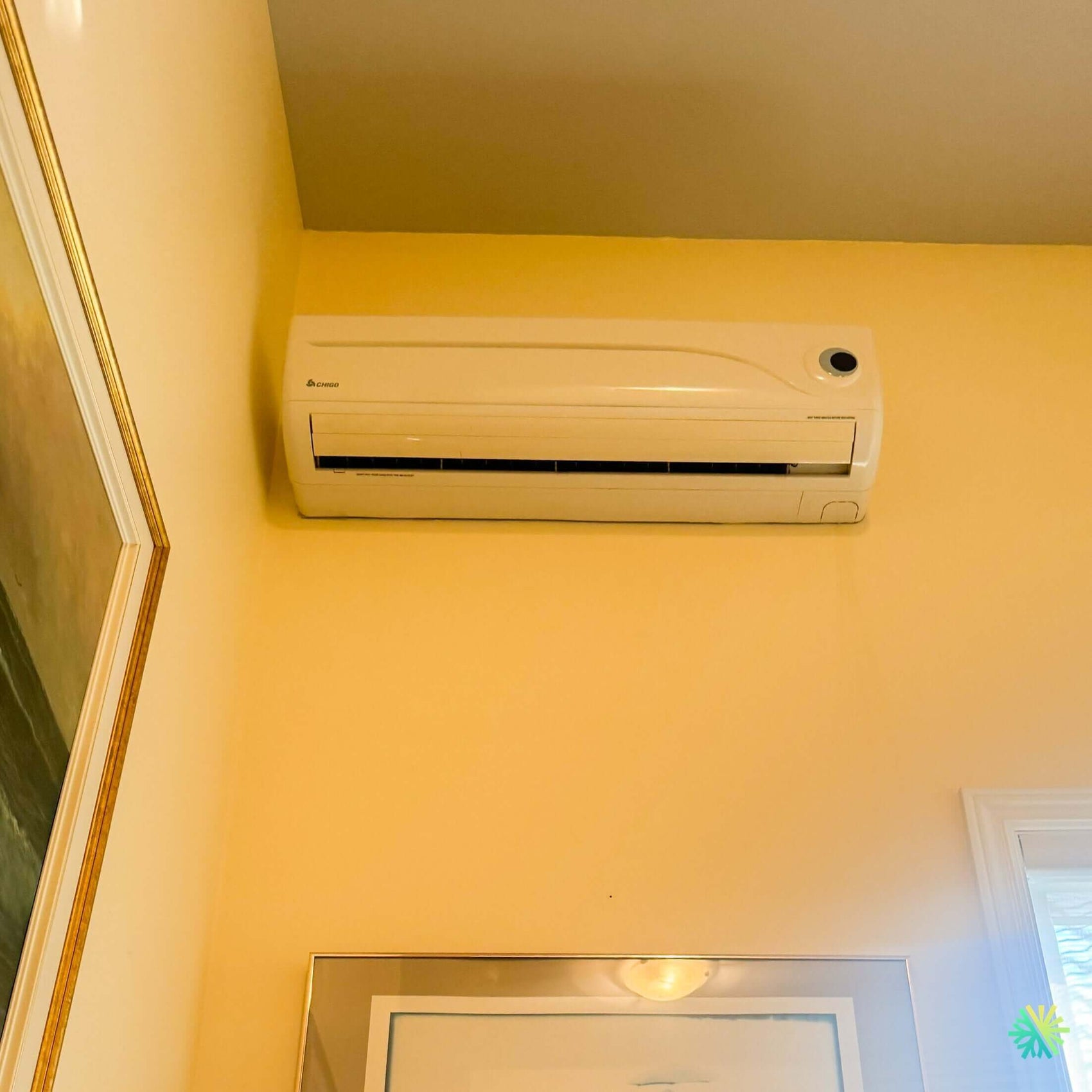

The Chigo indoor unit was installed near the ceiling, on a clear wall, in a typical setup for older mini-split wall air conditioners. This placement is effective for distributing air in a room but can complicate maintenance if filters and coils have not been cleaned regularly. When the unit is placed very high, many owners rarely remove the filters, and dust ends up accumulating in less visible areas: fan, evaporator, condensation tray, and drainage outlet.
The exact model was not clearly visible on the front, but the unit matched a standard capacity residential Chigo wall unit, used to cool a main room or enclosed area. In this type of installation, capacity is often around 9,000 to 12,000 BTU, depending on the home’s layout, insulation, sun exposure, and the volume to be cooled.
Upon arrival, we first listened to the customer to fully understand the problem’s progression. The air conditioner did not seem to have failed suddenly. Performance had gradually decreased, which already pointed our diagnosis toward clogging, ventilation, or drainage issues rather than a complete electronic failure.
Symptoms observed during the service call
Before disassembling the unit, we performed a series of visual and functional checks. Several signs confirmed that the indoor unit was operating under difficult conditions:
- Reduced airflow at the outlet of the wall unit.
- Irregular cool air depending on the fan speed.
- Heavier noise coming from the indoor fan.
- Visible dust buildup on the louvers and in the air outlet.
- Slight moisture near the bottom of the unit.
- Slow cooling despite a low setting on the remote control.
These signs are common on wall-mounted air conditioners that have not received full maintenance for several seasons. The problem is not always obvious at first. The unit compensates, runs longer, consumes more, and provides less comfort. Then, on a hot day, the weakness becomes clear.
HVAC Diagnosis: Check Before Repairing
Our diagnosis was carried out in several steps to avoid unnecessary or incomplete repairs.
Filter and indoor coil check
The filters were heavily loaded with dust. A dirty filter not only blocks air: it alters the entire thermal balance of the unit. The fan works harder, the evaporator receives less warm air to cool, and the system can even start to frost under certain conditions.
After removing the filters, we inspected the indoor coil. It showed a buildup of fine dust and residues stuck between the fins. Even though the unit was still blowing, heat exchange was reduced. A dirty coil prevents the refrigerant from effectively absorbing heat from the room.
Fan turbine inspection
The indoor turbine was one of the most important points of the diagnosis. On several wall units, dust does not just stay on the filters. It gradually passes into the unit and sticks to the blades of the fan wheel. Over time, this buildup unbalances the turbine, reduces airflow, and creates a dull or irregular noise.
In this case in Saint-Vincent-de-Paul, the turbine was dirty enough to reduce the performance of the Chigo wall-mounted air conditioner. The fan was running, but it no longer moved air as efficiently.
Condensate drainage test
The moisture trace under the unit led us to check the condensation tray and the drainage line. When an air conditioner operates in cooling mode, the air's humidity condenses on the evaporator and must drain properly. If the drain is partially blocked, water can accumulate in the tray, cause odors, leak inside, or promote deposit growth.
Our flow test confirmed slow drainage. The line was not completely blocked, but it was sufficiently clogged to create a risk of overflow during prolonged use.
Electrical and refrigeration check
We also checked the essential components of the electrical circuit and refrigeration operation:
- Remote control response.
- Operation of main modes.
- Indoor fan speed.
- Accessible connections.
- Blowing and return air temperature.
- Outdoor compressor behavior.
- Possible signs of refrigerant shortage.
No immediate signs pointed to a major compressor failure or a significant refrigerant leak. The performance drop was mainly due to an airflow and condensate drainage problem. This is good news for the client, as it often allows restoring comfort without replacing the device.
A targeted repair to restore the performance of the Chigo wall-mounted air conditioner
After confirming the diagnosis, we carried out a complete intervention on the indoor unit. The goal was not only to clean what was visible but to restore the device to reliable operating conditions.
Thorough cleaning of the wall unit
We protected the area around the unit, especially since the unit was installed above a finished indoor area. This detail is important during a residential HVAC service: cleaning a wall-mounted air conditioner must be effective, but also clean and controlled.
The service included:
- Cleaning the filters.
- Cleaning the evaporator coil.
- Clearing blocked fins.
- Cleaning the ventilation turbine.
- Cleaning the louvers and air outlet.
- Light disinfection of areas exposed to moisture.
- Checking the condensate pan.
Cleaning the turbine was particularly important. A dirty turbine can give the impression that an air conditioner lacks power, when the problem simply comes from the air no longer circulating properly. Once the deposits were removed, the airflow improved significantly.
Unclogging and rinsing the condensate drain
We then worked on the drainage line. The drain was unclogged, rinsed, and tested multiple times to confirm that the water was flowing freely. A partial blockage can be deceptive: water seems to flow at first, but the flow becomes insufficient when the device runs for a long time on a humid day.
In this case, we also fixed a weakness in the flexible drainage connection, which was aging. This small fix helped secure the drainage and reduce the risk of future leaks. On a wall-mounted air conditioner, a simple condensate leak can damage the wall, paint, moldings, or furniture located beneath the unit.
Performance tests after repair
After the intervention, we restarted the device and let the system run long enough to observe its actual behavior. The tests confirmed a clear improvement:
- Stronger and more consistent airflow.
- More stable blowing temperature.
- Reduced fan noise.
- Normal condensate drainage.
- No dripping or moisture under the unit.
- Faster cooling of the room.
The customer immediately noticed that the air was coming out stronger. This is often the first perceived change after a complete cleaning of a Chigo wall air conditioner: the device seems to become more responsive again, not because its capacity has changed, but because it is finally allowed to breathe properly.
Why this type of problem often recurs on older wall air conditioners
Wall-mounted units like the Chigo models installed for several years can be robust, but they heavily depend on maintenance. Even a still functional unit can lose a lot of efficiency if three areas are neglected: filters, coil, and fan.
A simple superficial cleaning of the filters is not always enough. The filters trap some of the dust, but not all. Over time, the inside of the device becomes harder to clean without partial disassembly. This is where a HVAC technician can make a real difference.
Here are the most common mistakes we see during our service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore:
Wait for the device to leak before calling
A water leak is often the final result of a problem that has developed slowly. If the drain is partially blocked, it is best to intervene before overflow occurs.
Lower the temperature to the minimum to compensate
When an air conditioner cools poorly, lowering the setpoint to 16 °C does not solve the problem. It forces the unit to run longer, but if the air does not circulate well, efficiency will remain low.
Confusing lack of refrigerant with lack of maintenance
An air conditioner blowing lukewarm air does not always have a refrigerant leak. In this specific case, the main cause was dirt buildup and drainage issues, not a major pressure loss.
Cleaning only the filters
Filters are important, but they are only part of the maintenance. The fan and coil must also be inspected, especially on older units.
The importance of a complete diagnosis before recommending replacement
In the field of HVAC service, it is easy to recommend replacement too quickly, especially when the unit is old or from a less common brand. At AirGreen, we favor a more precise approach: diagnose, explain, repair when reasonable, and recommend replacement only when the unit’s condition justifies it.
For this client from Saint-Vincent-de-Paul, the Chigo unit was not new, but immediate replacement was not necessary. The repair extended its use and restored a satisfactory level of comfort. The client also received clear advice on signs to watch for in the coming months.
Maintenance tips given to the client after the service
At the end of the service call, we took the time to explain to the client how to reduce the risk of recurrence. The advice was simple but important:
- Clean the filters every 4 to 8 weeks during use.
- Keep the area in front of the unit clear.
- Monitor any changes in noise.
- Do not ignore a musty smell.
- Have the drainage checked if water marks appear.
- Schedule more thorough maintenance if airflow decreases.
These tips apply to most wall air conditioners and wall heat pumps. Regular maintenance protects not only comfort but also the lifespan of the unit.
AirGreen: field expertise for residential HVAC repairs
Every service call is different. A wall unit installed in a condo in Montreal, a heat pump on the North Shore, a wall air conditioner in Longueuil, or a residential system on the South Shore may show similar symptoms but have different causes. That’s why our team always works with a structured method: observation, testing, diagnosis, correction, and final validation.
In this project in Saint-Vincent-de-Paul, the success of the intervention came from a combination of several precise actions. Cleaning the unit alone would have improved the situation, but without fixing the drainage, the risk of leaks would have remained. Conversely, just unblocking the drain would not have solved the airflow issue. It was the entire intervention that achieved a lasting result.
Final result: comfort restored and client reassured
After the repair, the Chigo wall air conditioner operated much more steadily. The unit cooled faster, the airflow improved, and condensate drainage was normal. The client was especially reassured to know that the breakdown was not due to a defective compressor or a major refrigerant leak.
This service call highlights the importance of professional diagnostics for residential wall units. An air conditioner that seems weak is not always at the end of its life. In many cases, a well-targeted intervention can restore performance, reduce the risk of water damage, and extend the equipment’s lifespan.
