An outdoor unit installed high that revealed several possible causes of performance loss
In the Sud-Ouest area of Montreal, our AirGreen team was called for a PurePro wall-mounted heat pump repair whose operation was becoming increasingly unstable. The customer reported a drop in indoor comfort, especially during warmer periods, with the impression that the device ran for a long time without achieving the expected result. At times, the wall unit blew air, but the coolness was not consistent. The system also seemed to produce a louder outdoor noise than before.

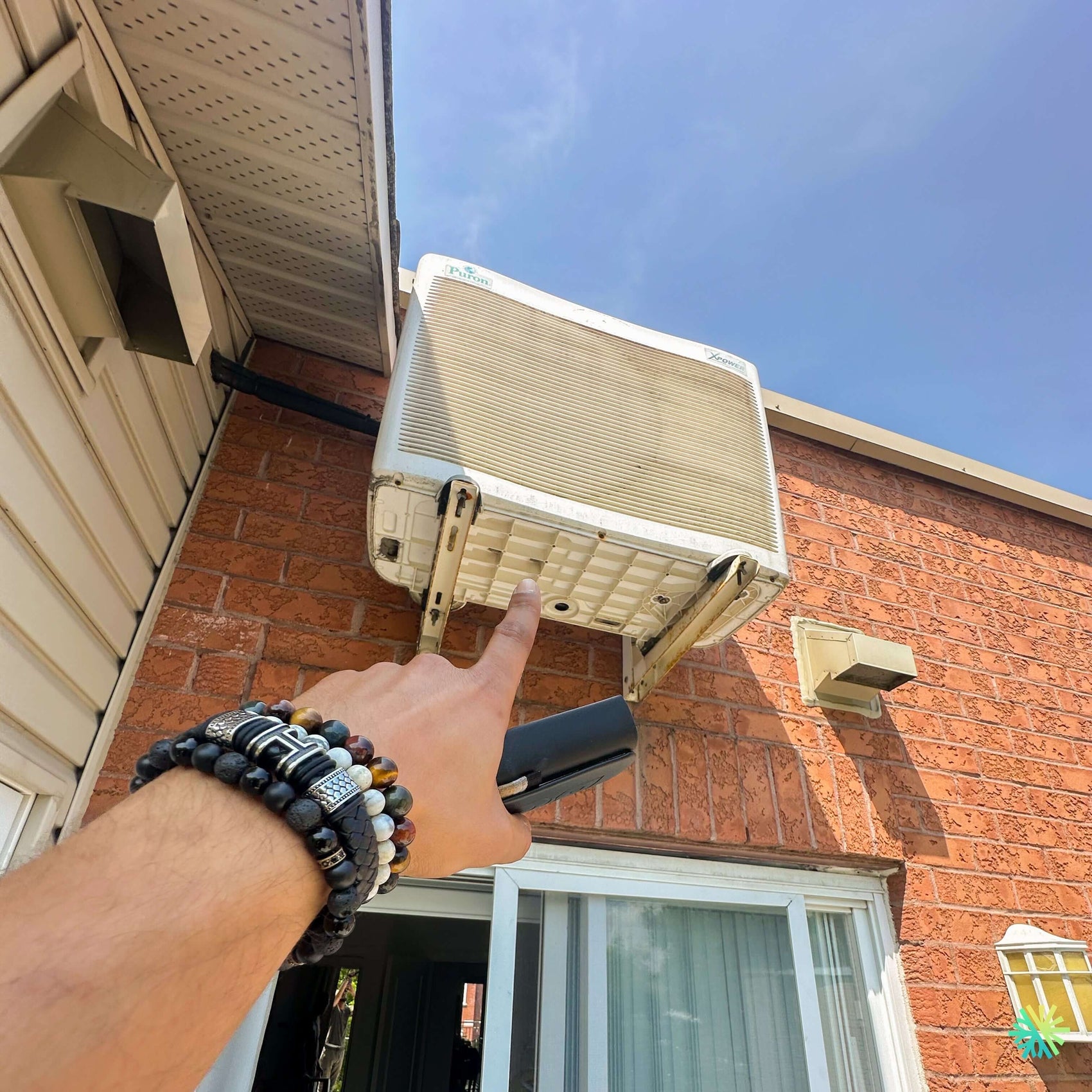

On site, the installation configuration immediately guided our diagnosis. The outdoor unit was mounted high on a brick wall, above a patio door, with limited access due to the facade, soffit, and wall mounts. This type of installation is common in dense neighborhoods of Montreal, especially in Le Sud-Ouest, where backyards, balconies, and side passages often impose space constraints. For a wall-mounted heat pump, the outdoor location directly affects performance, durability, and ease of maintenance.
A PurePro wall-mounted heat pump with visible signs of external wear
The observed device was a PurePro wall-mounted heat pump, a residential mini-split type, with a compact outdoor compressor installed on two metal wall mounts. Visually, several signs warranted technical attention:
- Exterior facade dusty and yellowed by time;
- Front grille loaded with fine dirt;
- Wall mounts showing signs of corrosion;
- Difficult access to the underside of the device;
- Unit placed near the soffit, limiting working space;
- Possible leakage under the device to be checked;
- Potential vibrations transmitted to the brick wall.
The finger pointed precisely to the underside of the unit, indicating the area to inspect: compressor base, drainage opening, support points, and condition of the fasteners. In many HVAC interventions, this part of the outdoor unit is neglected because it is less visible. Yet, it is often there that the causes of noise, abnormal leakage, vibration, or loss of efficiency are revealed.
Symptoms reported by the customer
The client did not describe a total failure, but rather a gradual degradation. This detail is important. A complete failure usually points to a clear cause: power supply, electronic board, compressor, fan motor, capacitor, or communication between units. A gradual loss of performance requires a more detailed analysis.
The main symptoms were as follows:
- cooling less effective than before;
- longer running time;
- more noticeable outdoor noise;
- vibration felt at startup;
- leakage under the outdoor unit;
- doubt about the stability of the supports;
- outdoor maintenance probably delayed.
In a wall system, these signs can be related to a dirty outdoor coil, a partially obstructed outdoor fan, an insufficient refrigerant charge, an inaccurate sensor, a worn control board, weakened fasteners, or simply a lack of maintenance forcing the machine to work longer.
Diagnosis: do not confuse noise, drainage, and refrigerant failure
Our first step was to secure access to the outdoor unit. When a compressor is installed so high on a brick wall, the intervention requires a rigorous method. Before dismantling or handling anything, we check the overall stability of the device, the condition of the brackets, the proximity of openings, the routing of refrigerant lines, and the condition of visible wiring.
We then proceeded with a multi-step diagnosis:
Inspection of supports and vibration points
The metal supports showed signs of oxidation. This does not automatically mean the installation is dangerous, but it requires a check. We inspected the anchor points, the rigidity of the arms, the presence of play, and the contact areas between the unit and its supports. Vibration amplified by a brick wall can be perceived inside as mechanical noise, even when the compressor is still operating normally.
Outdoor coil inspection
The front grille and the coil behind it showed an accumulation of dust and fine debris. A dirty coil reduces heat exchange. In air conditioning, the outdoor unit must release the heat extracted from the house. If air flows poorly through the coil, the system increases its running time, loses efficiency, and may eventually trigger internal protections.
Outdoor fan control
We checked the fan rotation, motor noise, absence of friction, and startup response. A fan that spins but lacks stability or whose motor strains can cause a drop in efficiency without immediately causing a total failure.
Checking the flow under the unit
The area under the device was also inspected. On a wall-mounted heat pump, it is normal for the outdoor unit to produce water under certain conditions, especially in heating mode during defrost cycles. However, in cooling mode, unusual external flow may indicate a misinterpretation of the problem, condensation on the lines, an obstruction, a problematic tilt, or water accumulation in the base.
Operating measurements
Once the visual inspection was completed, we put the device on demand and observed its behavior. We checked the response of the indoor unit, the stability of the outdoor unit, the discharge temperature, and the consistency of operation. The goal was to distinguish a maintenance and outdoor ventilation problem from a true refrigeration failure.
Intervention performed: cleaning, tightening, and reconditioning
In this specific case, the device did not require immediate replacement of the compressor or an electronic board. The main problem came from a combination of factors: external dirt buildup, reduced airflow, vibrations amplified by the mounts, and lack of recent maintenance.
We carried out targeted cleaning of the outdoor unit. The grille and coil were carefully cleared to improve airflow. We avoided any excessive pressure that could bend the coil fins. This step is essential: poorly executed cleaning can damage the device instead of helping it.
Accessible fasteners were checked and tightened when necessary. We also checked areas where vibrations could be transmitted to the wall mount. In several high installations, a simple vibration becomes more noticeable because the wall acts as a resonance surface. The diagnosis should therefore not be limited to the noise itself, but to how this noise propagates.
The underside of the unit was also inspected to confirm that the observed water did not come from a crack, a displaced component, or a significant obstruction. The flow was consistent with operating conditions and the general state of the device, but we recommended monitoring the area after the next cycles to confirm that the phenomenon does not worsen.
Result: a more stable wall-mounted heat pump and a customer better protected against future breakdowns
After the intervention, the PurePro wall-mounted heat pump in Le Sud-Ouest regained more stable operation. The outdoor fan breathed better, the noise was less noticeable, and cooling performance gradually improved. The client also received clear explanations about the device’s condition, the limits of an aging outdoor unit, and precautions to avoid premature deterioration.
Why access to the outdoor unit is so important
A wall-mounted heat pump installed high can be practical to free up floor space, but this setup complicates maintenance. When the device is hard to reach, cleanings are often delayed, signs of corrosion go unnoticed, and abnormal noises are detected later.
In neighborhoods like Le Sud-Ouest, Montreal, Laval, Longueuil, the North Shore and the South Shore, we often see units installed on brick walls, in narrow yards, above doors, near porches, or under soffits. Each installation can be functional, but it must remain accessible for inspection, cleaning, and repairs.
Mistakes to avoid with an aging wall-mounted heat pump
A common mistake is to wait until the device completely stops working before requesting service. Yet, subtle signs are often the most important: louder noise, longer running times, reduced comfort, water in unusual places, vibrations, or dust smell at startup.
Another mistake is to clean the outdoor unit only on the surface. The facade may look clean while the coil behind the grille is clogged. The efficiency of a heat pump depends directly on this air exchange. A dirty device consumes more, runs longer, and wears out its components faster.
You should also avoid ignoring the condition of the supports. Rusted or weakened brackets should never be overlooked, especially when the unit is installed above a passage area. Even if the device still works, periodic checks help prevent unnecessary risks.
When to suspect a more serious breakdown
In this case, the intervention improved performance without major replacement. However, we informed the client of the signs that would justify a more thorough inspection:
- the outdoor unit starts then quickly stops;
- the air blown inside remains lukewarm despite a strong demand;
- the outdoor fan no longer starts;
- the compressor makes an abnormal noise;
- an error displays on the indoor unit;
- the circuit breaker trips;
- ice forms out of season;
- performance drops again after cleaning.
If any of these symptoms recur, a complete diagnosis of the refrigerant circuit, sensors, fan motor, electronic board, and electrical supply would be necessary.
The AirGreen approach to residential HVAC repairs
At AirGreen, we approach every HVAC repair with a structured method. A poorly performing heat pump is not automatically a machine to replace. Our role is to identify the real cause of the problem, fix what can be fixed, and advise the client accurately.
For this intervention in Le Sud-Ouest, the issue was not only mechanical. It was necessary to consider the apparent age of the device, its elevated location, air circulation, the condition of the supports, accumulated dirt, and the client’s indoor experience. This comprehensive assessment helps avoid quick conclusions and unnecessary expenses.
A useful but also preventive repair
The service call helped restore the unit to better condition, but above all, it gave the client a clear understanding of their system. They now know what to watch for, when to request a check-up, and why outdoor maintenance is just as important as indoor unit maintenance.
A PurePro wall-mounted heat pump can continue to provide good service when well maintained, but it must be able to breathe freely, remain securely mounted, and operate without obstruction. In this case, cleaning, tightening, and targeted inspection helped restore better comfort while reducing the risk of a more costly breakdown.
AirGreen regularly intervenes for the repair of wall-mounted heat pumps, wall air conditioners, MultiZone heat pumps, central heat pumps, electric furnaces, air exchangers, and other residential systems. Whether the call comes from Montreal, Laval, Longueuil, the North Shore or the South Shore, our goal remains the same: to diagnose correctly, repair cleanly, and ensure reliable system operation.
