An old GoldStar unit installed under a balcony: a diagnosis where every detail mattered
In Saint-Constant, our AirGreen team was called for a HVAC service call on an old GoldStar wall heat pump, installed against a brick wall, under an outdoor metal structure. Upon arrival, several visual clues made it clear that the intervention would not be a simple surface maintenance: aging unit, limited space above the condenser, nearby vegetation, wall mounts exposed to vibrations, visible outdoor wiring, and dust accumulation around the coil.
The client contacted us because the system was no longer delivering the expected performance. The wall heat pump still worked at times, but the comfort in the room was no longer stable. The air blown inside sometimes felt cool, sometimes warm, and the outdoor unit produced a louder noise than before. This type of symptom is common on older wall systems when several factors accumulate: condenser dirt buildup, limited outdoor ventilation, worn electrical components, unstable refrigerant pressure, or partial blockage of the condensate drain.
A previous generation GoldStar wall heat pump
The machine observed on site was an outdoor unit GoldStar, a brand associated with older residential wall systems. The condenser’s format, its front fan, and its installation on wall mounts clearly indicated a mini-split type system, therefore a wall heat pump or an older wall air conditioner depending on the exact configuration of the indoor unit.
The nameplate was no longer easily readable, which often happens on devices installed outdoors for several years, exposed to sun, humidity, frost, defrost cycles, and temperature variations. Depending on the size of the casing and the type of fan, the device likely corresponded to a common residential capacity, about 12,000 to 18,000 BTU, used to cool or heat a main area of a home.
In this specific case, our goal was not just to get the unit running again. We had to determine whether the failure was due to a repairable problem at a reasonable cost or if the overall condition of the system indicated a mechanical end of life.
Symptoms reported by the client
The client described three main problems to us:
- a drop in cooling performance;
- more noticeable outdoor noise than before;
- intermittent operation, especially on hotter days.
These symptoms may seem simple, but on an older GoldStar wall-mounted heat pump, they can come from several sources. A wall system works as a complete set: the indoor unit, outdoor unit, refrigerant circuit, drainage, electronic board, fan motor, and sensors must all work together. If a single component becomes unstable, overall performance quickly drops.
Visual inspection of the outdoor unit

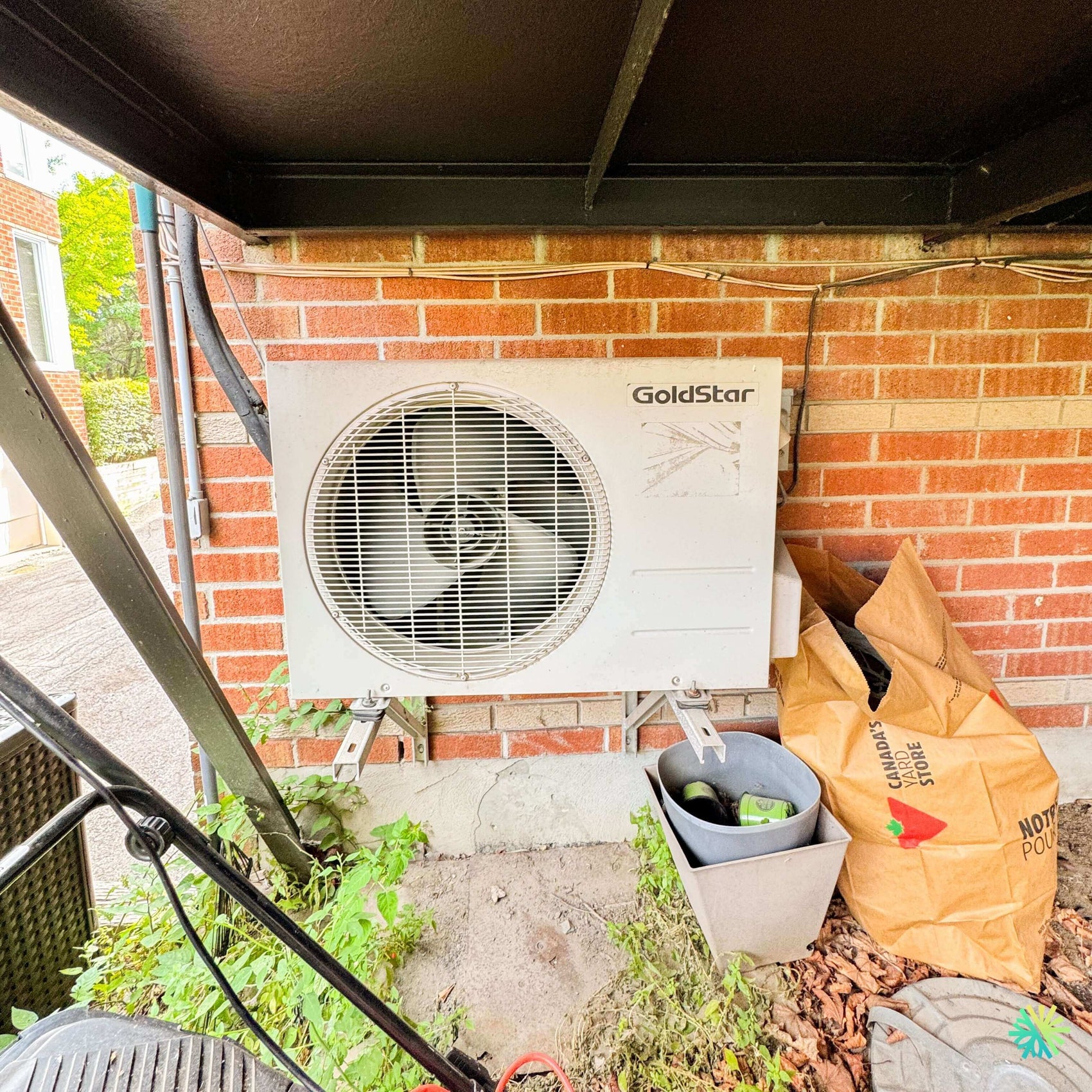

The outdoor unit was installed under a balcony, against a brick wall. This setup partially protects the unit from the weather, but it can also create significant constraints. A wall-mounted heat pump must be able to breathe freely. Air must enter and exit without being slowed down, otherwise system pressure increases in cooling mode, forcing the compressor to work harder.
We paid special attention to four visible elements:
Clearance above the unit
The condenser was placed under a metal structure. Even though the unit had a front fan, the space around the unit remained important for heat exchange. An installation that is too confined can cause hot air recirculation around the condenser. Result: the unit loses efficiency, the compressor heats up more, and the system may shut down for protection.
Condition of the outdoor coil
The front grille revealed a coil that had accumulated dust, plant particles, and dirt. Over time, this buildup acts like an insulating cover. Air passes less effectively through the coil, heat exchange decreases, and the unit has to run longer to produce the same result.
Wall mounts and vibrations
The metal supports still seemed in place, but on older installations, vibrations can be transmitted to the wall, especially when the anti-vibration rubbers are worn or crushed. A noise that increases over the years does not always mean the compressor is finished; it can also come from a tired support, an unbalanced fan, or a loose mounting.
Wiring and refrigeration circuit path
The outdoor wiring and refrigerant lines had to be checked carefully. On old systems, pipe insulation can dry out, crack, or shift. Poorly insulated lines reduce efficiency and can cause unnecessary condensation. Wiring can be affected by moisture, rodents, or repeated vibrations.
Technical diagnosis: do not conclude too quickly that the compressor is defective
On site, our technician started with basic checks: power supply, demand call from the indoor unit, outdoor fan startup, compressor behavior, temperature difference between return air and supply air inside, then the general condition of the refrigeration circuit.
A common trap with older GoldStar units is to immediately assume the compressor is dead as soon as there is a drop in performance. In many cases, the problem is actually due to advanced clogging, a weak capacitor, a slowing fan motor, an inaccurate sensor, or a lack of airflow.
In this service in Saint-Constant, the signs pointed to a combination of problems rather than a single isolated failure.
Targeted condenser cleaning
The first step was to clear the immediate environment of the outdoor unit and carefully clean the coil. On an older device, aggressive actions should be avoided: a jet that is too strong can damage the coil fins, already weakened by age. We therefore proceeded with controlled cleaning, removing accumulated debris and improving airflow through the unit.
This step is essential because a refrigeration diagnosis made on a dirty condenser can give inaccurate readings. Before concluding a refrigerant shortage or compressor weakness, the heat exchange must be as clean as possible.
Checking the outdoor fan
The outdoor fan was another important point. A fan that runs but not at its optimal speed can give the impression that the system is working when it is not properly expelling heat. Our technician observed the startup, rotational balance, motor noise, and the unit's response after several minutes of operation.
The noise reported by the customer seemed to come more from general vibration and the age of the components than from a sudden break. We checked the fastenings, contact points, and the stability of the unit on its supports.
Electrical components: a common cause on older wall systems
On older wall-mounted heat pumps, electrical components are often the first to show signs of fatigue. Capacitors, relays, terminals, and connections can lose reliability over the years. An oxidized connection or a weakened capacitor can cause difficult startup, intermittent operation, or reduced performance.
In this case, the electrical inspection identified a weakness at startup and normal wear of the connections. The components were tightened, tested, and secured. When replacing a part is still possible and available, we always favor a logical repair. However, on an old brand or model, parts availability can become limited.
Performance check after intervention
Once cleaning and checks were completed, we restarted the system to observe its behavior under real conditions. The goal was to confirm:
- the compressor stability;
- the outdoor ventilation;
- the indoor blowing temperature;
- the absence of sudden shutdowns;
- the reduction of vibrations;
- the consistency of operation after several cycles.
The system regained more stable operation. The client noticed improved performance and reduced outdoor noise. However, the unit remained old, and our recommendation was clear: continue using it as long as performance remains acceptable, but avoid investing large sums in major repairs if a main component fails.
Why this repair in Saint-Constant was different from simple maintenance
This type of service call requires a nuanced approach. In Saint-Constant, we were not dealing with a new machine with an obvious breakdown. We were facing a system that still had potential, but whose installation environment and mechanical age required a precise assessment.
At AirGreen, we regularly see this kind of situation in Montreal, Laval, Longueuil, on the North Shore and the South Shore. An outdoor unit installed under a balcony can operate for years, but its performance strongly depends on maintenance, clearance, the quality of the supports, and the cleanliness of the coil.
The importance of the outdoor environment
A wall condenser is not just a mechanical box. It’s a heat exchanger. When surrounded by vegetation, bags, bins, dead leaves, or objects stored too close, its efficiency decreases. In the photo from this service, it’s clear that the space around the unit is also used as an outdoor storage area. Even if these objects don’t directly block the grille, they can reduce natural air circulation and promote dirt buildup.
Old wall mounts need to be monitored
Wall mounts are not eternal. Over time, vibrations, surface rust, freeze-thaw cycles, and the unit’s weight can cause movement. A wall-mounted heat pump that vibrates too much can become noisy, but also strain the refrigerant lines and electrical connections.
In some cases, we recommend replacing the mounts, adding better vibration isolators, or repositioning the unit on a ground base when the location allows. For this intervention, the goal was first to stabilize and check the existing setup.
The trap of costly repairs on end-of-life devices
An old GoldStar unit can still be useful, but it’s important to stay realistic. If the failure involves an unavailable electronic board, a weakened compressor, or a major refrigerant leak, replacement often makes more sense than repair. Our role is to clearly explain the situation, without unnecessarily pushing for replacement or artificially extending the life of a system that would be too costly to maintain.
In this case, the intervention helped recover performance without undertaking a disproportionate repair. This is exactly the kind of technical decision we aim for: fix what can be fixed, inform the client about the device’s limitations, and plan the next steps wisely.
Practical tips for owners of older wall-mounted heat pumps
For owners of systems similar to those in Saint-Constant or elsewhere on the South Shore, a few simple steps can prevent premature service calls.
Keep the outdoor unit clear
Always leave free space around the condenser. Avoid placing bags, bins, pots, wood, tools, or garden furniture too close to the unit. Even partial obstruction can reduce performance.
Have the system cleaned periodically
Professional cleaning removes deep dirt from the indoor and outdoor units. On an old machine, this often makes the difference between a noisy, inefficient system and one that’s still usable.
Watch for new noises
A metallic noise, sudden vibration, electrical buzzing, or a fan changing speed irregularly should be checked promptly. The faster the intervention, the better the chances of limiting damage.
Don’t wait for the device to stop working completely
A wall heat pump repair is often simpler when the machine is still partially working. When it completely breaks down, diagnosis can become more expensive, especially if multiple components are affected.
Service call result
At the end of the service, the GoldStar unit was running more steadily. The customer received a clear explanation of the condition of their wall heat pump, the repairs made, and signs to watch for in the coming months. Improved outdoor airflow, electrical checks, and vibration reduction helped extend the system’s use without requiring immediate replacement.
This service clearly illustrates our approach at AirGreen: diagnose before recommending, repair when reasonable, and guide the customer transparently when a device is nearing the end of its life. Whether it’s for an HVAC repair, HVAC maintenance, a heat pump, a wall air conditioner, or an older residential unit in Saint-Constant, our team works methodically throughout the greater Montreal, Laval, Longueuil, the North Shore, and the South Shore regions.
