An outdoor unit installed on a balcony that was no longer breathing properly
In Laval, our AirGreen team was called for a service call on a WindAir wall-mounted heat pump installed in a residential condo. The outdoor unit was positioned on a balcony, behind a metal railing, near a brick wall and a relatively tall facade. This type of installation is common in residential buildings in Montreal, Laval, Longueuil, on the North Shore and the South Shore, but it requires special attention: a wall-mounted heat pump installed on a balcony can work very well for many years, then gradually lose efficiency if air circulation around the condenser is poor.
The client had noticed a drop in cooling performance. The indoor unit was still blowing air, the remote control responded normally, but comfort was no longer consistent. Some days, especially during hot and humid periods, the room took much longer to cool down. The device also seemed to work harder, with longer cycles and more outdoor noise than before.
So it was not a total breakdown, but a typical wall-mounted heat pump issue where several small factors can add up: dirty condenser, air restriction on the balcony, vibrations, drainage to check, sensors to validate, refrigerant pressure to control, and communication between the indoor and outdoor units to confirm.
The unit in place: a residential WindAir wall-mounted heat pump
The inspected equipment was a WindAir wall-mounted heat pump, a residential mini-split type, with a compact outdoor unit installed on a balcony. According to the observed setup and residential application, the capacity was compatible with a device of about 12,000 to 18,000 BTU, designed to cool and heat a main area of the home.
This category of system is very common in condos and plexes in Laval, as it offers good comfort without ductwork. The indoor unit ensures air distribution in the room, while the outdoor unit evacuates heat in cooling mode and captures outdoor energy in heating mode. However, efficiency depends greatly on air circulation around the condenser.

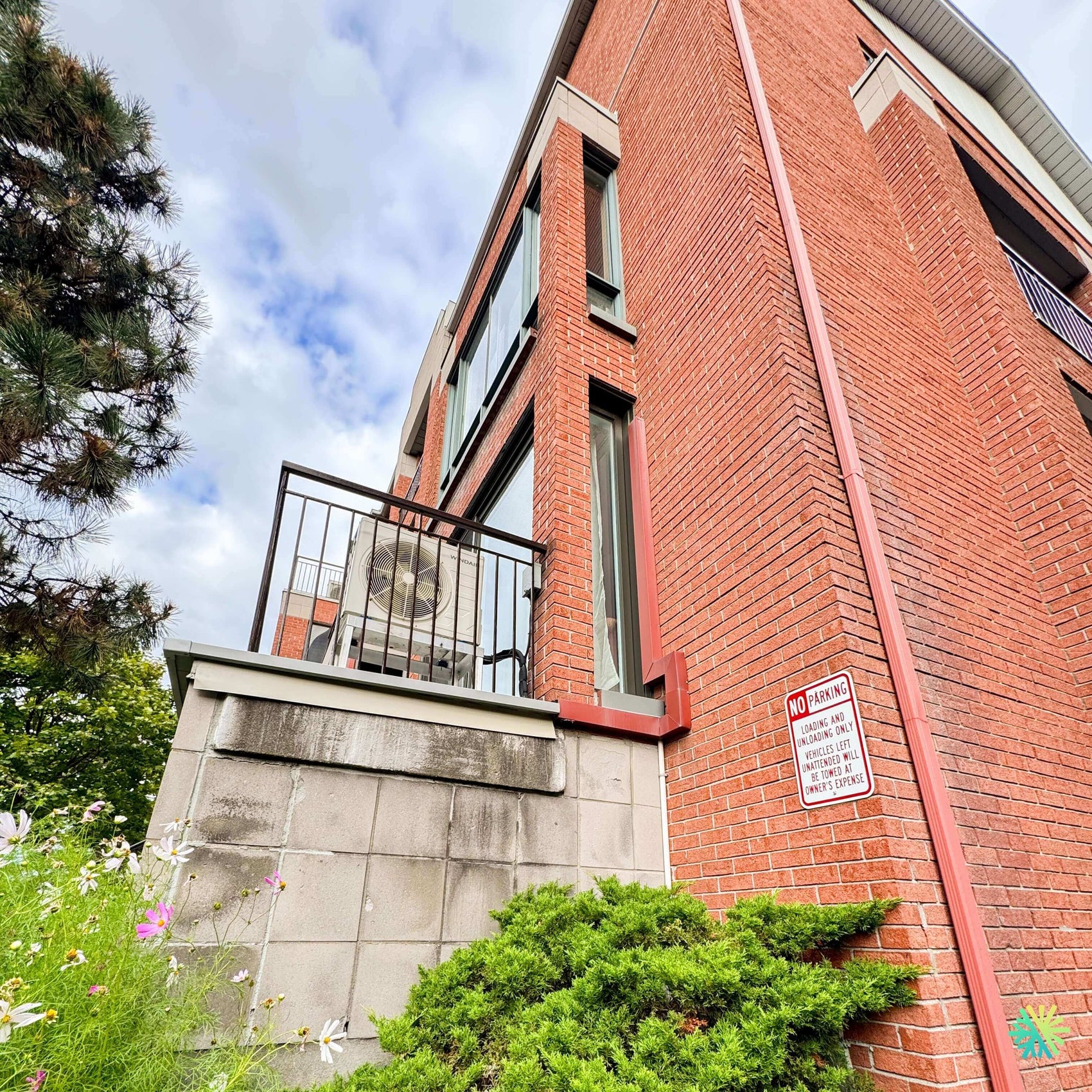

In this case, the outdoor unit was installed on a narrow balcony, against a brick facade, with a guardrail in front of the ventilation grille. This configuration is not necessarily problematic if clearances are sufficient, but it becomes sensitive when the coils get dirty, when leaves or dust accumulate, or when the hot air expelled by the device recirculates to the back or sides of the machine.
Symptoms reported before our intervention
The client described several concrete signs to us:
- slower cooling than before;
- longer operating cycles;
- louder outdoor noise during hot periods;
- feeling that the device was straining;
- variable performance depending on the outside temperature;
- concern about the condition of the outdoor unit on the balcony;
- need to confirm that there was no refrigerant leak or electronic problem.
These symptoms are important because they do not automatically point to a single cause. A WindAir wall-mounted heat pump that cools less effectively may have a lack of maintenance, a clogged outdoor exchanger, a slowed outdoor fan, poor hot air evacuation, a sensor distorted by the environment, a refrigerant problem, or even a communication fault between electronic boards.
That is why our approach always starts with a complete diagnosis, not a random part replacement.
Visual inspection of the balcony and the outdoor unit
The first step was to assess the environment of the outdoor unit. Installation on a balcony imposes different constraints than installation on the ground or on a wall mount. Air must be able to enter and exit freely, without being pushed against a nearby surface.
We checked:
- clearance in front of the ventilation grille;
- the distance between the unit and the brick wall;
- the condition of the outdoor coil;
- the presence of dust, leaves, pollen, or plant debris;
- signs of vibration on the support;
- the condition of the refrigeration connections;
- the passage of cables and pipes;
- the overall stability of the unit on its support;
- the risk of hot air recirculation on the balcony.
In this case, the unit was accessible, but its location favored heat buildup around the condenser on hot days. The guardrail did not completely block the airflow but created a partial barrier at the air outlet. Combined with a dirty coil, this factor could significantly reduce the system's efficiency.
HVAC diagnosis: ventilation, coils, electronics, and refrigerant
After the visual inspection, we proceeded with the usual technical checks for a wall-mounted heat pump repair.
Checking outdoor operation
We started the unit in cooling mode and observed the response of the outdoor unit. The fan started, the compressor responded, but the air discharge seemed less strong than expected. The noise was also slightly more noticeable, not as a critical bearing noise, but more like extra ventilation effort.
This observation led us to two factors: the condition of the outdoor coil and the air circulation around the unit.
Cleaning the outdoor coil
The outdoor coil showed an accumulation of fine dust, pollen, and deposits typical of a unit placed on a balcony. In Laval, units installed near trees, gardens, parking lots, or brick walls can get dirty faster than expected. Even if the unit looks clean from a distance, the condenser fins can be partially clogged.
A dirty outdoor coil often causes:
- higher operating pressure;
- less effective heat rejection;
- longer cycles;
- higher electrical consumption;
- increased fan noise;
- a loss of cooling capacity;
- sometimes protection shutdowns during high heat.
We carefully cleaned the condenser, taking care not to bend the fins. This step helped improve heat exchange and reduce the strain on the system.
Checking the refrigeration fittings
The refrigeration fittings were inspected to detect any traces of oil, a potential sign of a refrigerant leak. No obvious signs of an active leak were observed at the time of the intervention. We also validated the system's behavior during operation to ensure that the performance drop was not mainly caused by refrigerant loss.
In several service calls, customers immediately fear a gas shortage. However, in many cases, the problem initially comes from poor heat transfer: dirty filters, clogged coils, slowed fan, or poor air circulation around the outdoor unit.
Electrical and communication check
A modern wall-mounted heat pump operates with constant communication between the indoor and outdoor units. We checked accessible connections, power supply, absence of error codes, and startup stability. No major electronic board faults were confirmed.
This was reassuring for the client, as an inverter board or communication board issue can turn a simple service call into a more costly repair. In this case, the system responded correctly, confirming that the intervention should focus on technical maintenance, airflow, and optimizing operation.
Work performed: cleaning, stabilization, and performance testing
Our intervention focused on the real causes of the problem, without unnecessary replacement.
Targeted cleaning of the WindAir outdoor unit
The condenser was cleaned to restore good heat exchange. We paid special attention to areas where debris often accumulates: bottom of the coil, corners of the unit, back of the cabinet, and space near the wall.
This cleaning improved the airflow through the coil. After the intervention, the air expelled by the outdoor unit was more consistent, and the system seemed to work less hard in air conditioning mode.
Vibration reduction
Since the outdoor unit is installed on a balcony, we also checked vibration points. Balconies can amplify certain noises, especially when a machine is mounted near a metal structure or a rigid surface. Even slight vibration can be perceived more strongly inside the home or by neighbors.
We tightened accessible points, checked the unit’s seating, and confirmed that the noise heard was not due to a dangerously loose part. The result was more stable operation with better-controlled noise levels.
Drain and indoor unit validation
Even though the main problem came from outside, we also checked the indoor unit and condensate drainage. In air conditioning mode, a wall-mounted heat pump produces water, especially on humid days. A partially clogged drain can cause an indoor leak and give the impression that the unit is malfunctioning, even if the refrigeration circuit is working well.
The drain was checked, and the flow was confirmed. We also recommended monitoring for signs of water accumulation, especially during periods of high humidity.
Final tests in air conditioning mode
After cleaning and checks, the unit was restarted. We observed the system’s behavior during extended operation: startup, outdoor ventilation, blowing stability, indoor unit response, and cooling consistency.
The result was clear: the WindAir wall-mounted heat pump had regained more stable operation, with better capacity to reject heat outside. The client noticed improved comfort and a reduced feeling of system effort.
What this intervention in Laval shows about heat pumps installed on balconies
Wall-mounted heat pumps installed on balconies are convenient but require special attention. In Laval, as in many areas of Montreal, Longueuil, the North Shore, and the South Shore, condos and residential buildings often impose location constraints. The outdoor unit must be placed where it is allowed, sometimes in a restricted space, near a railing or wall.
This type of setup can work properly, provided clearances are respected and the unit is maintained regularly.
Mistakes to avoid with a wall-mounted heat pump on a balcony
Blocking the air outlet with objects
A balcony quickly becomes a storage space. Chairs, bins, plants, boxes, rugs, decorations, and furniture can end up too close to the outdoor unit. Even if the object does not touch the machine directly, it can disrupt airflow.
Neglecting condenser cleaning
An outdoor condenser needs to breathe. When blocked by dust, pollen, or debris, the unit loses efficiency and works harder. Over time, this overload can accelerate compressor wear.
Confusing lack of refrigerant with lack of maintenance
A drop in performance does not automatically mean refrigerant needs to be added. Adding gas without a full diagnosis can mask the real problem and create other imbalances. The right approach is always to check airflow, coils, filters, drain, and installation conditions.
Ignoring vibrations
On a balcony, vibrations can be transmitted to the building, railing, or floor. A slight vibration at first can become annoying over time. A quick check often helps avoid neighbor complaints or premature wear.
Practical advice for WindAir heat pump owners
To extend the lifespan of a WindAir wall-mounted heat pump, we recommend keeping the area around the outdoor unit clear and having the unit inspected as soon as performance changes. The signs to watch for are simple:
- the device cools less quickly;
- the outdoor unit becomes noisier;
- the fan seems to be straining;
- the air blown inside is less cold;
- the machine runs longer than before;
- an abnormal smell or humidity appears;
- water is leaking near the indoor unit;
- an error code appears.
An early service call often allows the problem to be fixed before it becomes a major breakdown.
The AirGreen approach: diagnose before replacing
In this intervention in Laval, our goal was clear: to find the real cause of the performance drop. The solution was not to replace the unit, nor to change an electronic board without proof, nor to add refrigerant unnecessarily. The diagnosis showed that a dirty condenser, limited airflow due to the balcony environment, and some vibrations were enough to explain the symptoms.
Thanks to cleaning, electrical checks, inspection of connections, drain validation, and performance tests, the client regained a more reliable, quieter, and more efficient system.
AirGreen for wall-mounted heat pump repair in Laval
AirGreen regularly services wall-mounted heat pumps, wall air conditioners, MultiZone systems, and residential HVAC equipment in Greater Montreal. Our team serves Montreal, Laval, Longueuil, the North Shore, and the South Shore, with a technical approach focused on real diagnosis and logical repair.
Whether the problem is a drop in performance, noise, a water leak, an error code, a dirty outdoor unit, a clogged drain, or a refrigerant concern, we proceed step by step to avoid unnecessary replacements and restore comfort.
In this project, the WindAir wall-mounted heat pump in Laval was able to continue functioning properly after a targeted intervention. This is exactly the desired outcome of a good HVAC service call: securing the installation, improving performance, reassuring the client, and extending the equipment's lifespan.
