A Fujitsu wall-mounted heat pump installed on a balcony that was no longer delivering full performance
In Delson, on the South Shore of Montreal, our AirGreen team was called for a performance issue on a Fujitsu Halcyon 12,000 BTU wall-mounted heat pump installed on a residential balcony. The outdoor unit, visible in a brick corner, was compact, well secured to the ground, but exposed to a common reality in this type of installation: limited space, airflow restricted by side walls, and gradual accumulation of dirt on the outdoor exchanger.
The client contacted us because the system was no longer responding as before. In cooling mode, the air blown inside became cool at startup, then quickly lost intensity. In heating mode, the heat pump seemed to operate in short cycles, with more frequent stops than usual. No major compressor noise was reported, but the client had noticed increased vibration on the balcony and a general feeling of reduced performance.
At AirGreen, this type of service call requires a methodical approach. An effective HVAC repair is not just about randomly replacing a part: you need to understand why the machine is reacting this way, check the installation environment, measure temperatures, inspect electrical components, validate ventilation, and confirm that the unit can properly expel heat or cold depending on the mode used.
First inspection: a Fujitsu outdoor unit in a tight space

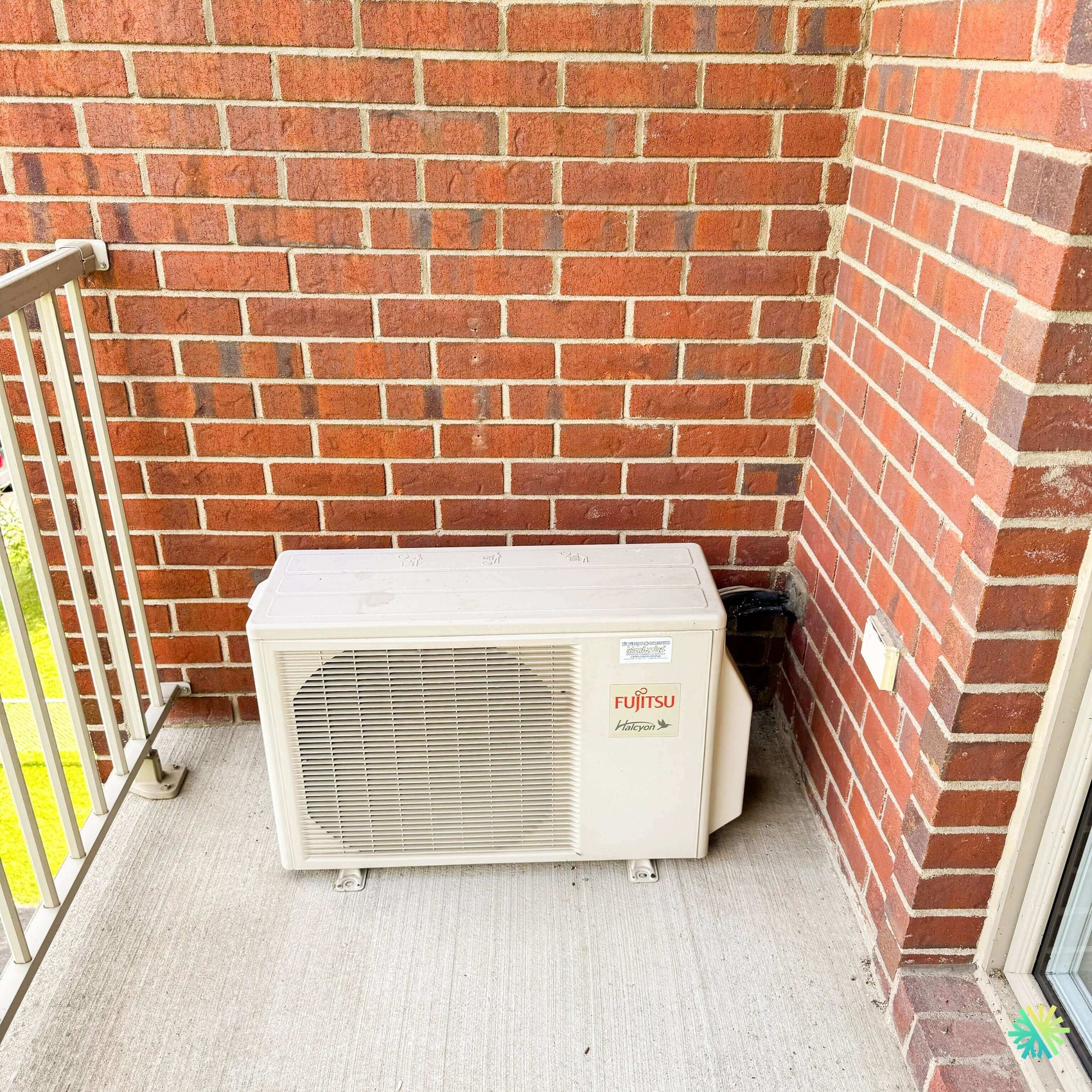

Upon arrival at Delson, our technicians began with a complete visual inspection of the installation. The Fujitsu outdoor unit was positioned on the ground, against a brick wall, in a balcony corner. This type of location is common in condos, apartments, and townhouses, but it imposes several technical constraints.
The first thing checked was the airflow around the condenser. On a wall-mounted heat pump, the outdoor unit must be able to draw in and expel air without excessive restriction. When the hot air expelled by the machine gets trapped in a corner, it can be re-aspirated by the exchanger. Result: operating pressure increases in cooling mode, efficiency drops, and the electronic board may limit power to protect the compressor.
We also noted an accumulation of dust, pollen, and small debris in the condenser fins. Even though the unit looked clean from a distance, a close inspection showed the heat exchanger was partially blocked. This is an important detail: on a compact unit like a Fujitsu Halcyon, a slight obstruction can be enough to significantly reduce heat transfer, especially on hot days on the South Shore.
Symptoms observed during operation tests
After securing the workspace and checking the power supply, we started the heat pump in cooling mode. The startup was normal, but measurements quickly confirmed the problem described by the customer.
The indoor unit was blowing cool air at first, then the temperature difference decreased after a few minutes. The outdoor unit was working, but the fan seemed to be operating under difficult conditions. Hot air discharge was present, but air circulation was poor in the balcony corner. We also noticed slight vibration transmitted through the base of the unit, amplified by the concrete surface.
Our checks focused on several points:
- power supply and connections;
- condition of the communication wiring between the indoor and outdoor units;
- cleanliness of the outdoor heat exchanger;
- rotation of the outdoor fan;
- condition of the supports and anchor points;
- indoor blowing temperature;
- behavior of the inverter compressor;
- insulation of the refrigerant lines;
- condition of the wall passage and sealing around the pipes.
This analysis allowed us to rule out a major compressor failure. The core of the problem was rather a combination of factors: dirty outdoor heat exchanger, reduced air circulation due to corner placement, vibration at the supports, and aging insulation near the wall outlet.
HVAC Diagnosis: not a single failure, but a progressive loss of efficiency
On several service calls, the customer expects only one part to be defective. In this specific case, the Fujitsu wall-mounted heat pump was not completely broken. It was working, but under poor conditions. It is often more subtle, and that is precisely where a professional diagnosis becomes essential.
The system had gradually lost its ability to exchange heat efficiently. A dirty outdoor condenser forces the machine to work harder. A balcony location with limited clearance can worsen this effect. An uncorrected vibration can also, over time, fatigue certain connections or make the customer experience unpleasant, even if the machine is still running.
We explained to the customer that the goal of the intervention was to restore normal operating conditions before the situation led to a more costly breakdown. A heat pump that works harder than necessary consumes more energy, wears out its compressor faster, and can trigger intermittent electronic protections.
A targeted HVAC repair to restore performance and extend system lifespan
Technical cleaning of the outdoor unit
The first step of the repair was a thorough cleaning of the outdoor coil. We worked carefully to avoid damaging the condenser fins. On Fujitsu units, the fins are thin and must be cleaned with the right pressure and angle to avoid bending them.
Cleaning removed a layer of dirt accumulated in the heat exchanger. This layer prevented air from properly passing through the outdoor coil. After cleaning, the fan could circulate air with much less restriction, which directly improves the machine’s performance.
We also cleaned the front grille and cleared the areas around the unit. On a balcony, it’s common to see objects placed near the unit: flower pots, storage bins, outdoor furniture, or seasonal accessories. Even when these objects don’t directly touch the heat pump, they can disrupt air flow. In this case, the space was relatively clear, but we recommended maintaining constant clearance in front of the unit.
Vibration correction and support inspection
The vibration reported by the customer mainly came from the contact between the base of the unit, its mounting brackets, and the balcony surface. The supports were still in place, but some points transmitted more vibrations to the concrete slab.
Our technicians tightened the fasteners, checked the brackets, and added an adjustment to reduce vibration transmission. This kind of fix may seem minor, but it greatly improves sound comfort, especially in balcony installations where the outdoor unit is very close to living spaces.
A heat pump installed on the floor of a balcony must remain stable but should not unnecessarily transfer vibrations to the building. This is even more important in residential buildings in Delson, Longueuil, Montreal, Laval, on the North Shore and the South Shore, where outdoor units are often close to bedrooms, living rooms, or patio doors.
Electrical verification and communication between units
After cleaning and mechanical correction, we proceeded with electrical checks. Fujitsu wall-mounted heat pumps use communication between the indoor and outdoor units. A weakened, oxidized, or poorly tightened connection can cause intermittent behavior, shutdowns, or errors that are difficult to reproduce.
We opened the service access points, inspected the terminals, confirmed the tightness of the connections, and validated the general condition of the wiring. No burnt wires or major damage were detected. However, a slight loosening on a service connection was corrected as a precaution. This type of detail can make the difference between a stable machine and one that triggers an error only under heavy demand.
Inspection of refrigerant lines and insulation
The refrigerant lines passed through the brick wall behind the outdoor unit. The sealing was present, but the insulation visible near the outlet showed signs of wear. Deteriorated insulation can cause efficiency losses, condensation, or accelerated material degradation.
We checked the condition of the lines, confirmed that no visible leaks were apparent to the naked eye, and recommended restoring protection on the exposed section. When insulation is damaged, you should not wait for moisture to do its work. Proper finishing protects the refrigerant lines, improves the durability of the installation, and reduces the risk of unwanted condensation.
Performance tests after intervention
Once the repairs were completed, we restarted the Fujitsu heat pump and observed its behavior over a full cycle. The operation was more stable. The outdoor fan expelled air better, vibration was reduced, and the indoor blowing temperature improved.
The client was able to notice the difference quickly: the cool air was more consistent, cycles were more regular, and the outdoor unit seemed less strained. We also tested the controls, operating modes, and the machine’s response after some adjustments.
The goal of an AirGreen intervention is not just to get the device running again. We want the client to understand what happened, why performance had decreased, and how to prevent the problem from returning too quickly.
Why this type of problem is common with balcony installations
Wall-mounted heat pump installations on balconies are practical, aesthetic, and often necessary in dense residential areas. However, they require special attention.
A balcony naturally creates space limitations. Brick walls, railings, closed corners, and patio doors can influence air circulation. When an outdoor unit is installed in a corner, the expelled air can circulate around the device instead of moving away freely. In summer, this can increase the temperature around the condenser. In winter, the accumulation of snow, ice, or moisture can also hinder clearance.
That is why we always recommend regular maintenance, especially for units installed in less ventilated areas. A well-maintained machine better tolerates installation constraints. A dirty machine quickly loses its performance margin.
Mistakes to avoid with a Fujitsu wall-mounted heat pump
During this service call in Delson, we took the opportunity to give the client practical advice. Many problems can be avoided with simple good habits.
It is important to avoid placing objects in front of the outdoor unit, even temporarily. Also, avoid cleaning the device with too much pressure, as the fins can become deformed. Do not ignore new vibrations, frequent shutdowns, or performance variations. And above all, do not wait for the machine to completely break down before requesting an inspection.
An early HVAC repair often costs less than replacing a major component. In this case, the compressor was still functional, the electronic board showed no signs of damage, and performance was restored thanks to a targeted intervention.
The AirGreen approach: precision, transparency, and lasting results
Each service call is different. A Fujitsu Halcyon installed in Delson does not necessarily respond the same way as a unit installed in Montreal, Laval, Longueuil, on the North Shore, or elsewhere on the South Shore. The environment, maintenance, system age, quality of the initial installation, and daily use all influence the diagnosis.
In this service call, our role was to connect the symptoms to their real causes. The client noticed a loss of comfort. Our technicians identified a loss of efficiency caused by dirt buildup, limited airflow, and mechanical vibrations. The solution was not improvised: technical cleaning, electrical verification, support correction, line inspection, and final tests.
The result was clear: comfort restored, more stable operation, reduced noise, and a reassured client about the overall condition of their heat pump.
Professional service for wall-mounted heat pumps in Delson and Greater Montreal
AirGreen regularly services Fujitsu, Gree, Sharp, Midea, Tosot, Daikin, Mitsubishi, York, Trane, and many other brands. Our teams perform diagnostics, repairs, cleanings, maintenance, and replacements of residential and commercial HVAC systems.
For a wall-mounted heat pump, a wall air conditioner, a central heat pump, a MultiZone heat pump, an electric furnace, or a ventilation accessory, we work with the same priority: to identify the real cause of the problem and propose a clear, durable, and building-appropriate solution.
In Delson, this service on a Fujitsu wall-mounted heat pump clearly demonstrates the importance of comprehensive technical service. A machine may seem to be working but slowly lose its efficiency. A professional inspection allows correcting the situation before it becomes a major breakdown.
