Diagnosis of a wall-mounted air conditioner that was no longer cooling efficiently

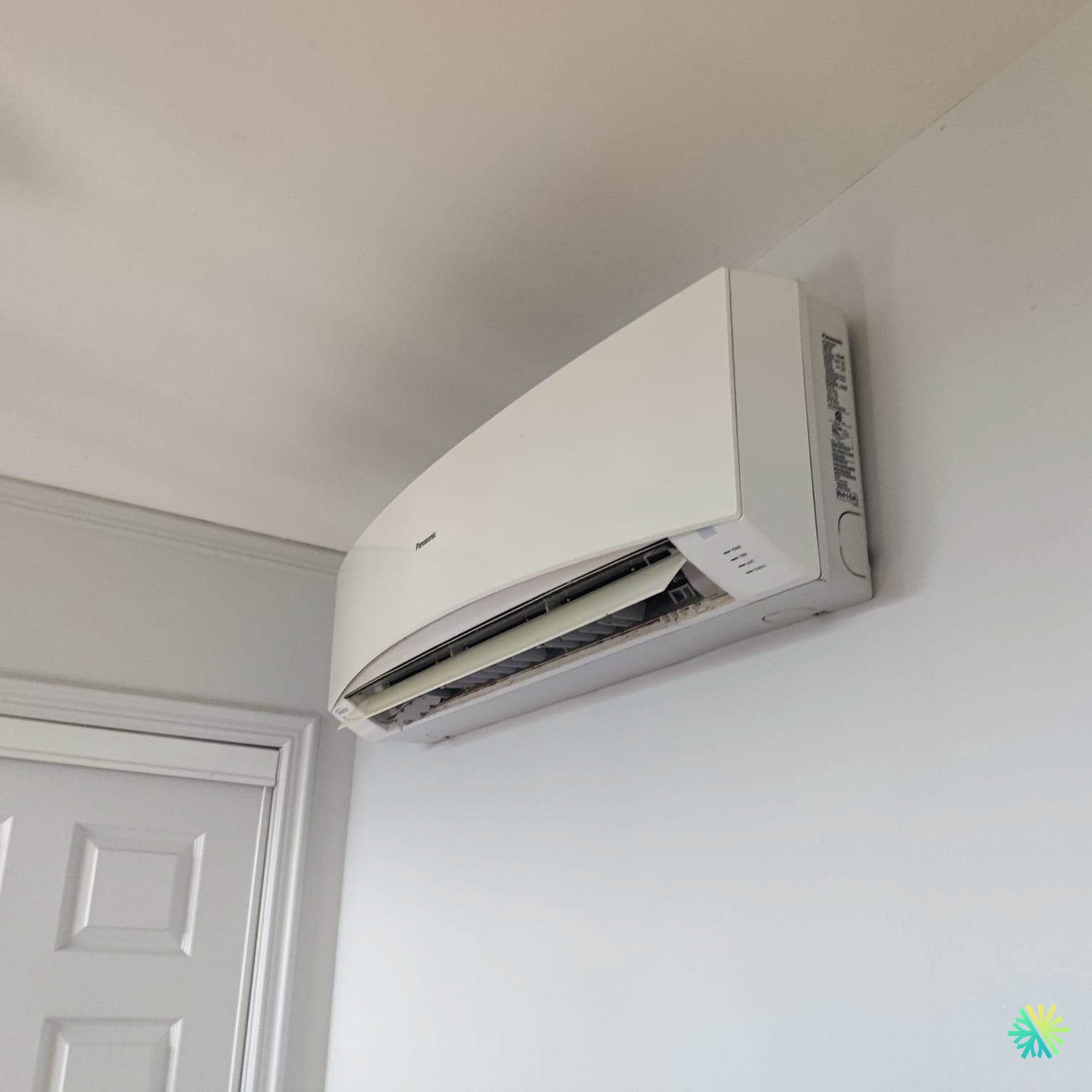

During a service call in Rosemont–La Petite-Patrie , a customer contacted us because their Panasonic wall-mounted air conditioner seemed to be stopping producing cold air, even at full power. The indoor unit was working—the fan was running, the lights were on—but the expelled air remained lukewarm. A frustrating situation during a hot spell, especially for a unit known for its reliability.
At AirGreen , we understand that these types of symptoms often have a variety of causes: a lack of refrigerant, internal contamination, or an electronic problem. As always, our team undertook a comprehensive diagnostic to identify the exact cause and restore system performance.
Initial inspection and verification of components
Upon arrival, we started by checking the remote control, operating mode settings, and set temperature . Everything seemed fine. We then removed the cover of the wall unit to examine the filters and heat exchanger . The filters had a thick layer of dust , a factor that can reduce cooling efficiency by up to 40%.
After thoroughly cleaning the filters with compressed air and mild detergent, we continued our tests. Despite this, the outdoor unit's compressor still wouldn't start. The clue pointed to a communication or pressure problem .
In-depth diagnosis and pressure measurement
We connected our digital manifold to the outdoor unit to take pressure and temperature readings . The result quickly confirmed abnormally low pressure , a likely sign of a refrigerant leak .
To locate the source, our technicians used a high-sensitivity electronic leak detector . After several passes around the valves, welds and flare connections, a micro-leak was detected at the liquid pipe connection .
This type of leak is often caused by repeated vibration of the outdoor unit , combined with overtightening of the flare during initial installation . Over time, the joint becomes fragile and the refrigerant slowly leaks out.
System repair and recharge
To correct the situation, we re-flared the gasket , applied a calibrated torque , and replaced the gasket. We then performed a complete vacuum on the system to remove any moisture or air. Once the system was stabilized, we recharged the system with R-410A according to Panasonic specifications.
We then restarted the air conditioner and observed the operating parameters:
-
Nominal pressures in accordance with the manufacturer's technical table.
-
Blowing temperature 8°C lower than room temperature.
-
No abnormal noise, regular compressor cycle.
The system regained its full cooling power, providing a constant and uniform flow of cold air throughout the room.
Customer recommendations and preventive maintenance
Before leaving the premises, we took the time to train the customer on the basic maintenance of his wall-mounted air conditioner:
-
Clean the filters every 2 to 3 weeks during the summer season.
-
Keep the space around the outdoor unit clear for good air circulation.
-
Schedule an annual professional service to check pressures, probes and refrigerant charge.
We also recommended installing an anti-vibration mount under the outdoor unit to prevent the problem from recurring.
AirGreen expertise in Rosemont and throughout Greater Montreal
This type of intervention demonstrates the importance of accurate and thorough diagnostics to avoid unnecessary repairs. At AirGreen, we combine professional measuring instruments and in-depth technical expertise to extend the lifespan of your equipment and ensure optimal performance.
Our technicians work daily in Montreal, Laval, Longueuil, the North Shore and the South Shore , for the repair, maintenance and installation of residential and commercial HVAC systems . Whether your unit is Panasonic, Fujitsu, Sharp, Gree or Midea, we provide fast, reliable and guaranteed service.
Why Montrealers trust AirGreen
-
Precise diagnosis on site, without guessing.
-
Repairs certified to manufacturer standards.
-
Qualified and continuously trained technicians .
-
Fast and courteous service , 7 days a week.
Thanks to our meticulous work, even the most subtle breakdowns can be transformed into lasting solutions. Your Panasonic wall-mounted air conditioner will regain its full efficiency, and your indoor comfort will remain constant, summer after summer.
