A Carrier central furnace requiring a complete analysis of heating, ventilation, and exhaust

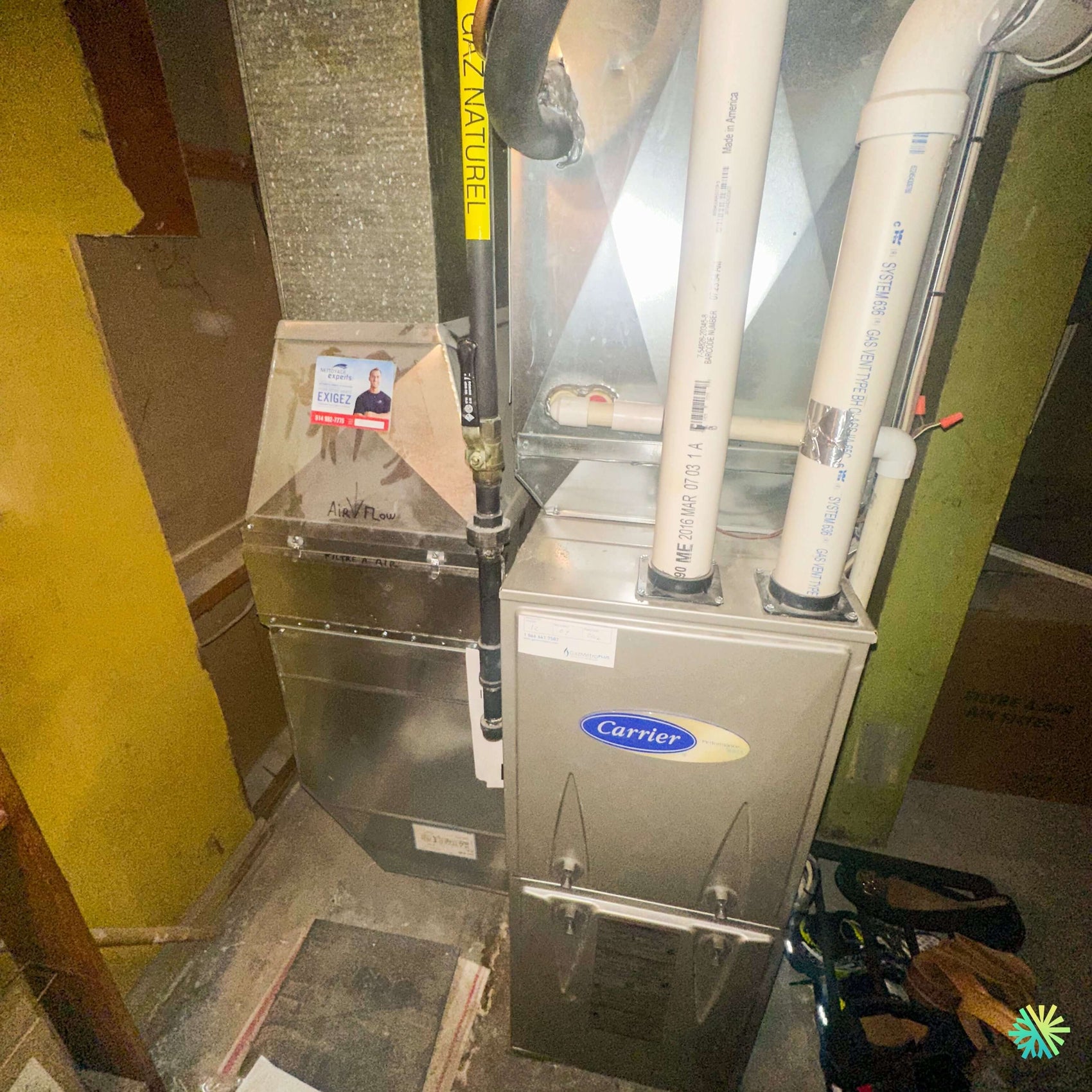

In Laval-des-Rapides, our AirGreen team responded to a service call for a Carrier central furnace installed in a residential mechanical space. The unit was connected to a duct network, with a filtered air return section, a main power supply, PVC ventilation ducts, a clearly identified natural gas line, and several visible mechanical fittings around the cabinet. The client contacted us because the heating was no longer behaving normally: the furnace would start, but the heat distributed throughout the house was irregular, with sometimes too short cycles and an unstable comfort feeling.
This type of breakdown requires careful system reading. A Carrier furnace can show similar symptoms for very different causes: overly restrictive filter, ignition problem, dirty flame sensor, unstable pressure switch, partially clogged condensate drain, worn induction motor, triggered temperature limit, poor air return, or control board fault. In this case, the unit needed not just a “restart”; it was necessary to understand why it could no longer maintain a regular heating sequence.
The observed installation was compact, with little space around the furnace. This detail is very important during an HVAC service call. In established neighborhoods like Laval-des-Rapides, many central systems are installed in basements, mechanical closets, or technical spaces where every duct, pipe, and cable affects access to diagnostics. Our approach was therefore to inspect the furnace as a complete unit: combustion, air circulation, safety, drainage, electrical control, and duct distribution.
Symptoms observed before the intervention
The client noticed that the indoor temperature had difficulty stabilizing. The furnace seemed to respond to the thermostat, but it did not always provide consistent heat. Some air outlets gave proper heat at the start of the cycle, then the system shut off more quickly than expected. At other times, the ventilation continued briefly without the house reaching the requested comfort level.
On site, we noted several important clues:
- Irregular heating cycles, with premature shutdowns.
- Blown air less hot than expected after a few minutes of operation.
- Filtration and air return to check, notably due to the filter box configuration.
- PVC vent to inspect, since a restriction can disrupt the pressure switch.
- Presence of an existing duct network, which may influence airflow.
- Tight mechanical space, making access to internal components more delicate.
- Need to validate internal safety features, especially if the furnace is protecting itself against overheating or poor draft.
These elements indicated that one should not limit themselves to the thermostat. A thermostat can correctly call for heat, but the furnace may refuse to complete its cycle if a safety condition is not met.
Inspection of the air return and filter
The first step was to check the air return. On the installation, the filter compartment was accessible very close to the furnace. An "Air Flow" indication was visible, reminding of the importance of the direction of air circulation. A filter installed backwards, too dirty, or too restrictive can cause a drop in flow, internal overheating, and the triggering of the temperature limiter.
In this case, the filter was a central element of the diagnosis. A furnace that heats properly for a few minutes and then stops may be protecting itself because the air is not circulating fast enough through the heat exchanger. This problem is often misunderstood by homeowners: the unit is not necessarily "dead," it sometimes goes into safety mode to avoid excessive internal temperature.
We therefore checked the filter, installation direction, condition of the cabinet, and quality of the air return. We also inspected accessible seals around the plenum and ducts to spot air leaks or visible restrictions.
Verification of the Carrier heating sequence
A Carrier furnace follows a precise sequence. The thermostat calls for heat, the induction motor starts, the pressure switch confirms proper evacuation, the igniter activates, the gas valve opens, the flame is detected, then the main fan distributes heat throughout the house. If any step is not confirmed, the furnace may interrupt its cycle.
Our diagnosis covered each step:
- Thermostat demand.
- Induction motor start.
- Pressure switch response.
- Ignition.
- Flame detection.
- Activation of the main fan.
- Blow temperature.
- Thermal limiter response.
- Condensate evacuation.
- Stability of the complete cycle.
The observed behavior indicated instability in the sequence, worsened by imperfect airflow. The unit started, but some conditions were not optimal, which could cause quicker shutdowns than expected. On a condensing furnace, special attention must also be paid to drains and evacuation, as water accumulation or restrictions in PVC ducts can disrupt operation.
Cleaning the flame sensor and validating the ignition
A dirty flame sensor can cause a very frustrating symptom: the furnace lights up, then quickly shuts off because the control board does not receive a reliable flame reading. During this service call, we inspected and cleaned the sensor to restore a stable reading.
This task must be done correctly. Overly aggressive cleaning can damage the sensor surface, while insufficient wiping can allow the problem to return quickly. After cleaning, we restarted the furnace to confirm that the flame was consistently detected.
The igniter was also checked. A weakness at this point can cause difficult starts, especially when the furnace is frequently used during cold periods. In this case, the ignition was functional, but a complete validation was necessary to rule out any intermittent cause.
Verification of evacuation, pressure switch, and drainage
The visible PVC ducts on the installation indicate a system requiring proper combustion gas evacuation and adequate condensation management. Partial restriction, a poorly positioned fitting, or a clogged drain can prevent the furnace from operating regularly.
We inspected accessible sections, verified that the system showed no obvious signs of blockage, and confirmed the pressure switch’s response during the startup sequence. The pressure switch acts as a safety device: it confirms that evacuation is working before allowing the heating cycle to continue. When it gives an unstable reading, the furnace may refuse to operate or stop intermittently.
We also checked the condensation drainage. In a high-efficiency furnace, the water produced by condensation must be properly drained. A partially blocked drain can cause shutdowns, error codes, or hard-to-reproduce behaviors.
Airflow correction and recommissioning
After electrical and mechanical checks, we made the necessary corrections to stabilize operation. The filter was replaced or repositioned according to observed conditions, air return points were validated, and components related to the heating sequence were cleaned and inspected. Accessible connections were checked to eliminate intermittent interruptions.
We then ran the furnace through several cycles. This step is essential because a furnace may seem repaired after just one start but reveal its problem on the second or third cycle. We therefore continuously observed the device’s behavior: startup, ignition, temperature rise, fan activation, flame maintenance, and normal shutdown at the end of the demand.
A repair that restored more stable operation to the Carrier furnace
After the intervention, the Carrier furnace installed in Laval-des-Rapides showed much more consistent behavior. The cycles were more regular, the air blown was warmer, and the system responded better to thermostat demands. The client noticed a concrete improvement: the house warmed more efficiently, without the alternation between a promising start and a too-quick shutdown.
Why a central furnace should never be diagnosed too quickly
A central furnace is as much a safety system as a comfort system. It must heat, but it must also confirm that all conditions are met before operating. That’s why a simple restart or quick thermostat replacement is not always enough.
Several mistakes should be avoided in this type of service call:
- Replacing the thermostat without testing the heating sequence.
- Ignoring the filter and return air.
- Neglecting the pressure switch and venting.
- Cleaning the flame sensor without checking the cause of shutdowns.
- Forgetting the condensate drain.
- Concluding too quickly that the furnace must be replaced.
- Allowing a duct or plenum to leak hot air into the mechanical room.
At AirGreen, we favor a comprehensive method because symptoms often look alike. A premature shutdown can come from a sensor, a pressure switch, a drain, a filter, or a thermal safety device. The right repair always depends on correctly diagnosing the system.
The importance of airflow in a central system
Airflow is one of the most important elements in a furnace. Even if the ignition works perfectly, poor air circulation can cause overheating, reduce comfort, and increase wear on the unit. The filter must be appropriate, clean, and installed correctly. Return air vents must be clear. Ducts must be reasonably airtight and free of major restrictions.
In many homes in Laval, Montreal, Longueuil, the North Shore and the South Shore, we see furnaces that have been only partially maintained: the burner or ignition is checked, but the duct network is forgotten. Yet, the heat produced by the unit must reach the living spaces. If it stays in the mechanical room or circulates poorly, comfort will never be optimal.
What our team checks during an HVAC service call on a furnace
During service on a Carrier furnace or another brand of central system, our team follows a structured sequence. We check both the internal components and the conditions around the unit. This approach helps detect simple causes as well as more subtle problems.
We pay attention to:
- Thermostat control.
- The filter and its orientation.
- The return air.
- The induction motor.
- The pressure switch.
- The igniter.
- The flame sensor.
- The gas valve.
- The main fan.
- The condensate drain.
- Temperature limits.
- The control board.
- Accessible ducts.
- Abnormal noises or vibrations.
- The supply air temperature.
This thoroughness makes all the difference, especially when the customer describes an intermittent problem. Intermittent failures require patience and concrete measurements. They cannot be fixed with guesses.
A representative intervention for HVAC needs in Laval-des-Rapides
This repair in Laval-des-Rapides clearly illustrates the type of service call we regularly perform in Greater Montreal. Central systems installed in tight spaces can operate for several years, then start showing signs of instability. The problem may seem sudden, but it often results from an accumulation: neglected filter, dirty sensor, partially clogged drain, aging connections, or reduced airflow.
Our intervention made it possible to put the system back into service more reliably, while giving the customer a better understanding of the actual condition of their furnace. Comfort was restored, but more importantly, the likely causes of irregular shutdowns were addressed rather than masked.
Final result: more constant heat and a better-protected system
At the end of the service call, the Carrier furnace provided more consistent heat, a more stable startup sequence, and better overall performance. The air distributed through the ducts was more consistent, and the system no longer experienced the same premature shutdowns.
For AirGreen, a successful repair is not just about getting the device running again in front of the customer. It involves validating that the system can complete its cycles, distribute heat properly, and operate safely. This approach guides our HVAC interventions in Laval-des-Rapides, as well as in Montreal, Laval, Longueuil, on the North Shore and the South Shore.
