A Mitsubishi wall-mounted heat pump that was running but no longer delivering the expected comfort
In Montreal-North, our AirGreen team was called for a Mitsubishi wall-mounted heat pump repair installed in a residential room where comfort had become inconsistent. The indoor unit, a Mitsubishi Electric Mr. Slim Inverter, was still powered on, the indicators responded normally, the flap opened, but the client noticed three specific symptoms: a weaker airflow than before, a louder fan noise, and uneven cooling capacity depending on the time of day.
At first glance, the device appeared to be in good visual condition. The front was clean, the unit was well secured to the wall, and no obvious error codes appeared. Yet, in HVAC, a machine that “runs” is not necessarily a machine that works properly. It is often in these service calls that the diagnosis must be the most methodical, because the problem hides in the details: air circulation, condition of the fan wheel, cleanliness of the evaporator, condensate drainage, sensor readings, operating pressure, or communication between the indoor and outdoor units.
In this specific case, the Mitsubishi wall-mounted heat pump was installed very close to the ceiling, above a passageway, with limited clearance around the unit. This configuration is not uncommon in Montreal homes, especially when wall space is restricted by moldings, doors, windows, or interior finishing constraints. However, it requires special attention during maintenance and repair, as access to internal components can become more delicate.

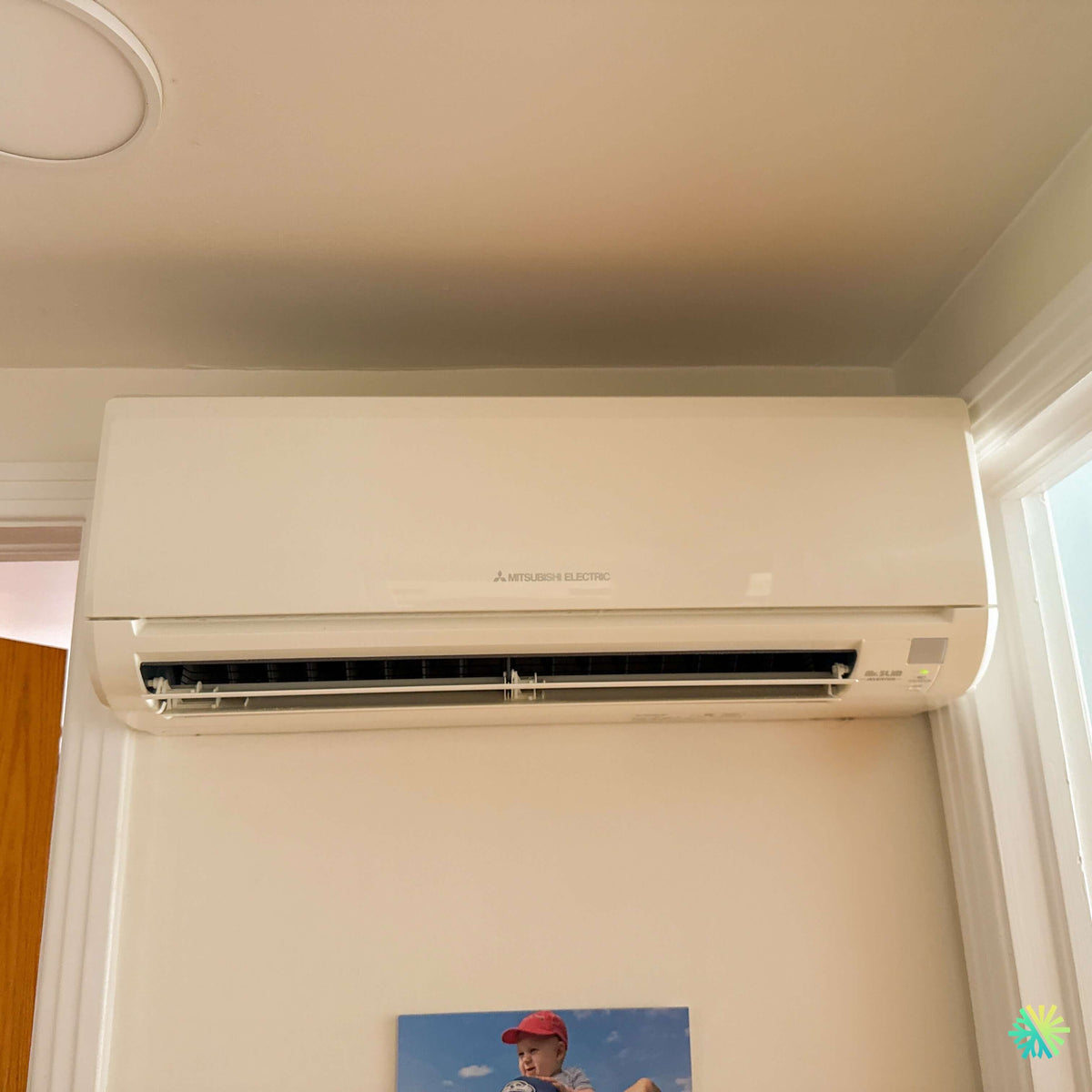

A Mitsubishi Mr. Slim Inverter wall unit of about 12,000 BTU
The observed device corresponds to a Mitsubishi Electric Mr. Slim Inverter wall unit, a type of wall-mounted heat pump very common in residences, condos, and duplexes in Greater Montreal. This type of equipment is appreciated for its power modulation, quiet operation, and ability to adjust its performance according to the actual needs of the room.
In this service, the indoor unit was residential size, around 12,000 BTU, suitable for a living room or main area. As with many Mitsubishi wall-mounted heat pumps, the operation relies on inverter logic: instead of constantly starting and stopping at full power, the system modulates its speed to maintain a more stable temperature.
When this type of device loses efficiency, the most common causes are not always dramatic. It can be gradual clogging, a sensor misreading the ambient temperature, a partially blocked drain, a worn-out fan motor, or disrupted heat exchange due to dust buildup on the evaporator. That is exactly why our approach always starts with a complete reading of the machine’s behavior, rather than a hasty conclusion.
Symptoms reported before our diagnosis
The customer explained that the heat pump no longer cooled the room as quickly as before. The airflow seemed more concentrated in the center of the unit, less uniform across the entire width. The noise was not a loud knock or constant squeak, but rather a slight vibration accompanied by irregular blowing.
The observed symptoms were as follows:
- Reduced airflow, especially at low and medium speeds.
- Less uniform cooling in the room.
- More audible fan noise than usual.
- Functional louver, but less evenly distributed air flow.
- No visible error code, which made the diagnosis more subtle.
- Slight moisture buildup around the air outlet on warmer days.
This type of situation is common when a wall-mounted heat pump continues to start normally, but its internal components no longer allow optimal air circulation. The customer could therefore believe that the system was simply "less efficient with age," whereas a precise diagnosis often restores much of the original performance.
Visual inspection and installation check
Our technician began with a thorough inspection of the Mitsubishi indoor unit. The location above a door opening required careful handling, especially to remove the filters, inspect the evaporator, and access the fan wheel without damaging the front panel or the motorized louvers.
We first checked:
- The condition of the washable filters.
- The cleanliness of the indoor evaporator.
- The condition of the tangential ventilation wheel.
- The movement of the horizontal flap.
- The mechanical stability of the unit on its wall mount.
- The device’s response to different fan speeds.
- The temperature of the return air and the blown air.
- The condensate flow.
The filters were not completely blocked, but they had enough buildup to reduce overall efficiency. The most important point, however, was deeper inside the device: the fan wheel was clogged with fine dust and deposits stuck by moisture. This buildup slightly unbalanced the rotation and reduced the amount of air projected into the room.
Diagnosis: airflow disrupted by internal clogging
The main diagnosis was clear: the Mitsubishi wall heat pump was suffering from an airflow problem caused by internal clogging of the fan wheel and some sections of the evaporator. It was not a major electronic board failure nor a compressor breakdown. The machine still had a good operational base, but it was no longer breathing properly.
In a wall system, room air is drawn in from the top of the unit, passes through the filters, goes over the evaporator, then is expelled by the tangential fan wheel toward the front and bottom. When this wheel is loaded with dust, it loses its ability to move air efficiently. The result is often misleading: the device seems to be on, the air may be cool at the outlet, but the room does not receive enough air volume to quickly reach the desired temperature.
We also checked that the condensate drain was not completely clogged. The flow was present but not as smooth as it should be. A partially slowed drain can increase humidity inside the indoor unit and contribute to the buildup of deposits on internal surfaces. In dense neighborhoods like Montréal-Nord, where many units are installed in compact spaces, these symptoms often return after a few seasons of use without thorough cleaning.
AirGreen intervention: technical cleaning, checks, and recommissioning
The repair was not just about washing the filters. We carried out a structured intervention to restore airflow and validate the overall operation of the heat pump.
Cleaning filters and intake area
The filters were removed, washed, and properly dried. The upper intake area was cleaned to remove dust accumulated around the air inlet. This step is important because a blockage at the intake forces the fan to work harder and can cause unusual noises.
Evaporator inspection and cleaning
The evaporator was inspected to identify areas where dust had settled between the fins. A dirty evaporator reduces heat exchange and can cause less stable temperature differences. We cleaned the accessible surfaces with products suitable for residential HVAC equipment, without using aggressive methods that could damage the fins or electronic components.
Cleaning the ventilation wheel
The tangential wheel was the main source of the problem. Its dirt buildup reduced airflow and caused slight vibration. We carefully cleaned the wheel’s fins, section by section, to restore a more balanced rotation. This step requires patience, especially when the unit is close to the ceiling and installed in a tight space.
Condensate drain check
We then checked the drain to ensure that condensation water was draining properly. A flow test confirmed that the passage was functional after cleaning. This step reduces the risk of droplets, musty odors, and overflow during periods of intense air conditioning.
Testing modes and blowing temperature
Once the unit was reassembled, we conducted tests in cooling and ventilation mode. The airflow was more stable, the noise had decreased, and the blowing temperature was more consistent. We also confirmed that the flap responded correctly to commands and that the device modulated normally according to demand.
Result: comfort restored and quieter operation
After the intervention, the difference was noticeable. The airflow was more uniform across the entire Mitsubishi unit, the ventilation noise returned to a normal level, and the room began to cool down more quickly. The client especially noticed that the device no longer needed to run as long to produce the same level of comfort.
This result illustrates an essential point: an HVAC repair does not always mean replacing an expensive part. In many cases, a thorough inspection, technical cleaning, and methodical restart can extend the unit’s lifespan while improving its efficiency.
For a Mitsubishi wall heat pump, airflow quality is directly linked to performance. Even an excellent inverter system can lose a lot of efficiency if air does not circulate well through the indoor unit.
Mistakes to avoid with a Mitsubishi wall heat pump
During this service call in Montréal-Nord, we also took the time to explain to the customer some common mistakes that can worsen this type of problem.
Waiting for an error code to appear
A heat pump can lose performance without displaying an error code. Codes often signal clearer electrical, electronic, or mechanical anomalies. Internal clogging, low airflow, or a partially slowed drain can go unnoticed for a long time.
Cleaning only the filters
Cleaning the filters is necessary, but it does not replace internal cleaning. The ventilation wheel, evaporator, and drain can accumulate deposits even when filters are regularly washed. This is especially true in homes where the unit often runs in cooling mode during the summer.
Setting the temperature too low
When the customer feels less coolness, they may be tempted to set the thermostat to a very low temperature. This does not solve the airflow problem. On the contrary, the unit may run longer, accumulate more humidity, and increase discomfort.
Ignoring small noises
A slight ventilation imbalance may seem minor at first. However, a noise that gradually increases often indicates that the wheel is loaded, a damper is stuck, or a component is starting to vibrate. Quick intervention prevents the problem from turning into a more serious breakdown.
Local HVAC expertise for Montreal, Laval, Longueuil, North Shore, and South Shore
At AirGreen, we regularly service Mitsubishi, Fujitsu, Gree, Sharp, Midea, Daikin, Carrier wall systems, and many other brands in Greater Montreal. Each service call is different because every installation has its constraints: height, access, room orientation, insulation, location of the outdoor unit, length of refrigerant lines, drain condition, and usage habits.
This intervention in Montréal-Nord demonstrates the importance of a comprehensive approach. We do not just note that the unit turns on. We seek to understand why it no longer delivers the expected comfort. It is this rigor that allows for a good diagnosis, avoids unnecessary replacements, and provides the client with a reliable solution.
Why call AirGreen for a wall-mounted heat pump repair
A wall-mounted heat pump repair requires mechanical, electrical, and refrigeration understanding. The indoor unit may seem simple, but it is part of a complete system. A poor diagnosis can lead to unnecessary expenses, incomplete repairs, or a recurrence of the problem a few weeks later.
Our technicians check all relevant elements:
- Quality of the airflow.
- Condition of the evaporator.
- Cleanliness of the ventilation wheel.
- Condensate drainage.
- Responses of the remote control and louvers.
- Behavior in cooling, heating, and ventilation modes.
- Signs of noise, vibration, or obstruction.
- The consistency between the temperature request and actual performance.
Whether the intervention is in Montréal, Laval, Longueuil, on the North Shore or on the South Shore, our goal remains the same: to offer clear, professional, and lasting service.
A repaired device, a reassured client
At the end of the service call, the Mitsubishi heat pump was operating much more stably. The client was able to immediately notice the improvement in airflow and the reduction in noise. We also recommended periodic preventive maintenance to prevent the ventilation wheel and evaporator from becoming clogged again.
This repair in Montréal-Nord is a good example of the value of an accurate diagnosis. A machine that simply seems tired can often be restored with the right checks and technical actions. For AirGreen, every intervention is an opportunity to restore comfort, optimize performance, and extend the lifespan of residential HVAC equipment.
