An electric furnace in the basement causing irregular cycles and loss of comfort
At AirGreen, we responded in Kirkland to a service call regarding an electric furnace installed in a residential basement and connected to an existing duct network. The customer had noticed uneven heating in the house for some time: some rooms quickly became comfortable, while others remained colder despite a constant thermostat demand.
The situation was all the more concerning because the furnace seemed to start normally. The fan operated, air circulated through the ducts, but the heat produced varied from cycle to cycle. This type of problem requires a methodical approach, as an electric furnace can show similar symptoms for very different causes: faulty relay, weakened sequencer, partially failed heating element, air restriction, poor electrical contact, saturated filter, or control problem.
Initial inspection of the electric furnace

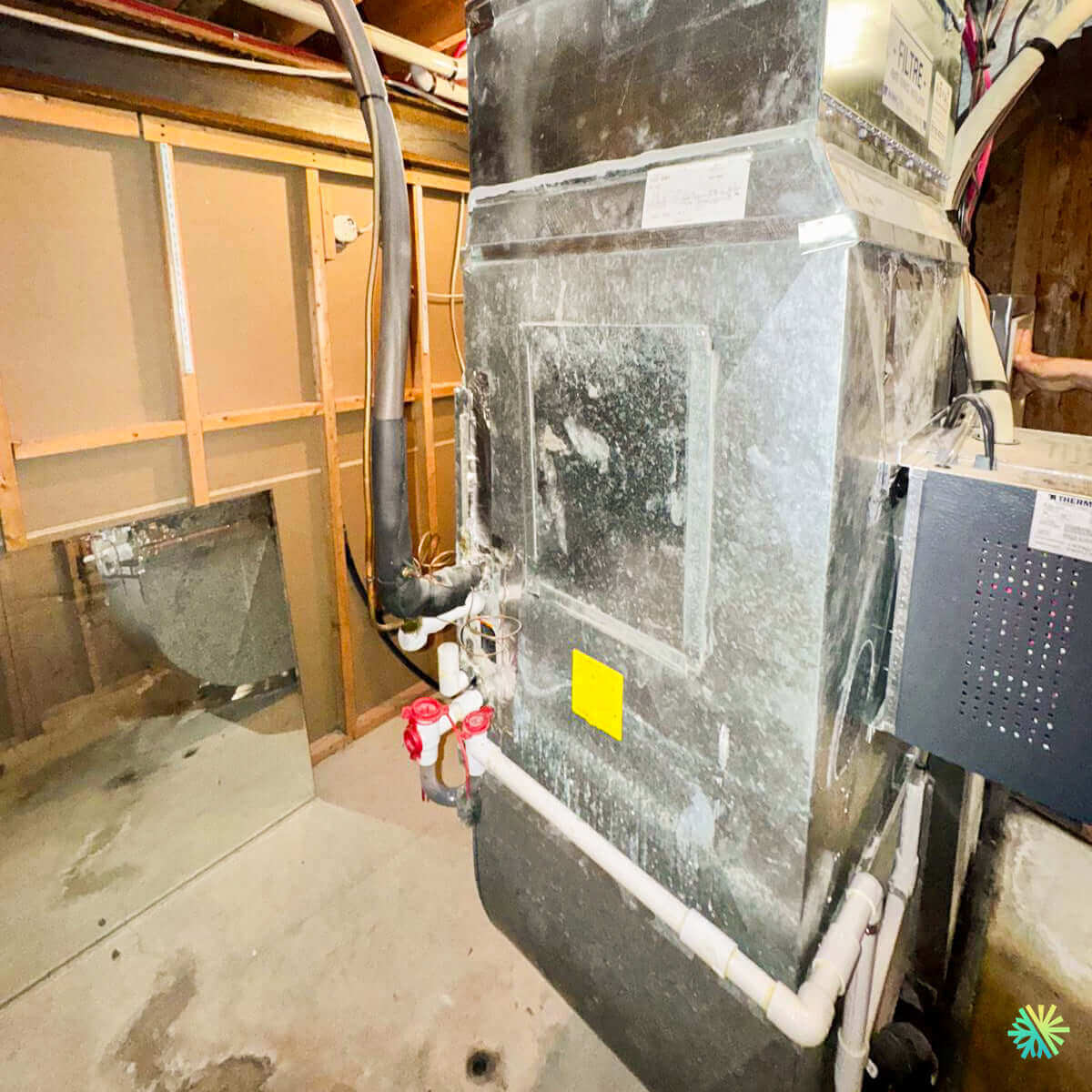

The unit was installed in a mechanical area of the basement, with a vertical metal plenum and several ducts connected to the unit. The environment around the furnace showed typical signs of an older installation: dust marks on the panels, limited technical access on some sides, and several visible plumbing, drainage, and electrical connections.
Our technicians first checked:
- The general condition of the cabinet;
- The access panel to internal components;
- The low-voltage thermostat wiring;
- The main electrical connections;
- The operation of the fan;
- The static pressure in the ducts;
- The condition of the filter and air return;
- The activation sequence of the heating elements.
This first step confirmed that the furnace was not completely broken but was operating irregularly.
Symptoms observed during the service call
The customer reported several specific signs:
- Air sometimes blown lukewarm rather than hot;
- Short heating cycles;
- Fan that kept running after the heating elements stopped;
- Indoor temperature difficult to stabilize;
- breaker not tripped, but variable performance;
- feeling of weaker heating in distant rooms.
These symptoms are common in forced-air systems when the furnace produces partial heat or when the airflow no longer matches the actual needs of the house.
Electrical diagnosis, airflow check, and service restoration
Heating elements check
An electric furnace heats the air using resistive elements activated in stages. When an element stops working, the unit can continue to blow air but with reduced power.
We then proceeded with a complete check of the heating elements.
Our measurements identified that one of the heating circuits was not activating steadily. The problem was not a completely burnt element but an intermittent contact in the control chain.
Sequencer and relay control
The sequencer plays a crucial role: it activates the heating elements progressively to avoid a sudden electrical demand.
During the heating demand test, we noticed an abnormal delay between activation steps. A relay also showed signs of wear, with an irregular response when the thermostat sent the demand.
This anomaly explained why the house sometimes received sufficient heat, then sometimes only lukewarm air.
Fan inspection
The fan motor was working, but the inside of the unit and some areas of the return air had a significant dust buildup. This accumulation can hinder airflow and force the furnace to operate less efficiently.
We checked:
- the fan rotation;
- the condition of the blower wheel;
- vibrations;
- the motor's electrical consumption;
- the motor's response to controls;
- the system's static pressure.
The fan did not need to be replaced, but targeted cleaning and operational adjustment were necessary.
Airflow problem in the ducts
An electric furnace can lose a lot of efficiency when the duct network is unbalanced. In Kirkland, we found that some dampers were partially closed and the return air was more restrictive than expected.
This situation caused:
- uneven heat distribution;
- shorter cycles;
- a sensation of less warm air;
- unnecessary stress on electrical components.
We recommended the client keep the main registers open and avoid blocking air returns with furniture or stored objects.
On-site intervention performed
Our technicians carried out a complete overhaul of the electric furnace.
The intervention included:
- tightening accessible electrical connections;
- checking control circuits;
- replacement of relay showing unstable response;
- heating sequencer test;
- targeted cleaning of critical areas;
- fan inspection;
- thermostat validation;
- checking airflow at main outlets;
- final control of blowing temperatures.
After replacing the relay and correcting restriction points, the furnace regained a much more stable heating sequence.
Result after repair
After the repair, we performed several full heating cycles to confirm system stability.
The results were clear:
- regular activation of heating elements;
- warmer air blown;
- more constant cycles;
- better comfort in distant rooms;
- more consistent fan operation;
- absence of electrical tripping;
- thermostat responding correctly to demand.
The client immediately noticed a difference in heating quality.
Why this type of repair is important before winter
In Kirkland, as in many areas of Montreal, Laval, Longueuil, the North Shore and the South Shore, an electric furnace must be able to operate reliably during long cold periods.
A weakened electrical component may seem minor at first, but it can lead to:
- an increase in consumption;
- accelerated wear of relays;
- a local overheating;
- a loss of comfort;
- a complete breakdown at the least convenient time.
A preventive diagnosis often helps avoid a much more costly repair.
Common mistakes to avoid with an electric furnace
Waiting for the furnace to stop working completely
A furnace that heats less than before already sends an important signal. It is better to intervene at the first signs.
Neglecting the filter
A dirty filter can reduce airflow, cause abnormal cycles, and decrease the overall efficiency of the system.
Closing too many registers
Closing several air vents does not always save energy. It can actually unbalance the system.
Ignoring unusual smells or noises
A warm smell, an electrical buzzing, or repetitive relay noise deserves a professional check.
Replacing the thermostat without diagnosis
Many problems seem to come from the thermostat, while the real cause lies in the furnace, sequencer, relays, or airflow.
AirGreen expertise for residential heating systems
At AirGreen, we work on electric furnaces, central heat pumps, wall-mounted heat pumps, forced-air systems, and residential HVAC equipment throughout the greater Montréal area.
Our approach is based on a complete system analysis, not just the quick replacement of a part. In this specific case in Kirkland, the problem could not be solved by simply resetting the thermostat. It was necessary to measure, test, isolate the real cause, and confirm the result with several operating cycles.
An electric furnace restored for reliable heating
This intervention in Kirkland clearly illustrates the importance of a thorough diagnosis on an electric furnace. The system was not completely out of service, but its irregular operation reduced the comfort of the entire house.
Thanks to the replacement of a weakened relay, targeted cleaning, airflow verification, and comprehensive electrical testing, we helped the client regain stable, safe, and efficient heating.
For owners in Montréal, Laval, Longueuil, the North Shore and the South Shore, a service call made at the right time can extend the lifespan of an electric furnace and prevent a major breakdown during the cold season.
