An old central system that was still heating but no longer distributing air properly
In the Saint-François area of Laval, our AirGreen team was called for a typical problem of older central installations: an electric furnace connected to an existing duct network that was still working but whose performance no longer met the actual needs of the house. The client noticed that some rooms remained cold, heating cycles seemed longer than before, and the airflow at the vents was not uniform.

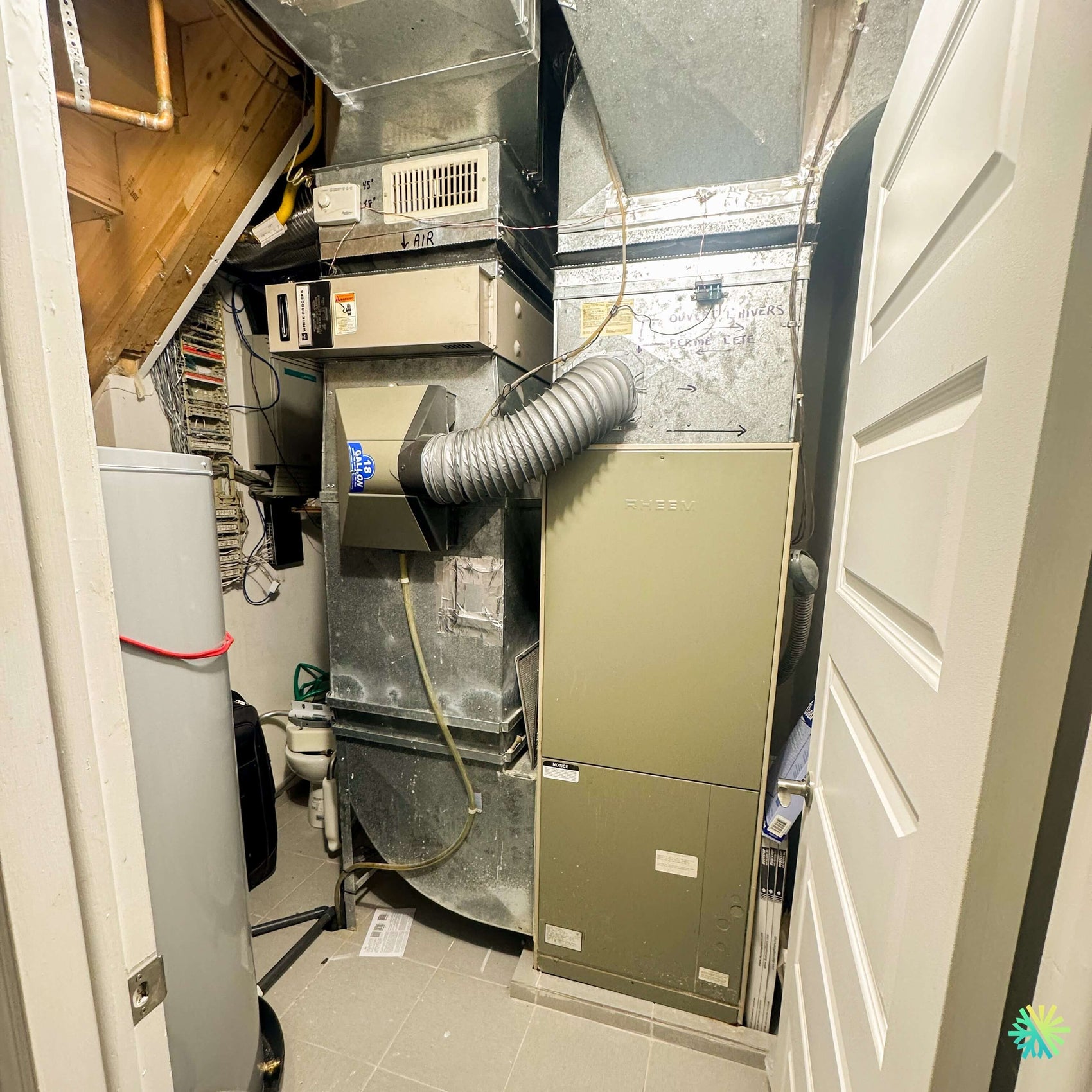

At first glance, the installation had several important elements to analyze: a central heating cabinet, metal ducts, an air return, a humidification accessory attached to the duct, a mechanical humidification thermostat, visible electrical connections, and a relatively tight mechanical space. So this was not an intervention where it was enough to “change a part.” It was necessary to understand how the entire HVAC system was behaving.
This type of setup is common in many homes in Montreal, Laval, Longueuil, the North Shore, and the South Shore: a central system that has been adapted over the years, sometimes with added accessories, duct modifications, thermostat changes, or partial heating conversions. Over time, each small restriction can become a comfort issue.
Symptoms reported before our arrival
The client explained to us that the house was not completely without heating. The furnace would start, air would come out of the vents, but the comfort was inconsistent. Rooms near the mechanical room received more air, while more distant areas seemed less well served. The thermostat called for heat longer, and the blown air did not always feel warm enough.
The main symptoms were as follows:
- uneven heating between rooms;
- low airflow at certain outlets;
- prolonged heating cycles;
- sensation of dry air;
- concern about the general condition of the ducts;
- more noticeable ventilation noise during certain cycles.
On an electric furnace, these signs can come from several sources: clogged filter, worn ventilation motor, partially inactive heating element, faulty relay, insufficient return air, poorly connected humidifier, closed damper, or restriction in the duct network. Our job was to isolate the cause without assuming too quickly that the furnace needed to be replaced.
Visual inspection of the central system
The first step was a complete inspection of the installation. The unit was located in a narrow mechanical room, with an existing duct network and several accessories installed around the system. We observed a typical configuration of a central system that had been in use for many years: metal ducts, added connections, handwritten marks on the duct, flexibles, control wires, and sometimes limited access to components.
This reality directly influences the repair. In a compact mechanical space, work must be precise, access secured, connections checked without damaging ducts, and each component tested under the right conditions.
We inspected:
The furnace cabinet
We checked the general condition of the unit, access panels, signs of overheating, excessive dust traces, vibration noises, and the fan response.
The duct network
We observed transitions, connections, possible air leaks, restriction areas, and elements that could impair distribution.
The humidification accessory
The system included a duct humidifier with wall or mechanical control. Its condition and connection could influence the sensation of dry air and air circulation.
Electrical checks
On an electric furnace, a significant part of the diagnosis involves checking heat calls, relays, activation sequence, and consistency between the thermostat and the system response.
Diagnosis: a combination of reduced airflow and heating sequence to be validated
After the initial checks, it became clear that the problem was not a total breakdown. The furnace was indeed receiving a heating request, the fan started, and the air circulated. However, the airflow was not optimal, and the blowing temperature had to be validated over several cycles.
We then conducted a more detailed analysis. The filter and return air areas were inspected because a central system cannot heat well if the air does not return properly to the furnace. A restriction in the return air forces the fan to work harder, reduces the amount of air treated, and can create significant differences between rooms.
We also checked if all heating stages were responding normally. An electric furnace can continue to produce heat even if an element or relay is not working at full capacity. In this case, the client simply feels that “it heats less than before,” without necessarily seeing an obvious failure.
Air circulation intervention
Much of the intervention focused on air circulation. We corrected accessible points that reduced system efficiency and advised the client on mistakes to avoid. Many homeowners close certain vents to push air toward other rooms, but this practice can sometimes worsen the situation. A duct network needs a certain balance to maintain acceptable pressure.
We checked the main outlets, the condition of the vents, the returns, and the fan’s behavior. The system showed signs of restriction and imbalance, which partly explained the differences between rooms.
The intervention helped restore better circulation, mainly by reducing obvious obstacles and confirming that the system needed to operate with enough open vents. In a home equipped with a central furnace, comfort depends not only on heating power but also on the ability to distribute that heat.
Humidifier and dry air check
The client also mentioned a sensation of dry air. This remark was important because the installation included a humidification accessory. In homes heated by forced air, especially during winter, a humidity level that is too low can make the air uncomfortable and give the impression that the temperature is lower than it actually is.
We inspected the humidifier, the control, and the visible connections. A poorly maintained humidifier can stop working properly, even if it still appears connected to the system. It can also accumulate deposits, be poorly supplied with water, or not receive the correct command.
We explained to the client that humidification should never be set randomly. Too little humidity causes discomfort; too much humidity can cause condensation on windows, in ducts, or near cold walls. The correct setting depends on the outside temperature, the home's airtightness, and the actual operation of the furnace.
Stabilization of operation after testing
After checks and adjustments, we restarted the system over several cycles to confirm its behavior. An HVAC repair should not stop at the first successful start. We observed the fan response, the stability of the supply air temperature, overall distribution, and operating noises.
The system regained more consistent operation. Air circulated better, cycles were more regular, and the client better understood why comfort had gradually decreased. In this case, the result did not come from a single spectacular action but from a precise diagnosis and rebalancing of several elements.
Why an old electric furnace requires a complete diagnosis
An electric furnace repair in Saint-François requires a different approach than a simple thermostat replacement or quick cleaning. Older central systems often consist of elements added or modified over the years. Each addition can be useful but can also complicate diagnosis when comfort decreases.
At AirGreen, we always look at the installation as a whole: furnace, ventilation, ducts, thermostat, humidifier, air return, electrical supply, and usage habits.
Common mistakes observed with this type of installation
Replacing the thermostat too quickly
A faulty thermostat can cause problems, but it is not always responsible. If the furnace properly receives the heat call, the problem may come from the internal sequence, airflow, or heating elements.
Neglecting the air return
Insufficient air return is one of the most common causes of poor comfort. Even a powerful furnace cannot work well if it lacks air to heat.
Installing an overly restrictive filter
Some very dense filters reduce airflow too much. They can protect against certain particles but harm performance if the system is not designed for that resistance.
Ignoring the humidifier
An unused, poorly adjusted, or dirty central humidifier can affect comfort levels. It must be checked as a real component of the HVAC system.
Waiting for the system to stop completely
Signs of weakness often appear before a breakdown: different noise, less warm air, longer cycles, cold parts, increased dust, or too low humidity.
A useful service for both repair and prevention
This intervention in Saint-François allowed the client to regain more stable heating and better understand the limits of their system. An older electric furnace can still provide good service if well maintained and if the duct network remains functional. However, when an installation accumulates restrictions, poorly maintained accessories, or inaccurate controls, performance declines.
Our role is to identify what can be fixed immediately and what needs to be monitored. In this case, a full replacement was not the logical first step. The priority was to restore acceptable airflow, confirm heating response, and advise the client on future maintenance.
Final result of the service call
At the end of the service, the electric furnace operated more consistently. Airflow was better distributed, cycles were more consistent, and the humidifier had been checked as part of the overall diagnosis. The client was able to see that the problem stemmed from a combination of factors rather than a single obvious failure.
This approach helped avoid premature replacement and restored more reliable system performance. In an area like Saint-François, where many homes still have central installations adapted over time, this type of service is essential to extend equipment lifespan.
