A Daikin wall unit that cooled poorly despite apparently normal operation
In a residential apartment in Montreal, our AirGreen team was called for a HVAC service call on a Daikin wall-mounted heat pump installed high in a main room. At first glance, the indoor unit seemed to be working: the louvers opened, the fan started, the wall controller responded to commands, and no permanent error code was displayed. Yet, the client noticed increasing discomfort: the room no longer cooled efficiently, the air blown seemed less fresh than before, and the device sometimes produced a slight vibration noise at startup.
This type of situation is common with older or poorly maintained wall-mounted heat pumps. A machine may seem to be working normally while having lost a significant part of its actual capacity. At AirGreen, we regularly handle this kind of intervention in Montreal, Laval, Longueuil, on the North Shore and the South Shore, especially when the wall unit is placed near the ceiling, above furniture or shelves, which complicates access and sometimes promotes a gradual accumulation of dust in the evaporator and the fan.
The context of the service call

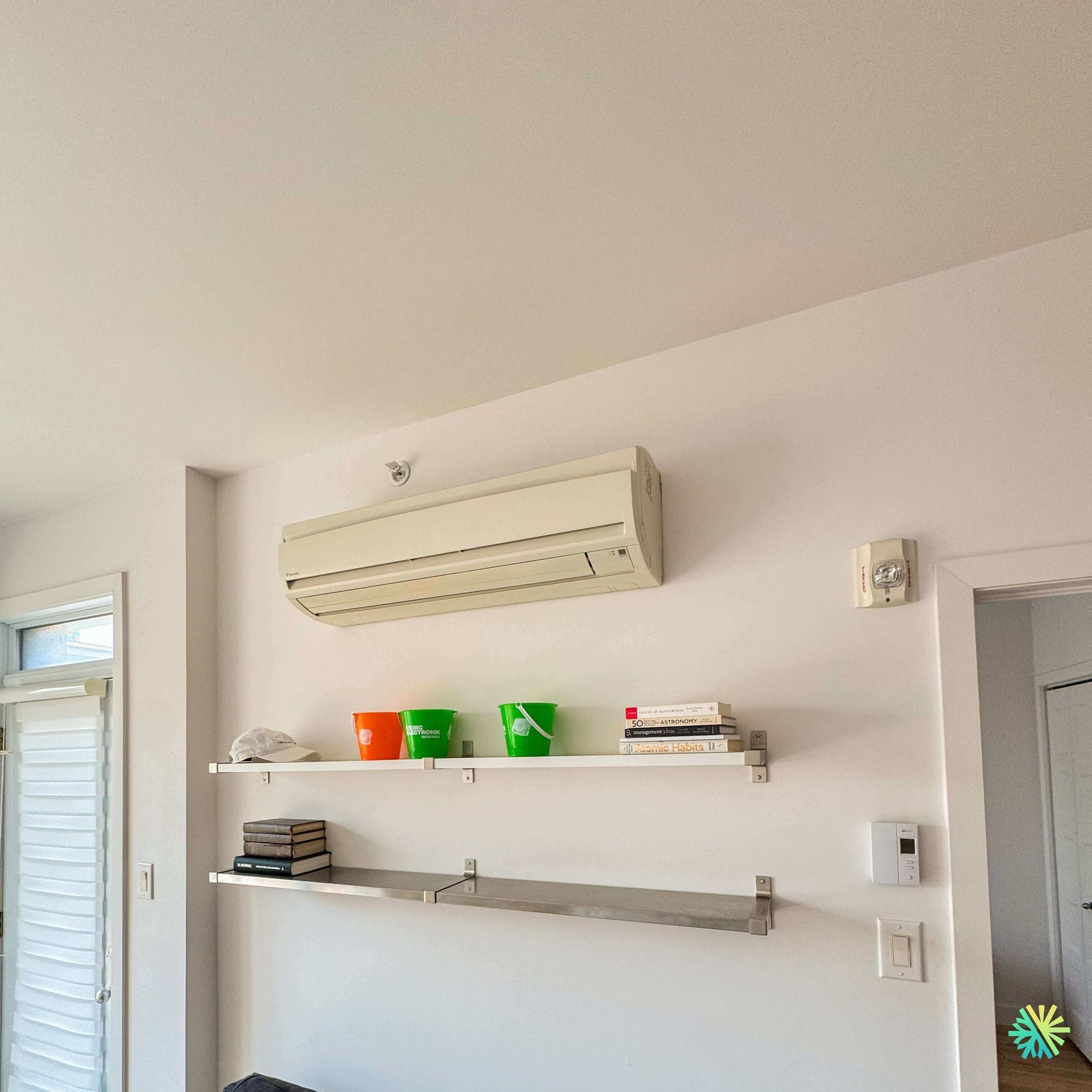

The machine in question was a Daikin wall-mounted heat pump, a residential mini-split type, with the indoor unit installed on the wall and a wall controller nearby. The installation was clean and compact, but the unit was placed very high, making visual inspection more difficult for the owner. The reported problem was simple in appearance: the device was blowing air but no longer cooling as before. The client also noticed that the airflow seemed irregular, with a sensation of less powerful air in the center of the room.
When a wall-mounted heat pump shows these types of symptoms, several causes are possible:
- dirty filters;
- indoor fan loaded with dust;
- clogged evaporator;
- temperature sensor misread by the control board;
- partially blocked condensate drain;
- insufficient refrigerant pressure;
- reduced heat exchange at the outdoor unit;
- communication problem between components;
- beginning of weakness in a ventilation motor.
Our role is to avoid jumping to conclusions. A unit that cools poorly does not always have a refrigerant leak. Conversely, a simple cleaning is not always enough if the machine has a pressure problem, an electronic board issue, or a sensor fault. We therefore carried out a complete diagnosis, step by step.
First inspection: access, general condition, and observed symptoms
Upon arrival, we first checked the immediate environment of the indoor unit. The unit was installed above wall shelves, with acceptable clearance under the unit but more difficult access to properly remove the panels and inspect the internal parts. This setup requires more care, especially to avoid any damage to objects, the wall, and surrounding supports.
We then set the Daikin wall-mounted heat pump to cooling mode, at a low setpoint, to observe its behavior under real conditions. The ventilation started, but the airflow was less uniform than expected. The air outlet was stronger on one side than the other, a possible sign of a dirty turbine or a flap that no longer directed the air properly. The blowing temperature was cool but not low enough to confirm optimal performance.
This initial observation led us to a mixed problem: indoor air restriction combined with a necessary check of the refrigeration circuit.
Technical diagnosis: filters, evaporator, turbine, and condensate
We removed the front panel and took out the filters. These were loaded with fine dust, typical of urban homes where the unit often runs for several months without a deep cleaning. The washable filters had probably been cleaned occasionally, but the inside of the unit showed more advanced buildup.
The evaporator had a layer of dust on several fins. This deposit reduces the heat exchange capacity: air passes less effectively through the coil, the unit works longer, and the compressor can be unnecessarily stressed. We also inspected the turbine. This is often where the real problem lies. A dirty turbine can keep spinning but move much less air. The customer hears the unit running, but the room does not receive the necessary air volume.
We then checked the condensate pan and the drainage line. Although there was no active leak at the time of our visit, the drain showed early signs of blockage. In a wall system, especially in air conditioning during hot and humid periods in Montreal, condensation water production can be significant. A partially blocked drain can cause odors, backflows, intermittent drips, or moisture buildup inside the unit.
Refrigeration circuit and performance check
After the indoor inspection, we checked the operating parameters. The temperature difference between the return air and the supply air was insufficient at the start of the test but improved after the first cleaning of the filters and airflow. This indicated that the lack of performance was strongly related to the indoor unit’s dirt buildup.
However, we continued checking the circuit to ensure there were no obvious signs of leaks or undercharge. The pressures observed were consistent with operating conditions and did not justify adding refrigerant. This is an important point: adding gas without a clear diagnosis can mask the real problem, create an overload, and damage the compressor. A professional HVAC repair involves both correcting what is necessary and avoiding unnecessary interventions.
In this specific case, the machine did not need a major part replacement. The main problem came from a lack of internal maintenance, restricted airflow, and drainage that was beginning to fail.
Technical cleaning, restart, and comfort validation
Once the diagnosis was confirmed, we carried out a complete intervention on the indoor unit. The goal was to restore airflow, improve heat exchange, secure drainage, and confirm that the Daikin wall-mounted heat pump could resume stable operation.
Work area protection
Since the unit was installed above shelves, we first protected the area. Objects were moved or covered, and the wall surface was prepared to prevent any dripping during cleaning. This detail is essential in an occupied home: work on a wall unit must be clean, controlled, and respectful of the interior space.
We used a method adapted to cleaning a wall-mounted heat pump unit, with recovery of wash water, controlled access to the fan, and gradual rinsing. The idea is not simply to spray a scented product into the unit. A true technical cleaning aims to remove deposits that block the airflow.
Cleaning the evaporator and fan
We cleaned the filters, evaporator, and indoor fan. The fan was the most affected element. Its blades were partially loaded, which explained the irregular airflow. A fan unbalanced by dust can also create slight vibration, especially at startup or at certain speeds.
The cleaning removed accumulated deposits without damaging the evaporator fins. We also checked the condition of the louvers and their movement. The louvers responded correctly to the control, but their effectiveness had previously been limited by the low airflow.
Condensate drainage: correction before the leak
The drain was cleaned and tested. Even without visible leaks at the time of the call, we consider this type of prevention an essential part of the service. A drain that starts to slow down can become a much more serious problem during a heatwave, when the unit produces a lot of water. An internal leak can damage a wall, a shelf, a floor, or objects placed under the unit.
After cleaning, we poured water into the condensate pan to confirm drainage. The drainage occurred normally, without backup or stagnation.
Restart and performance tests
Once the unit was reassembled, we restarted the Daikin wall-mounted heat pump in cooling mode. The difference was immediate: the airflow was more consistent, the distribution in the room more uniform, and the vibration noise had decreased. We let the machine run long enough to validate the cycle's stability.
The supply air temperature returned to a normal range for the observed conditions. The client was able to notice that the unit was no longer just ventilating: it was actually cooling the room with a better air volume.
What this repair reminds us
This intervention illustrates an important point in residential HVAC service: a breakdown is not always dramatic. A heat pump can gradually lose its efficiency, without an error code, without a complete shutdown, and without worrying noise. The owner sometimes gets used to reduced performance until the room becomes uncomfortable.
On a wall-mounted heat pump, three elements must always be monitored:
Airflow
Good airflow is essential. Even with a working compressor, a cold evaporator, and a proper refrigerant charge, the device will not cool well if the fan is dirty or the filters are clogged.
Drainage
In air conditioning, water is normal. What is not normal is water that remains inside the unit or leaks indoors. Regular maintenance often prevents condensate leaks.
Access to the unit
A unit installed very high, near shelves, or in a tight space must be maintained with more care. Limited access should never prevent a full inspection. Instead, the intervention should be adapted.
Mistakes to avoid with a Daikin wall-mounted heat pump
We often see owners wait for a leak to appear before requesting service. This is rarely the best approach. A machine that cools less, blows less air, smells damp, or makes a different noise deserves a check before the problem becomes more costly.
You should also avoid adding refrigerant without clear evidence of a leak or undercharge. A Daikin wall-mounted heat pump is designed to operate with a precise amount of refrigerant. Incorrect charging can cause performance, pressure, and durability problems.
Finally, do not confuse filter cleaning with full maintenance. Filters are only the first barrier. The fan, evaporator, condensate pan, and drain must also be inspected.
Final result: comfort restored and device stabilized
At the end of the service, the machine was running much more stably. The client regained effective airflow, an adequate blowing temperature, and better air distribution in the room. No major replacement was necessary, which helped extend the equipment’s lifespan while avoiding unnecessary expenses.
This type of wall-mounted heat pump repair shows the importance of a thorough diagnosis. At AirGreen, we work on Daikin systems and many other brands in Greater Montreal, including Montreal, Laval, Longueuil, the North Shore, and the South Shore, for issues with performance, noise, drainage, ventilation, ice, electrical failure, or control.
Why call AirGreen for HVAC repair
Our approach is based on precision. We do not replace a part before confirming its role in the failure. We do not conclude a refrigerant leak without technical evidence. We do not limit an intervention to simple cleaning if the symptoms require a deeper analysis.
For a wall-mounted heat pump, a wall air conditioner, a MultiZone heat pump, a central heat pump, or any other residential HVAC equipment, our goal remains the same: identify the real cause of the problem, fix what needs to be fixed, and put the system back into service under the best possible conditions.
Practical advice after a repair
After this type of service, we recommend cleaning the filters regularly, especially during heavy use periods. A full maintenance of the indoor unit is also recommended depending on usage, environment, and frequency of operation. In an urban dwelling, with dust, summer humidity, and frequent air conditioning use, the inside of a wall unit can get dirty faster than expected.
It is also best not to place objects directly under the unit that could be damaged in case of a condensate leak. Even though a well-maintained system should not leak indoors, keeping the area clear makes inspections easier and reduces risks.
