A wall-mounted heat pump installed very high, with a water leak and weakened air flow

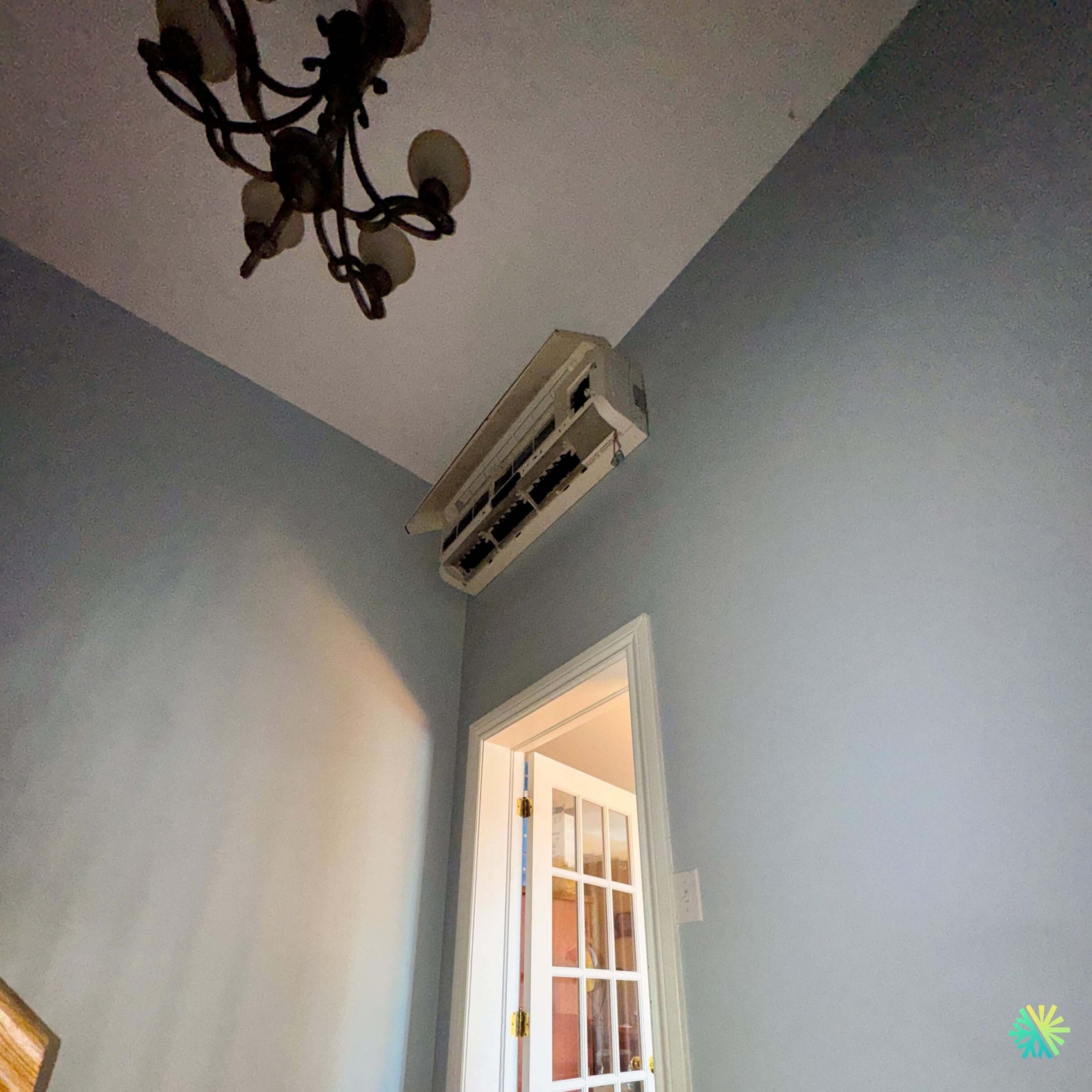

In Pointe-Claire, in the west of Montreal island, we were called for a wall-mounted heat pump installed high above an interior door, in a high-ceilinged passage area. The indoor unit was visibly older, with open vents, signs of wear on the casing, and a more complex technical access than a standard wall installation. The customer contacted us because the unit was no longer distributing air properly and an intermittent leak appeared on hot and humid days.
This type of problem is common in wall systems that are still running but have had maintenance postponed for too long. The unit responds to the remote control, the fan runs, air comes out, but comfort is no longer stable. In this particular case, the situation was worsened by the unit’s location: very high on the wall, near the ceiling and above a door, which made inspection, cleaning, and drainage testing more difficult.
The exact brand and model were not clearly visible on the indoor unit, but the setup matched a residential wall-mounted heat pump of the mini-split type, probably with a capacity of about 12,000 BTU, used to heat and cool a main area. Our intervention addressed three main symptoms: condensate leak, irregular air flow, and poorly positioned air vents.
Symptoms observed before our intervention
The customer had noticed that the wall-mounted heat pump was still producing cool air, but with reduced efficiency. Under certain conditions, especially in cooling mode, water seemed to accumulate inside the unit before dripping in small amounts. The air flow was uneven, and the distribution in the room was no longer comfortable.
The reported signs were as follows:
- Intermittent water leakage under the indoor unit;
- humidity odor at startup;
- lower airflow than before;
- irregular ventilation noise;
- poorly aligned outlet shutters;
- longer time to reach the requested temperature;
- the impression that the unit was running without really dehumidifying effectively.
These symptoms pointed to a probable combination: a dirty condensate tray, a partially clogged drain, an indoor turbine loaded with dust, and disturbed air diffusion due to the condition of the shutters.
Difficult access that changes the way of diagnosing
The unit being installed very high, near the ceiling, required precise work. A HVAC repair on a wall-mounted heat pump placed there demands more than a simple quick filter cleaning. Access must be secured, surfaces under the unit protected, and any rough handling avoided on an already aged casing.
We started by protecting the area under the unit, then carefully opened the accessible panels. The plastics were weakened by age, requiring slow and methodical handling. On older wall systems, front clips, shutter supports, and some small internal fasteners can easily break if the intervention is done too quickly.
Diagnosis: a slowed drain and a dirty indoor unit
The inspection confirmed that the leak was not due to a major coil break, but rather a condensate drainage problem. In air conditioning mode, the indoor evaporator removes moisture from the air. This moisture becomes water, which must flow through the tray and then the drain. When the drain is partially blocked, water accumulates, overflows, or comes out the front of the unit.
In this intervention in Pointe-Claire, we observed:
A condensate tray loaded with deposits
The tray contained residues related to moisture, dust, and organic deposits. These accumulations slow down the flow and can cause unpleasant odors at startup.
A partially clogged drain
The water was not draining quickly enough. The drain was not completely clogged, but its flow was insufficient for air conditioning use on humid days.
A dirty indoor turbine
The ventilation wheel showed an accumulation of dust and particles stuck by moisture. A dirty turbine reduces airflow, creates irregular blowing, and can increase the feeling of humidity in the room.
Misaligned diffusion vents
The vents were no longer perfectly positioned. This impaired air distribution and could direct part of the flow against an unfavorable area instead of projecting the air into the room.
Technical cleaning of the indoor unit
We carried out targeted cleaning of the indoor unit. The goal was not only to improve the device's appearance but to restore its function.
The filters were cleaned, then the indoor coil was cleared using a method suitable for the fins. We then cleaned the ventilation turbine to reduce deposits causing irregular airflow. This step is essential: a wall-mounted heat pump can lose a lot of performance simply because the turbine no longer pushes enough air.
We also cleaned the condensate tray and cleared the path to the drain. After this step, we performed a flow test by pouring water in a controlled way into the tray to confirm that the drainage was working properly. The flow was restored, and water no longer returned to the front of the unit.
Correction of the vents and function check
The diffusion vents were repositioned and checked. On an older unit, the sweeping mechanism can be worn or some attachments less sturdy. We adjusted what could be adjusted without forcing the mechanism to achieve more consistent air diffusion.
After reassembly, we restarted the heat pump in cooling mode. We observed:
- the start-up of the indoor fan;
- the consistency of the airflow;
- the cooling production;
- the condensate drainage;
- the behavior of the vents;
- the absence of visible leaks after the test;
- the operational stability during the cycle.
The airflow was more uniform, the musty smell had decreased, and the drainage was normal. The client immediately noticed that the device seemed less "stifled" and that the air was better projected into the room.
What this repair in Pointe-Claire reveals about old wall-mounted heat pumps
A wall-mounted heat pump can operate for many years, but it becomes more prone to clogging, blocked drains, and fragile diffusion vanes. When the unit is installed very high, the problem is often detected late because the filters and vents are less easy to inspect daily.
Why a water leak should never be ignored
A small intermittent leak may seem minor, but it almost always indicates that water is no longer following its normal path. In a house, a leak from a wall unit can damage paint, drywall, door frames, and floors. In this case in Pointe-Claire, the unit was placed above an indoor passage, which increased the risk of damage if the leak became more serious.
A leak can be caused by:
- a clogged drain;
- a cracked tray;
- an insufficient drain slope;
- an uneven indoor unit;
- a coil that freezes and then thaws;
- a turbine too dirty, reducing airflow;
- an old installation whose components have shifted over time.
That is why our diagnosis focused on drainage, ventilation, and the general condition of the unit.
The link between airflow and condensation
When the airflow is too low, the evaporator can become too cold. In some cases, this promotes ice formation on the coil. When this ice melts, the water can exceed the normal capacity of the condensate tray and cause a leak. Even without visible ice, poor airflow reduces the unit’s ability to control humidity.
In this case, cleaning the turbine played as important a role as clearing the drain. A wall unit must breathe freely to cool effectively.
Mistakes to avoid with a wall-mounted heat pump installed high up
Waiting for water to flow abundantly
At the first signs of moisture or drops, the system should be checked. A major leak is often preceded by small signs: smell, water noise, marks on the wall, low airflow.
Cleaning only the filters
Filters are important, but they are not enough. The condensate tray, drain, turbine, and coil must also be inspected. In an old unit, these areas accumulate deposits that are not visible from the floor.
Forcing the flaps manually
The diffusion flaps are connected to small fragile mechanisms. Forcing them can break a clip or damage the sweep motor. If the flaps no longer move properly, it is better to have them inspected.
Using unsuitable products
Scented sprays, household cleaners, or overly harsh products can leave residues in the unit. They can also intensify odors when the device is running.
An intervention that extends the system’s lifespan
In this case, a complete heat pump replacement was not necessary. The problem was mainly due to poor drainage, a clogged turbine, and poorly positioned louvers. By correcting these elements, we restored better performance to the device while allowing the client to extend the use of their system.
This is a common reality in HVAC repair: a good diagnosis helps avoid unnecessary expenses. An aging device deserves an honest evaluation. Sometimes, replacement is the best solution. But when the compressor, ventilation, and main components still function properly, targeted repair can be very beneficial.
AirGreen: wall-mounted heat pump repair in Pointe-Claire and Greater Montreal
Our teams regularly work on wall-mounted heat pumps, wall air conditioners, multi-zone systems, and residential equipment in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Each service call is different: installation height, device age, drain condition, access to the outdoor unit, electrical configuration, and usage habits.
In Pointe-Claire, the main challenge was to restore clean, stable, and safe operation in a hard-to-reach area. After cleaning, clearing the drain, and adjusting the louvers, the wall-mounted heat pump regained better air distribution and normal condensate drainage.
For any wall-mounted heat pump repair, HVAC maintenance, wall air conditioner or HVAC installation in Greater Montreal, AirGreen offers a structured, precise service tailored to the realities of Quebec residences.
