A hard-to-access electric furnace, weakened airflow, and comfort to restore quickly
In Lorraine, our AirGreen team was called for a residential heating problem on a electric furnace installed in a confined mechanical space. Upon arrival, several important elements were visible: a vertical format furnace cabinet, a metal plenum connected to the duct network, nearby copper piping, an adjacent electrical panel, as well as two 12 x 24 x 1 filters installed on the front. The space around the equipment was cluttered, which complicated access to the panels, the ventilation compartment, and service points.
The client reported a drop in comfort in the house: some rooms heated less well, the system seemed to run longer than usual, and the air blowing from the vents seemed less powerful. This type of situation is very common with residential electric furnaces, especially when filtration, airflow, or the fan are no longer in their optimal conditions.
In a house on the North Shore, like in Lorraine, an electric furnace can be heavily used during cold periods. When the airflow decreases, the problem is not limited to discomfort: the heating elements can overheat, safety limits can trigger, electricity consumption can increase, and the lifespan of components can be reduced. Our mandate was therefore clear: find the real cause of the performance loss, secure the equipment, and restore a more stable air distribution in the house.
Equipment description: a residential electric furnace with duct network
The observed equipment was a forced-air electric furnace, connected to a network of metal ducts. The exact brand was not clearly readable in the photo, but the configuration matches a classic residential electric furnace: an indoor cabinet, a filtration section, a blower fan, electric heating elements, internal controls, and a plenum that distributes warm air to the different rooms.
This type of system is common in Greater Montreal, notably in Montreal, Laval, Longueuil, on the North Shore and the South Shore, because it offers direct heating, is simple to control, and compatible with many home configurations. When well maintained, it can provide stable and reliable warmth. When neglected, symptoms often appear gradually: reduced airflow, uneven heating, ventilation noise, abnormally long cycles, hot dust smell, intermittent triggering, or the feeling that the house no longer reaches the requested temperature.
In this case, the filters visible on the front were an important clue. Dirty or poorly fitted filters can increase resistance to airflow. The furnace then has to push against greater restriction, which reduces duct airflow and can raise the internal temperature of the unit.
Symptoms reported by the customer
The customer did not report a complete breakdown. The furnace still responded to the thermostat, but it no longer heated as effectively. This nuance is important because a furnace that still "works" can still be under mechanical or electrical stress.
Typical symptoms observed in this type of call include:
- Low airflow at the ventilation outlets.
- Uneven heating between rooms.
- Longer cycles to reach the requested temperature.
- Feeling of less warm or less consistent air.
- Different or louder fan noise.
- Dust buildup around the filtration.
- Risk of internal overheating if air poorly passes through the heating elements.
In a forced-air system, heating quality depends as much on heat production as on air distribution. An electric furnace may have functional heating elements, but if the fan doesn't push enough air or if the filters are too restrictive, comfort will be insufficient.
AirGreen diagnosis: start with airflow before blaming major components
Our method always starts with a complete inspection. On an electric furnace, it can be tempting to immediately think of a burnt heating element, a faulty relay, or a thermostat problem. However, in many cases, the main cause is simpler: air restriction, clogged filter, blocked return air, dirty fan, or poor compartment maintenance.
We therefore checked several points:
- Condition and position of the filters.
- Access to the ventilation compartment.
- Furnace response to thermostat demand.
- Fan startup sequence.
- Presence of vibrations or abnormal noises.
- Blowout temperature.
- Airflow at the main vents.
- Visible condition of the plenum and fittings.
- Accessible electrical connections.
- Signs of overheating, dust, or abnormal odor.
- Clearance around the device.
The installation space added a real constraint. The furnace was located in a narrow room, with objects stored nearby. For an HVAC intervention, access is essential. A device that is hard to reach takes longer to inspect, is more difficult to maintain, and is more likely to be neglected over time. We therefore also evaluated the environment around the equipment, not just the equipment itself.
A common problem: clogged filters and limited airflow
The filters visible on the furnace showed a buildup of dust. Even if a filter still appears to be in place and properly sized, its actual effectiveness depends on its condition. A filter that is too dirty acts as a barrier. The fan has to work harder, airflow decreases, and the heat produced by the electric elements circulates less effectively.
This situation can create several side effects:
- The furnace runs longer.
- Distant rooms receive less air.
- The fan may become louder.
- Heating elements may operate at higher temperatures.
- Safety limits may be triggered.
- Electricity consumption may increase.
- Overall comfort becomes unstable.
In a house, it is common for filter replacements to be delayed, especially when access to the furnace is complicated. In this case, installation in a storage space made maintenance less natural for the customer. Our role was also to explain how to prevent the situation from recurring.
A targeted intervention to secure the furnace, improve airflow, and stabilize heating
After diagnosis, our intervention focused on restoring the filtration system, checking the fan, controlling the heating elements, and validating full operation. An electric furnace repair should never be improvised: electrical components must be handled methodically, and tests must confirm that the unit operates safely.
Filter replacement and repositioning
The first step was to correct the filtration. The 12 x 24 x 1 filters were essential to the proper operation of the furnace. Poorly installed, too dirty, or too restrictive filters can disrupt the entire system.
We removed the worn filters, inspected their position, and recommended regular replacement with a filter type suited to the fan’s capacity. In some cases, a filter that is too dense may seem better because it traps more particles, but it can also limit airflow if the furnace is not designed for that resistance. For a residential electric furnace, the right filter choice must consider air quality, airflow, replacement frequency, and the condition of the duct network.
After replacement, the airflow was rechecked. The improvement was noticeable: the system breathed better, the fan seemed less strained, and the air circulated more efficiently to the served areas.
Blower fan inspection
The fan is the heart of air distribution. Even if the heating elements produce enough heat, comfort depends on the volume of air moved through the ducts. We therefore inspected the blower’s behavior: start-up, speed, noise, vibration, and stability.
A dirty fan can lose efficiency. Dust accumulated on the blades reduces the air-moving capacity. A worn-out motor or a weakened capacitor can also produce similar symptoms: slow start, reduced ventilation, or irregular cycles. In this case, our check confirmed that the blower met the demand but was affected by the air restriction created by filtration and the installation environment.
Control of heating elements and internal safety devices
An electric furnace uses heating elements that must be properly ventilated. If the air does not circulate enough, the internal temperature can rise quickly. Limit safety devices are designed to protect the unit, but when they frequently trip, it often indicates a flow or control problem.
We validated the heating sequence and the behavior of the elements. The goal was to confirm that the furnace did not have a major electrical failure and that the heating elements were working consistently. Accessible connections were inspected for any signs of overheating, wear, or poor contact.
This type of check is essential. A bad electrical contact can cause excessive heat at the connection point. In an electric heating device, preventive inspection can avoid much more serious problems.
Improving access and recommendations to the client

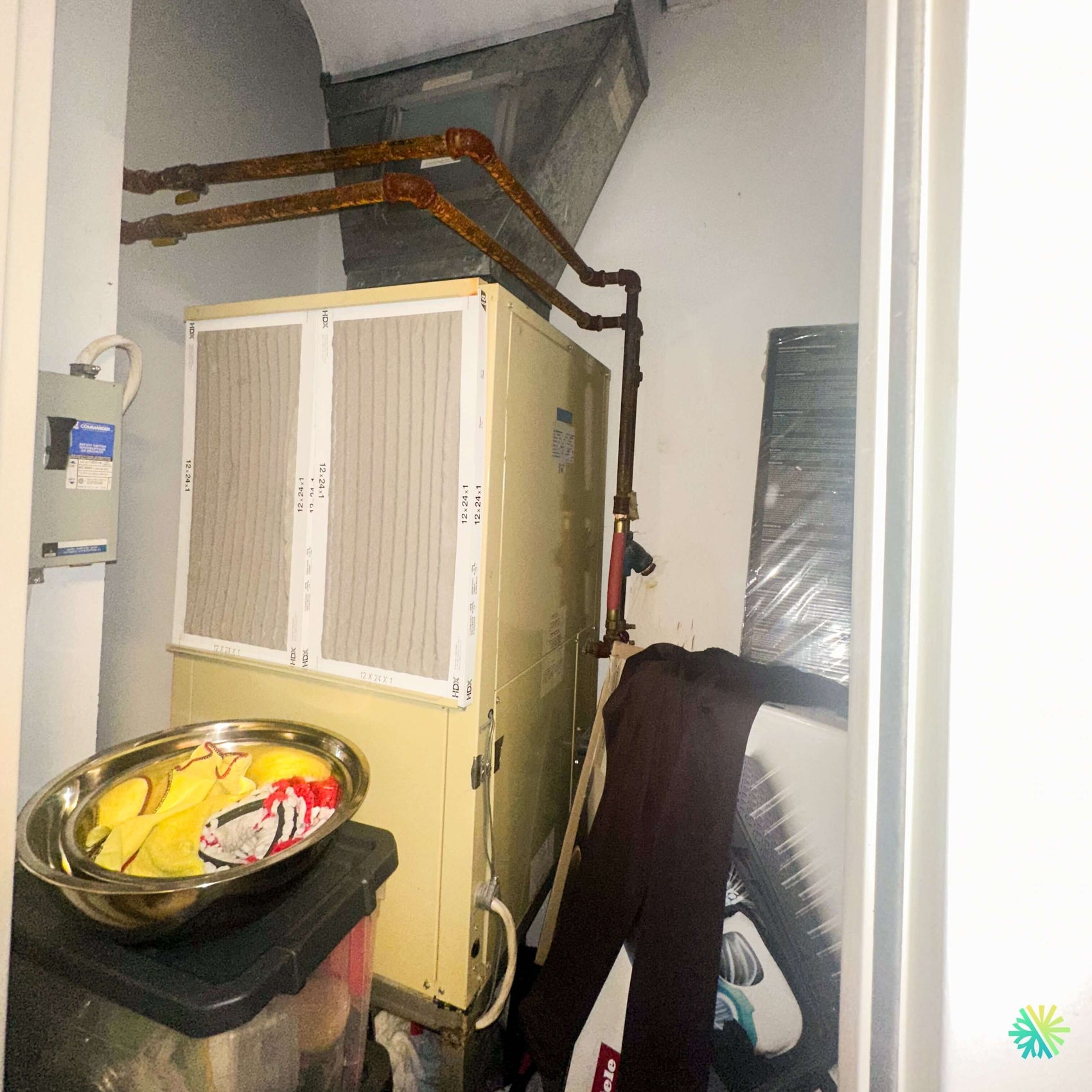

The installation image shows a mechanical space also used for storage. This is common in homes but can hinder HVAC maintenance. A furnace needs sufficient clearance to be inspected, cleaned, and repaired. Objects placed in front of the unit can slow down intervention, limit air circulation around certain panels, and discourage regular filter replacements.
We recommended that the client keep clear access in front of the furnace and around the electrical panel. This recommendation is not only practical: it also concerns safety. In case of circuit breaker tripping, abnormal odor, or need for quick shutdown, access to the system must be immediate.
Result: more stable heating and restored comfort
After the intervention, the furnace was restarted and tested under heating demand. We observed better air circulation, a more stable system response, and more consistent distribution to the rooms. The client received a clear explanation of the probable cause: air restriction related to filtration and maintenance, combined with access constraints in the mechanical room.
The furnace did not require a complete replacement. The intervention extended the equipment's useful life, improved its operation, and reduced the risk of emergency calls in the short term.
Mistakes to avoid with an electric furnace
This intervention in Lorraine highlights several important best practices for homeowners:
- Do not wait for the furnace to stop completely before calling.
- Replace filters according to the actual use of the house.
- Avoid blocking access to the furnace with storage.
- Do not install a filter that is too restrictive without checking the system's capacity.
- Monitor changes in fan noise.
- Have an overheating smell checked quickly.
- Do not ignore parts that heat less well than others.
- Keep the electrical panel accessible at all times.
- Request an inspection if cycles become abnormally long.
Simple maintenance can prevent costly repairs. In many cases, a system that seems "weak" is not at the end of its life: it is simply poorly ventilated, poorly filtered, or poorly maintained.
Why call AirGreen for an electric furnace repair
At AirGreen, we work on residential HVAC systems in Greater Montreal, including Montreal, Laval, Longueuil, the North Shore, and the South Shore. Our electric furnace service calls are based on a comprehensive approach: airflow diagnosis, control checks, electrical inspection, filter analysis, fan validation, and practical recommendations tailored to the home.
An electric furnace is a robust system, but it must be maintained rigorously. Performance depends not only on the power of the heating elements but also on the quality of the air passing through the unit, the condition of the filters, the proper functioning of the fan, the cleanliness of the ducts, and the configuration of the mechanical room.
In this Lorraine residence, our intervention solved a concrete problem without unnecessarily replacing equipment. The client regained more reliable heating, better air circulation, and a clear understanding of the steps to maintain performance.
An HVAC repair that focuses on the right diagnosis
The value of an HVAC service call is measured by the accuracy of the diagnosis. Replacing parts without understanding the real cause can be costly and may not solve the problem. In this case, on-site observation was crucial: clogged filters, limited space, difficult access, reduced airflow, and the need for electrical validation.
We treated the furnace as a complete system, not just a simple heating cabinet. This approach ensures a lasting result: better-ventilated equipment, a more comfortable home, and a better-informed owner.
For residences in Lorraine and the surrounding areas, a well-executed electric furnace repair can make all the difference between an uncomfortable winter and stable, safe, and efficient heating.
