A Carrier central heat pump that started with difficulty and cooled less efficiently

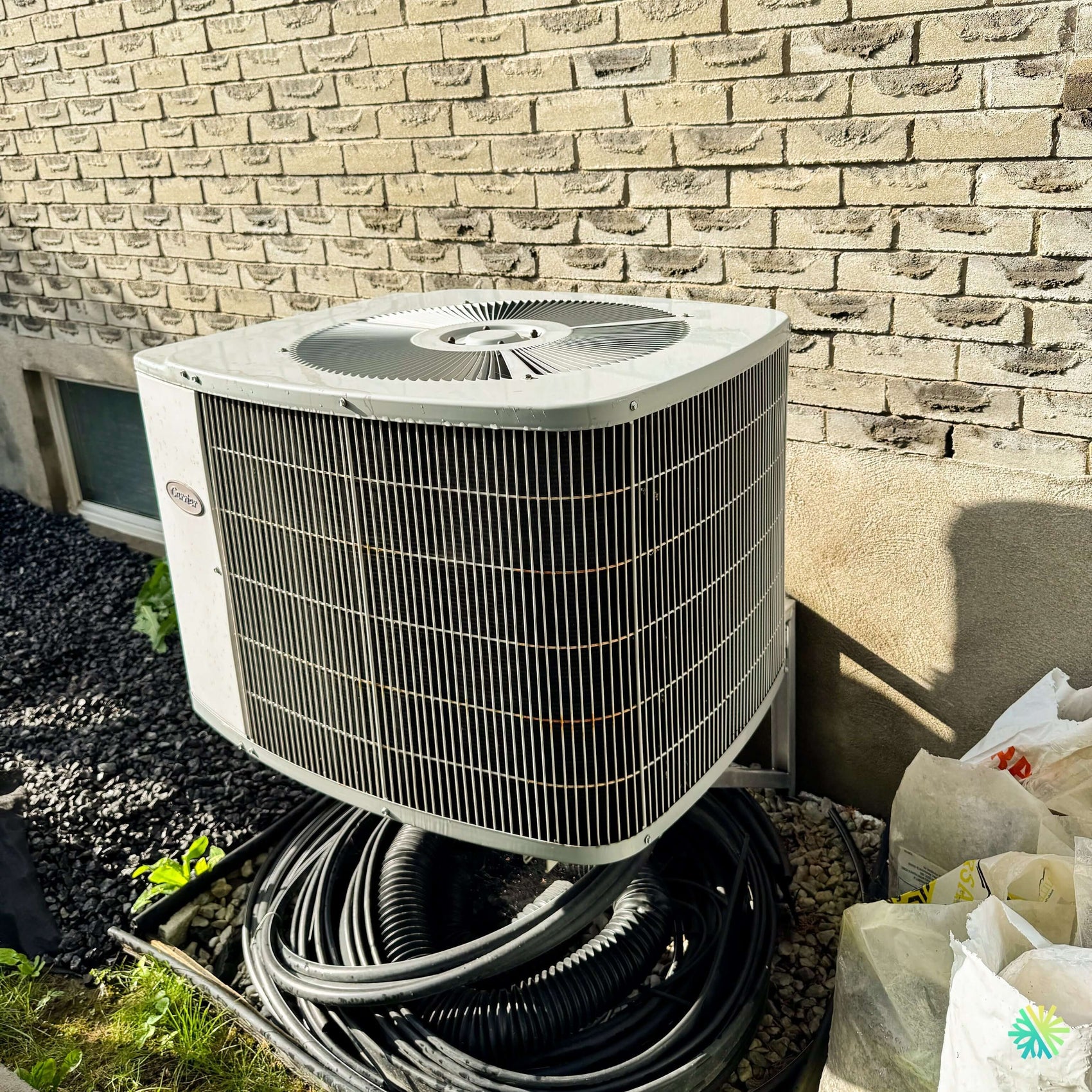

In Sainte-Anne-de-Bellevue, in the West Island of Montreal, our AirGreen team was called for a performance issue on a Carrier central heat pump installed outdoors, on an elevated metal support, near a brick wall and a basement window. The client contacted us because the central system no longer delivered the same comfort as before: the air blown through the ducts seemed less cool, cycles were longer, and the outdoor unit made an unusual noise at startup.
The device seen on site was a Carrier central heat pump, residential size, connected to an indoor duct system. This type of equipment is designed to heat and cool the entire house through a centralized ventilation network. Unlike a wall unit, the diagnosis never stops at the outdoor unit: the entire HVAC system must be checked, including the outdoor condenser, indoor coil, ventilation, filter, thermostat, electrical connections, and refrigerant charge.
In this case, the heat pump was not completely off. It would start, but not always with the same stability. The compressor seemed to strain at times, the outdoor fan did not always start smoothly, and the client noticed that the house took much longer to cool on hot days. This type of symptom is often a sign of an electrical problem, a dirty outdoor coil, or insufficient indoor airflow.
An outdoor installation that required a complete inspection
The Carrier unit was installed on an elevated base, above a space where several ducts, wires, and mechanical protections were grouped. This setup keeps the device above the ground, which is useful during snow accumulation and rain episodes. However, the environment around the machine plays a crucial role in its performance.
We observed several important elements:
- The heat pump was relatively close to the brick wall.
- Ducts and protections were grouped under the unit.
- The outdoor coil showed visible deposits.
- The raised base was stable, but the space under the unit retained debris.
- Air circulation around the unit needed improvement.
- Access to electrical components required careful inspection.
In areas like Sainte-Anne-de-Bellevue, Montreal, Laval, Longueuil, the North Shore and the South Shore, outdoor units accumulate over time pollen, dust, leaves, garden debris, and sometimes residues from walls or the ground. Even when a heat pump looks clean on the outside, the coil fins can be partially clogged deep inside.
Symptoms reported by the customer
Before our arrival, the customer had noticed several changes in the system’s operation:
- The air coming out of the vents was less cool than before.
- The heat pump ran longer to reach the setpoint.
- The outdoor fan seemed hesitant at startup.
- A slight buzzing appeared before the unit started.
- Comfort varied more between rooms.
- The system seemed more stressed during hot days.
- The consumption seemed higher, without improvement in comfort.
These signs pointed us toward a combination of possible problems: weakened capacitor, worn contactor, dirty outdoor coil, stressed fan motor, restrictive indoor filter, or refrigerant charge to check.
Electrical diagnosis of the Carrier central heat pump
Our first step was to secure the equipment and check the power supply to the outdoor unit. On a central heat pump, electrical components are often responsible for difficult startups, especially when the device has several years of service.
Contactor inspection
The contactor is the part that powers the compressor and the outdoor fan when the thermostat calls for heating or cooling. On this Carrier unit, the contactor showed visible signs of wear. The contact points were marked, which could cause less stable power supply.
A worn contactor can cause intermittent failures. The system may work during a test, then refuse to start a few hours later. It can also create an electrical noise or irregular startup. In this case, its condition explained part of the reported symptoms.
Run capacitor test
We then tested the run capacitor. This part helps the fan motor and compressor operate properly. A weak capacitor does not always cause an immediate failure. It can simply make starts more difficult, cause the motor to strain, increase internal heat, and reduce system reliability.
The reading was out of tolerance. The capacitor needed to be replaced to avoid a more serious failure. This is a relatively common repair on central heat pumps, but it must always be confirmed by measurement, not replaced randomly.
Mechanical inspection and outdoor fan performance
The top fan was spinning, but its start was not as smooth as it should have been. Once the capacitor was identified as weak, we also checked the blade condition, motor stability, vibrations, and the presence of debris around the unit.
The fan was not blocked, but the outdoor coil offered increased resistance to airflow. This restriction was due to the gradual fouling of the fins. When the outdoor coil is dirty, the heat pump rejects heat less effectively in cooling mode. The compressor then works under more difficult conditions, which can increase pressures and reduce efficiency.
Outdoor coil cleaning
We performed a thorough cleaning of the Carrier heat pump coil. This step was essential. An effective HVAC repair is not just about replacing an electrical part: it also involves restoring the device’s normal operating conditions.
Cleaning removed:
- Dust accumulated on the fins.
- Fine plant debris.
- Deposits caused by the outdoor environment.
- Particles that restricted airflow.
- Dirt trapped near the base of the unit.
Once the coil was cleaned, the unit could expel heat more efficiently. This reduces the compressor's effort, improves system stability, and allows for better blowing temperature indoors.
Indoor system inspection
Since it was a central heat pump, we also checked the internal components related to performance. An outdoor condenser may be in good condition, but if the indoor filter is clogged or the airflow in the ducts is insufficient, comfort will remain problematic.
Filter and airflow
The filter was inspected. It was dirty but not completely blocked. We recommended its replacement to ensure adequate airflow through the indoor coil. A restrictive filter can cause reduced performance, higher static pressure, and uneven air distribution in the house.
Supply and return air temperatures
We measured the return air and supply air temperatures. Before the full intervention, the temperature difference was lower than expected. After replacing the electrical parts and cleaning the exterior, the difference improved, confirming that the system regained better cooling capacity.
Repair completed on site
After the diagnosis, we made the necessary corrections.
Capacitor replacement
The weakened capacitor was replaced with a part compatible with the device’s specifications. After replacement, the outdoor fan started faster and the compressor operated more stably.
Replacement of the worn contactor
The worn contactor was replaced to ensure a more reliable power supply. This intervention reduces the risk of intermittent failure, difficult starting, and damage caused by unstable power.
Cleaning and restoring the outdoor unit
We cleaned the coil, cleared debris around the base, checked the stability of the support, and inspected the ducts protected under the unit. We also recommended keeping the space around the heat pump as clear as possible to facilitate air circulation and future maintenance.
Final tests
Once the repairs were completed, we restarted the heat pump and observed a full cycle. The start was more decisive, the fan ran normally, the noise was reduced, and the temperatures confirmed improved efficiency. The customer quickly noticed that the air distributed through the ducts was cooler and that the system responded better to the thermostat’s demand.
Lessons from this repair in Sainte-Anne-de-Bellevue
This intervention shows that a Carrier central heat pump can give several warning signs before a complete breakdown. Hesitant starting, electrical noise, less cool air, or longer cycles should be taken seriously.
Do not confuse lack of refrigerant with poor heat exchange
When a central system cools less effectively, many people immediately think of a refrigerant leak. However, in this case, the main causes were a weakened capacitor, a worn contactor, and a dirty outdoor coil. Adding refrigerant without a complete diagnosis would have been useless and risky.
At AirGreen, we first check the fundamental elements: power supply, ventilation, coil cleanliness, indoor airflow, component condition, and temperature measurements. This method helps avoid unnecessary repairs and targets the real cause of the problem.
The importance of regular maintenance
A central heat pump installed outdoors works under demanding conditions. It must withstand heat, cold, humidity, dust, leaves, pollen, and snow. Regular maintenance helps maintain better efficiency, reduce consumption, and extend the compressor's lifespan.
Preventive maintenance should include:
- Cleaning the outdoor coil.
- Checking the capacitor.
- Inspecting the contactor.
- Controlling the fan motor.
- Checking the indoor filter.
- Measuring supply and return air temperatures.
- Inspecting electrical connections.
- Checking the stability of the outdoor unit.
Result for the client
At the end of the service, the Carrier central heat pump in Sainte-Anne-de-Bellevue was running more reliably. The startup was stable, noise had decreased, thermal flow improved, and the client could once again count on consistent comfort throughout the house.
This repair also helped avoid a more costly breakdown. A weak capacitor or worn contactor may seem minor, but when these parts are neglected, they can cause an overload on the compressor or a complete shutdown during a high-demand day.
AirGreen, specialist in central heat pump repair in Greater Montreal
At AirGreen, we work on central heat pumps, central air conditioners, wall-mounted heat pumps, MultiZone systems, electric furnaces, and other HVAC equipment in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Every service call is handled with rigor: inspection, diagnosis, repair, validation, and practical recommendations.
This repair of a Carrier central heat pump in Sainte-Anne-de-Bellevue illustrates our approach: understanding the symptoms, testing the components, fixing the real causes, and restoring comfort without unnecessary replacement.
