A central system that ventilated but no longer effectively heated the entire house
In Rosemère, AirGreen was called for a central electric furnace repair installed in a compact residential mechanical space, connected to a metal duct network serving several zones of the house. The customer contacted us because the system still seemed to be working: the fan started, air came out of the vents, the thermostat was indeed calling for heat. Yet, the indoor temperature was rising with difficulty, some rooms remained cool, and the furnace ran much longer than before.
The situation was all the more important because the installation included not only a ducted electric furnace but also accessories connected to the network, including a central humidifier attached to the plenum. In a house on the North Shore, this type of setup is common: a central system provides the main heating, air distribution, sometimes air conditioning when a coil is added, and humidification in winter. When performance decreases, the entire HVAC network must be analyzed, not just the furnace cabinet.
The exact brand of the equipment was not fully readable in the photo, but the unit corresponded to a central residential electric furnace, probably with a capacity between 15 kW and 20 kW, based on the size of the cabinet, the duct network, and the typical demand of a Rosemère property. Our intervention focused on the symptoms, electrical measurements, airflow, safety protections, and the actual condition of the system.
Symptoms reported by the customer
The customer had noticed a gradual change rather than a sudden breakdown. The house did not become completely cold, but comfort was unstable, especially in the morning and evening. The thermostat called for heat for long periods without the temperature quickly reaching the setpoint.
The main symptoms were as follows:
- Lukewarm air at the vents, never really hot.
- Abnormally long heating cycles.
- Indoor fan that was running almost continuously.
- Notable difference between rooms far from and near the thermostat.
- Impression of excessive electrical consumption.
- Irregular indoor humidity.
- No obvious error code for the customer.
- Louder air noise in certain ducts.
These signs could indicate several causes: an inactive heating element, a faulty relay, a thermal limit that cuts off too early, an airflow restriction, an inadequate filter, a blower problem, or a loss of efficiency in the ducts.
Visual inspection of the installation

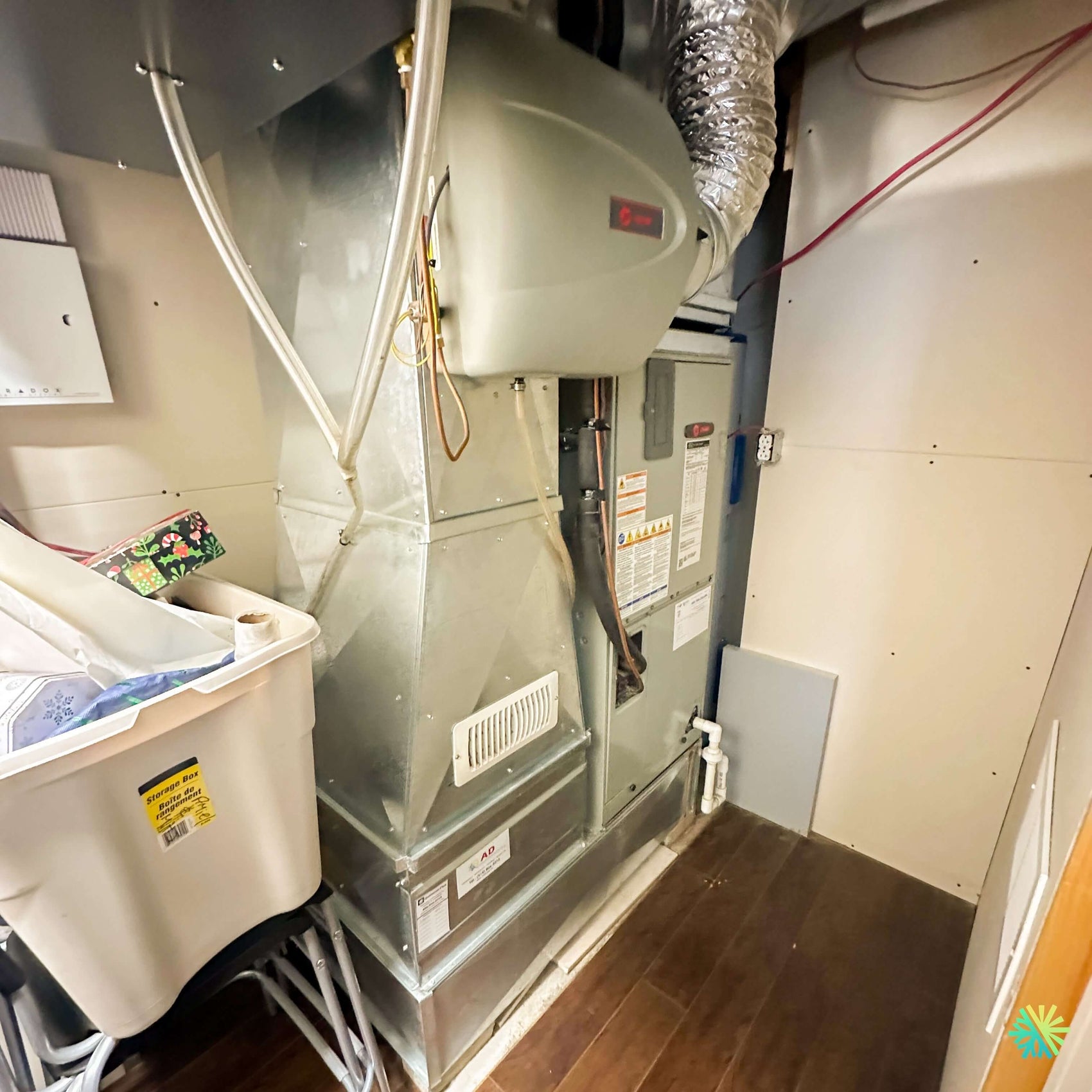

Upon arrival, we paid attention to the location of the furnace. The mechanical space was tight, with custom-made ducts, metal transitions, a humidifier attached to the plenum, and several visible connections. This type of installation requires a methodical approach, as a too-quick intervention can miss an airflow problem or an accessory that disrupts the system.
Plenum and ducts
The distribution plenum was connected to several rigid and flexible ducts. We checked the joints, visible air leaks, service panels, and transitions. Some minor losses were present around certain metal joints, but they were not the main cause of the lack of heating.
Central humidifier
The humidifier connected to the duct was also inspected. In winter, a poorly maintained humidifier can create deposits, a slight leak, obstruction, or irregular humidification. In this case, it was not directly causing the heating failure, but its condition needed to be checked because it influences air quality and can affect the perception of comfort in the home.
Filtration and air return
The filter was heavily loaded. It was not completely blocked, but it imposed significant resistance to the airflow. In an electric furnace, an airflow restriction can cause local overheating around the heating elements. When the internal temperature exceeds a safety limit, the protections can interrupt part of the heating, which results in exactly the observed symptom: the furnace blows air, but the air remains only lukewarm.
Electrical and mechanical diagnosis
After the visual inspection, our technician conducted a series of tests to confirm the actual cause of the problem.
Verification of the thermostat request
The thermostat was correctly sending the heating request. The control was stable, and the furnace was receiving the signal properly. This allowed us to rule out a simple problem of a misprogrammed thermostat or lack of communication.
Measurement of heating cycles
The electric furnace operated with several heating element stages. By measuring the electrical response, we found that one stage did not activate consistently. The device therefore produced only part of its nominal capacity. This partial fault explains why the fan was running and why the customer felt warm air without getting effective heating.
Weakened heating relay
The diagnosis showed that a power relay was weakened. This relay was supposed to enable the activation of a group of heating elements, but it did not always properly close the circuit. Result: the furnace heated intermittently, with reduced capacity. This type of fault can be difficult to identify without electrical measurement, as it does not always cause a complete shutdown.
Thermal limit check
We also checked the thermal protections. One of the limits had been triggered several times, probably due to the combination of the clogged filter, reduced airflow, and unstable heating stage. It was not the main cause but confirmed that the system had operated under unfavorable conditions.
Blower check
The blower motor was working, but the wheel was accumulating dust. This buildup reduces the volume of air moved through the ducts. In a central furnace, even a moderate loss of airflow can significantly impact comfort, especially in a home where ducts serve several distant rooms.
Repair performed by AirGreen
Our intervention was carried out in several steps to fix the electrical fault, improve air circulation, and reduce the risk of recurrence.
Power relay replacement
We replaced the faulty relay responsible for the intermittent activation of the heating stage. After replacement, we tested the full startup sequence: thermostat request, fan activation, gradual engagement of elements, and stabilization of the blowing temperature.
Targeted blower cleaning
We cleaned the accessible areas of the blower compartment to improve airflow. A clean blower distributes heat more efficiently, reduces stress on the motor, and limits the risk of overheating around electrical components.
Filter replacement
The filter was replaced with a model better suited to the system. We explained to the customer that a filter that is too dense or too dirty can harm the operation of an electric furnace. Filtration quality is important, but it must remain compatible with the fan capacity and duct configuration.
Humidifier check
We inspected the central humidifier, its water connection, drainage, and integration into the duct. No major replacement was necessary during this visit, but preventive maintenance was recommended to avoid humidity problems, mineral deposits, or leaks in the future.
Temperature test at the vents
After the repair, we checked the blowing temperature at several vents. The air was noticeably warmer, and the distribution was more even. The house began to regain its temperature faster, without the fan needing to run constantly.
Result: central heating restored and more stable operation
At the end of the intervention, the electric furnace in Rosemère had regained a normal heating sequence. The replaced relay allowed the electric stages to activate properly, air circulation was improved, and thermal protections were no longer excessively triggered.
The client noticed three immediate improvements:
- Stronger heat at the vents.
- Shorter and more efficient heating cycles.
- Better uniformity between parts.
This repair also helped avoid premature equipment replacement. The furnace still had functional value but required a precise diagnosis and targeted restoration. Without this intervention, the weakened relay could have eventually failed completely or caused accelerated wear of other electrical components.
What to remember from an electric furnace repair with ducts
A central electric furnace is a robust system, but it depends on a precise balance between electricity, airflow, safety controls, and duct distribution. When one of these elements becomes unstable, comfort quickly decreases.
In Montreal, Laval, Longueuil, on the North Shore and the South Shore, AirGreen regularly works on similar systems: electric furnaces, central heat pumps, ducts, humidifiers, air exchangers, and filtration systems. Every service call must be handled with a complete view of the HVAC system.
Mistakes to avoid
Immediately blame the thermostat
In this case, the thermostat was working correctly. The problem came from the power relay and the air circulation. Replacing the thermostat would not have fixed anything.
Leaving a dirty filter in place
A dirty filter reduces airflow, increases the furnace’s internal temperature, and can trigger safety shutoffs. It should be replaced based on actual system use, not just the schedule.
Closing too many vents
Closing several vents to “force” air to other rooms can increase static pressure in the ducts. This practice can harm the blower and cause even less efficient distribution.
Neglecting the central humidifier
A poorly maintained humidifier can affect comfort, create deposits, and sometimes cause leaks. It must be part of the inspection when the central system is checked.
Why an AirGreen diagnosis makes the difference
At AirGreen, we don’t just check if the device starts. We measure, inspect, compare, and validate. For this repair in Rosemère, we analyzed:
- The thermostat demand.
- The electrical stages.
- The power relay.
- The thermal limits.
- The filter.
- The blower.
- The ducts.
- The humidifier.
- The blowing temperature.
- The overall response of the house.
This method helps avoid rough repairs and unnecessary replacements. A furnace that still blows air can hide a significant partial failure. Only a structured diagnosis can distinguish a simple air restriction from a real electrical failure.
Advice after the service
To maintain the performance of this electric furnace, we recommended to the client in Rosemère:
- Replace the filter regularly, especially during intensive heating periods.
- Have the furnace inspected before the cold season.
- Monitor any drop in heat at the vents.
- Avoid closing multiple air outlets.
- Have the central humidifier serviced at least once a year.
- Contact an HVAC technician if cycles become abnormally long.
Regular maintenance protects the furnace, improves comfort, and helps reduce operating costs.
A lasting repair for reliable comfort
This service in Rosemère shows that a central heating problem is not always visible at first glance. The system was ventilating, but it was not heating at full capacity. By replacing the faulty relay, improving airflow, changing the filter, and checking the humidifier, AirGreen helped the client regain stable and reliable heating.
For homeowners who notice warm air at the vents, cycles that are too long, or a house that stays cold despite a heating request, a professional HVAC inspection can prevent a complete breakdown and extend the life of the central system.
