A service call in a tight mechanical room where every detail mattered

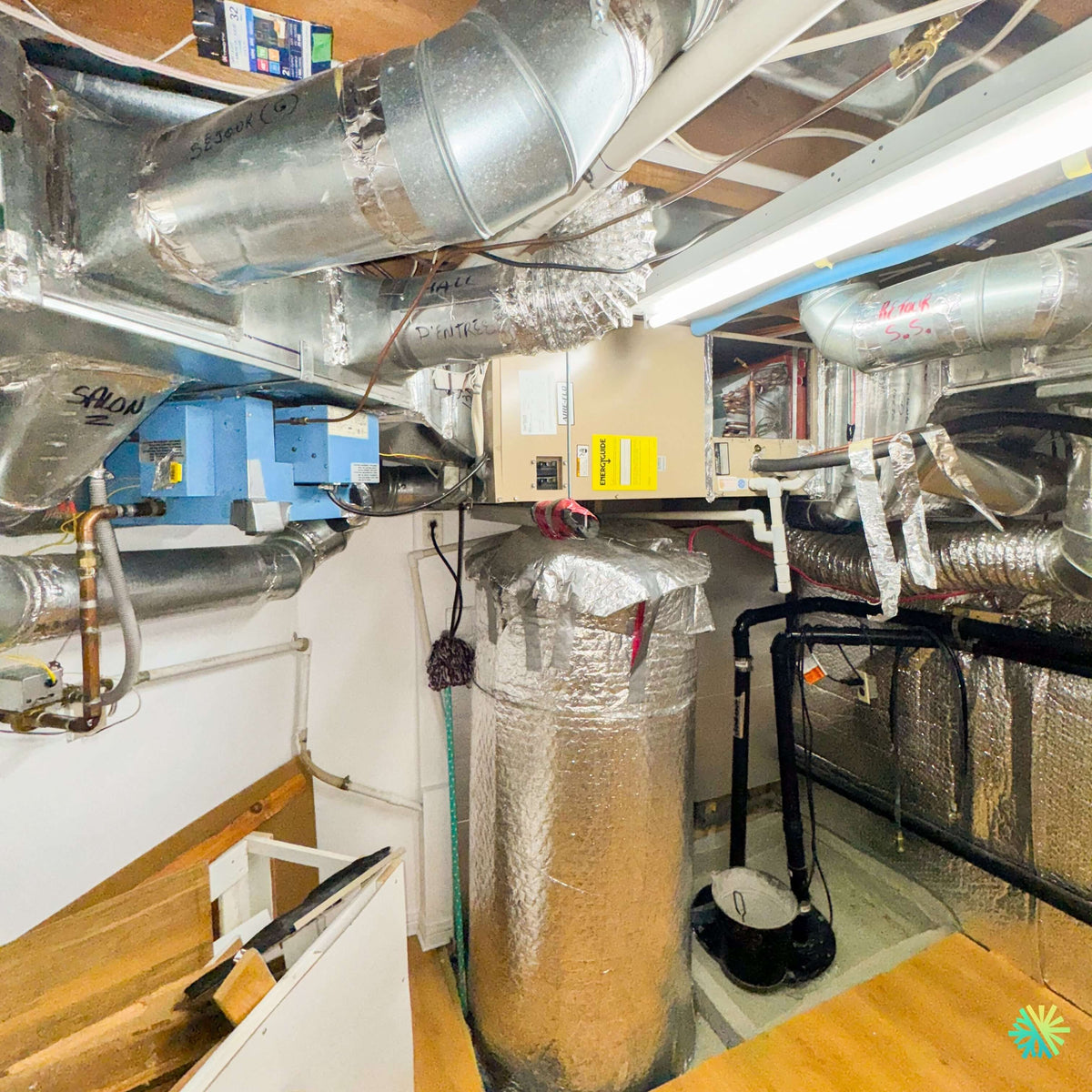

In the Plateau-Mont-Royal neighborhood of Montreal, our AirGreen team was called for a electric furnace repair located in a compact mechanical room, typical of many older residential buildings in the area. Upon arrival, the technical environment revealed a dense installation: multiple metal ducts, insulated ducts, drainage connections, low-voltage wiring, supply plenum, return air, and HVAC accessories installed in a tight space.
The client contacted us because the heating system no longer provided stable comfort. The ventilation was working, but the blown air sometimes felt lukewarm, sometimes almost cold. The thermostat called for heat, the furnace started, but the temperature rose slowly and some rooms remained less comfortable. In a residence in Plateau-Mont-Royal, where interior divisions, older walls, and existing ducts can complicate air distribution, a drop in performance of a central electric furnace can quickly become very uncomfortable.
Our intervention had to answer three essential questions: is the furnace correctly receiving the thermostat’s demand, are the electrical elements activating as expected, and is the heated air circulating efficiently through the duct network?
An electric furnace connected to a complex duct network
The installation observed on site consisted of a residential electric furnace integrated into a network of metal ducts, with several manually identified branches for different zones of the house. This type of configuration is common in Montreal, but also in renovated buildings in Laval, Longueuil, on the North Shore, and the South Shore. When a central system has been modified over the years, each addition or adjustment can affect airflow, static pressure, and overall performance.
The furnace was installed near the ceiling, in a tight technical space, which made access to internal components more delicate. Before dismantling anything, we checked the general condition of the installation:
- presence of properly connected ducts;
- condition of seals and sealing tapes;
- accessibility of the service panel;
- electrical supply;
- control wiring;
- drainage nearby;
- condition of the filter and air return;
- fan operation;
- heating start-up sequence.
This initial inspection confirmed that the system was not completely out of service. The problem was more subtle: the furnace responded to demand, but the heating sequence was irregular.
Observed symptoms: intermittent heating and irregular airflow
During the operation tests, our technicians noticed that the fan started correctly, but the heating elements did not always fully engage. In an electric furnace, heating relies on resistance elements that must activate in a precise sequence. If a relay, contactor, sequencer, or control connection becomes unstable, the device can continue to blow air but without providing its full heating capacity.
The customer was therefore right to feel discomfort. The system did not necessarily stop completely, but it did not deliver the expected heat. This situation is often more difficult to diagnose than a clear failure because the device appears to be working.
We then checked:
- the supply voltage;
- the demand sent by the thermostat;
- the response of the control board;
- the activation of the heating relays;
- the continuity of the electrical elements;
- the blowing temperature;
- the temperature difference between return and supply;
- the air pressure in the ducts;
- the condition of the filter and possible restrictions.
The diagnosis identified a weakness in the control of one stage of electric heating. A heating relay was showing intermittent behavior, which prevented the full activation of the elements when demand increased.
Replacement of the faulty relay and validation of the heating sequence
After securing the electrical supply and confirming the diagnosis, we proceeded to replace the defective heating relay. On an electric furnace, this type of component is essential: it allows the heating demand to be properly transmitted to the electrical elements. A worn relay can cause irregular cycles, insufficient heat, premature wear of other components, and inefficient consumption.
The intervention was carried out with particular attention to the available space. In this mechanical room in Plateau-Mont-Royal, the ducts, wires, pipes, and accessories around the unit limited movement. It was therefore necessary to work cleanly, without unnecessarily moving existing joints and without compromising other HVAC components.
Once the part was replaced, we restarted the system and validated the complete sequence:
- heating demand at the thermostat;
- fan start according to the planned delay;
- progressive activation of electrical elements;
- stable increase in supply temperature;
- cycle maintenance without abnormal interruption;
- normal shutdown at the end of the demand;
- controlled restart to confirm stability.
The supply temperature became more consistent, and the system regained a much more coherent response.
Airflow and duct inspection
An electrical repair is not always enough to solve a comfort problem. Even when the furnace heats properly, a poorly balanced duct network can create cold spots, turbulence noises, or performance loss. That’s why we also inspected the accessible ducts.
On site, several ducts were close together, with branches supplying different rooms. We paid particular attention to areas where the insulation seemed aging, to joints that could let air pass, and to sections where pressure could be affected.
We recommended the client to monitor certain signs:
- a room always colder despite a functional furnace;
- excessive air noise in a single duct;
- an almost inactive supply grille;
- a buildup of dust near the returns;
- a marked difference between floors;
- an unusual increase in the electricity bill.
In this intervention, the main problem came from the heating relay, but the system environment also showed the importance of periodic maintenance of the HVAC network.
A repair that restored comfort and secured the system’s operation
After replacing the faulty component and validation tests, the electric furnace resumed stable operation. The customer noticed more consistent heat at the air outlets, better thermostat response, and reduced time to reach the set temperature.
In a central system, comfort depends not only on the furnace’s power. It depends on the entire system: thermostat, power supply, relay, heating elements, fan, filter, ducts, air returns, and overall balance. It is precisely this global view that allows for a lasting repair.
Why an electric furnace may blow air without really heating
A common HVAC service complaint is: “the system runs, but doesn’t heat enough.” This phrase can hide several causes. In the case of an electric furnace, the fan may run fine even if one or more heating elements do not activate. The customer then hears the system running, feels air coming from the vents, but does not get the expected comfort.
Possible causes include:
- defective heating relay;
- worn sequencer;
- burnt heating element;
- incorrectly configured thermostat;
- loose low voltage wire;
- safety limit triggered;
- filter too dirty;
- blocked air return;
- too high static pressure;
- power supply issue.
That’s why a professional diagnosis is essential. Replacing the thermostat or raising the setpoint does not fix a faulty internal component. On the contrary, it can prolong cycles and mask the real problem.
Mistakes to avoid with a central electric furnace
Before our arrival, the customer had already tried increasing the thermostat setpoint to compensate for the lack of heat. This reflex is common, but it can cause confusion. If a heating zone is not working, asking for a higher temperature does not restore the lost capacity.
We advise avoiding the following actions:
- letting the system run for several days despite lukewarm air;
- replacing the thermostat without diagnosis;
- closing too many vents to “force” air into a room;
- ignore electrical noise or an unusual smell;
- leaving a clogged filter in place;
- opening the furnace panels without cutting the power;
- assuming that any drop in comfort automatically comes from the ducts.
An electric furnace operates with high-voltage components. Any internal intervention must be carried out methodically and carefully.
AirGreen expertise adapted to Plateau-Mont-Royal buildings
Plateau-Mont-Royal often features particular HVAC installations. Buildings have sometimes been renovated in stages, mechanical rooms are compact, ducts follow tight routes, and access to equipment is not always simple. For a service call in this area, field experience makes a big difference.
At AirGreen, we regularly work on central and wall systems in Montreal, Laval, Longueuil, on the North Shore and South Shore. This variety of interventions allows us to quickly analyze existing configurations, even when the installation is old, modified, or difficult to access.
In this specific case, the intervention was not limited to replacing a part. It was necessary to understand the complete behavior of the furnace, check the air distribution, and confirm that the repair delivered a real result for the client.
Final result: stable heat, safe operation, and a reassured client
At the end of the service call, the electric furnace was operating with a regular heating sequence. The fan, electrical elements, and controls responded correctly. The heat supplied to the ducts was more stable, and the client received a clear explanation of the cause of the problem.
We also recommended preventive maintenance, including periodic filter checks, inspection of accessible connections, thermostat control, and careful observation of airflow in the rooms. These simple actions help detect performance drops earlier and prevent a small failure from becoming a more costly breakdown.
An electric furnace repair in Plateau-Mont-Royal requires precision, especially when the system is integrated into a dense mechanical room. By replacing the faulty relay and validating the entire operation, we restored reliable heating and much more consistent comfort.
