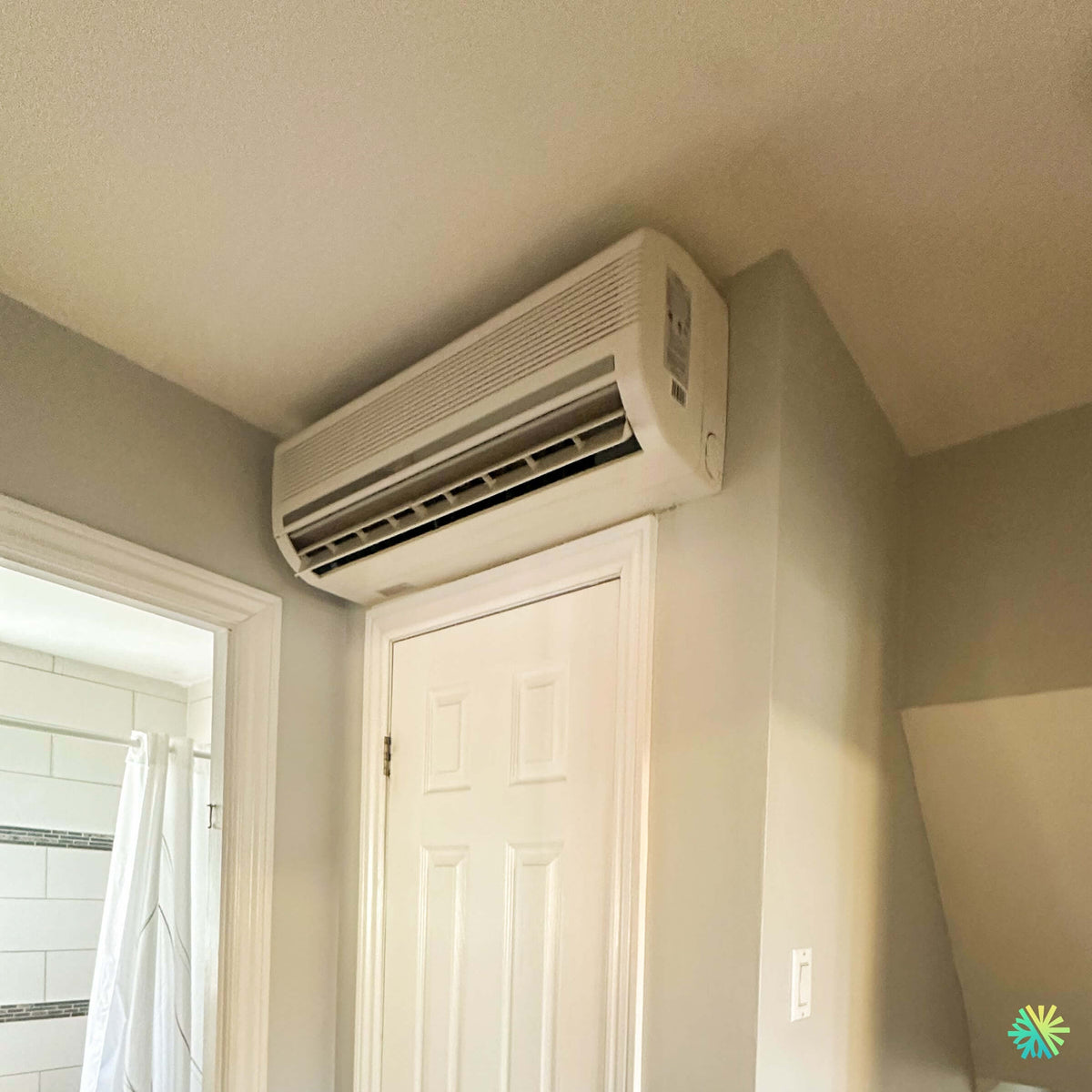

A wall unit placed above a door that was cooling poorly and draining condensate with difficulty
In Rosemont–La Petite-Patrie, our AirGreen team responded to a service call on a wall-mounted heat pump installed in a tight indoor space, above a door, near a bathroom. This type of location is common in Montreal homes where available wall space is limited: narrow corridors, divided rooms, sloped ceilings, closely framed doors, and passages to humid areas like a powder room or bathroom.
The client had noticed several worrying symptoms: the unit was producing less cold air than before, the airflow seemed irregular, a slight vibration noise appeared when the louvers opened, and unusual humidity was felt around the indoor unit. At times, a small accumulation of water formed under the heat pump, without major leakage, but enough to indicate a drainage or condensation problem.
The observed unit was a mini-split type wall-mounted heat pump, residential size, probably with a common capacity of about 9,000 to 12,000 BTU, used to cool and heat a main area of the home. The exact brand and model were not clearly visible from the photo at a distance, but the configuration matched a classic indoor wall unit with motorized louvers, washable filters, evaporator coil, tangential fan, and integrated condensate tray.
A necessary diagnosis in a hard-to-reach location
The first difficulty with this intervention came from the location. The unit was installed very high, directly above an interior door, with little space between the top of the unit and the ceiling. This setup makes it difficult to open the front panel, access the filters, inspect the coil, and thoroughly clean the condensate tray.
In several homes in Montreal, especially in neighborhoods like Rosemont–La Petite-Patrie, the Plateau, Villeray, or the Southwest, wall-mounted heat pumps are sometimes placed in technically acceptable but inconvenient locations for maintenance. A unit may work properly for several seasons, then start developing problems as dust, moisture, and organic deposits accumulate inside.
Our technician started by checking the basic elements:
- condition of the washable filters;
- cleanliness of the indoor coil;
- operation of the motorized louvers;
- speed of the tangential fan;
- presence of vibrations or rubbing;
- condensate drainage;
- blowing temperature;
- device response to the remote control;
- selected mode and requested setpoint.
Very quickly, two main problems were identified: advanced internal dirt buildup and a partially blocked condensate drain.
Why the unit was no longer cooling effectively
A wall-mounted heat pump can seem to be broken even though the outdoor compressor is still working properly. In this case, the problem was mainly on the indoor side. The filters were loaded with dust, but the problem went further: the indoor coil had a significant buildup of fine particles, and the tangential fan had lost some of its ability to push air.
When the indoor fan is dirty, the air no longer circulates with the same force. Even if the coil becomes cold, the cold air is not well distributed in the room. The customer may then feel:
- a room that takes a long time to cool;
- weak blown air;
- persistent hot spots;
- higher indoor humidity;
- longer operating cycles;
- unnecessarily high electrical consumption;
- an irregular blowing noise.
In a dense neighborhood like Rosemont–La Petite-Patrie, where many homes have compartmentalized rooms, a wall-mounted heat pump must blow air effectively to distribute it well. A loss of airflow can quickly lead to discomfort, especially when a single unit serves several adjacent zones.
The role of drainage in this type of failure
The second issue concerned the condensate. In cooling mode, a wall-mounted heat pump removes moisture from the indoor air. This moisture condenses on the cold coil, falls into a drain pan, then drains out through a pipe to the outside or to an appropriate drain.
When the drain pan or drain pipe is partially blocked, water no longer flows properly. It can remain in the unit, create odors, promote deposit formation, and eventually leak out the front or from a lower corner. In this case, the water was not flowing heavily, but the moisture around the unit and visible marks near the lower area confirmed that the drainage needed to be addressed before more serious damage occurred.
Our checks identified a partial blockage caused by a mixture of dust, biofilm, and residues accumulated in the drainage path. This type of buildup is common in units that often operate in cooling mode and do not receive regular deep cleaning.
Technical cleaning and restoration of the indoor unit
The repair was not just rinsing the filters. To restore performance, we carried out a more thorough intervention on the wall unit.
The steps performed included:
- removal and washing of the washable filters;
- safe opening of the front panel;
- inspection of the evaporator coil;
- targeted cleaning of accessible fins;
- cleaning the condensate tray;
- unclogging the drainage line;
- checking the flow with a water test;
- inspection of the tangential fan;
- cleaning visible deposits on the fan wheel;
- checking the movement of the flaps;
- operation test in cooling mode;
- temperature measurement at the air outlet.
Cleaning the tangential fan was particularly important. This part, often overlooked, is responsible for airflow. When its blades are coated with sticky dust, the unit can become noisy and lose a lot of efficiency. In some cases, a very dirty fan can even become slightly unbalanced, causing vibration or intermittent noise.
Noise correction and flap inspection
The customer had also mentioned a noise when the device started or when the flaps repositioned. On site, our technician found that the noise came from a combination of two factors: a slight vibration of the front panel and irregular movement of the lower flap.
We correctly repositioned the panel, checked the fasteners, cleaned the contact areas, and checked the movement of the motorized flap. No flap motor replacement was necessary. The part was not defective; it was simply affected by dirt buildup and a minor misalignment of the panel.
This is a good example of a situation where an accurate diagnosis prevents unnecessary replacement. In the HVAC field, a noise does not automatically mean that an electronic or mechanical part is broken. You need to listen, locate, disassemble if necessary, then test after correction.
Performance test after service
After restoration, we restarted the wall-mounted heat pump in cooling mode. The airflow was noticeably better, the flap operated more freely, and condensate drainage worked properly. The blowing temperature confirmed that the unit was once again producing effective cold air.
We also let the unit run long enough to verify that water no longer accumulated in the tray. The drainage test was essential because a partially cleared drain line can sometimes seem fine for a few minutes, then start backing up again when condensate production increases.
The client immediately noticed a difference: the blown air was more consistent, the musty smell had decreased, the noise was reduced, and the heat pump responded normally to controls.
What this repair shows about maintaining wall-mounted heat pumps in Montreal
This service in Rosemont–La Petite-Patrie illustrates a very common problem in residential housing: a wall-mounted heat pump can lose a lot of performance without actually being “broken.” In this case, the compressor was not at fault, the electronic board was not defective, and no major replacement was necessary. The problem was instead due to internal buildup, reduced airflow, and partially blocked drainage.
Signs not to ignore
An owner should have their wall-mounted heat pump checked when they notice:
- air that is less cold or less hot than before;
- weaker airflow;
- a musty smell at startup;
- an unusual vibration;
- a flap or panel noise;
- water drops under the unit;
- persistent humidity in the room;
- a unit that runs longer to reach the set temperature;
- filters that get dirty quickly.
These symptoms often develop gradually. They don’t seem urgent at first, but they can lead to more serious problems: water leakage on a wall, paint deterioration, mold inside the unit, excessive electricity consumption, or complete device shutdown.
Common mistakes to avoid
When a wall-mounted heat pump leaks or cools poorly, several common mistakes often occur. The first is simply cleaning the filters, thinking that solves everything. Filters are important, but they do not fully protect the coil, fan, and condensate tray. After several seasons, a more thorough cleaning becomes necessary.
The second mistake is assuming the system is low on refrigerant. Lack of cooling can be caused by a leak, but also by reduced airflow. Adding refrigerant without a full diagnosis can cause malfunction and mask the real cause of the problem.
The third mistake is ignoring drainage. A small drop today can become a significant leak on a hot, humid day. In an installation above a door, water can reach the framing, paint, floor, or adjacent elements.
The fourth mistake is waiting for a smell to disappear on its own. A musty odor often indicates deposits in the drain pan, fan, or coil. Normal operation of the unit is not always enough to dry out or eliminate these deposits.
Expertise tailored to the housing in Rosemont–La Petite-Patrie
Service calls in Rosemont–La Petite-Patrie often require good adaptability. The housing types vary: duplexes, triplexes, condominiums, renovated apartments, older interior layouts, sloped ceilings, and tight spaces. A wall-mounted heat pump can be installed in a hallway, bedroom, open area, or near a bathroom, as in this case.
At AirGreen, we regularly service this type of system in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Our goal is always the same: to understand the actual behavior of the unit, fix the root cause of the problem, and provide the customer with a reliable, clean, and efficient system.
Final result: a cleaner, quieter, and more efficient unit
At the end of the service, the wall-mounted heat pump had regained much more satisfactory performance. Internal cleaning improved the airflow, drainage was restored, the louvers worked properly, and vibration noise was reduced. The customer was reassured about the overall condition of their unit, as no major faults were detected.
This type of repair shows that a well-executed service call can extend the lifespan of a wall-mounted heat pump without incurring unnecessary costs. By addressing the real causes — dirt buildup, drainage, airflow, and mechanical adjustment — we enabled the unit to operate more stably and comfortably.
