When an electric furnace still blows air but no longer heats as it should
In Vimont, a well-established residential area of Laval, our AirGreen team was called for a HVAC service call on a central electric furnace installed in a mechanical room in the basement. The customer reported progressive discomfort: the furnace started, the fan worked, air came out of the vents, but the heat was no longer consistent. Some rooms took far too long to warm up, while the thermostat seemed to call for heat more often than before.

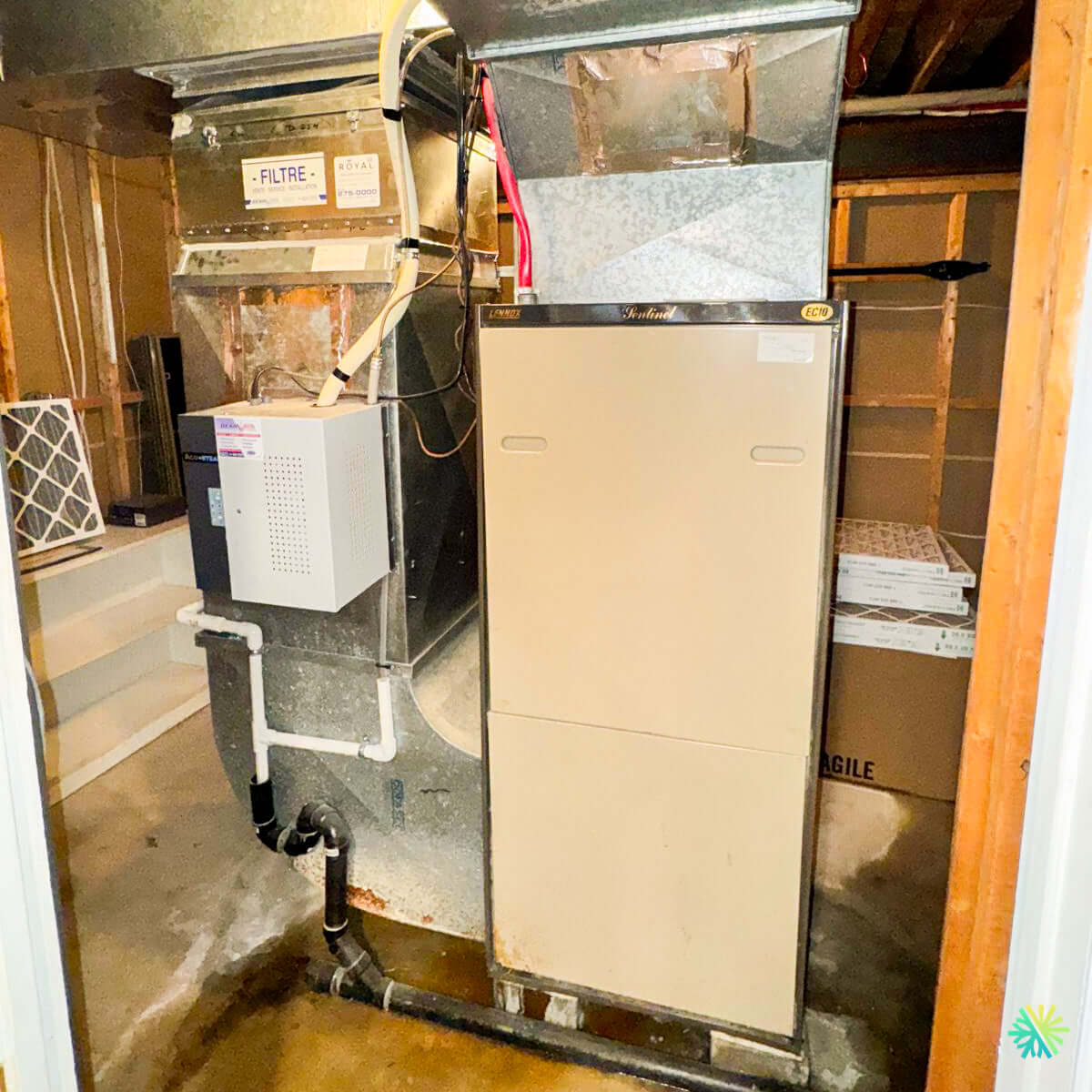

On site, we observed a typical installation of an existing central system: an electric furnace connected to a galvanized duct network, with a filter box, an upper plenum, a bypass-type humidifier installed on the duct, a drainage pipe, and several elements added over the years. This type of installation is common in homes in Vimont, Duvernay, Chomedey, Montreal, Longueuil, the North Shore, and the South Shore, where central systems have sometimes been adapted, maintained, modified, or partially modernized over time.
The device was identified as a Sentinel EC10, with a residential electric furnace configuration integrated into the ventilation system. Our intervention aimed to determine why the system was no longer delivering its full heat, to validate the electrical safety of the furnace, to check air circulation, and to restore the equipment to reliable operation.
Symptoms observed before the service call
The customer had noticed several signs that, together, pointed to a performance issue rather than a complete breakdown:
- the furnace started normally at the thermostat;
- the fan was blowing, but the air sometimes seemed only lukewarm;
- the house took longer to reach the requested temperature;
- Some cycles were longer than usual;
- the parts farthest from the system received less heat;
- a slight noise variation was noticeable at startup;
- the system seemed to run more often, without providing the same comfort.
These symptoms are especially important on an electric furnace, because the fan can operate even if one or more heating stages do not activate properly. For the customer, the system seems “on.” For an HVAC technician, you need to go further: measure the temperature, check the electrical sequence, inspect the airflow, and confirm that each component responds as expected.
Installation inspection: a central network that needed to be fully analyzed
The first step was a complete visual inspection. The furnace was installed in a relatively confined space, with an existing duct network and several accessories around the device. We paid particular attention to the filter box visible on the return duct, as a filter that is too dirty or improperly installed can quickly reduce airflow and cause a significant drop in performance.
We checked:
- the general condition of the furnace;
- access to the service panels;
- the filter box;
- the return air;
- the supply plenum;
- the accessible duct joints;
- the presence of metal tape on certain sections;
- the visible condition of the low-voltage wiring;
- the drain connected to the accessory installed on the duct;
- the sound behavior at startup;
- the airflow at the main vents.
In an installation like this, it is essential to avoid a rushed diagnosis. A furnace that heats poorly may have a faulty relay, an unstable sequencer, an open heating element, a clogged filter, a dirty blower wheel, a weakened capacitor, or a misconfigured thermostat. Each hypothesis must be methodically checked.
Electrical diagnosis: validate the heating stages
We then proceeded with the electrical diagnosis. An electric furnace usually operates with several heating elements activated in stages. These stages allow power control and prevent a sudden electrical demand at startup. If one of these stages does not activate, the furnace can still produce warm air but with reduced power.
During our tests, the thermostat demand was properly transmitted to the device. The fan responded, but the temperature rise in the plenum was not as fast as it should have been. We then checked the voltage, the continuity of accessible circuits, the connections, the control relays, and the heating sequence behavior.
The main problem identified was an irregular activation of a heating stage, combined with a partial airflow restriction. One of the control relays showed an unstable response. It did not completely shut off the system, but it prevented the furnace from delivering its full capacity consistently.
Correcting airflow: a factor often underestimated
Before replacing an electrical component, we also addressed the airflow. In this case, the filter and the return air had a direct impact on the furnace’s operation. Too low a flow can cause the internal temperature to rise abnormally and trigger safety shutdowns. It can also give the impression that the furnace lacks power, while part of the problem comes from air circulation.
We replaced the filter, inspected the filter box, and checked that the panel was properly closed. We also examined accessible ducts to spot air leaks or joints that could affect distribution. The goal was to allow the furnace to breathe properly before validating its final performance.
Replacement of the defective component
After securing the power supply, we replaced the unstable control relay associated with the problematic heating stage. The connections were carefully inspected for any signs of overheating, loosening, or oxidation. On a central electric furnace, this detail is essential: a slightly weakened connection can generate heat, damage a terminal, and cause a more significant failure.
Once the part was replaced, we restarted the system in heating mode. We observed the complete sequence:
- thermostat call;
- fan start;
- progressive activation of heating stages;
- temperature rise in the plenum;
- airflow stability;
- absence of abnormal electrical odor;
- normal shutdown when the demand is met.
The system resumed much more consistent operation. The blown air was warmer, the temperature rose more quickly, and the furnace no longer seemed to run unnecessarily during long cycles.
Checking the humidifier and accessories around the furnace
The installation also included an accessory attached to the duct, connected to a drainage line. This type of element can be a humidifier or an air treatment accessory integrated into the central system. Even when it is not the main cause of the heating problem, it must be inspected because a leak, a clogged drain, or poor attachment can affect the environment around the furnace.
We checked that the visible drain was not backing up, that water was not accumulating around the unit, and that the accessory was not creating excessive restriction in the duct. The presence of a humidifier or an air treatment module also requires regular maintenance, especially in winter when the heating system runs more often.
Result: more stable heating and restored comfort
After the intervention, the electric furnace in Vimont regained much more stable performance. The client noticed a clear improvement in the heat distributed in the rooms. The fan no longer just circulated lukewarm air: the system responded better to thermostat demands and more efficiently reached the desired temperature.
The repair restored three essential elements:
- a reliable activation of the heating stages;
- a more adequate airflow;
- a safer and more predictable operating sequence.
This kind of result is important because it prevents prematurely replacing a furnace that can still function properly when the right components are repaired and airflow is optimized.
What this repair in Vimont reveals about central electric furnaces
A central system must be diagnosed as a whole
A common mistake is to look only at the furnace, without analyzing the ducts, the filter, the return air, and the accessories. Yet, an electric furnace never works alone. It depends on the distribution network to transmit heat throughout the house.
In Vimont, the problem came as much from the electrical control as from the airflow. If we had only replaced the relay without correcting the restriction, the furnace could have continued to strain. If we had only replaced the filter without checking the heating stages, the client would have kept incomplete power.
Signs to watch for after a repair
After our intervention, we recommended the client monitor a few simple points:
- the air temperature at the vents;
- the length of heating cycles;
- parts that remain colder;
- unusual noises at startup;
- the frequency of filter replacement;
- any overheating smell;
- the condition of the drain connected to the accessories.
A well-repaired electric furnace must provide consistent heat. If a symptom returns quickly, it may indicate another weakness in the system, an unbalanced duct, or an accessory needing maintenance.
Why the filter is crucial on an electric furnace
The filter is not just a simple accessory. It protects the blower, the coil, the elements, and the duct network. When it is too dirty, it reduces airflow and can cause overheating problems. When it is too restrictive, even if new, it can harm system performance.
In many homes in Laval, Montreal, Longueuil, the North Shore and the South Shore, we see very dense filters installed on systems that are not designed for this resistance. The result: less air, more noise, more wear, and uneven comfort.
Mistakes to avoid with an electric furnace
Ignoring lukewarm heating
If the air is lukewarm while the furnace has been running for several minutes, the system needs to be checked. This symptom may indicate an inactive heating stage or an air restriction.
Turning the thermostat up high
Requesting a very high temperature does not make the furnace more powerful. It simply lengthens the cycles if the system cannot keep up.
Neglecting access to the unit
A furnace must remain accessible. Panels, filters, motors, relays, and ducts must be easy and safe to inspect.
Report an electrical noise
An abnormal click, a buzzing sound, or a hot smell near the service panel should be taken seriously. The electrical components of a furnace handle significant loads.
Electric furnace repair service in Vimont and Greater Montreal
At AirGreen, we work on central electric furnaces, ventilation systems, central heat pumps, wall-mounted heat pumps, and residential HVAC equipment in Vimont, Laval, Montreal, Longueuil, on the North Shore and on the South Shore.
Our approach is based on precise diagnostics: checking the electricity, measuring the heat, analyzing the air, inspecting the ducts, and validating the final result. In this case in Vimont, this method allowed the client to regain more reliable heating without unnecessary replacement of the entire equipment.
An electric furnace can often be restored to performance when the real cause of the problem is correctly identified. This precision is what makes the difference between a temporary repair and a system truly restored for the cold season.
