A precise service call for a Carrier heat pump leaking above a door
In a home in Montreal, our AirGreen team was called for a Carrier wall-mounted heat pump repair installed above a patio door, in a compact living room where every installation detail mattered. The indoor unit, wall-mounted type, bore the Toshiba Carrier brand on the front, with a slim and elongated design typical of residential Inverter units. Based on the unit’s size and location, we treated the device as a wall-mounted heat pump of about 9,000 to 12,000 BTU, mainly used to cool the main living space and provide supplemental heating during cooler seasons.
The client had noticed a worrying situation: the unit was still running, but water seemed to accumulate inside the indoor unit before occasionally leaking. The problem was not constant, which made the situation harder to understand. Some days, the unit cooled normally. Other times, after a long period of operation, moisture appeared under the unit near the door frame. In an installation placed directly above an opening, this type of leak can quickly become problematic: risk of stains, infiltration into moldings, musty odor, discomfort, and concern about the overall condition of the machine.
Our intervention aimed at three objectives: identifying the real cause of the leakage, checking if the cooling performance was affected, and restoring the unit to reliable operation.
An indoor configuration that required a methodical approach

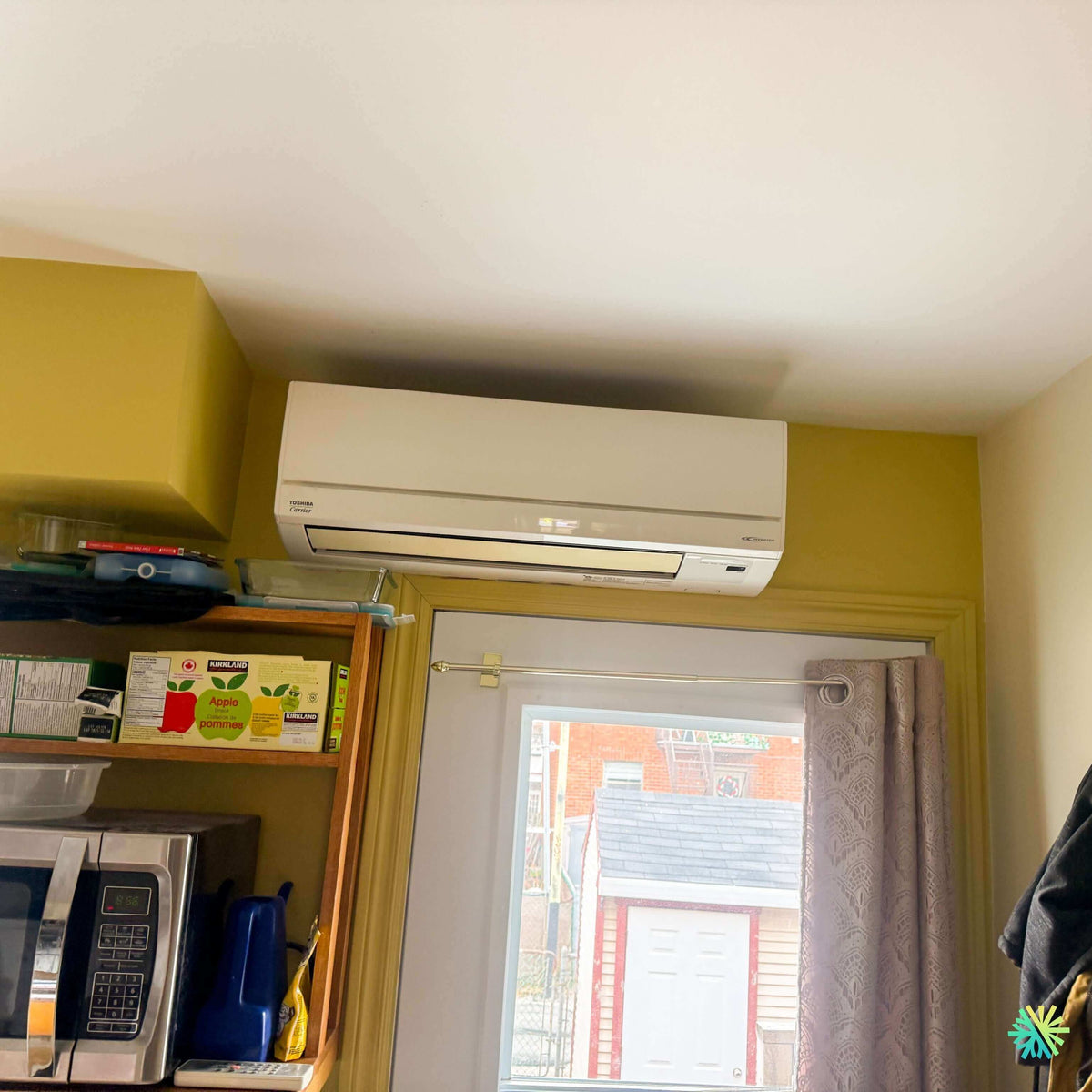

The indoor unit was installed very close to the ceiling, above a patio door leading outside. To the left of the unit, a storage area and kitchen equipment partially limited access. This setup is common in homes in Montreal, especially when available wall space is limited and the wall-mounted heat pump must be placed in the best possible location to distribute air throughout the room.
However, this positioning involves certain technical constraints. A unit installed near the ceiling can be more difficult to open, clean, and inspect. When it is above a door, the condensate drain must be perfectly functional, as the slightest slowdown can cause visible overflow. Also, if the device is used intensively during summer heat, the evaporator produces a lot of condensation water, which requires constant and unobstructed drainage.
At AirGreen, we regularly see this type of situation in Montreal, Laval, Longueuil, on the North Shore and the South Shore: a wall-mounted heat pump that still seems functional, but whose drain, fan, or indoor coil is starting to affect overall performance.
Symptoms reported by the customer
The customer described several warning signs to us:
- presence of moisture under the indoor unit;
- intermittent dripping after long use in air conditioning;
- water or gurgling noise at certain times;
- less consistent cooling than before;
- sometimes more humid air in the room;
- concern about a possible refrigerant leak.
These symptoms can have several causes. A water leak on a Carrier wall-mounted heat pump does not automatically mean the device is broken. In many cases, the problem comes from a partially clogged drain, a dirty condensate pan, insufficient slope, dust accumulation on the evaporator, or a dirty fan that reduces airflow. In other cases, abnormal refrigerant pressure can cause freezing on the evaporator; when the ice melts, the water exceeds the normal capacity of the drainage pan.
Our diagnosis therefore had to distinguish between a simple drainage blockage and a deeper problem related to the refrigeration circuit or electronic operation.
Inspection of the Carrier indoor unit
We started by securing the work area. Since the unit was located above the door and near the ceiling, we had to access the unit without damaging the moldings, painted wall, or surrounding objects. We then opened the front panel to inspect the filters, evaporator, fan, condensate pan, and the visible condition of the drain.
The filters showed normal accumulation, but the main problem was further along in the drainage system. The condensate pan showed signs of stagnant moisture, and the drain seemed to evacuate water more slowly than expected. This slowdown is often enough to cause intermittent leaks: when the unit runs briefly, water still drains; when it runs for a long time, the condensate volume increases and the drain can’t keep up.
We also checked the condition of the fan. A dirty fan can reduce airflow, making the evaporator colder than it should be. This situation can promote excessive condensation and, in some cases, freezing. In this home, the fan was not completely blocked, but it had enough buildup to justify targeted cleaning.
Condensate Drainage Diagnosis
The core of this intervention was the condensate drain. On a wall-mounted heat pump, the water produced by the evaporator must flow naturally outside or into a dedicated pipe. When the drain is partially clogged by dust, biofilm, debris, or slight organic buildup, water can back up into the pan and eventually leak inside.
We tested the drainage by pouring a controlled amount of water into the condensate pan. The result confirmed our hypothesis: the water was not draining quickly enough. The drain was not completely blocked, but it was slow enough to cause overflow when the unit ran for a long time in cooling mode.
This type of problem is common when HVAC maintenance has not been performed regularly. Even a high-quality heat pump, like a Carrier or Toshiba Carrier unit, can develop this kind of symptom if humidity, dust, and fine particles accumulate inside the unit.
Technical cleaning and restoration
Our team carried out a methodical cleaning of the drainage area. The condensate tray was cleared, the drain was unblocked, and the flow was tested several times until a stable flow was achieved. We also cleaned the accessible surfaces of the evaporator and turbine to improve heat transfer and air circulation.
The intervention was not limited to the drain. A water leak can sometimes be the visible symptom of another imbalance. We therefore checked:
- the temperature of the return air;
- the temperature of the blown air;
- the ventilation speed;
- the behavior of the motorized flap;
- the absence of ice on the evaporator;
- the condition of the filters;
- signs of odor or mold;
- the overall operation in air conditioning mode.
After cleaning and unblocking the drain, the device was restarted. We let the heat pump run long enough to confirm that the condensate tray was draining properly and that water was no longer accumulating inside.
Air conditioning performance check
Once the drainage problem was fixed, we measured the device’s performance. The customer wanted to know if the drop in comfort was only due to the leak or if the machine was also lacking power. Temperature measurements showed improvement after cleaning, confirming that internal dirt buildup contributed to the inconsistency.
No immediate signs pointed to a major failure of the compressor or the electronic board. The unit responded correctly to commands, the indoor fan worked, the flap opened normally, and the blown air was more stable after the intervention.
In this case, we did not have to replace the control board or the ventilation motor. The repair was based on a precise diagnosis, technical cleaning, and the complete restoration of condensate drainage. This is often the best news for the customer: a worrying problem can sometimes be fixed without costly replacement, provided action is taken before water causes damage.
Result: a more reliable, cleaner, and more reassuring wall-mounted heat pump
After our service call to Montreal, the Carrier wall-mounted heat pump regained much more stable operation. The condensate flow was restored, the risk of leaks above the door was eliminated, and cooling was more consistent. The client was able to resume normal use of the unit without fear of water dripping on the door frame or floor.
What this repair demonstrates
This intervention illustrates an essential point: a wall-mounted heat pump should never be evaluated solely based on whether it starts or not. A unit can operate while having a serious problem with drainage, airflow, or internal maintenance.
In the case of this Carrier unit, the system was not completely broken. It was rather giving progressive signals: humidity, water noise, irregular performance. By acting quickly, we avoided more significant deterioration, including potential damage to moldings, the wall, and inside the unit.
Mistakes to avoid with a water leak on a wall-mounted heat pump
The first mistake is thinking that a small leak is normal in air conditioning. Yes, a heat pump produces water when it dehumidifies the air, but this water must always be properly drained. It should never flow inside.
The second mistake is simply wiping up the water without looking for the cause. If the drain is partially blocked, the problem will return. The longer the unit runs, the greater the risk of overflow.
The third mistake is immediately assuming a refrigerant leak. A lack of refrigerant can indeed cause freezing and lead to water during defrosting, but this is only one possibility among several. A complete HVAC diagnosis helps avoid premature conclusions.
The fourth mistake is neglecting internal maintenance. Filters are important, but they are not always enough. The fan, evaporator, and condensate tray must also remain clean for the unit to maintain its efficiency.
Why call AirGreen for this type of repair
AirGreen intervenes every week on residential wall systems in Greater Montreal. We understand the realities of homes where units are installed above doors, in kitchens, living rooms, bedrooms, or tight spaces. These locations require a careful approach, as access is sometimes limited and the consequences of a leak can be swift.
Our service covers wall-mounted heat pumps, wall air conditioners, MultiZone systems, central heat pumps, and many other residential HVAC equipment. Whether the intervention takes place in Montreal, Laval, Longueuil, on the North Shore or the South Shore, our goal remains the same: identify the real cause of the problem and offer a lasting solution.
Practical advice after a drain repair
After an intervention like this, we recommend the client monitor certain signs in the following days:
- check that no drops appear under the unit;
- keep the filters clean;
- avoid blocking the air intake or outlet;
- listen for unusual gurgling noises;
- have the unit serviced before periods of intense heat;
- request a service call if the device cools less effectively or if humidity returns.
A well-maintained wall-mounted heat pump offers better comfort, consumes less energy, and reduces the risk of breakdowns during peak usage periods.
An HVAC repair that protects comfort and the home
This Carrier wall-mounted heat pump repair in Montreal demonstrates the importance of comprehensive technical service. The visible problem was a water leak, but the real solution involved analyzing the drainage, heat exchange, turbine, evaporator, and the overall behavior of the device.
By restoring the condensate flow and improving the internal cleanliness of the unit, we gave the client a more reliable, quieter, and more efficient device. This is what we aim for with every AirGreen service call: a clear diagnosis, a clean intervention, and a result that is immediately felt in daily comfort.
