A Carrier electric furnace that still blows air but no longer heats properly: HVAC diagnosis in a Pierrefonds-Roxboro home
In a residence in Pierrefonds-Roxboro, our AirGreen team was called for a Carrier electric furnace installed in a tight mechanical space, between a water heater and several plumbing pipes. The client had noticed a very typical symptom of central forced-air systems: the fan would start, air circulated through the ducts, but the heat produced was no longer sufficient to maintain stable comfort in the house.
This kind of situation can be misleading. At first glance, the furnace still seems to work. The thermostat calls for heat, the ventilation motor starts, air comes out of the vents, but the indoor temperature rises very slowly, sometimes not at all. In many cases, the problem is not a total failure but a partial loss of capacity: one heating stage no longer activates, a relay does not close properly, a safety limit cuts off prematurely, or the airflow prevents the unit from delivering its heat efficiently.
In this intervention, the goal was clear: to confirm if the furnace could be reliably repaired, determine which component was responsible for the performance drop, and provide the client with a safe, stable central system capable of heating the house without endless cycles.

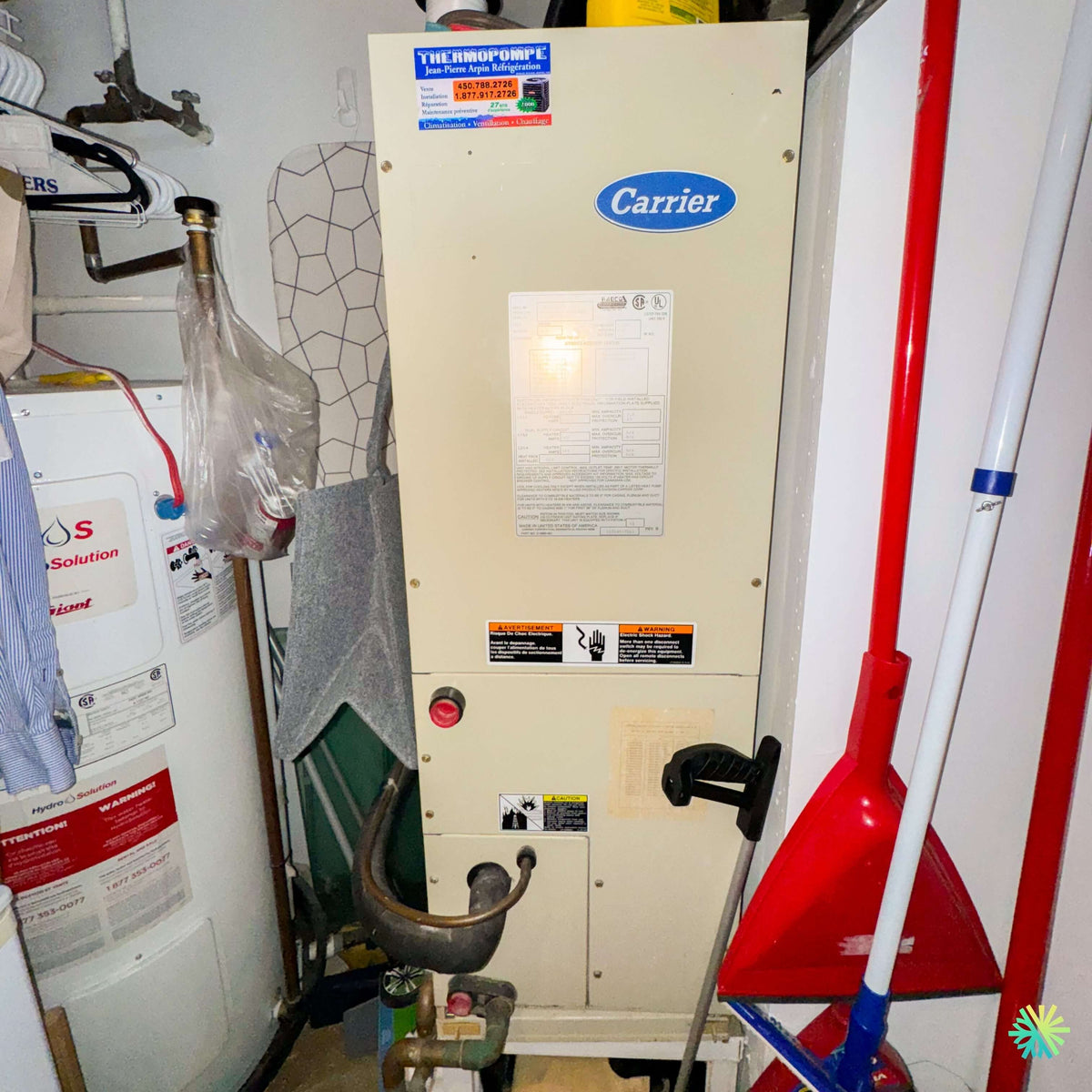

A central Carrier unit installed in a vertical position
The inspected device was a Carrier electric furnace of the central type, installed vertically and connected to a network of metal ducts. The Carrier nameplate was visible on the front panel, with a typical configuration of a forced-air system used to heat multiple rooms from a single mechanical point.
The exact model had to be confirmed from the nameplate, but the setup matched a residential electric furnace with a central fan, internal electrical panel, sequential heating elements, and connection to distribution ducts. This type of equipment can generally operate with significant heating capacities, often around 10 kW to 20 kW, depending on the size of the house, available electrical supply, and element configuration.
The presence of ducts and connections around the device required a structured intervention. In a confined space, access to panels, wiring, the ventilation compartment, and duct sections must be done carefully. A successful repair is not just about replacing a part: it requires understanding how air flows, how heat is produced, and how the electrical control activates each stage.
Symptoms observed by the client
Before our arrival, the client had noticed several signs of decreased performance:
- Lukewarm air at the vents, even when the thermostat requested a higher temperature.
- Longer heating cycles than usual.
- Functional fan, but insufficient heat.
- Uneven comfort between rooms, especially in areas farther from the furnace.
- System that seemed to struggle without quickly reaching the setpoint.
- No complete shutdown, which made the fault less obvious.
These symptoms often point the diagnosis toward a missing heating stage, a sequencer problem, a faulty relay, a weakened electrical connection, or an airflow restriction. In a Carrier electric furnace, each stage must be checked separately. It is not enough to see that the fan is running to conclude that the device is heating at full capacity.
Initial inspection: safety, access, and general condition
We started by inspecting the mechanical environment. The furnace was installed in a space where several pieces of equipment shared the same area, which required special attention to accessibility and safety.
We checked:
- The condition of the front panel.
- Signs of overheating near the connections.
- The stability of the power supply.
- The thermostat response.
- The fan startup.
- The visible condition of the ducts.
- The seals around the metal transitions.
- The presence of dust or obstruction.
- The behavior of the device after a heating call.
An electric furnace operates under high loads. Before going further, it was necessary to ensure the unit could be tested safely and that internal protections had not been bypassed or affected by a previous intervention.
Thermostat and heating signal check
The thermostat correctly sent the heating demand. Low voltage reached the unit, and the furnace did receive the start command. So the problem was not due to a wrong mode, incorrect programming, or a simply misadjusted thermostat.
This step is important because an inadequate thermostat setup can sometimes prevent the proper activation of heating stages. In this case, the basic control was present. It was necessary to proceed to the power circuit and the furnace’s internal components.
Central fan test
The fan started and produced noticeable airflow. However, the system’s sound and the feeling at the vents indicated the unit was not delivering its full thermal capacity. A working fan does not confirm that all heating elements are active.
We checked the motor start-up, the condition of the ventilation compartment, and the system’s response during a full cycle. The motor showed no obvious signs of blockage, but the airflow had to be evaluated alongside the output temperature to understand the furnace’s actual behavior.
Heating stage diagnosis
The central part of the intervention was testing the heating elements and their control. An electric furnace often operates in multiple stages: a first element activates, then a second, sometimes a third, depending on demand and configuration.
On this Carrier unit, a portion of the heating did not activate reliably. The fan was blowing, some heat was produced, but the full capacity was not available. This is exactly the kind of failure that gives the impression the furnace is “still running” when it is no longer heating properly.
After inspection, we identified a control failure in a heating stage, related to a relay or sequencer that was not closing properly. The component no longer transmitted power steadily to the affected element. Result: the house received lukewarm air instead of air hot enough to compensate for heat loss.
Correction made: replacement of the faulty component and securing of connections
Once the cause was confirmed, we proceeded to replace the defective control component associated with the faulty heating stage. The intervention also included an inspection of terminals, wires, and accessible connections, as a weakened connection can create excessive heat, accelerate relay wear, or cause intermittent failure.
The intervention included notably:
- Replacement of the defective heating relay/sequencer.
- Checking the heating elements.
- Inspection of electrical connections.
- Safety limit control.
- Validating the thermostat signal.
- Testing the central fan.
- Checking the blowing temperature.
- Testing over several heating cycles.
The goal was not just to restart the unit. It was necessary to ensure that the furnace could operate stably after the repair, without overheating, premature shutdown, or floor loss.
Duct and air leak inspection
Since the system is central, we also inspected the visible ducts around the furnace. An air leak in the mechanical space can reduce comfort in the house, even when the unit heats properly. In several homes in Pierrefonds-Roxboro, Montreal, Laval, Longueuil, on the North Shore and South Shore, ducts have sometimes been modified over the years, which can create losses or less efficient transitions.
We paid attention to the metal joints, the connections near the unit, and the sections where air could escape before reaching the rooms. Sealing certain transitions was recommended to improve heat distribution and prevent the furnace from running longer than necessary.
Result after repair
After replacing the defective component, the Carrier electric furnace was restarted and tested under real conditions. The heating sequence activated correctly, the blown air was noticeably warmer, and the system responded better to the thermostat's demand.
The customer quickly noticed a difference in the ventilation grilles. The house was no longer heated only by partial capacity. The cycles became more efficient, the indoor temperature rose more consistently, and the overall operation of the unit was more reassuring.
What this intervention reveals about Carrier electric furnaces
A Carrier electric furnace can last a long time when well maintained, but some control components eventually wear out with repeated cycles. The sequencer, relays, electrical connections, safety limits, and central fan work together. When a single element in this chain becomes unstable, the comfort of the entire home can be affected.
Why a furnace can run without heating at full capacity
This case in Pierrefonds-Roxboro illustrates an essential point: a furnace that blows air is not necessarily a furnace that heats properly. The fan can continue to run even if some heating elements remain inactive.
The most common causes are:
A defective relay or sequencer
The relay receives the command but does not properly transmit power to a heating element. The failure may be intermittent at first, then become permanent.
An open or damaged heating element
The element no longer produces heat, even if the other sections are still working. The furnace then heats only partially.
A triggered safety limit
If airflow is insufficient or a section overheats, a safety device may interrupt part of the heating.
A weakened electrical connection
A loose or corroded terminal can cause power loss, local overheating, or variable failure.
A clogged filter
A dirty filter reduces airflow, increases internal temperature, and can impair the normal operation of the furnace.
Poorly sealed ducts
Heat is produced, but some of the air is lost in the basement or mechanical space before reaching the rooms.
Mistakes to avoid with a central electric furnace
When an electric furnace seems less efficient, it can be tempting to turn up the thermostat significantly or repeatedly reset the circuit breaker. These actions do not fix the cause. They can even hide a more serious problem or increase the strain on certain components.
You should avoid:
- Modifying the thermostat wiring without diagnosis.
- Forcing prolonged cycles if the air remains warm.
- Neglecting a very dirty filter.
- Leaving closed grilles in several rooms.
- Ignoring an electrical smell or unusual noise.
- Assuming the device must be replaced without testing the components.
A targeted repair can often give several more years of use to an electric furnace when the device's overall structure is still sound.
A complete diagnosis before recommending a replacement
In this case, a complete furnace replacement was not necessary. The fan was working, the device's structure was usable, and the failure was related to a specific control component. A targeted intervention restored heating capacity without requiring a major replacement.
At AirGreen, we always prioritize a complete system analysis. For a central electric furnace, this means checking both the electrical part and the air circulation, ducts, protections, and thermostat behavior. A good repair should improve comfort but also strengthen the equipment's reliability.
When to request a service call for an electric furnace?
A service call is recommended as soon as any of the following signs appear:
- The blown air is less warm than before.
- The house takes too long to reach the set temperature.
- The fan runs, but the heating seems weak.
- The cycles are much longer.
- Some parts become cold despite the system running.
- A circuit breaker trips.
- An overheating smell appears.
- The thermostat calls for heat, but the temperature does not rise.
A quick intervention can prevent a complete breakdown during a cold period, especially when a single component starts to fail.
A useful, concrete, and durable HVAC repair in Pierrefonds-Roxboro
This repair of a Carrier electric furnace in Pierrefonds-Roxboro demonstrates the importance of a structured diagnosis. The system did not require immediate replacement, but it needed a precise correction to regain its full capacity.
The result: a more stable central heating system, better blow temperature, more efficient cycles, and a customer reassured about the overall condition of their installation. For residences in Montreal, Laval, Longueuil, the North Shore, and the South Shore, this type of intervention often represents the best approach: identify the real cause, repair properly, and optimize the operation of the central system.
